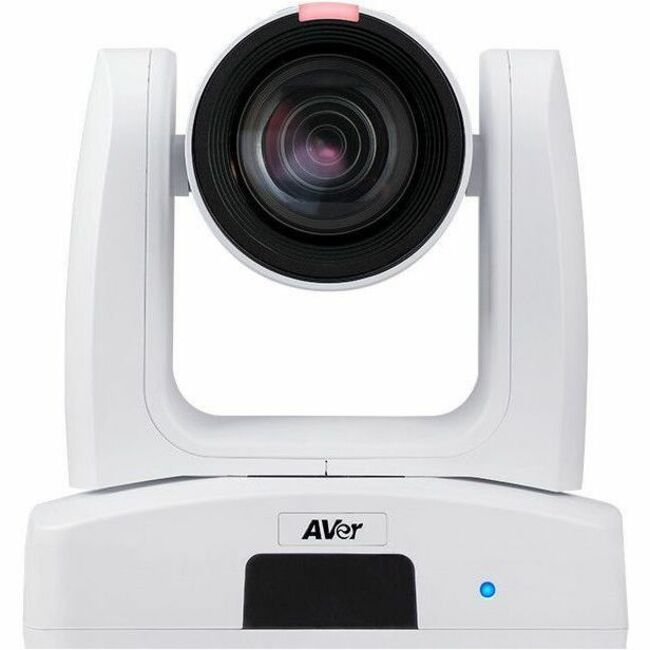

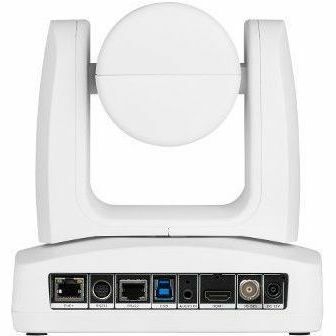

AVer TR211 2 Megapixel Indoor Full HD Network Camera - Color

Part No. PATR211V3

by AVer Information Inc

AVer TR211 2 Megapixel Indoor Full HD Network Camera - Color

H.264, H.265, MJPEG - 1920 x 1080 - 3.9 mm (0.15")- 46.8 mm (1.84") Varifocal Lens - 12x Optical - 60 fps - Exmor CMOS - Gigabit Ethernet - USB - HDMI - Ceiling Mount - Audio Support - Auto Tracking, Back Light Compensation (BLC), Wide Dynamic Range, Auto Gain Control, Noise Reduction, Mirror, 2D Noise Reduction, 3D Noise Reduction, White Balance, PTZ

Part No. PATR211V3

by AVer Information Inc

$2831.99
General Information
ManufacturerAVer Information Inc
Manufacturer Part NumberPATR211V3
Brand NameAVer
Product ModelTR211
Product NameAI Auto Tracking PTZ Camera
Marketing Information

Exceptional Video Quality with Zero Compromises

The AVer TR211 AI Auto Tracking Camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 12X optical zoom, powerful 8MP camera and 1080p 60fps resolution offer the range and picture quality to produce the highest quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator. The TR211 is built on a new platform to provide improved performance that will enable AVer to continue to innovate. You can expect faster firmware upgrade, boot times, video initialization, and improved performance compared to previous model (TR311HWV2).

With PoE+, SRT, SDI, LAN, USB type B to PC, RS232, HDMI-Out, AVer control and management software, and compatibility with all popular video platforms, you have all you need to connect with ease in any environment.

Our industry-leading AVerCare warranty program offers 5-year protection and 24-hour replacement to give you total peace of mind.

Harness the Magic of NDI/HX3

Includes the most recent edition of the NDI protocol is NDI®version 3 (NDI®|HX3). Features 4Kp60 NDI output with latency less than 100ms.

Presenter tracking

Capture every interaction

Either track full body or half body

Simple click to track and manually follow an additional presenter via remote control or Web UI


Zone tracking

Establish preset zones

Create video focused on content

Enhance the capture of content on multiple displays

Hybrid mode

Camera auto switch between Presenter vs Zone mode

Combines the best features of Presenter and Zone mode

Flexibility of tracking presenter freely or fixed content

Product TypeNetwork Camera
Technical Information
Recording FormatsFull HD
HD RecordingYes
Camera Iris
  • Auto
  • Manual
AI-poweredYes
Display & Graphics
Image Sensor TypeExmor CMOS
Image Sensor Size1/2.8"
Color SupportedColor
Field of ViewDFOV : 80.6° (Wide) to 7.7° (Tele) HFOV : 72.8° (Wide) to 6.7° (Tele) VFOV : 44.1° (Wide) to 3.8° (Tele)
Effective Camera Resolution2 Megapixel
Video
Video Formats
  • H.264
  • H.265
  • MJPEG
Maximum Video Resolution1920 x 1080
Maximum Frame Rate60 fps
Analog Video Signal Format3G-SDI
Audio
Audio SupportYes
Lens
Lens TypeVarifocal
Minimum Focal Length3.9 mm (0.15")
Maximum Focal Length46.8 mm (1.84")
Lens IncludedYes
Minimum Aperturef/2.8
Maximum Aperturef/1.6
Optical Zoom12x
Exposure
Shortest Shutter Speed1/10000 Second
Longest Shutter Speed1/1 Second
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyGigabit Ethernet
Protocols
  • IPv4
  • TCP
  • UDP
  • ARP
  • ICMP
  • IGMP
  • HTTP
  • HTTPS
  • DHCP
  • RTP/RTCP
  • RTSP
  • RTMP
  • LLDP
  • VISCA over IP
Remote ManagementYes
Interfaces/Ports
USBYes
HDMIYes
Network (RJ-45)Yes
Power Description
Maximum Power Consumption18 W
Input Voltage12 V
Power Source TypePoE+
Physical Characteristics
Mount TypeCeiling Mount
Height7.56" (192 mm)
Width7.09" (180 mm)
Depth5.71" (145 mm)
Environmental Conditions
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Minimum Storage Temperature-4°F (-20°C)
Maximum Storage Temperature140°F (60°C)
Minimum Operating Humidity20%
Maximum Operating Humidity80%
Minimum Storage Humidity20%
Maximum Storage Humidity95%
Miscellaneous
Features
  • Auto Tracking
  • Back Light Compensation (BLC)
  • Wide Dynamic Range
  • Auto Gain Control
  • Noise Reduction
  • Mirror
  • 2D Noise Reduction
  • 3D Noise Reduction
  • White Balance
  • PTZ
Indoor/OutdoorIndoor
Package Contents
  • AI Auto Tracking PTZ Camera
  • Remote Control
  • RS-232 In/Out Cable
  • Din 8 To D-Sub 9 Cable
  • Power Adapter
  • Power Cord
  • 4 x Cable Ties
  • 3 x M2 x 4 mm Screws
  • 3 x M3 x 6 mm Screws
  • 2 x 1/4'-20L 6.5mm Screws
  • Cable Fixing Plate
  • 2 x Ceiling Mount Brackets
  • Drilling Paper
  • Quick Start Guide
TAA CompliantYes
ConditionNo
UPC848090010062
Warranty
Limited Warranty5 Year
Additional Warranty Information

Accessories 1 year
