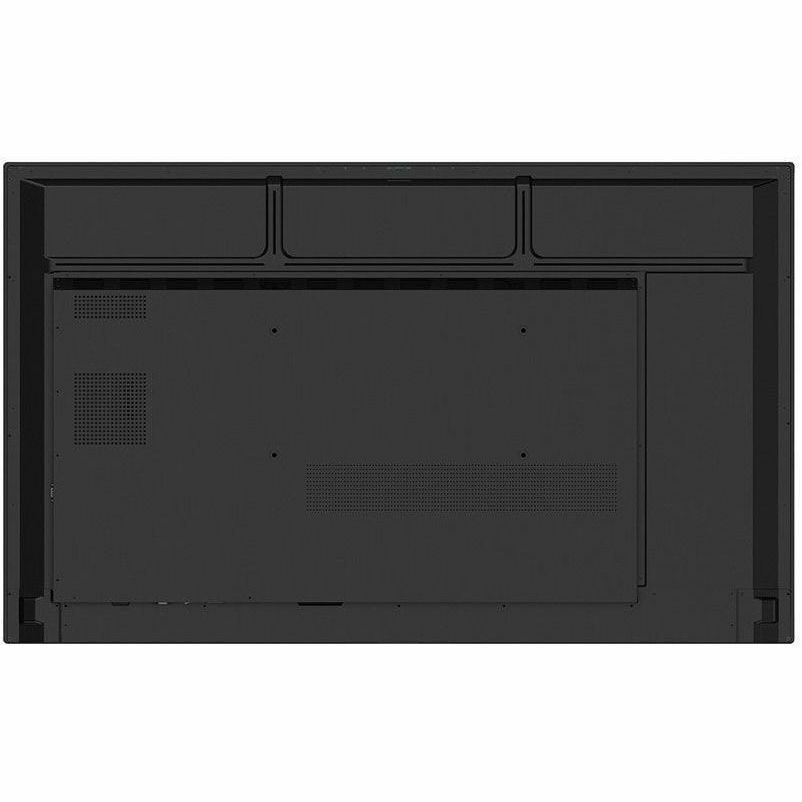

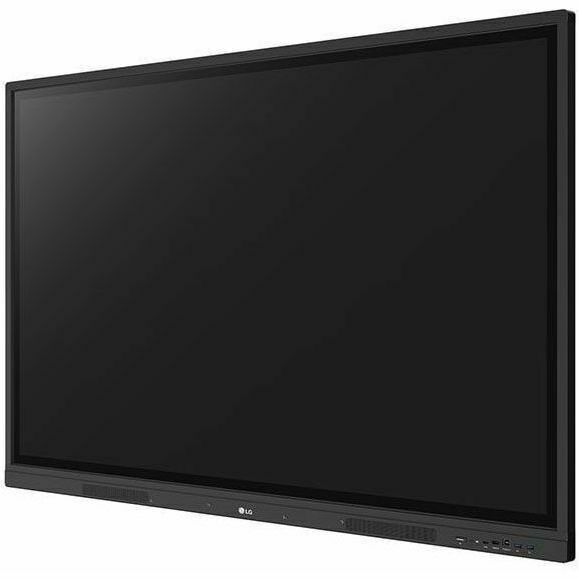

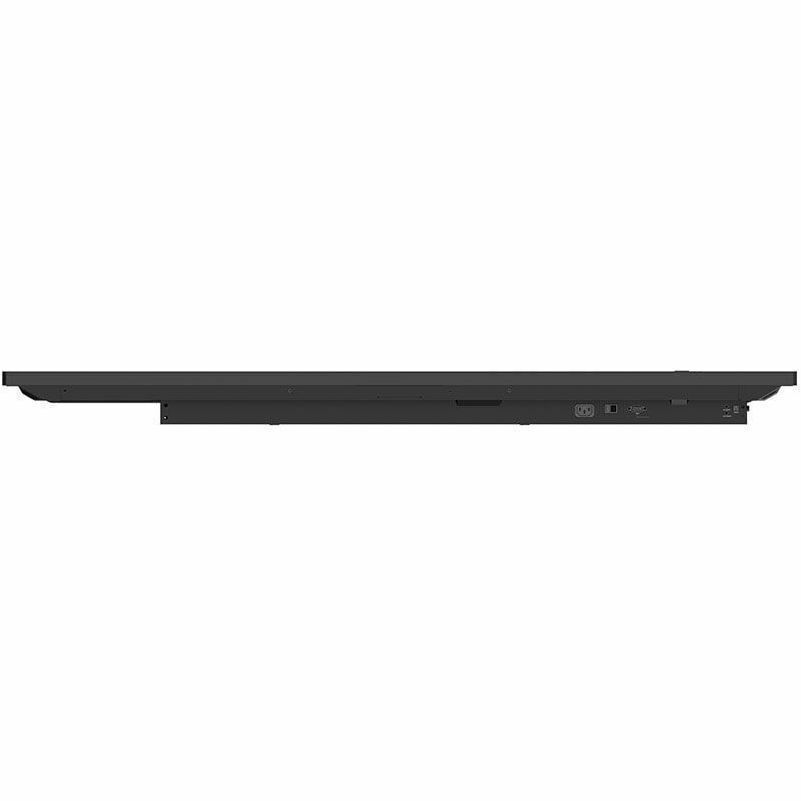

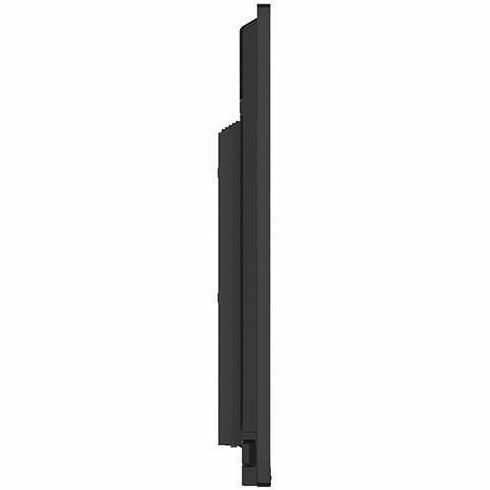

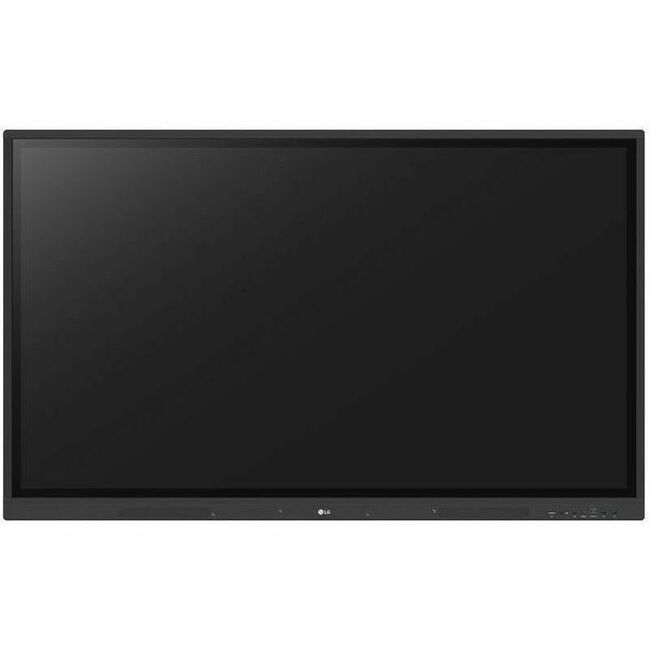

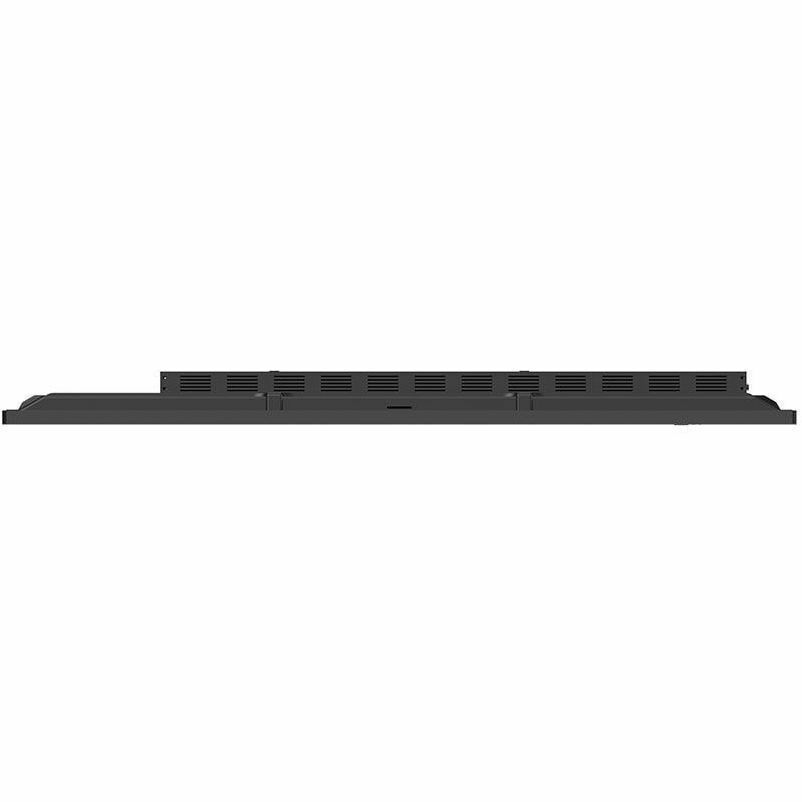

LG CreateBoard 98TR3DK-B Collaboration Display
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 98TR3DK-B |
| Brand Name | LG |
| Product Line | CreateBoard |
| Product Model | 98TR3DK-B |
| Product Name | CreateBoard 98TR3DK-B Collaboration Display |
| Marketing Information | Ready to Create? LG CreateBoard™ Lab offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes. Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through connected cloud devices. Multi-touch LG CreateBoard™ can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. Wireless ScreenShare LG CreateBoard™ Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard™ Share app is installed on the device. Files from the host can be easily sent to any devices connected to the LG CreateBoard™ Share app. Ready to Manage with LG ConnectedCare DMS LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites. Wireless Bluetooth Connectivity & Built-in Speakers LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. The CreateBoard has built-in forward facing speakers that provide exceptioanl sound throughout a classroom. Easily Connect with USB-Type C™ USB-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable. Built-in OPS Slot LG CreateBoard™ supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard™ without the hassle of connecting to an external desktop, offering you more expanded functions. Smart Viewing The Smart Viewing feature of LG CreateBoard™ enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode). QR Login for Easy Cloud Access The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard™ including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect. Front Connectivity Design LG CreateBoard™ features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered. Screen Lock Teachers can lock the screen using the Screen Lock function, and unlock it by entering a password. Users can set the Screen Lock in the Settings menu to protect the device from unidentified users. Secure Mode LG CreateBoard supports Secure Mode that disables the LG CreateBoard Share function to prevent unauthorized content from being shown on various devices. USB Lock Mode USB Lock Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential when being used in spaces where security is critical. Auto-remove Files Users can set LG CreateBoard to delete files regularly for enhanced security. |
| Product Type | Collaboration Display |
| Maximum Heat Generation | 2268.4 kJ |
| Typical Heat Generation | 1656.4 kJ |
| Surface Hardness | 5H |
| Protection Glass Transmission | 87% |
| Features |
|
| Display Screen Type | LCD |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 12 ms |
| Color Supported | 1.07 Billion Colors |
| Color Depth | 10-bit |
| Contrast Ratio | 50,000:1 |
| Display Orientation | Landscape |
| Brightness | 390 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Model | Mail G52 Multicore 2 |
| Standard Refresh Rate | 60 Hz |
| On Screen Display (OSD) Languages |
|
| Panel Life | Up to 30000 Hours |
| Operation Hours | 167 Hours |
| Color Gamut | 72% NTSC |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 20 |
| Touchscreen Technology | Infrared (IrDA) |
| Touch Accuracy | 59.06 mil (1.50 mm) |
| Processor Manufacturer | ARM |
| Processor Type | Cortex A73 |
| Processor Core | Quad-core (4 Core) |
| Standard Memory | 4 GB |
| Flash Memory Capacity | 32 GB |
| Speakers | Yes |
| Number of Speakers | 2 |
| RMS Output Power | 16 W |
| Ethernet | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 4.0 |
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type-C (Power Delivery) Ports | 1 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Number of VGA Ports | 1 |
| VGA | Yes |
| Serial | Yes |
| S/PDIF Out | Yes |
| Digital Audio Optical Out | Yes |
| Operating System Platform | Android |
| Operating System |
|
| Software Included | Yes |
| Input Voltage |
|
| Power Consumption | 630 W |
| Standby Power Consumption | 500 mW |
| Typical Power Consumption | 460 W |
| Bezel Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 600 |
| Bezel Width (Bottom) | 1.75" (44.50 mm) |
| Bezel Width (Left) | 1.05" (26.60 mm) |
| Bezel Width (Right) | 1.05" (26.60 mm) |
| Bezel Width (Top) | 1.17" (29.60 mm) |
| Height | 52.10" (1323.34 mm) |
| Width | 88.40" (2245.36 mm) |
| Depth | 3.50" (88.90 mm) |
| Weight (Approximate) | 228.40 lb (103600.50 g) |
| Package Contents | 98TR3DK-B Collaboration Display 1 x Power Cord 3 M 1 x USB Cable (Type A-Type B) 5 M 1 x HDMI Cable 3 M 2 x Writing Pen User Manual QSG Carton Box Remote Control |
| Additional Information | |
| Certifications & Standards | CE_Regulatory, FCC_Regulatory EMC Class A |
| Country of Assembly | China |
| TAA Compliant | No |
| Environmental Certification | ErP |
| Condition | No |
| UPC | 195174076330 |
| Limited Warranty | 3 Year |
