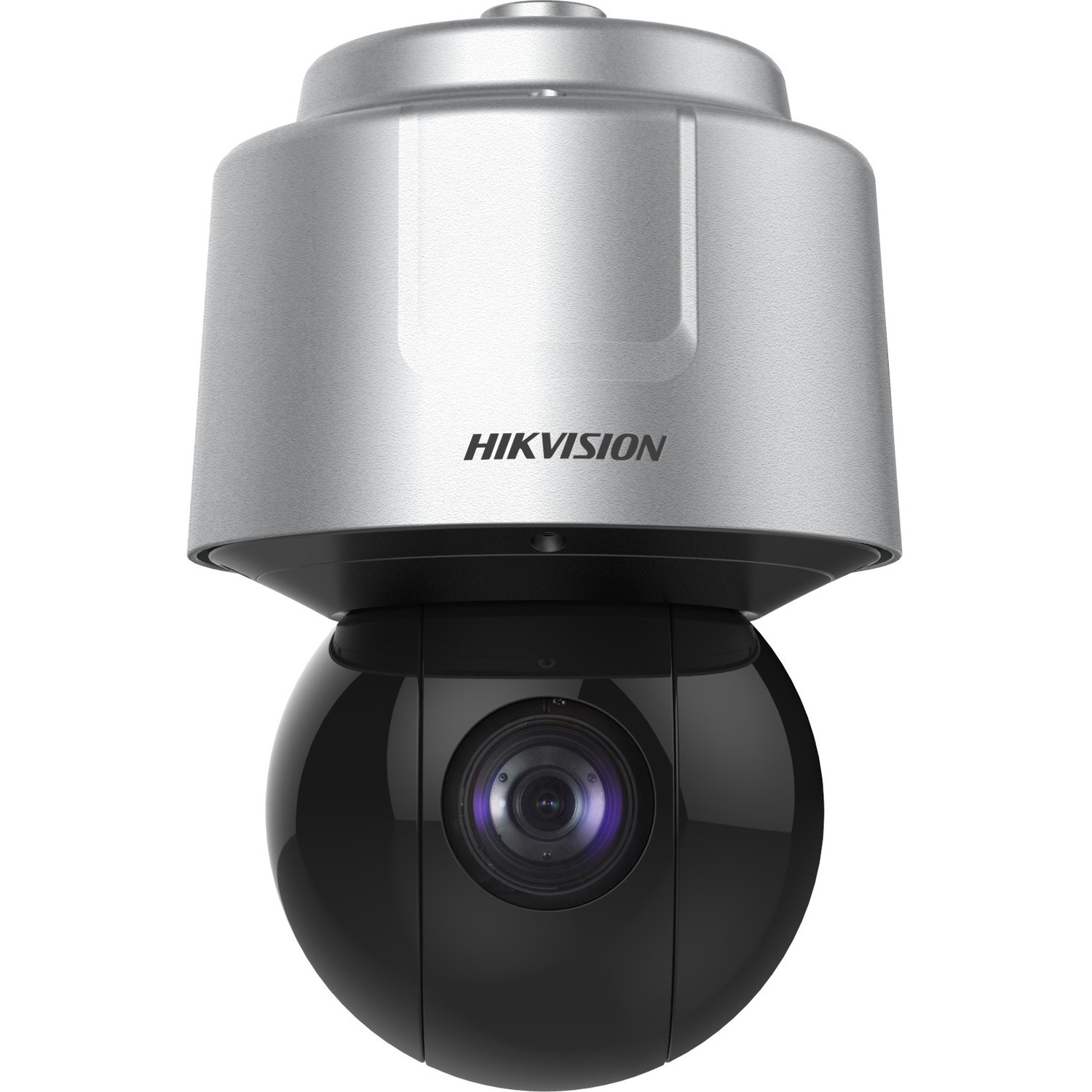

Hikvision Ultra DS-2DF6A436X-AEL(T5) 4 Megapixel Network Camera - Color - Dome
H.265, H.264, MJPEG, H.265+, H.264+, H.265 (MP), H.264 BP, H.264 (MP), H.264 HP - 2560 x 1440 - 6 mm- 216 mm Varifocal Lens - 36x Optical - 30 fps - CMOS - Corner Mount, Pole Mount, Pendant Mount, In-ceiling, Vertical Mount, Horizontal Mount - IK10 - IP67 - Water Resistant, Dust Proof, Vandal Proof
$2920.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Hikvision |
| Manufacturer Part Number | DS-2DF6A436X-AEL(T5) |
| Brand Name | Hikvision |
| Product Line | Ultra |
| Product Model | DS-2DF6A436X-AEL(T5) |
| Product Name | 4 MP 36× Network Speed Dome |
| Marketing Information | Hikvision DS-2DF6A436X-AEL(T5) 4MP 36× Network Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 36× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc. |
| Product Type | Network Camera |
Technical Information
| HD Recording | Yes |
Display & Graphics
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | Horizontal field of view: 56.6° to 1.7° (wide-tele), Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| Effective Camera Resolution | 4 Megapixel |
Video
| Video Formats |
|
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Video Signal Format |
|
Lens
| Lens Type | Varifocal |
| Minimum Focal Length | 6 mm |
| Maximum Focal Length | 216 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.2 |
| Optical Zoom | 36x |
Exposure
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/1 Second |
Network & Communication
| Connectivity Technology | Wired |
| Remote Management | Yes |
Storage
| Storage Type | Memory Card |
Interfaces/Ports
| Network (RJ-45) | Yes |
Power Description
| Input Voltage | 24 V AC |
| Power Source Type |
|
Physical Characteristics
| Mount Type |
|
| Form Factor | Dome |
| Durability |
|
| Diameter | 9.10" (231.10 mm) |
| Weight (Approximate) | 6 kg |
Environmental Conditions
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Maximum Operating Humidity | 95% |
Miscellaneous
| Features |
|
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Condition | No |
| UPC | 842571117264 |
