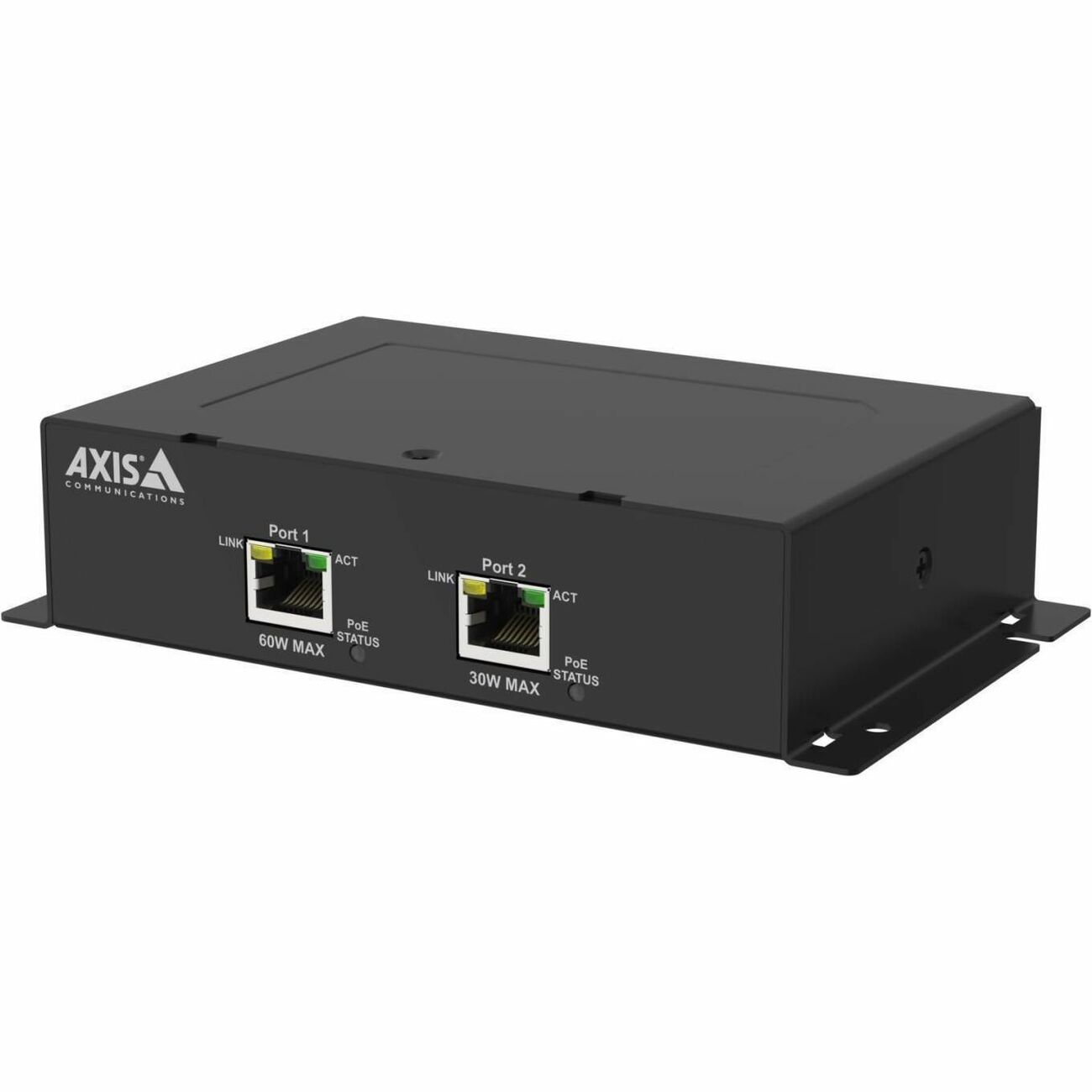

AXIS TU8010 PoE Extender 2-port

1 x RJ-45 Input Port(s) - 2 x RJ-45 Output Port(s) - 90 W - Black

Part No. 02726-001

$352.99

Specifications
Options & Accessories (9)

General Information

Manufacturer	Axis Communications
Manufacturer Part Number	02726-001
Brand Name	AXIS
Product Model	TU8010
Product Name	TU8010 PoE Extender 2-port
Marketing Information	Ideal for installations where it's difficult to add power, this PoE extender connects to existing infrastructure and offers an easy way to extend PoE connectivity with up to 100 m range. It can power up two 30 W devices or one 60 W. Extend your system This PoE extender can extend the connection between your PoE switch and a 60 W Axis device supporting IEEE 802.3bt up to 100 m (328 ft). It offers flexible installation, and it can be placed in areas where plenum rating is required. Furthermore, this PoE Extender can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F). When installed in an IP66-rated Axis surveillance cabinet it becomes weatherproof and vandal resistant. Expand your system With AXIS TU8010 you can also connect two 30 W Axis devices, reducing costs and installation time, as well as minimizing port usage in the switch. Furthermore, this PoE Extender requires 90 W IEEE 802.3bt Type 4 Class 8.
Product Type	PoE Extender

Power Description

Maximum Output Power	90 W

Interfaces/Ports

Input Ports	1 x RJ-45
Output Ports	2 x RJ-45

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Wall/Ceiling/Cabinet/DIN Rail Mountable
Height	1.46" (37 mm)
Width	5.43" (138 mm)
Depth	3.86" (98 mm)
Weight (Approximate)	1.21 lb (550 g)

Miscellaneous

Package Contents	TU8010 PoE Extender 2-port Installation Guide
Compatibility	Axis Products: P8815-2 3D People Counter D4100-E Network Strobe Siren M1055-L Box Camera M1075-L Box Camera M1135 Mk II Box Camera M1135-E Mk II Box Camera M1137 Mk II Box Camera M1137-E Mk II Box Camera P1385 Box Camera P1387 Box Camera P1388 Box Camera M2035-LE Bullet Camera P1455-LE Network Camera P1465-LE Bullet Camera P1467-LE Bullet Camera P1468-LE Bullet Camera M3077-PLVE Network Camera M3085-V Dome Camera M3115-LVE Network Camera M3215-LVE Dome Camera M3216-LVE Dome Camera M3905-R Dome Camera M4215-LV Dome Camera M4215-V Dome Camera P3255-LVE Dome Camera P3265-LV Dome Camera P3265-LVE Dome Camera P3267-LV Dome Camera P3267-LVE Dome Camera P3268-LV Dome Camera P3268-LVE Dome Camera P3268-SLVE Dome Camera P3818-PVE Panoramic Camera https://www.axis.com/products/axis-tu8010-2-port-poe-extender#technical-specifications
Certifications & Standards	IEEE 802.3bt IP66 CE UL UKCA IEEE 802.3at IEEE 802.3af IEEE 802at IEEE 802bt cUL KC VCCI RCM NOM C BSM EN 55035 EN 55032 Class A EN 50121-4 EN 61000-6-1 EN 61000-6-2 EN 61000-6-4 FCC Part 15 Subpart B Class A BSMI-mark CAN/CSA C22.2 No. 62368-1 ed. 3 IEC/EN/UL 62368-1 ed. 3 KC-mark NOM-001 UL 2043 (plenum rated)
Environmental Compliance	Taiwan Restriction of Hazardous Substances (Taiwan RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	7331021082571

Warranty

Limited Warranty	3 Year
