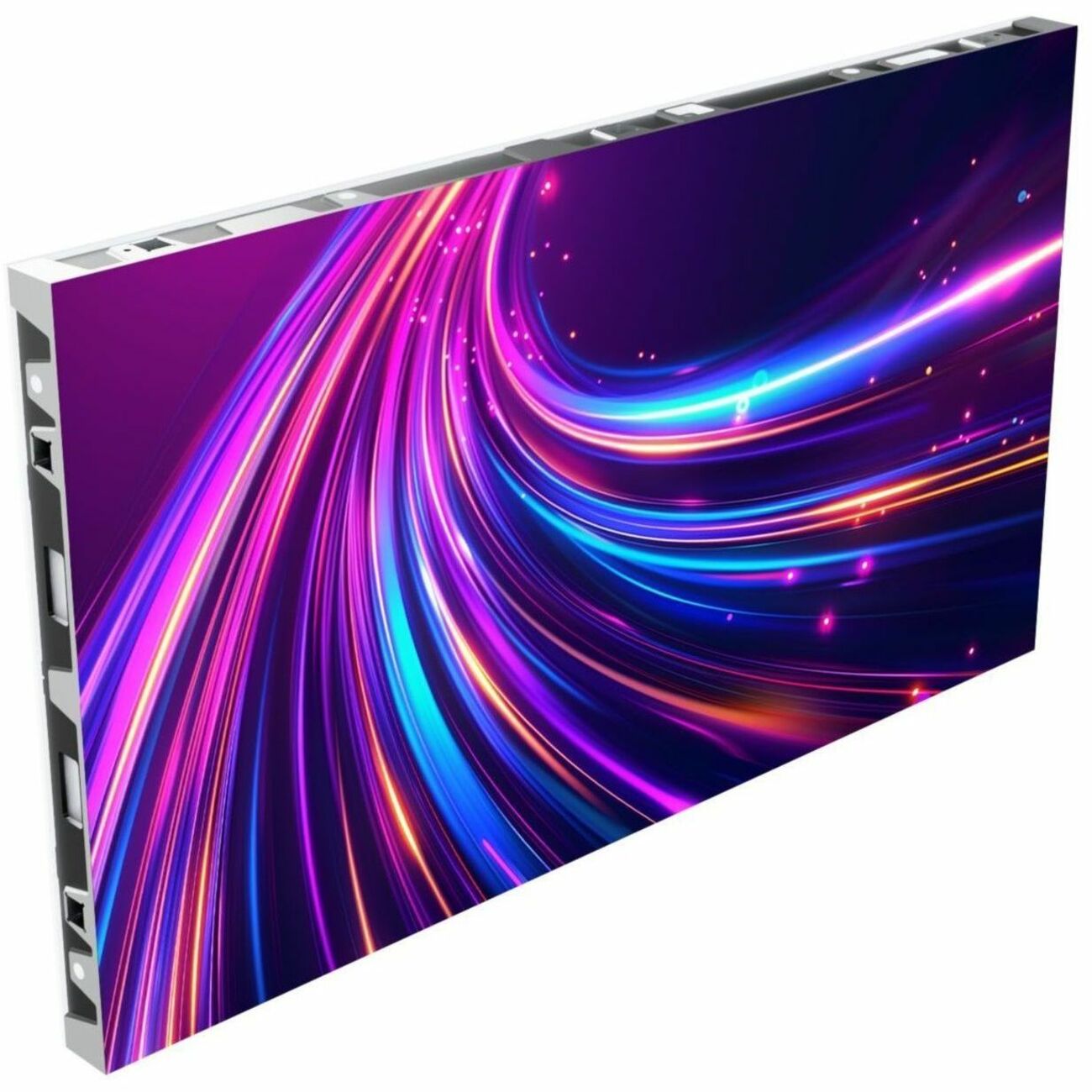

Philips Signage Solutions LED Display Philips Unite LED 5000 Panels

Part No. 27HDL5118IP/00

by Philips Electronics

Philips Signage Solutions LED Display Philips Unite LED 5000 Panels

27.10" (688.34 mm) LCD - Direct View LED - 600 cd/m²Ethernet

Part No. 27HDL5118IP/00

by Philips Electronics

$1136.99
General Information
ManufacturerPhilips Electronics
Manufacturer Part Number27HDL5118IP/00
Brand NamePhilips
Product LineUnite
Product Series5000
Product Model27HDL5118IP
Product NameSignage Solutions LED Display Philips Unite LED 5000 Panels
Marketing Information

Philips Unite LED 5000 Series panels

Your essential range of investment-friendly flip chip COB panels delivering on quality, resolution, and reliability, as well as efficiency. With low power consumption for reduced cost of ownership and an easy-to-maintain flat matt surface.

Philips Unite LED 5000 Series panels

Quality. Style. Accessibility. Without compromise.

  • Direct View LED

Greater stability and reliability, plus higher definition.

Delivering on greater stability, reliability and visual performance, as well as enabling smaller pixel pitches for darker blacks, higher brightness, higher contrast and higher definition.

Supporting sustainability and energy savings.

Common cathode technology boosts the energy efficiency of the P0.78, P0.93, P1.25, P1.5 and P1.875 Philips LED Unite 5000 Series panels, optimising power consumption without compromising on performance. This cool LED technology enables precise control over each cathode, minimising heat output, to ensure the display is more energy conscious and, ultimately, more environmentally friendly.

Prewired for power, with loop through for data included.

The Philips LED Unite 5000 Series comes with a rolling ripple exterior cabinet design and pre-wired for power for the tidiest cable management. Optional edge finishing is available in brushed anodised aluminium, with easy click functionality for fast installation.


Product TypeDigital Signage Display
Technical Information
Maximum Heat Generation1216.5 kJ
Display & Graphics
Viewable Screen Size27.10" (688.34 mm)
Display Screen TypeLCD
Pixel Pitch73.82 mil (1.88 mm)
Backlight TechnologyDirect View LED
Module Resolution80 x 90
Maximum LED Life11.4 Year
Video
Dynamic Contrast Ratio5,000:1
Color Depth13-bit
Brightness600 cd/m²
Network & Communication
EthernetYes
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Environmental Conditions
Minimum Operating Temperature14°F (-10°C)
Maximum Operating Temperature113°F (45°C)
Minimum Storage Temperature-40°F (-40°C)
Maximum Storage Temperature140°F (60°C)
Physical Characteristics
Height13.29" (337.50 mm)
Width23.62" (600 mm)
Depth1.32" (33.60 mm)
Weight (Approximate)10.36 lb (4700 g)
Miscellaneous
Application/UsageIndoor
ConditionNo
UPC810112791921
