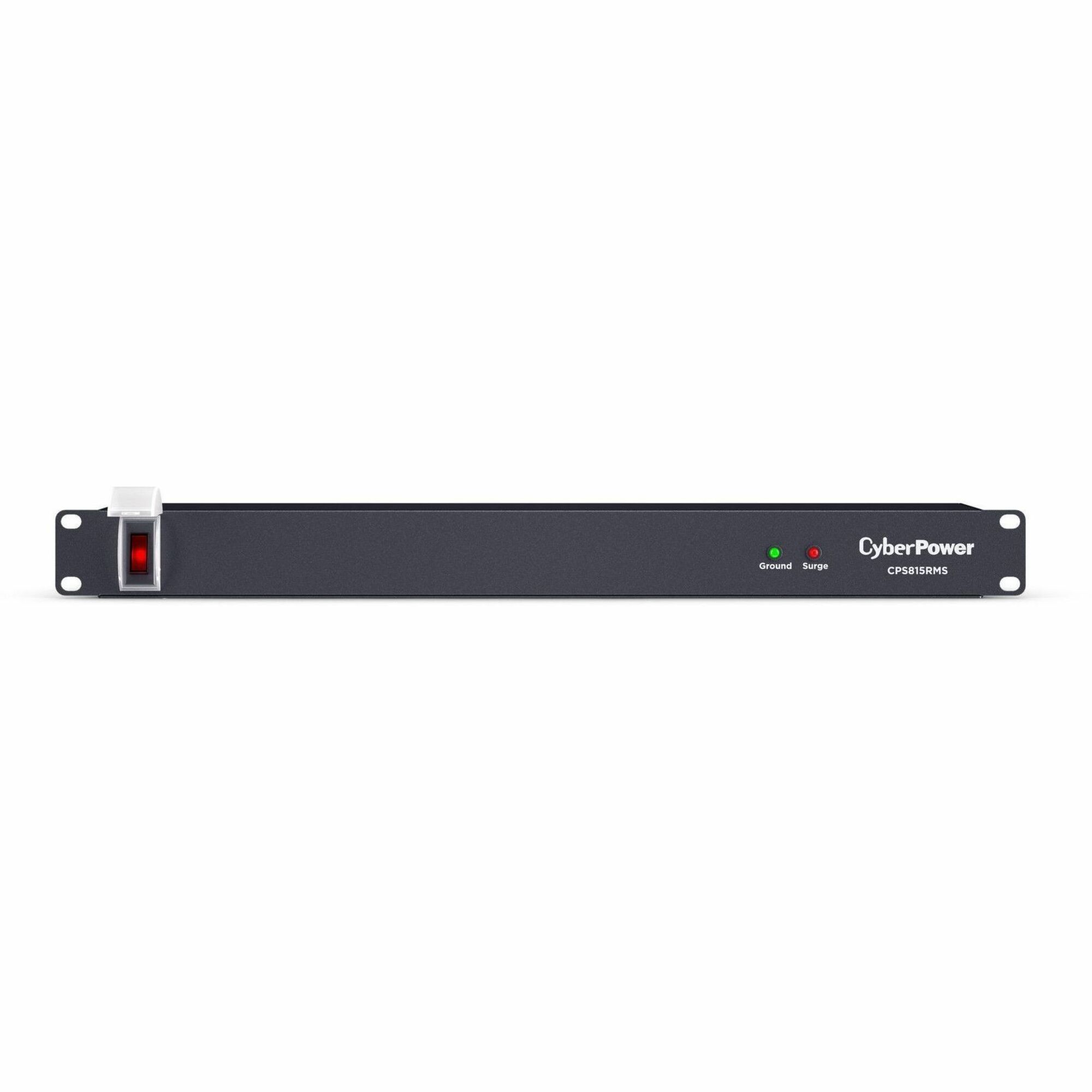

CyberPower CPS815RMS Rackbar 8 - Outlet Surge Protector with 1800 J Surge Suppression

Clamping Voltage 600V, 6 ft Cord, NEMA 5-15P, Straight, 15 Amp, EMI/RFI Filtration, Black, 3YR Warranty

Part No. CPS815RMS

by CyberPower Systems, Inc

$75.99

Specifications

General Information

Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CPS815RMS
Brand Name	CyberPower
Product Series	Rackbar Surge
Product Model	CPS815RMS
Product Name	CPS815RMS
Marketing Information	Engineered for the most demanding applications, the professional-grade Rackbar CPS815RMS safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS815RMS also performs superbly for home office use, providing 1800 joules of protection, 15-Amp electrical capacity with circuit breaker, and 8 surge-protected outlets (rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS815RMS has a 1U racksize and can be mounted horizontally. Features of the CPS815RMS include an EMI/RFI noise filter, industrial-grade metal housing, AC power cord (6 ft.). The CPS815RMS also comes with a three-year limited warranty.
Product Type	Surge Suppressor/Protector

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacles	8 x NEMA 5-15R
Let Through Rating	UL1449
Features	Overload Protection

Power Description

Input Voltage	125 V AC
Output Voltage	125 V AC
Maximum Surge Current	90 kA
Surge Energy Rating	1800 J
Circuit Breaker	Yes
Clamp Voltage	600 V
Maximum Spike Voltage	6 kV AC

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	95°F (35°C)
Minimum Storage Temperature	5°F (-15°C)
Maximum Storage Temperature	113°F (45°C)

Physical Characteristics

Color Family	Black
Product Color	Black
Product Material	Metal
Power Cord/Cable Length	6 ft (1.83 m)
Form Factor	Rack-mountable
Rack Height	1U
Height	1.75" (44.45 mm)
Width	19" (482.60 mm)
Depth	4.60" (116.84 mm)
Weight (Approximate)	4.10 lb (1859.73 g)

Miscellaneous

Application/Usage	Network Device
Additional Information	Physical Dimensions - (WxHxD) (cm) : 48.26 x 4.45 x 11.68 (cm) Physical Dimensions - (WxHxD) (in) : 19 x 1.75 x 4.6 (in) Physical Dimensions - (WxHxD) (mm) : 483 x 44 x 117 (mm) Weight (kg) : 1.86 Weight (lb) : 4.1 Shipping Dimensions - (WxHxD) (cm) : 54.86 x 5.49 x 17.48 (cm) Shipping - Dimensions (WxHxD, in) : 21.6 x 2.16 x 6.88 (in) Shipping - Dimensions (WxHxD, mm) : 548.64 x 54.86 x 174.75 (mm) Shipping - Weight (kg) : 2.04 Shipping - Weight (lb) : 4.5 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Plug Type : NEMA 5-15P Maximum Input Current : 15A Nominal Input Voltage : 125 VAC Plug Style : Straight Switch : Lighted On/Off Nominal Output Voltage : 125 VAC Outlets - Rear : 8 Outlets - Total : 8 Outlet Type COMPUTED : 8 - NEMA 5-15R Overload Protection : 15A USB Charge Port : No Clamping Voltage : 600V (H-N, H-G, N-G) EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Surge Suppression (Joules) : 1800 J Clamping Voltage : 600V (H-N, H-G, N-G) EMI/RFI Filtration COMPUTED : 150 KHz Maximum Surge Current : 90000 A Maximum Surge Current H-G : 30000 A Maximum Surge Current H-N : 30000 A Maximum Surge Current N-G : 30000 A Maximum Surge Voltage : 6000 V Surge Suppression (Joules) : 1800 J Color : Black Cord Retention Tray/Cord Organizers : Yes Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U Operating Elevation : 0 - 9843 ft (0 - 3000 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 95 °F (0 - 35 °C) Storage Elevation : 0 - 49213 ft (0 - 14999 m) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Environmental : RoHS Compliant Safety : UL 1363, UL 1449 CEG Amount : $0 Connected Equipment Guarantee : No Product Warranty : 3 Year Limited Warranty
Certifications & Standards	UL 1363 UL 1449
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0649532936618

Warranty

Limited Warranty	3 Year
