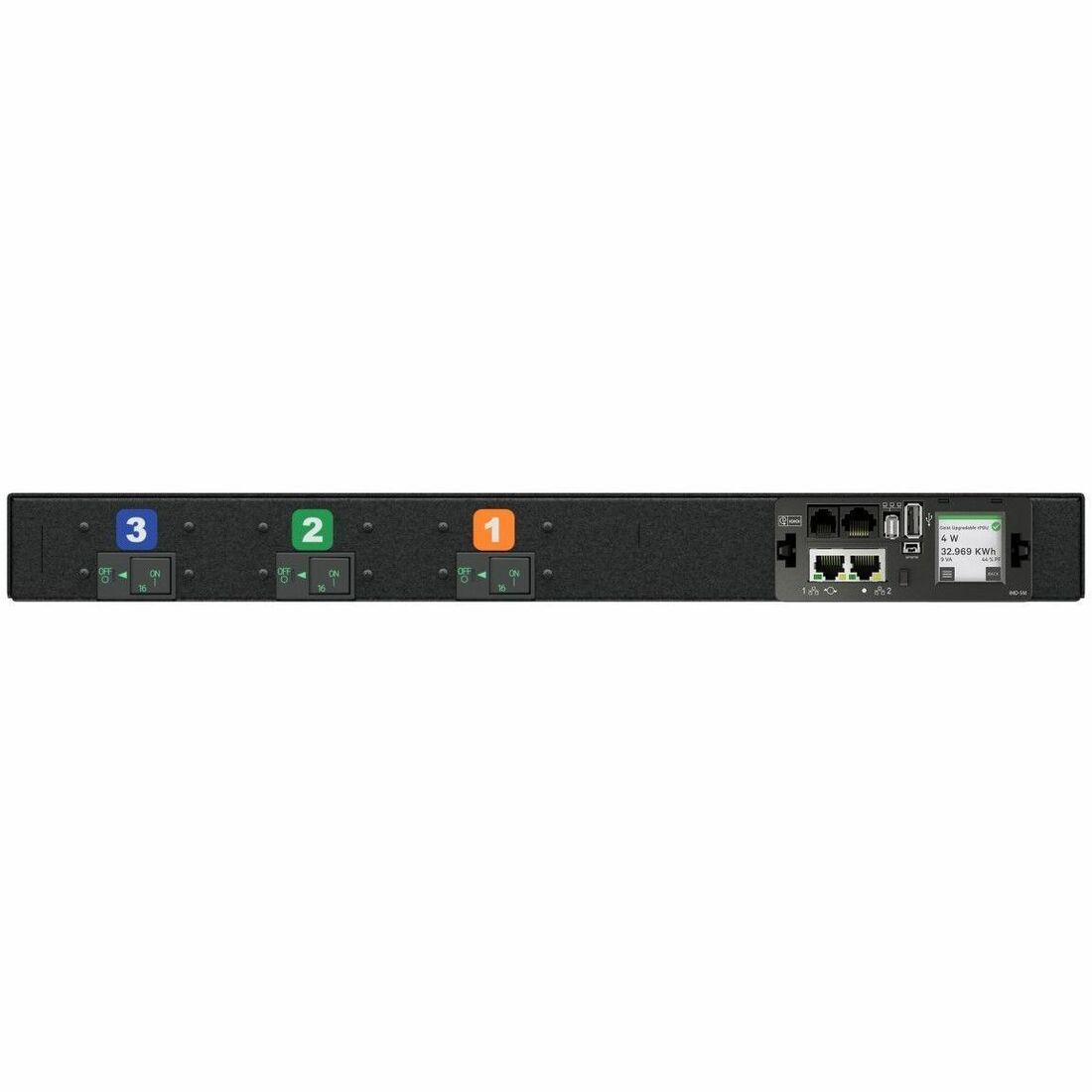

Vertiv Geist rPDU DU05M1R1-12CF17-1S02A9H00-S 12-Outlets PDU

Monitored - Universal Input - 12 x Combination C13/C19 - 230 V AC, 415 V AC - Overcurrent Protection, Double Pole - Network (RJ-45) - 1U - Horizontal - Rack-mountable, Recess-mountable

Part No. VP4UU1A0

by Vertiv

$2057.99

Specifications

General Information

Manufacturer	Vertiv
Manufacturer Part Number	VP4UU1A0
Brand Name	Vertiv Geist
Product Series	rPDU
Product Model	DU05M1R1-12CF17-1S02A9H00-S
Product Name	rPDU DU05M1R1-12CF17-1S02A9H00-S 12-Outlets PDU
Marketing Information	Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Benefits Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs. Every unit is 100% tested for reliability and functionality. Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Product Type	PDU

Technical Information

PDU Type	Monitored
Phase	Single Phase/Three Phase
Plug/Connector Type	Universal Input
Plug/Connector Detail	1 x Universal Input
Receptacle Type	Combination C13/C19
Receptacle Detail	12 x Combination C13/C19
Protection Type	Overcurrent Protection Double Pole
Features	LED Display Touch Screen Display
Load Capacity (Watt)	11 kW

Power Description

Input Voltage	230 V AC 415 V AC
Power Rating (Watt)	11 kW
Input Current	48 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Modbus TCP CSV datalog JSON API JSON datalog

Interfaces/Ports

Network (RJ-45)	Yes

Physical Characteristics

Color Family	Black
Product Color	Black Powder Coat
Mounting Orientation	Horizontal
Mount Type	Rack-mountable Recess-mountable
Rack Height	1U
Height	1.72" (43.69 mm)
Width	17" (431.80 mm)
Depth	9" (228.60 mm)

Environmental Conditions

Maximum Operating Temperature	140°F (60°C)

Miscellaneous

Application/Usage	IT Equipment
Certifications & Standards	CE Marked UKCA Marked FCC Part 15 Class A UL & c-UL Listed 62368-1
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Condition	No

Warranty

Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
