Planar URX85-ERO-T 85" 4K LCD Touch Display
85" (2159 mm) LCD - Touchscreen - High Dynamic Range (HDR) - 24 Hours/7 Days Operation - 3840 x 2160 - 16:9 - 8.50 ms - Direct LED - 630 cd/m² - 2160p - HDMI - USB - SerialEthernet
$19529.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Leyard |
| Manufacturer Part Number | 998-3171-01 |
| Brand Name | Planar |
| Product Line | UltraRes |
| Product Series | X |
| Product Model | URX85-ERO-T |
| Product Name | URX85-ERO-T 85" 4K LCD Touch Display |
| Marketing Information | The Planar® UltraRes™ X URX85-ERO-T is a TAA Compliant, 4K, HDR, professional 85" LCD touch display with on-board processing for viewing up to four content sources simultaneously. It offers an OPS slot for additional connectivity, and a redundant power supply. With the optional Planar® Profile™ Mounting System it can achieve ADA compliance. It also features Planar® ERO-LCD™ protection technology for use in high-traffic and public environments. It offers high brightness, superior color performance with exceptional 4K clarity and multi-point touch for applications ranging from interactive meeting spaces to high impact touch-based digital signage. |
| Product Type | Digital Signage Display |
Technical Information
| Bezel Width | 0.73" (18.60 mm) |

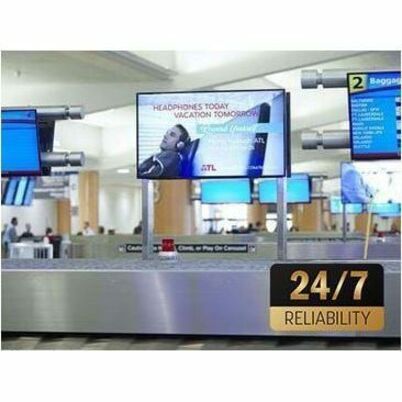

| Operation Hours | 24 Hours/7 Days |
Display & Graphics
| Number of Screens | 1 |
| Viewable Screen Size | 85" (2159 mm) |
| Display Screen Type | LCD |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 20 |
| Display Resolution | 3840 x 2160 |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type | HDR10 |
| Response Time | 8.50 ms |
| Pixel Pitch | 19.19 mil (0.49 mm) |
| Aspect Ratio | 16:9 |
| Backlight Technology | Direct LED |

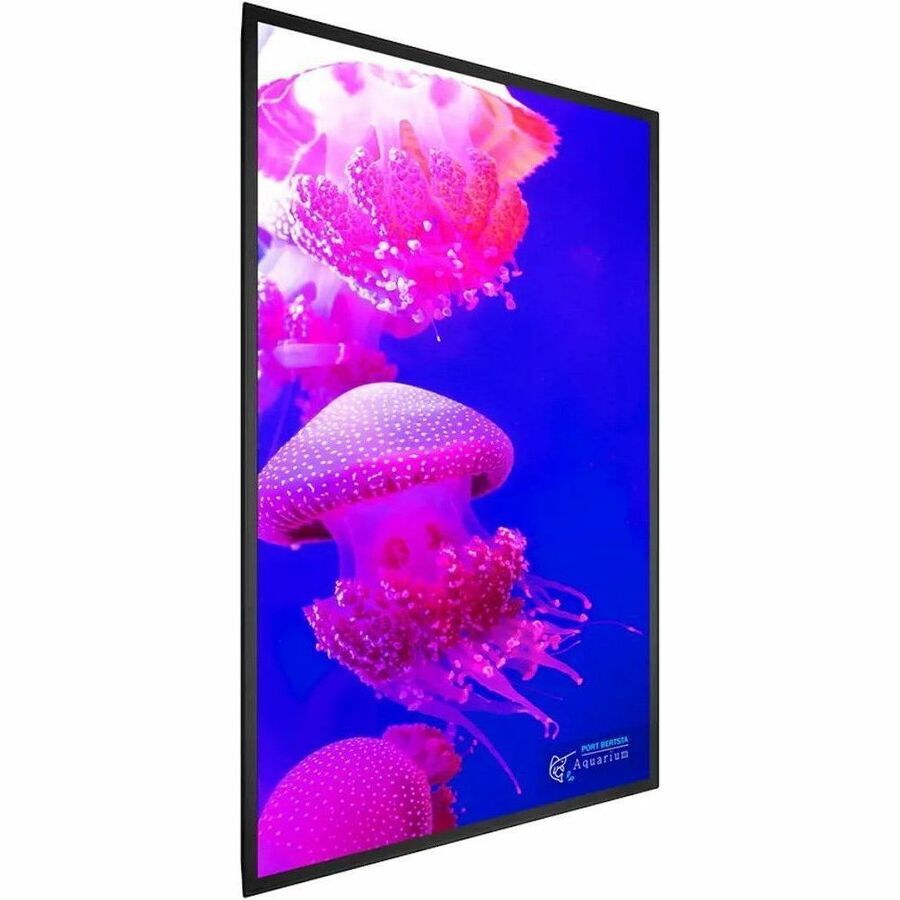

| Orientation | Landscape/Portrait |
| Maximum LED Life | 8 Year |
Video
| Scan Format | 2160p |
| Dynamic Contrast Ratio | 20,000:1 |
| Native Contrast Ratio | 4,000:1 |
| Color Depth | 10-bit |
| Brightness | 630 cd/m² |
| Color Gamut | 88% NTSC |
Network & Communication
| Ethernet | Yes |
| Wireless LAN | No |
Interfaces/Ports
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort Output | Yes |
| Number of HDMI 2.0 Ports | 2 |
| Number of DisplayPort 1.2 Ports | 1 |
| Number of DisplayPort Outputs | 1 |
Power Description
| Input Voltage |
|
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
Physical Characteristics
| VESA Mount Standard | 600 x 400 |
| Mount Type | Wall Mountable |
| Height | 44.75" (1136.60 mm) |
| Width | 76.99" (1955.60 mm) |
| Depth | 4.09" (103.80 mm) |
| Weight (Approximate) | 224.87 lb (102000 g) |
Miscellaneous
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| COO | US |
| Condition | No |
Warranty
| Limited Warranty | 3 Year |
