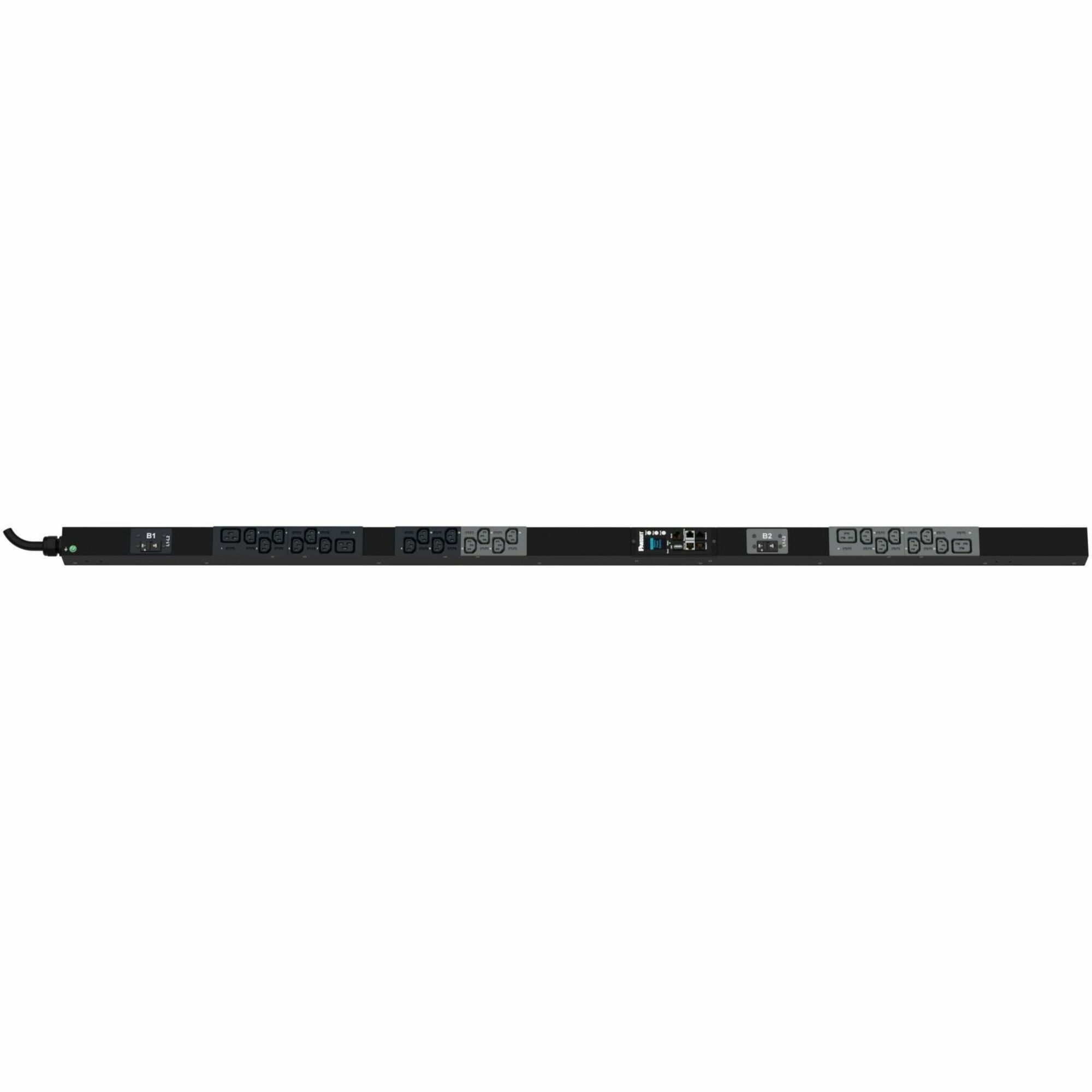

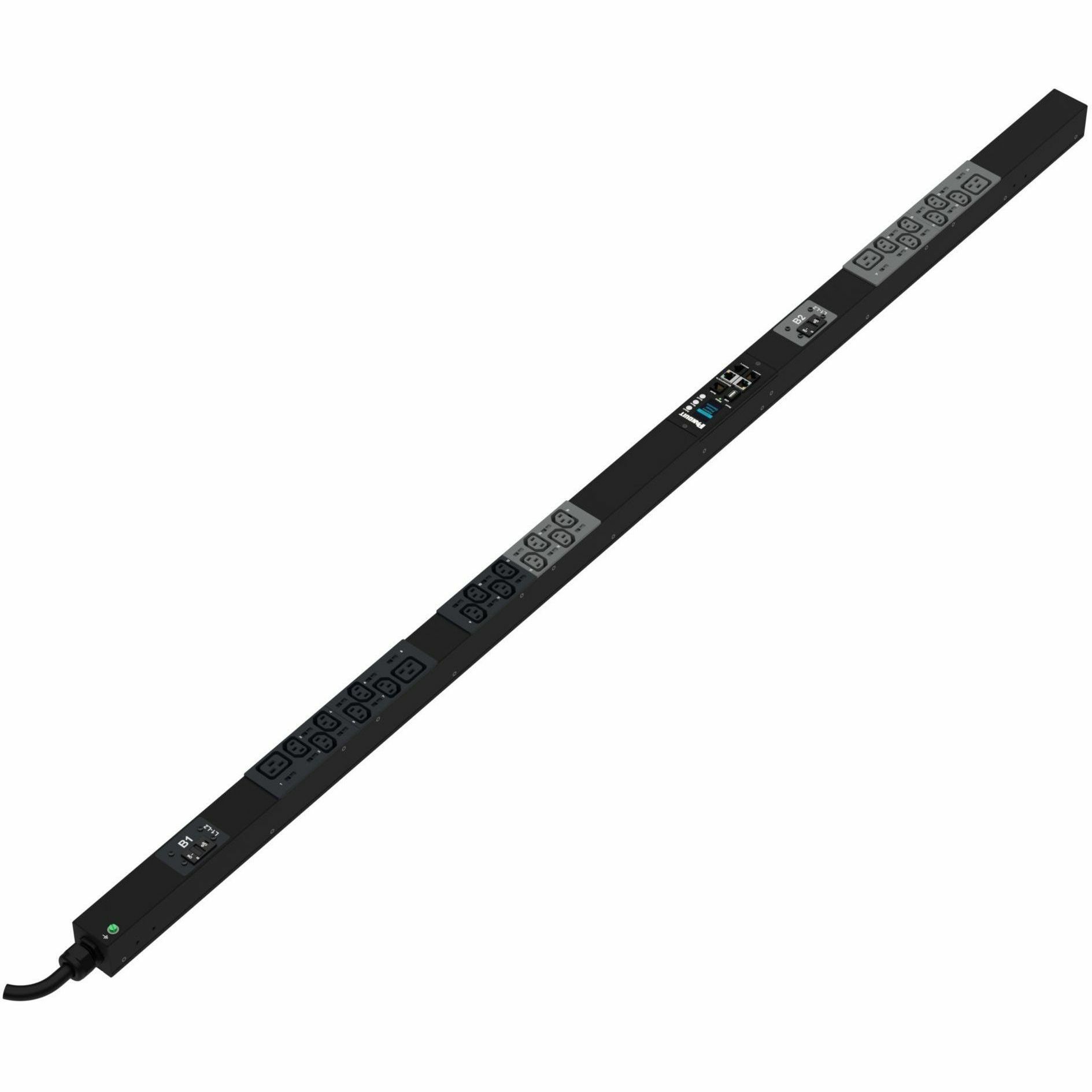

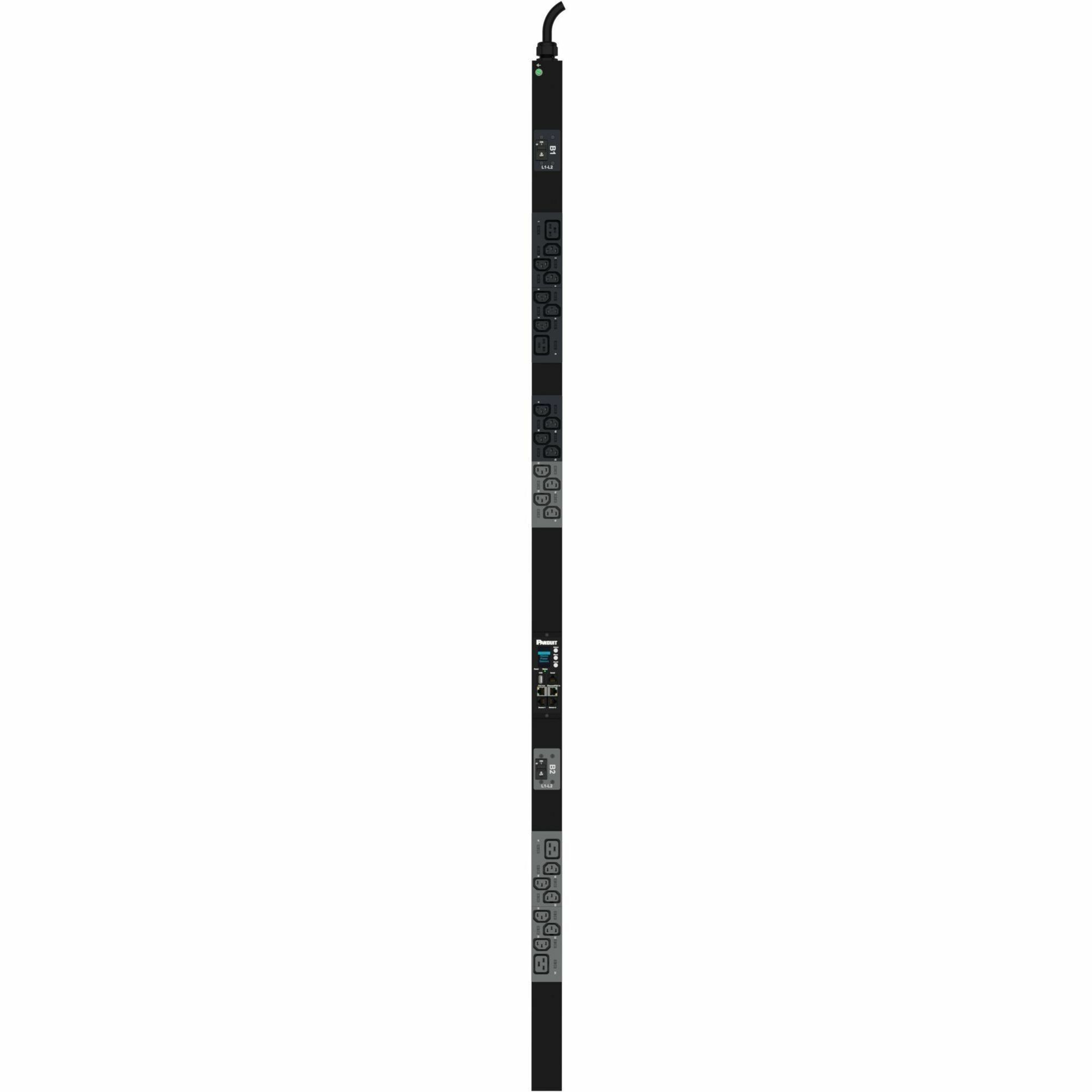

Panduit G6 24-Outlets PDU
Monitored - NEMA L6-30P - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 10 ft (3.05 m) Cord Length - 40U - Vertical - Rack-mountable
$4554.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P24F01G |
| Brand Name | Panduit |
| Product Series | G6 |
| Product Name | G6 24-Outlets PDU |
| Marketing Information | The Panduit™ G6 Monitored Per Outlet PDU features (20) C13 and (4) C19 outlets. It is a 30 amp, 208 V, single phase PDU with a NEMA L6-30P input plug and a 10 foot (3m) power cord. The PDU is black. |
| Packaged Quantity | 1 |
| Product Type | PDU |
Technical Information
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Features | Onboard Display |
| Load Capacity (Watt) | 5 kW |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 5 kW |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
Interfaces/Ports
| Network (RJ-45) | Yes |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 40U |
| Cord Length | 10 ft (3.05 m) |
| Height | 69" (1752.60 mm) |
| Width | 2" (50.80 mm) |
| Depth | 2.10" (53.34 mm) |
Environmental Conditions
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 24.8°F (-4°C) |
| Maximum Storage Temperature | 284°F (140°C) |
Miscellaneous
| Package Contents |
|
| Application/Usage |
|
| Certifications & Standards |
|
| Condition | No |
Warranty
| Limited Warranty | 3 Year |
