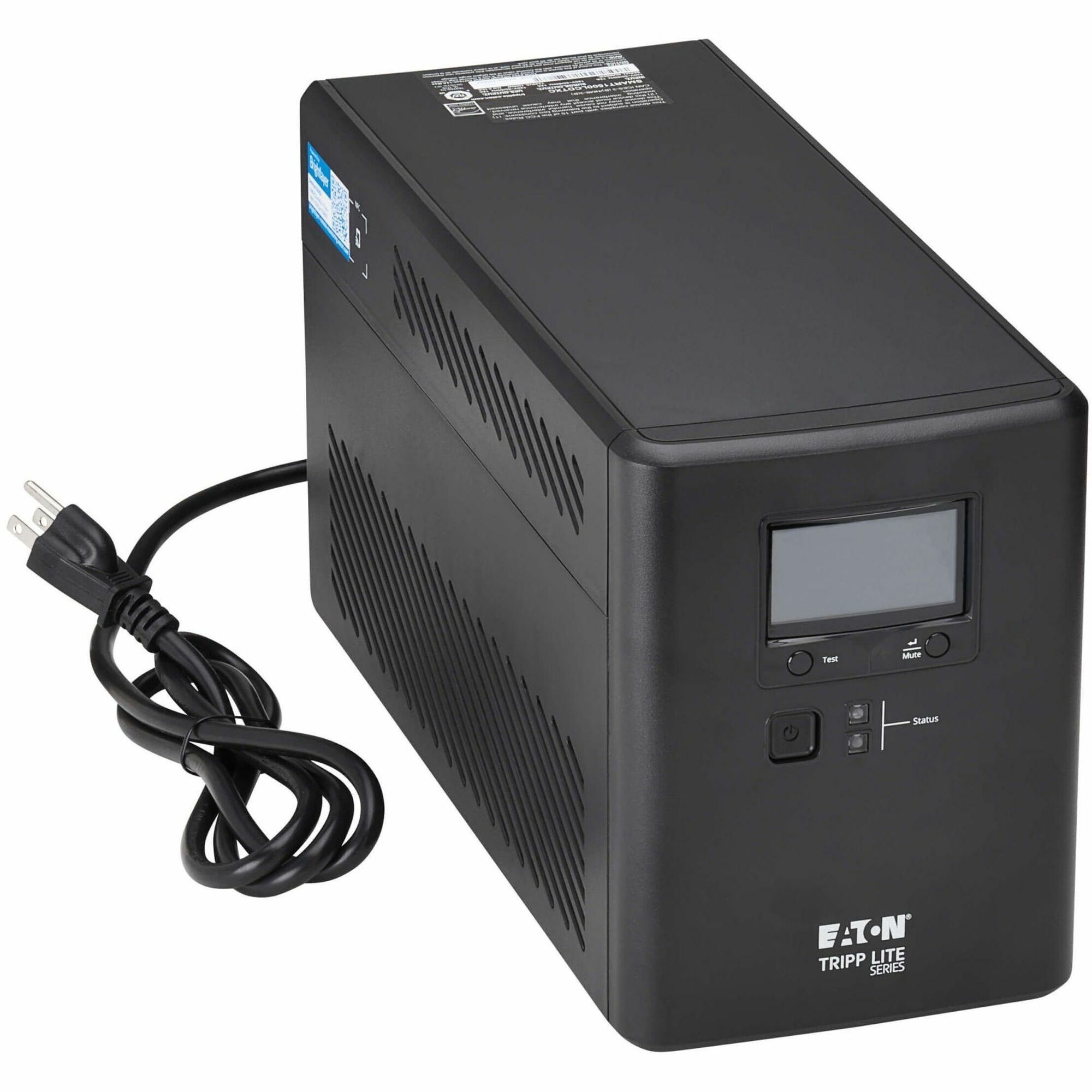

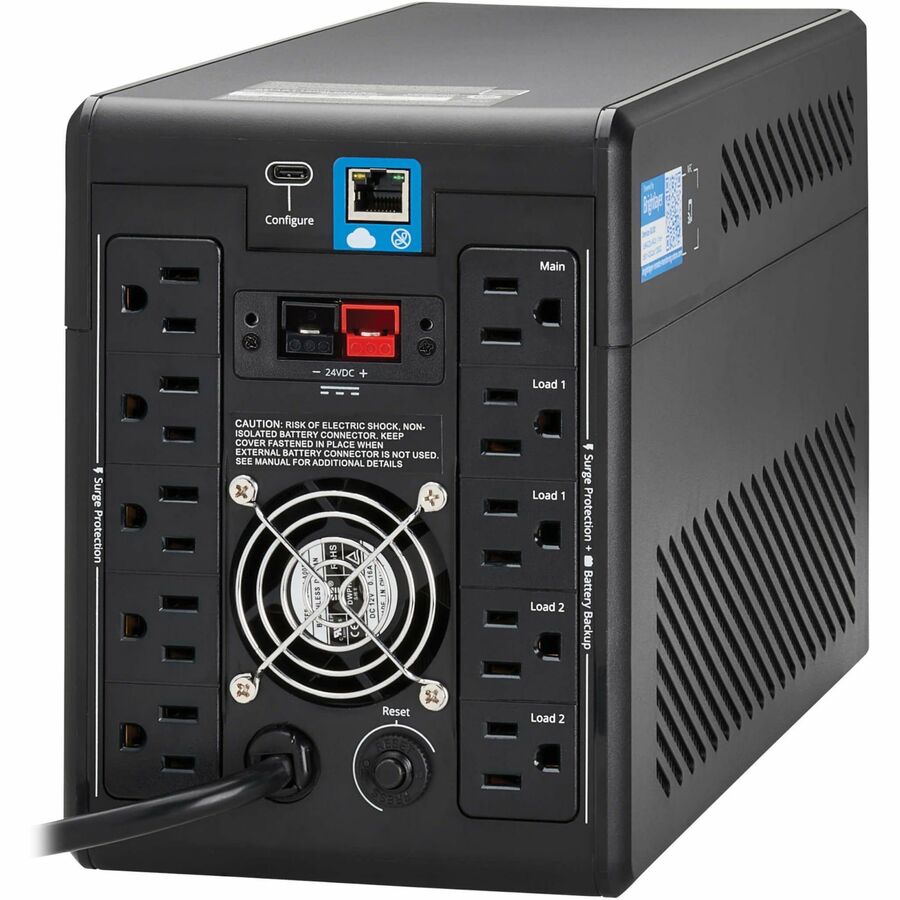

Tripp Lite series SMART1500LCDTXC 1440VA Compact tower UPS
On back-order, will ship once in-stock
- All Locations: (0+)
- Toronto, ON (1+)
- Vancouver, BC (2+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART1500LCDTXC |
| Brand Name | Tripp Lite series |
| Product Model | SMART1500LCDTXC |
| Product Name | SMART1500LCDTXC 1440VA Compact tower UPS |

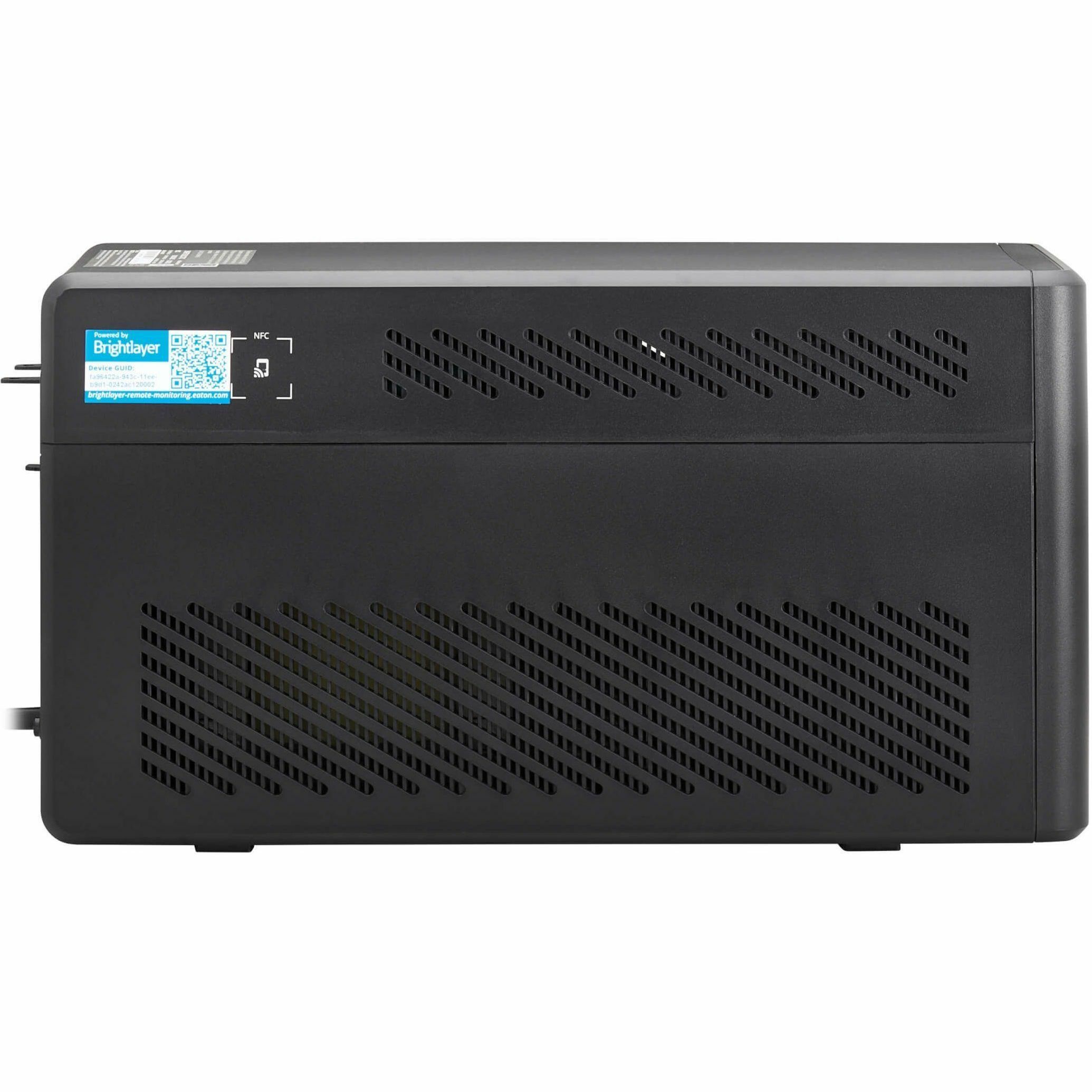

| Marketing Information | 1.4kVA/1kW/120V Battery Backup for Network and Retail Point-of-Sale Applications The SMART1500LCDTXC Line-Interactive cloud-connected UPS system regulates incoming voltage and provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and Line noise. Its compact tower form factor is suitable for desktop, floor placement, under workstations and other locations where a taller "Rack/Tower" unit may not fit. It's recommended for Home/office, Point-of-sale workstations, digital signage equipment, and gaming equipment. Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) feature lets you configure network settings instantly from your mobile device. Allows Time to Back Up Critical Files During a Blackout During short blackouts, the SMART1500LCDTXC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1500LCDTXC restarts automatically, regardless of battery charge level, saving you a costly site visit. NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components Five 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera and other crucial equipment. The other five 5-15R outlets provide surge suppression only for desk lamps, speakers and other equipment regarded as non-essential during a blackout. Eaton's remote monitoring application enables individual control of two switchable load banks, allowing them to be powered on, off, or cycled remotely. This remote functionality facilitates the rebooting of equipment that is not responding, thereby eliminating the need for expensive and time-consuming on-site visit. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1500LCDTXC can correct brownouts as low as 92V and overvoltages as high as 150V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. Easy Preventative Maintenance and Initial Troubleshooting The SMART1500LCDTXC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker on the rear of the UPS helps prevent dangerous system overloads. Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7 The easy-to-read LCD and two diagnostic LEDs provide vital status information, including voltage, battery level, load level and power usage. The audible alarm indicates low-battery and fault conditions. It can be disabled via the LCD or the remote monitoring app, which will still respond to silenced alarms via the app. |
| Product Type | Line-interactive UPS |
| AVR | Yes |

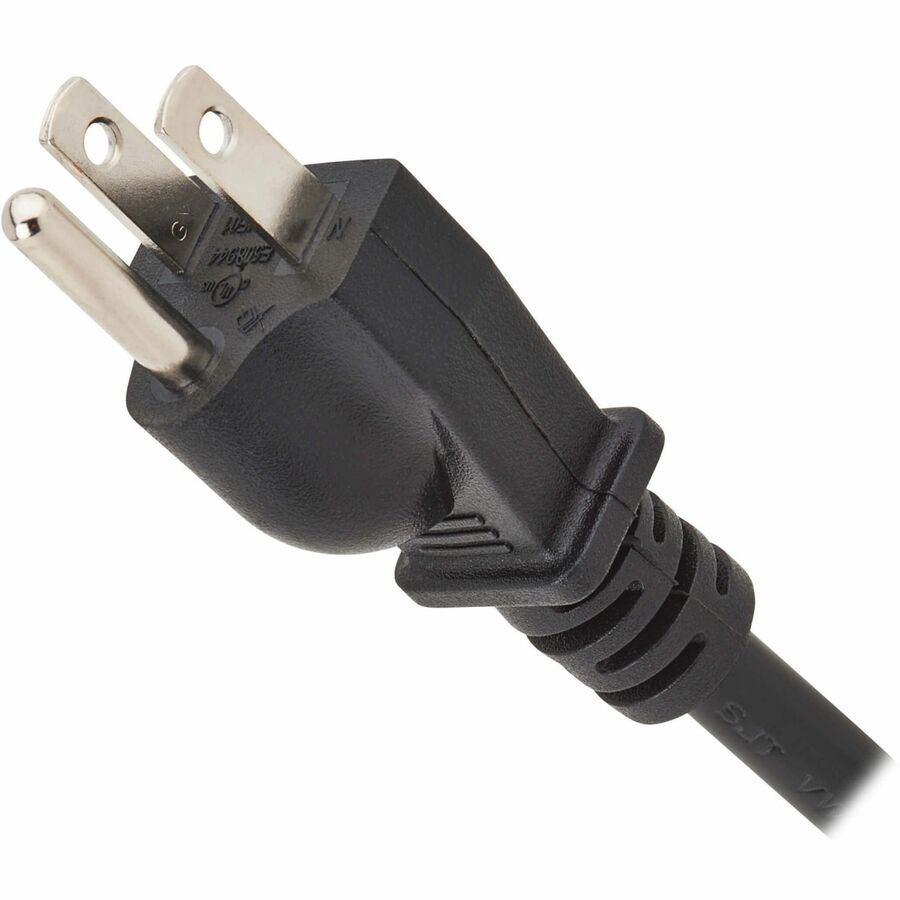

| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |

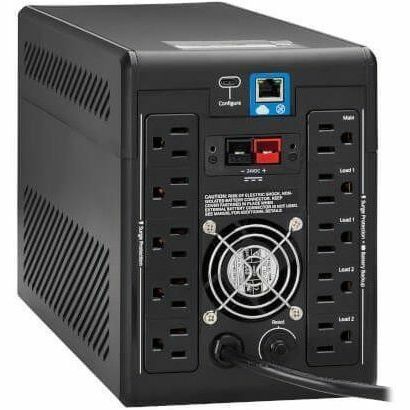

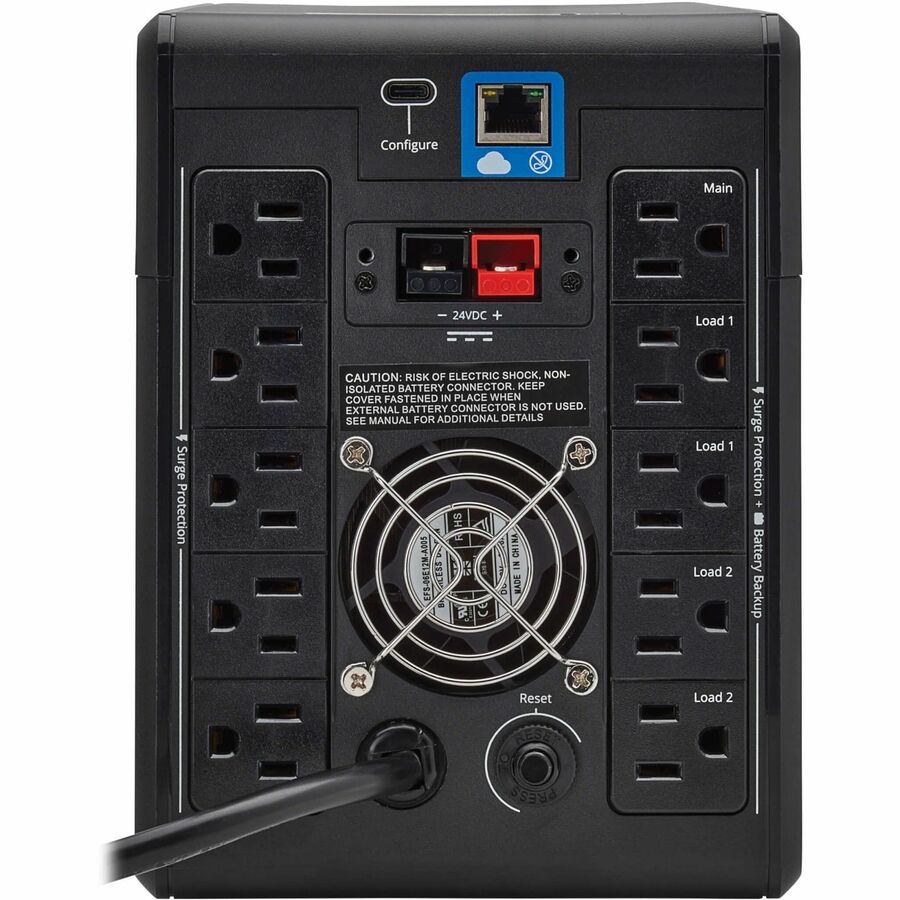

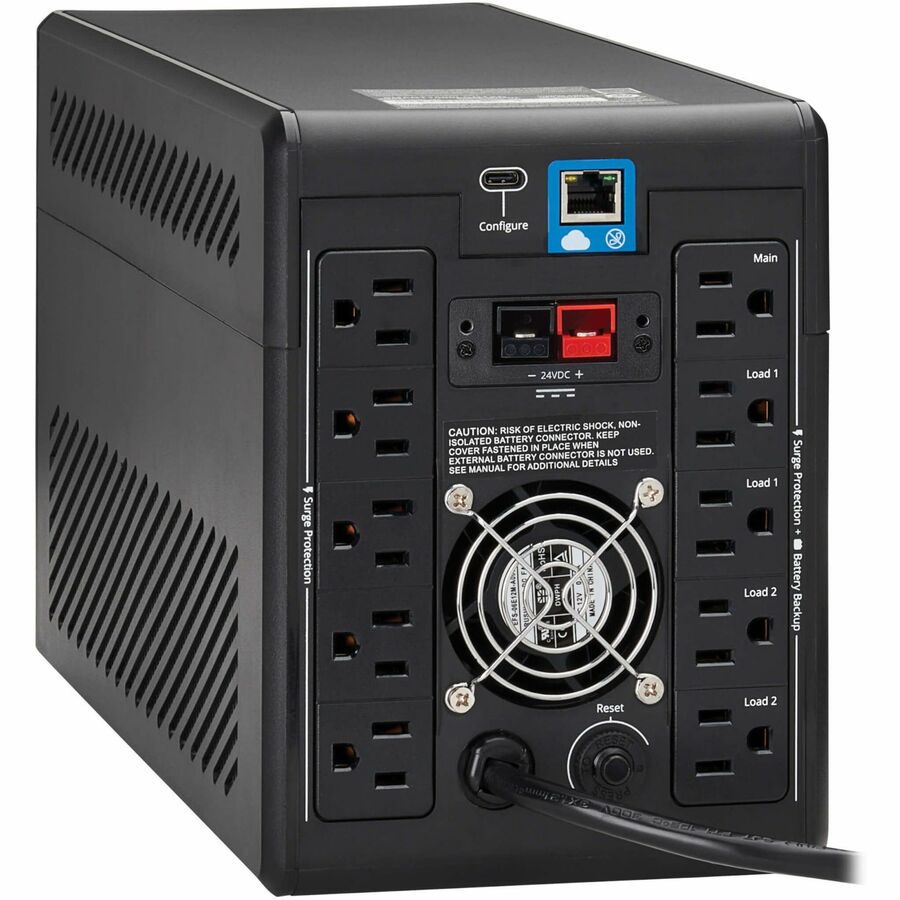

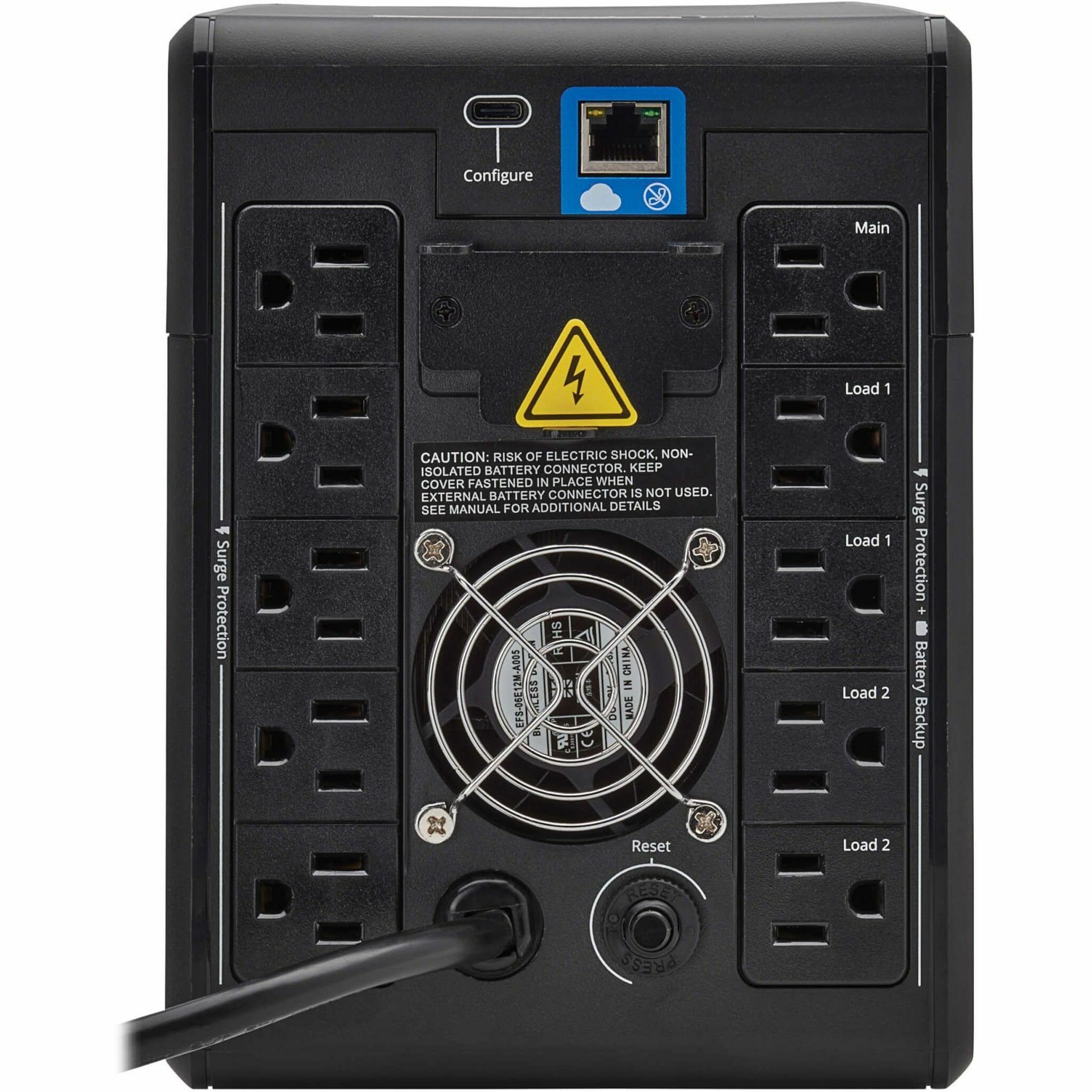

| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Number of Surge-only Outlets | 5 |
| Overload Protection | Yes |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage |
|
| Surge Suppression | Yes |
| Features |
|
| Load Capacity (VA) | 1.44 kVA |
| Load Capacity (Watt) | 1 kW |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage |
|
| Input Frequency |
|
| Output Frequency |
|
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 380 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.69 |

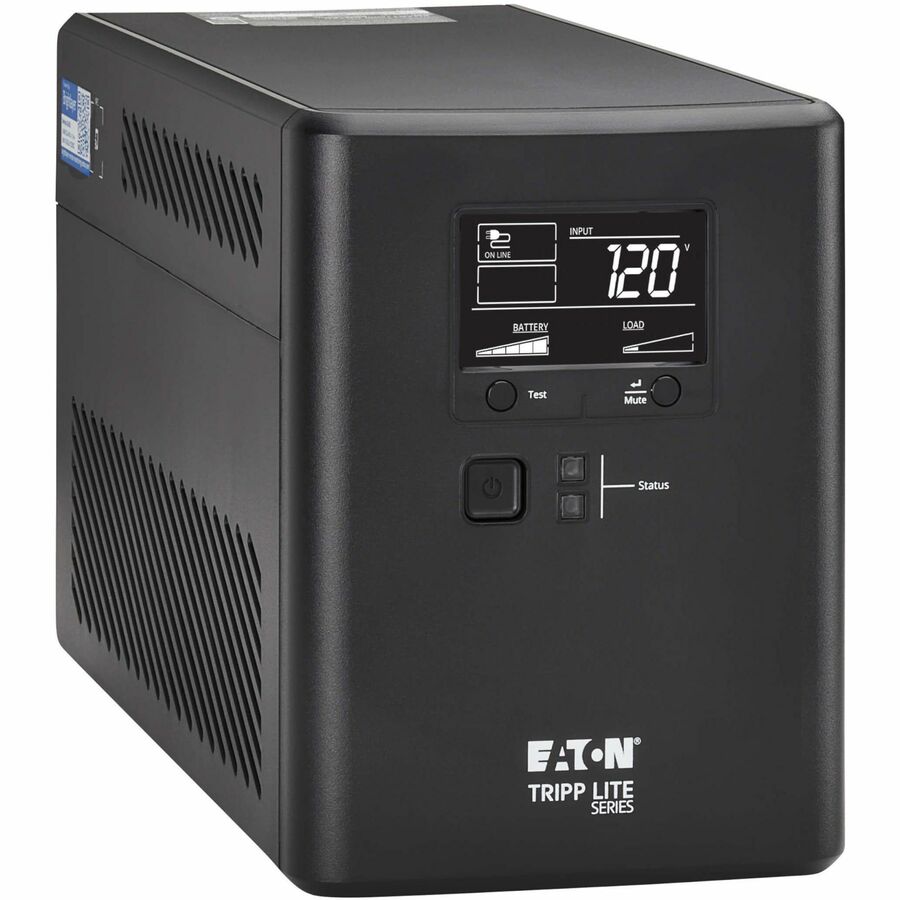

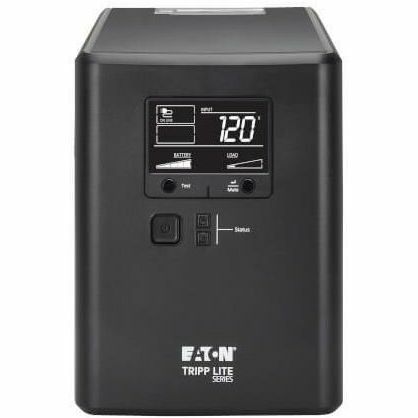

| Display | LCD |
| Alarm |
|
| Status Indicators | LCD Display:
LEDs Indictors:
|
| Network (RJ-45) | Yes |
| USB | Yes |
| DC System Voltage | 24 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Sound Emission | 45 dB |
| Thermal Dissipation | 57.72 BTU/h |
| Height | 7.87" (200 mm) |
| Width | 5.91" (150 mm) |
| Depth | 14.57" (370 mm) |
| Rack Height | 0U |
| Form Factor | Compact Tower |
| Weight (Approximate) | 28.60 lb (12972.74 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0037332281340 |
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $250000 |
