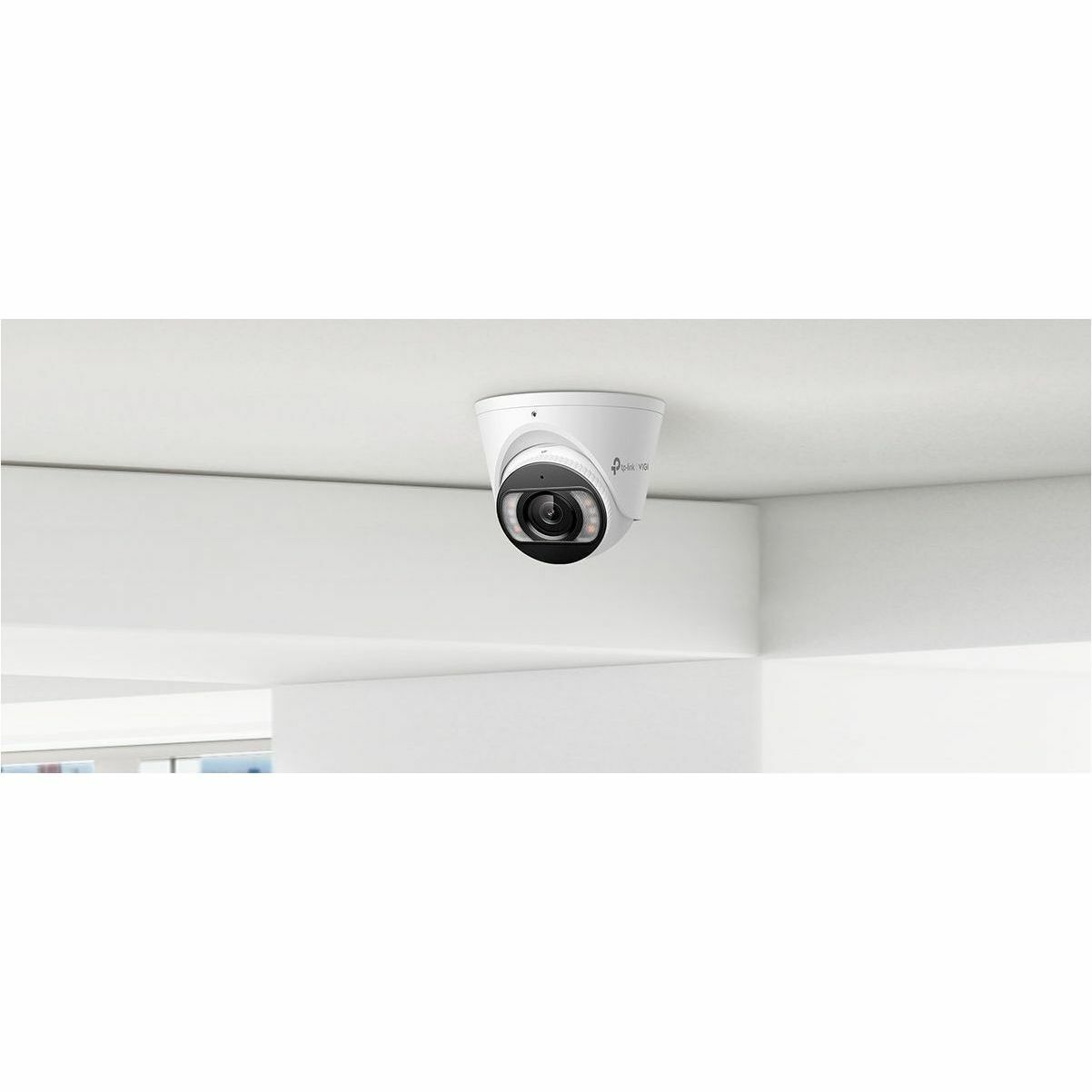

VIGI InSight S485 8 Megapixel 4K Network Camera - Color - Turret
98.43 ft (30 m) Infrared/Color Night Vision - H.265+, H.265, H.264, H.264+, H.264H, H.265M - 3840 x 2160 - 2.8 mm (0.11") Fixed Lens - 25 fps - CMOS - Fast Ethernet - Ceiling Mount, Wall Mount - IP67 - Water Proof, Weather Proof - Audio Support - Alarm Triggering, Vehicle Detection, Human Detection, Wide Dynamic Range, 3D Digital Noise Reduction, Noise Reduction, White Balance, Built-in Microphone, Day/Night, Mirror
$191.99
In Stock Availability
- All Locations: (5+)
- Toronto, ON (5+)
General Information
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | INSIGHT S485(2.8MM) |
| Brand Name | VIGI |
| Product Model | InSight S485 |
| Product Name | VIGI 4MP Full-Color Turret Network Camera |
| Marketing Information | People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. Human & Vehicle Classification Distinguish humans and vehicles from other objects and receive more accurate event notifications. Smart Video Enhancement Technology
Efficient H.265+ Compression Technology H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively. |
| Product Type | Network Camera |
Technical Information
| Recording Formats | 4K |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft (30 m) |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 4 |
| Infrared (IR) Cut-off Filter | Yes |
Display & Graphics
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
| Effective Camera Resolution | 8 Megapixel |
Video
| Video Formats |
|
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 25 fps |
Audio
| Audio Support | Yes |
Lens
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
Exposure
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
Network & Communication
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Protocols |
|
| Remote Management | Yes |
Storage
| Storage Type | Memory Card |
Interfaces/Ports
| Network (RJ-45) | Yes |
Power Description
| Maximum Power Consumption | 12.50 W |
| Input Voltage | 12 V DC |
| Power Source Type |
|
Physical Characteristics
| Mount Type |
|
| Form Factor | Turret |
| Durability |
|
| Product Material | Metal |
| Height | 3.30" (83.82 mm) |
| Width | 4.40" (111.76 mm) |
| Length | 4.40" (111.76 mm) |
| Diameter | 4.37" (111 mm) |
| Weight (Approximate) | 1.06 lb (480 g) |
Environmental Conditions
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
Miscellaneous
| Features |
|
| Package Contents |
|
| Ingress Protection Rating | IP67 |
| Condition | No |
| UPC | 0810142824026 |
