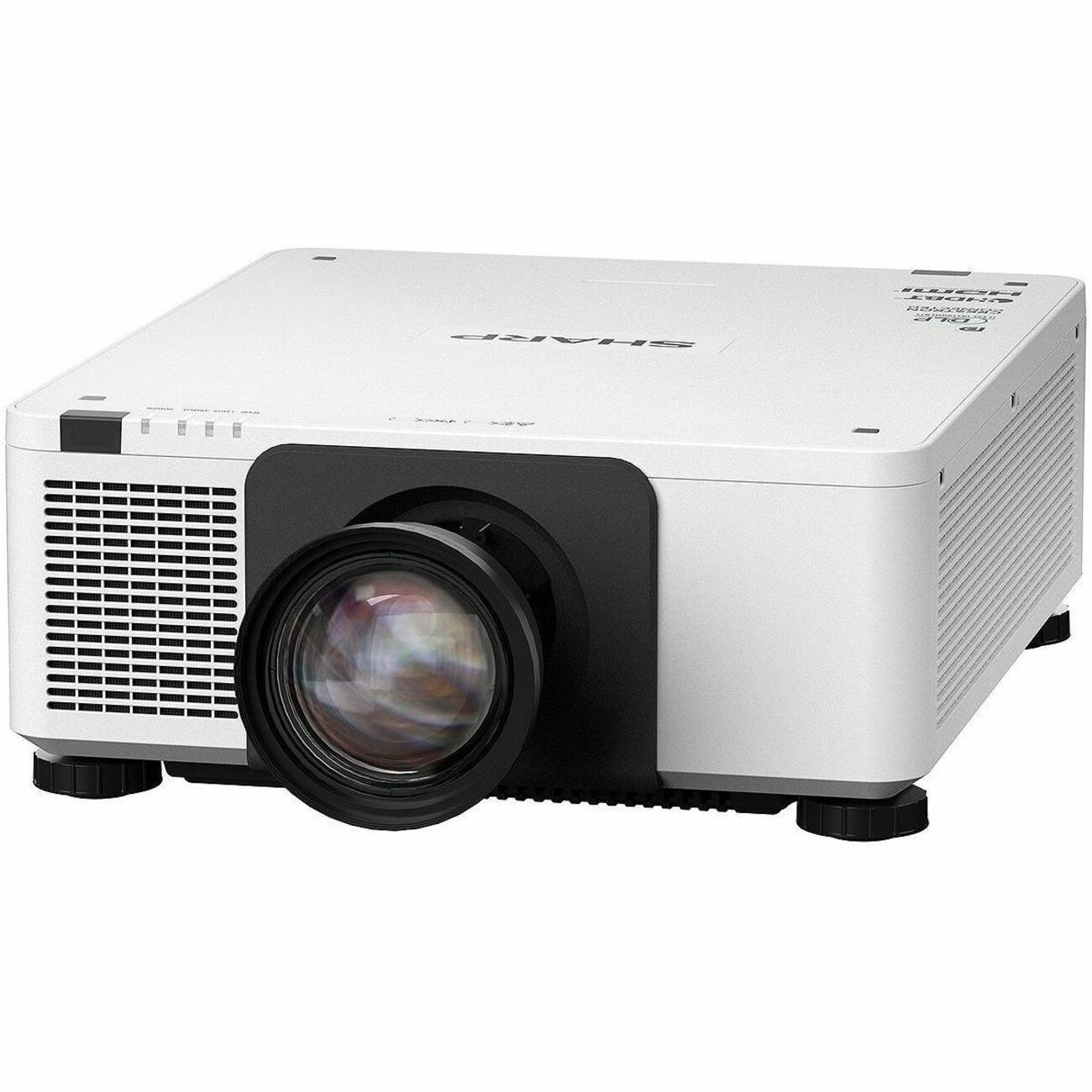

Sharp NEC Display XP-X141Q-W DLP Projector - Floor Mountable, Ceiling Mountable - White

Part No. XP-X141Q-W

by Sharp

$42461.99

Sharp NEC Display XP-X141Q-W DLP Projector - Floor Mountable, Ceiling Mountable - White

1920 x 1200 - Front, Front Ceiling, Rear Ceiling, Rear - 2160p - 20000 Hour Normal Mode - WUXGA - 3,000,000:1 - 13500 lm - HDMI - USB - Network (RJ-45) - Digital Signage, Presentation, Large Venue - 5 Year Warranty

Part No. XP-X141Q-W

by Sharp

$42461.99
General Information
ManufacturerSharp
Manufacturer Part NumberXP-X141Q-W
Brand NameSharp NEC Display
Product SeriesX
Product ModelXP-X141Q-W
Product NameXP-X141Q-W DLP Projector
Marketing Information

Powerful installation projectors with laser-phosphor light source supports new, demanding projection applications

Laser Light Module

  • 20,000-plus hours of virtually maintenance-free operation with our five year/20,000 hour limited warranty
  • High-brightness, lower power consumption enhances applications such as retail, digital signage and theme parks
  • Ability to control brightness creating a stable image over longer time periods
  • Images appear immediately after power on due to instantaneous start up of the laser

Flexible

  • Enjoy greater installation flexibility with a complete line of optional bayonet style lenses (6) for quick and easy exchange. Lens throw distances range from 1.3 to 141.3ft
  • Tilt-free installation capabilities make this projector ideal for almost any installation environment, including portrait orientation
  • +/-60% vertical lens shift and +/-20% horizontal lens shift capabilities make alignment easy

4K UHD Resolution

  • Utilizing the latest DMD (Digital Micromirror Device) chip from Texas Instruments™ with pixel shift capabilities resulting in an unsurpassed viewable resolution of 9.2 million pixels
  • Screen resolution matches standard 4K UHD LCD displays providing consistency when developing content for your presentations

Integrated and Powerful

  • Project uncompressed FHD video with integrated HDBaseT
  • High-performance video processing/scaling creates life-like images
  • Integrated software applications such as Crestron RoomView AMX Beacon and PJ Link allow for complete interactivity and control

Stacking Correction

The industry's first built-in stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 54,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Edge Blending

This function seamlessly blends multiple projected images to display a single high-resolution image.

Product TypeDLP Projector
Technical Information
Projection Method
  • Front
  • Front Ceiling
  • Rear Ceiling
  • Rear
Display & Graphics
Native Resolution1920 x 1200
Maximum Resolution3840 x 2400
Graphic ModeWUXGA
Projection Lens
Minimum Diagonal Image Size60" (1524 mm)
Maximum Diagonal Image Size41.67 ft (12700 mm)
Minimum Projection Distance42.96" (1091.18 mm)
Maximum Projection Distance141 ft (42976.80 mm)
Lamp
Number of Lamps1
Lamp TypeLaser/Phosphor
Normal Mode Lamp Life20000 Hour
Standard Mode Brightness13500 lm
Contrast Ratio3,000,000:1
Minimum Vertical Sync24 Hz
Maximum Vertical Sync120 Hz
Video
Video Signal StandardHDTV
Output Scan Format2160p
Interfaces/Ports
HDMIYes
SDIYes
SDI Standard12G-SDI
USBYes
Network (RJ-45)Yes
Battery Information
Batteries IncludedYes
Power Description
Operating Power Consumption1 kW
Physical Characteristics
Product ColorWhite
Color FamilyWhite
Form Factor
  • Floor Mountable
  • Ceiling Mountable
Height8.50" (215.90 mm)
Width19.70" (500.38 mm)
Depth23.90" (607.06 mm)
Weight (Approximate)84.90 lb (38509.99 g)
Miscellaneous
Application/Usage
  • Digital Signage
  • Presentation
  • Large Venue
Package Contents
  • XP-X141Q-W DLP Projector
  • Remote Control
  • Batteries
  • Power Cord
  • User's Manual on CD-ROM
  • Quick Start Guide
  • Product Registration Card
ConditionNo
Warranty
Limited Warranty5 Year
Additional Warranty Information

Registered owners receive a five (5) years or 20,000 hours (whichever comes first) limited warranty
