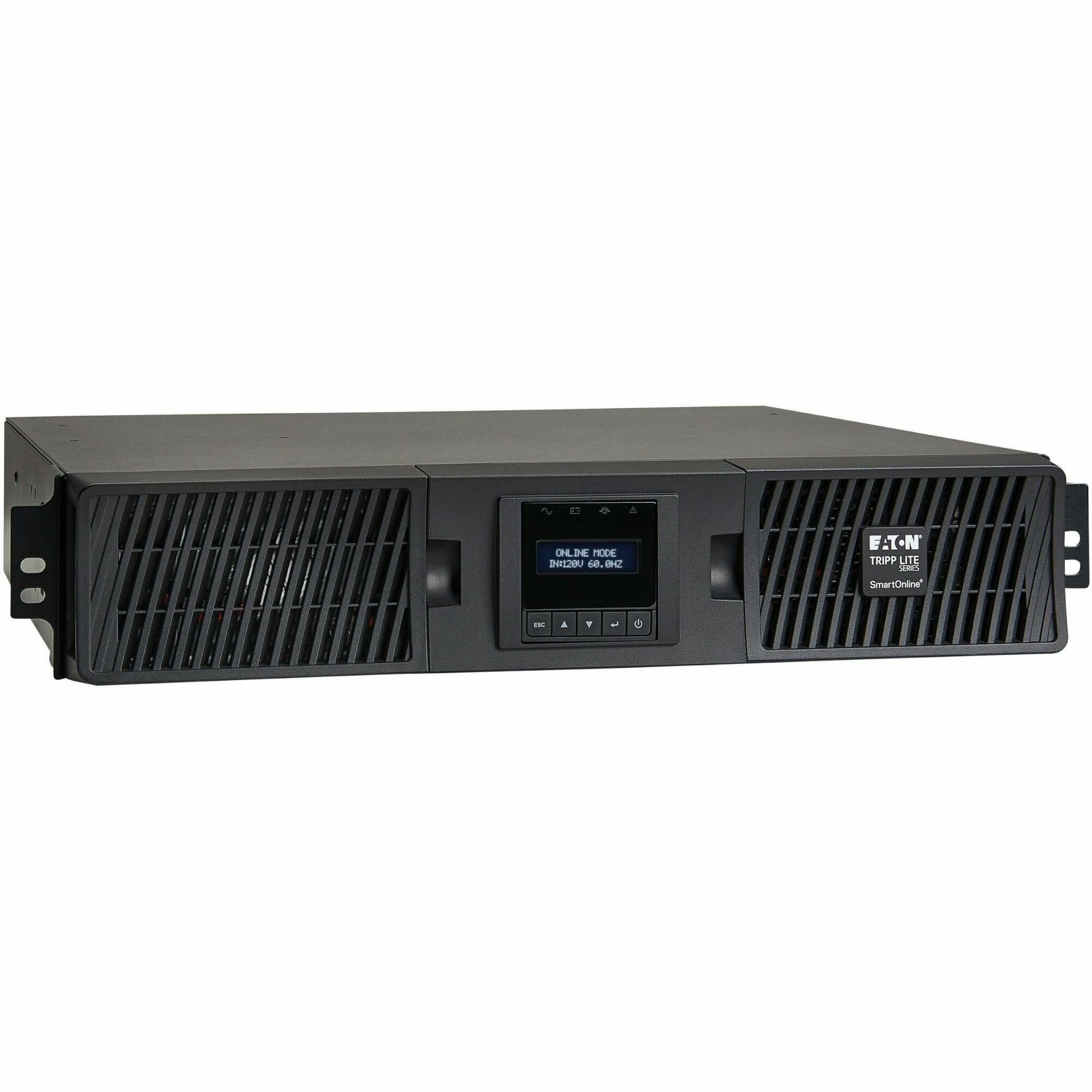

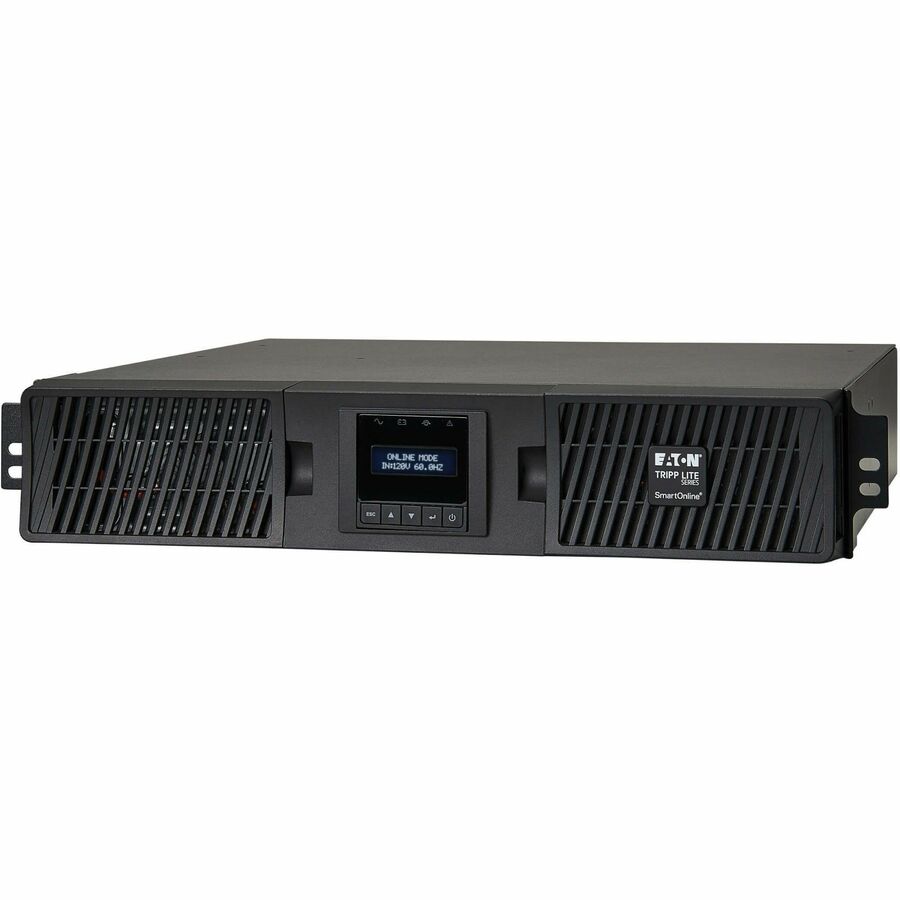

1.5kVA 1.35kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU1500RTXLCD2UTAA provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48RT2UTAA, sold separately).

Optional Network Management Card Allows Remote Access 24/7

The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. Note: The SU1500RTXLCD2UTAA is not compatible with WEBCARDLX.

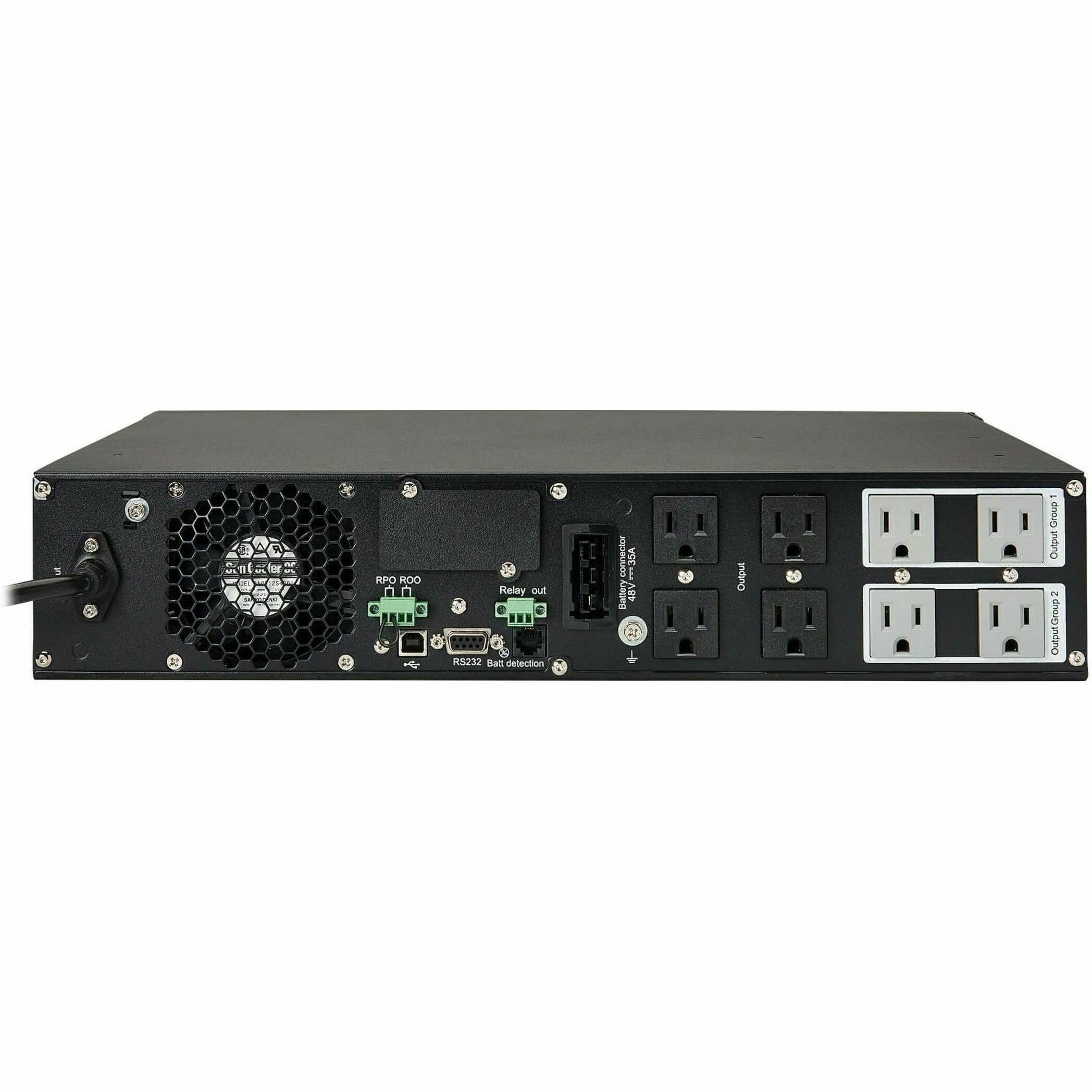

NEMA 5-15R Outlets Protect Your Connected Components

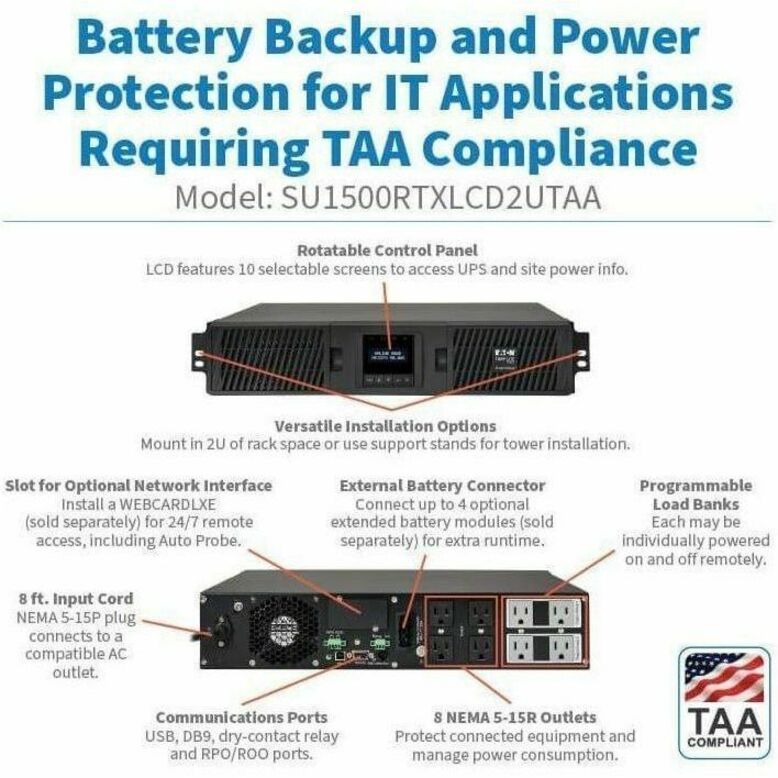

Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are split evenly into two programmable load banks that let you shed non-critical loads in order to extend runtime for critical loads during an outage. A cooling fan helps protect equipment from overheating.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

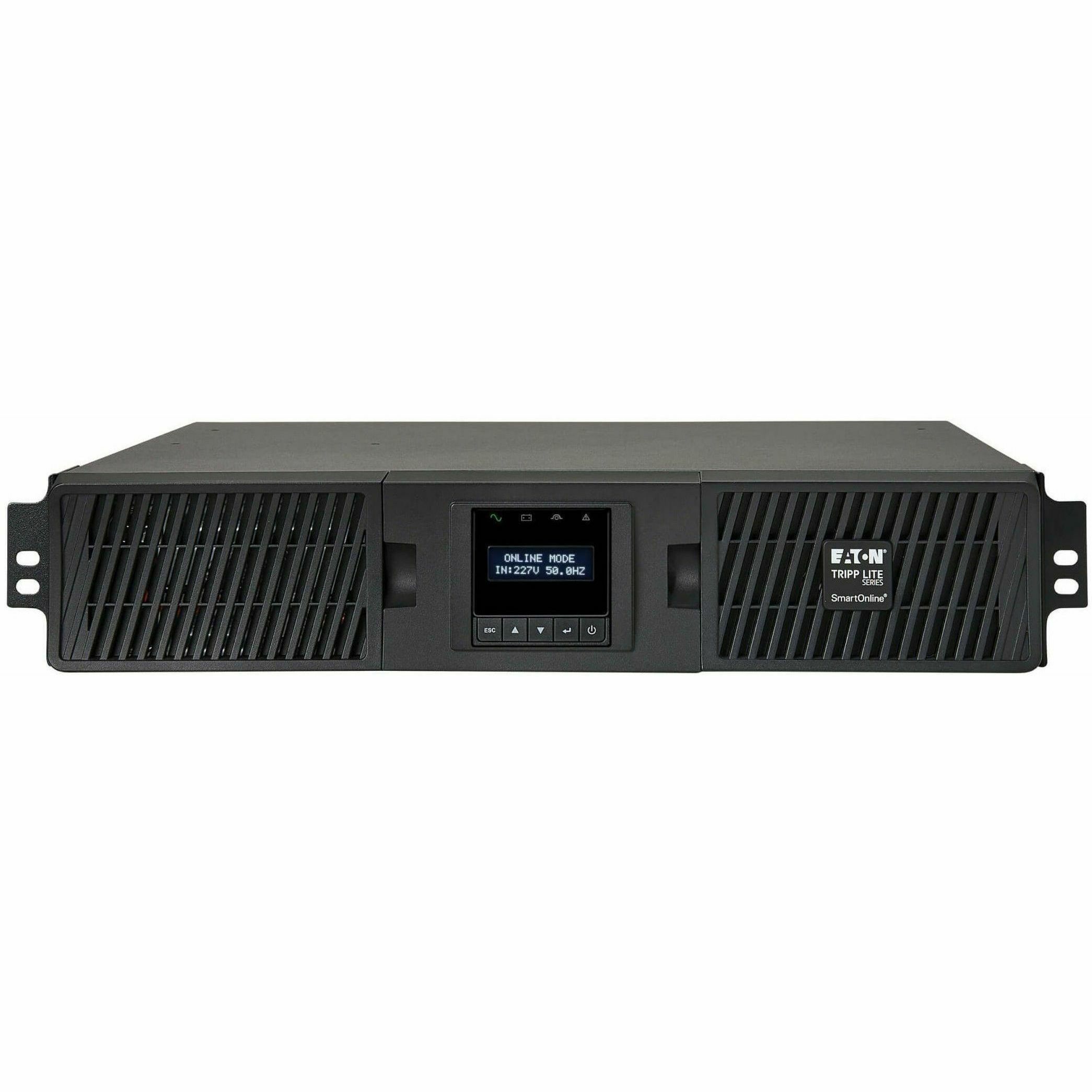

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring

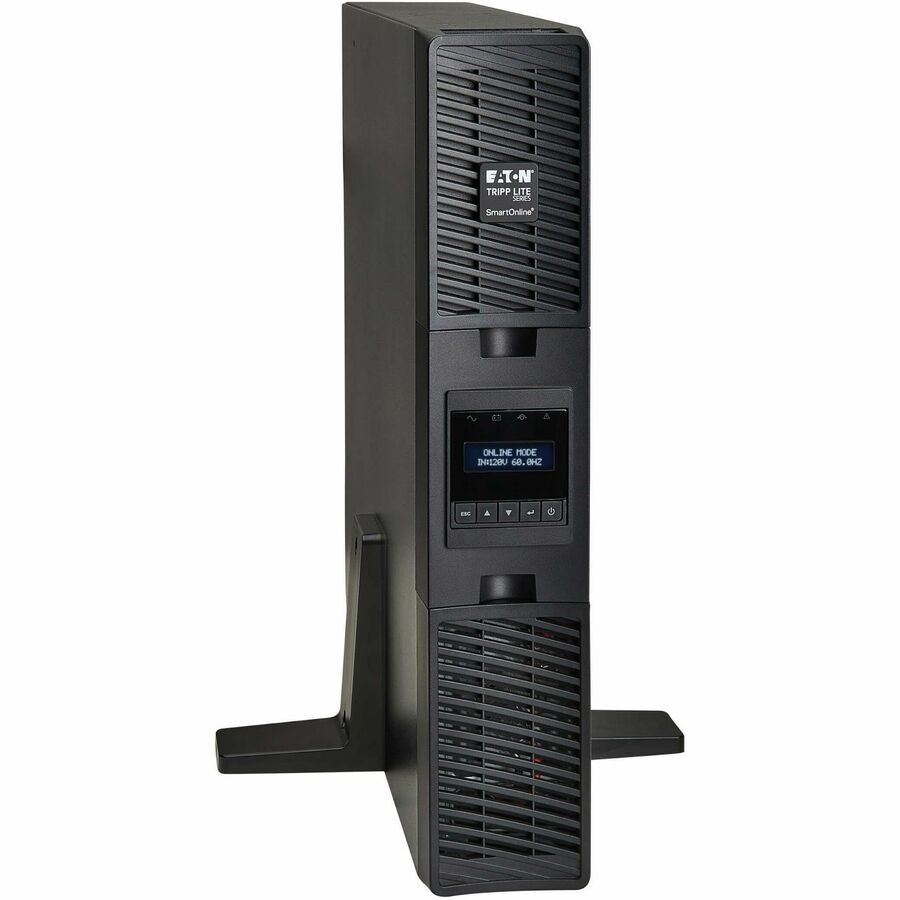

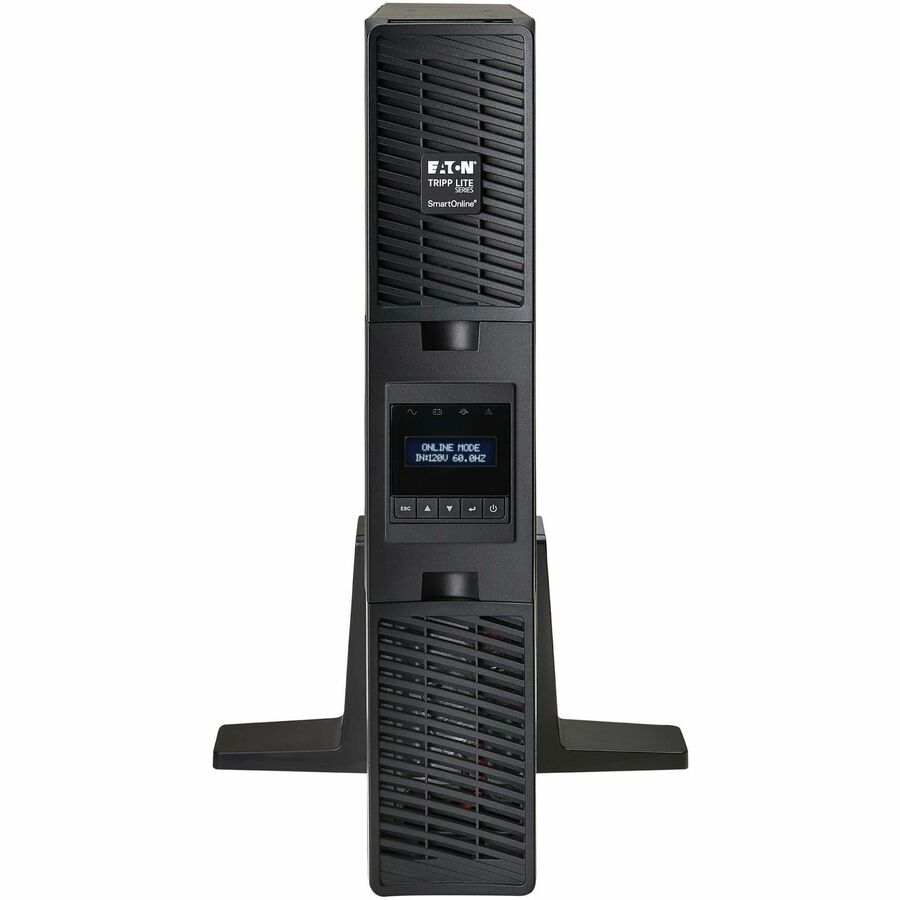

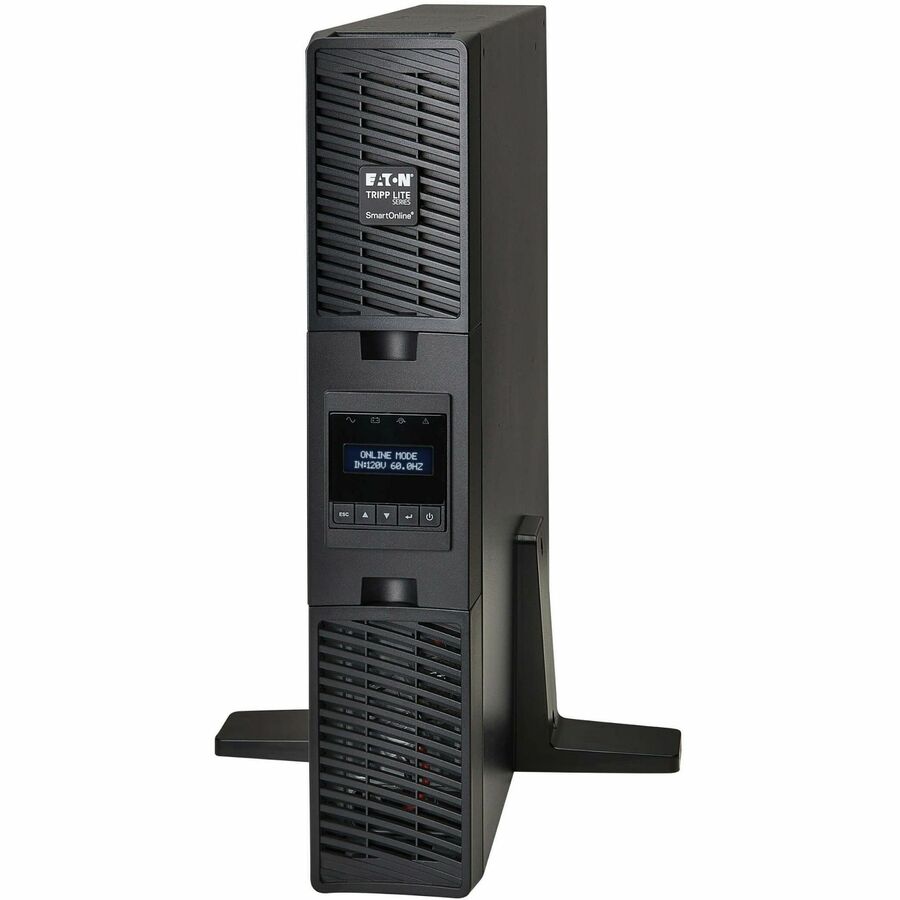

The two-line front-panel LCD features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

• 90% (AC Mode)
• 95.8% (Eco Mode)

• Mission Critical Equipment
• IT
• Network
• Education
• Healthcare
• Military
• Government
• Network Device
• IT Equipment
• Non-critical Device
• Industrial Equipment

• Audible Alarm
• Cold Start Function

• 100 V AC
• 110 V AC
• 120 V AC

• 100 V AC
• 110 V AC
• 115 V AC
• 120 V AC
• 127 V AC

• 50 Hz
• 60 Hz

• Dry Contact
• DB-9 RS-232
• SNMP/HTTP Remote Monitoring

• UPS StartUp
• Power Failure
• Low Battery
• Overload
• UPS Fault
• Remote Shutdown

LCD Display:

• Site Power Status and Operating Data
• Plus Configuration of Voltage
• Frequency
• Operating Mode
• Alarm Function

LED Indicators:

• 4 Status-indicating LEDs

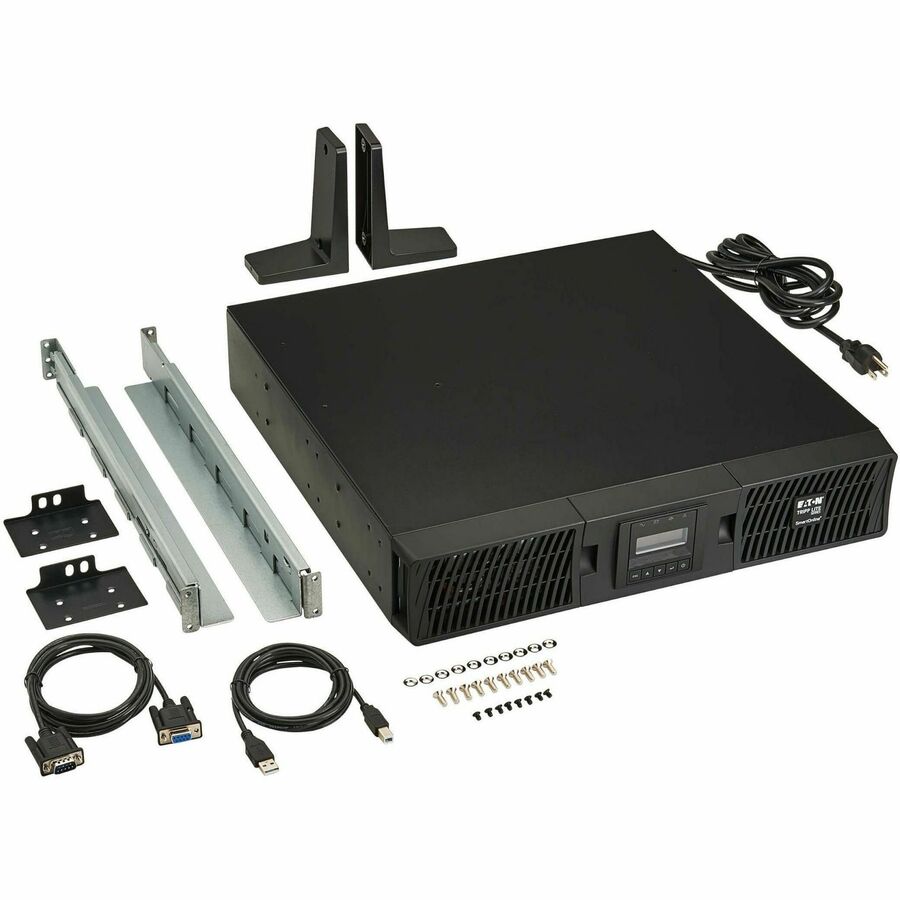

• SmartOnline SU1500RTXLCD2UTAA 1500VA Rack/tower UPS
• USB Cable
• DB9 Cable
• Rack-mounting Hardware
• Tower Support Stands
• Safety Instructions
• Quick Start Guide

• UL 1778
• cTUVus
• FCC

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
