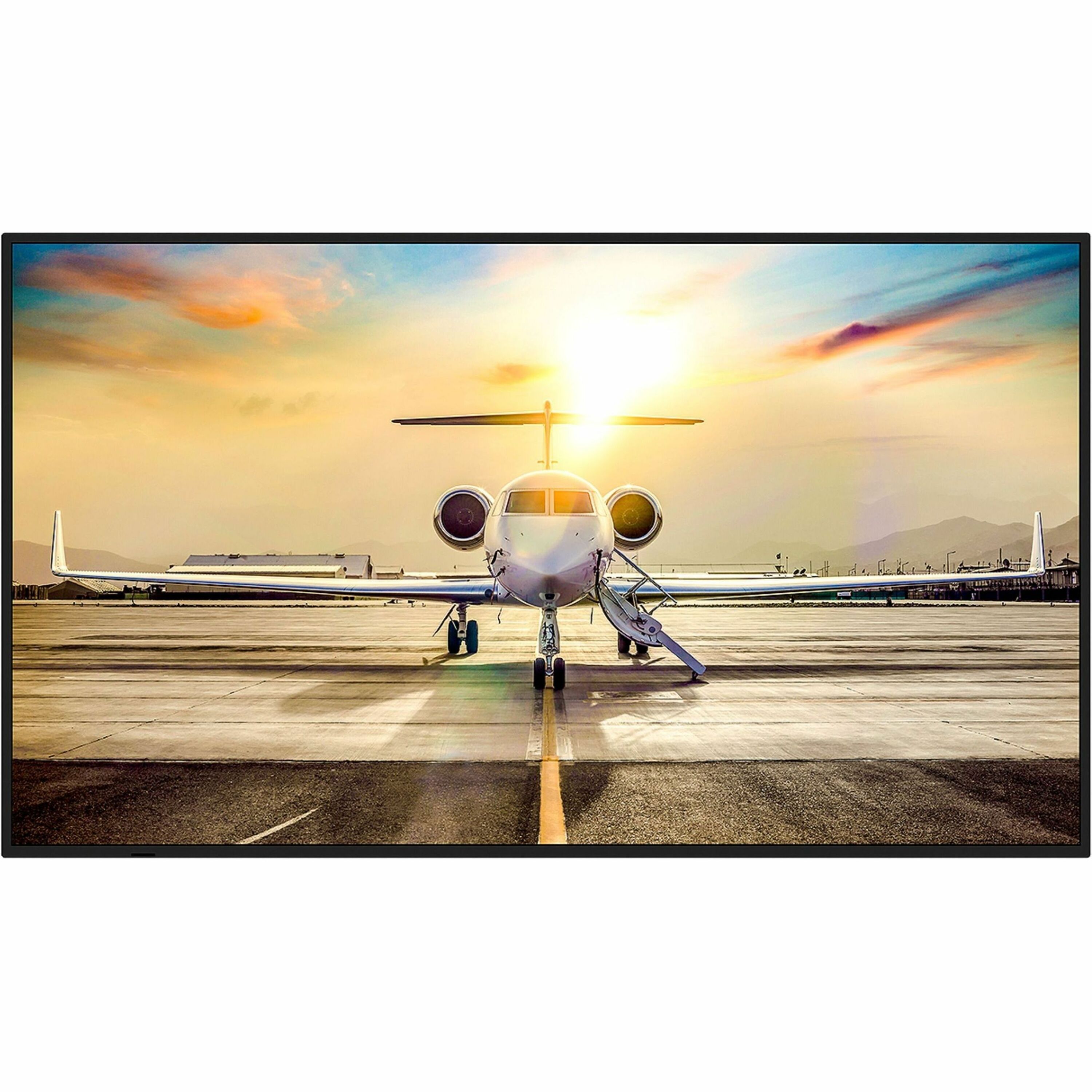

Sharp MultiSync PN-M552 Digital Signage Display
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | PN-M552 |
| Brand Name | Sharp |
| Product Line | MultiSync |
| Product Series | PN-M |
| Product Model | PN-M552 |
| Product Name | MultiSync PN-M552 Digital Signage Display |
| Marketing Information | Say Goodbye to Dull, Inconsistent Displays | Masterfully Crafted for Impactful Messaging The Sharp MultiSync® PN-M Series is your go-to solution for highimpact, ultra-reliable digital signage - designed for demanding environments like healthcare, command centres, finance, retail, and corporate spaces. With factory-calibrated colour accuracy, modular performance options, and a rugged all-metal chassis, these displays bring flawless visuals and pro-grade durability right out of the box. Key Pain Points Solved Tired of inconsistent colours across displays? SpectraView™ Engine gives you pixel-perfect factory calibration and pro-level customization. Dealing with outdated or clunky setups? Enjoy seamless modular upgrades with Intel® SDM and Raspberry Pi Compute Module 4 support. Struggling with overheating or display dimming? Smart cooling tech keeps your visuals bright and your system protected. Need 24/7 uptime in tough environments? Full metal chassis, active cooling, and secure LAN controls ensure long-term reliability. High-End UHD Visuals, All Day, Every Day Get next-level clarity with native 3840 x 2160 resolution and anti-glare, high-haze glass across the entire PN-M Series lineup. Imagery and messaging can become more vivid and lifelike than ever before! Additionally, these models boast an impressive 550 cd/m2 in brightness, ensuring that your message cuts through even in high-ambient light spaces. Consistent Colour with SpectraView™ Engine Pre-calibrated for luminance, white point, gamma, and uniformity, every PN-M display features SpectraView Engine Technology and is ready to go, right out of the box. Want deeper control? Through the SpectraView Engine, dial in white point with adjustments of 100k, select brightness based on luminance level, or even input your own CIE colour coordinates, giving users capabilities like never before. Bonus: backlight stabilization keeps your visuals looking fresh longer - no early fade-outs here. All of these features are specifically engineered to give you the best visual quality for an extended duration. Smarter Daisy Chaining & Multi-Display Sync Connect up to 4 independent displays from one source thanks to DisplayPort 1.4 connectivity and HBR3 capabilities with Multi-Stream Transport (MST*). MST capabilities can drive up to 4 independent displays from a single DisplayPort source by multiplexing several video streams into a single stream and sending it to the display that then acts as a branch device to demultiplex the signals into the original streams. This is ideal for menu boards, video walls, and synchronized signage. Additionally, the display can daisy chain the LAN connection, which allows for the pass-through of RS-232C, TCP/IP and IR communications. This gives the customer the ability to control full arrays of displays remotely or via the IR remote control, streamlining the ease of use for the customer. Power, Connect, Control Simplified Each PN-M product features an integrated USB hub, with a USB-C input that supports both DP-Alt mode and upstream data transfer. It includes two downstream USB ports (one USB-A and one USB-C) for connecting and managing peripherals. This built-in hub reduces the need for additional equipment, lowering overall setup costs. Additionally, the USB-C input provides 65W of Power Delivery, enabling devices like laptops to charge directly from the display ideal for huddle spaces and presentation environments. |
| Product Type | Digital Signage Display |
| Bezel Width (Bottom) | 0.55" (13.90 mm) |
| Bezel Width (Top) | 0.43" (11 mm) |
| Bezel Width (Left) | 0.43" (11 mm) |
| Bezel Width (Right) | 0.43" (11 mm) |
| Operation Hours | 24 Hours/7 Days |
| Number of Screens | 1 |
| Viewable Screen Size | 54.60" (1386.84 mm) |
| Screen Size Class | 55" (1397 mm) |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type |
|
| Aspect Ratio | 16:9 |
| Backlight Technology | LED |
| Orientation | Landscape/Portrait |
| Scan Format | 2160p |
| Native Contrast Ratio | 1,200:1 |
| Color Depth | 10-bit |
| Brightness | 550 cd/m² |
| Color Gamut | 72% NTSC |
| Ethernet | Yes |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Number of DisplayPorts | 1 |
| USB Type-C | Yes |
| DisplayPort Output | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of HDMI 2.0 Ports | 2 |
| DisplayPort In | Yes |
| Input Voltage |
|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| VESA Mount Standard | 300 x 300 |
| Mount Type | Wall Mountable |
| Mount Surface | Wall |
| Height | 27.93" (709.30 mm) |
| Width | 48.65" (1235.60 mm) |
| Depth | 2.34" (59.50 mm) |
| Weight (Approximate) | 45.19 lb (20500 g) |
| Package Contents |
|
| Application/Usage | Commercial |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Condition | No |
| Limited Warranty | 3 Year |
