HP Z2 Mini G9 Workstation - 1 Core i9 14th Gen i9-14900 - 64 GB - 1 TB SSD - Mini PC - Smart Buy

Part No. B6NS9UT#ABA

by HP Inc.

HP Z2 Mini G9 Workstation - 1 Core i9 14th Gen i9-14900 - 64 GB - 1 TB SSD - Mini PC - Smart Buy

Intel W680 Chip - Windows 11 Pro - NVMe Controller - 0, 1 RAID Levels - English Keyboard - Gigabit Ethernet - Wireless LAN

Part No. B6NS9UT#ABA

by HP Inc.

$3817.99
General Information
ManufacturerHP Inc.
Manufacturer Part NumberB6NS9UT#ABA
Brand NameHP
Product SeriesZ2 Mini G9
Product NameZ2 Mini G9 Workstation
Marketing Information

Powers large workflows. Fits a tiny space.

Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.

Unprecedented Z mini power

Get a standard low-profile NVIDIA® GPU and an Intel© CPU for seamless design, rendering and simulation.

Engineered to Evolve with your worflow

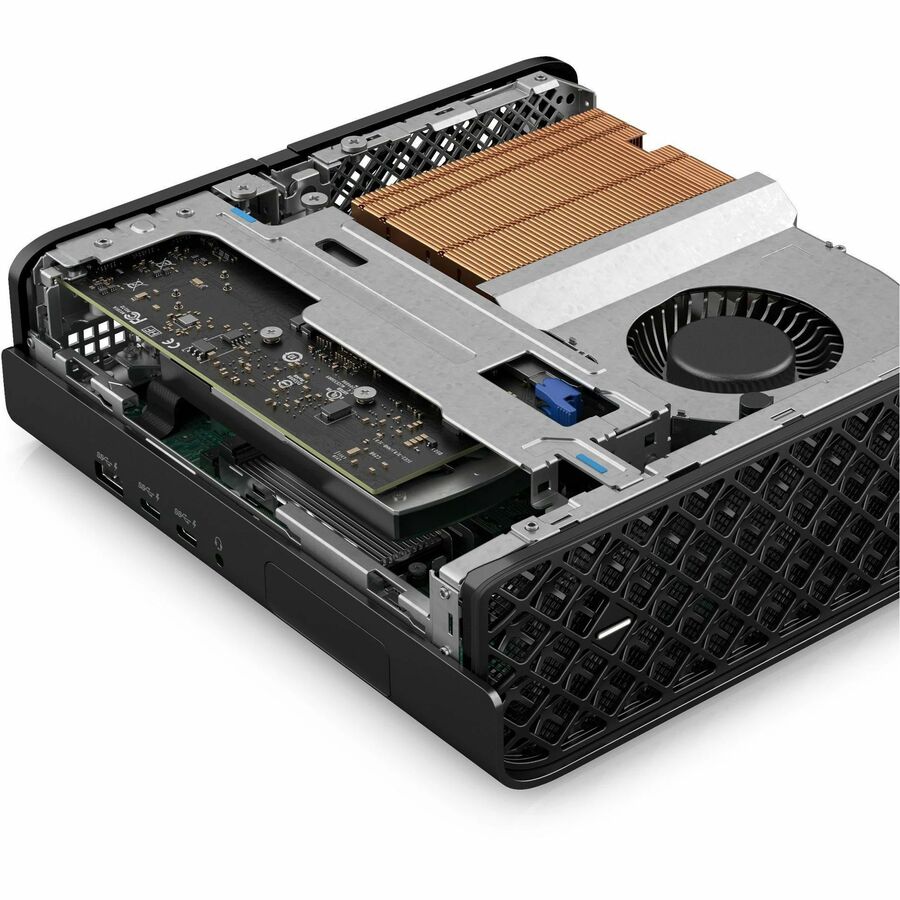

The new slide-out design gives tool-free interior access so you can easily swap graphics, memory, and more.

Fits anywhere

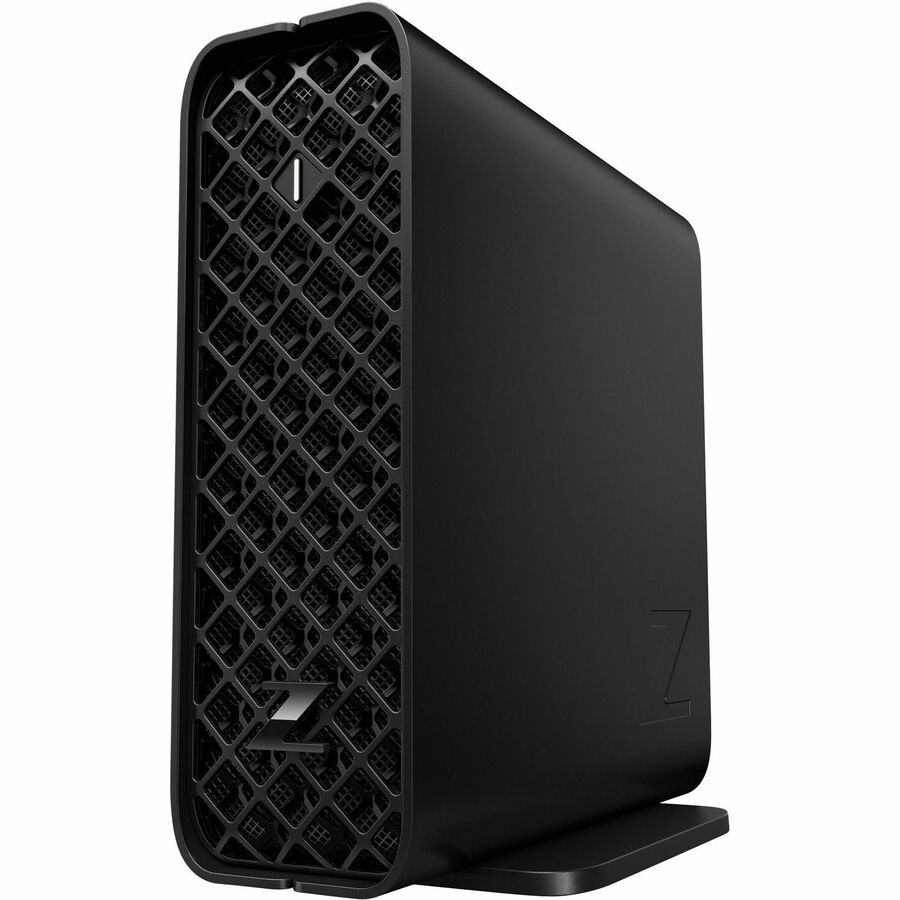

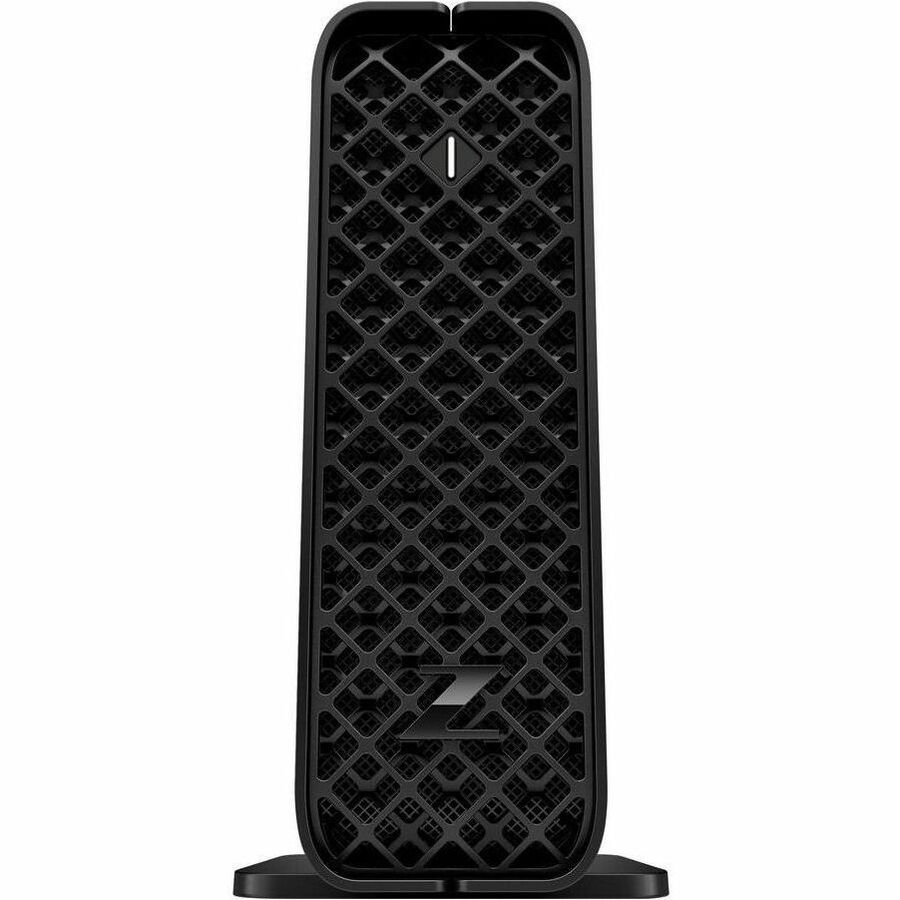

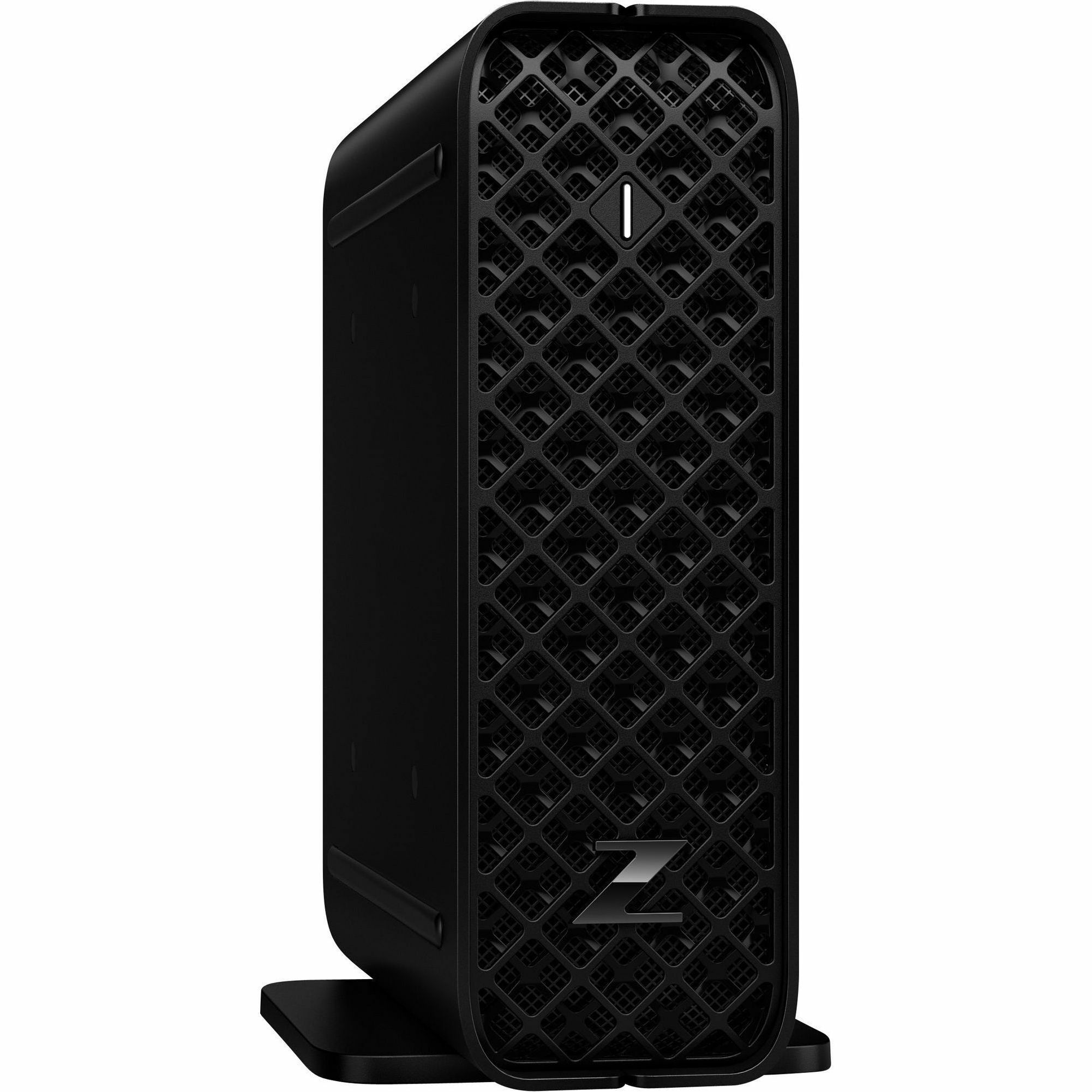

Create your ideal workspace in an office or at home. Mount the Z2 mini behind your monitor or under your desk.

Industry leading security. Reliability you can trust

Get peace of mind with a PC that's built to endure. The Z2 Mini undergoes 360K hours of rigorous testing, military-standard testing and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in and above the OS.

Features | HP recommends Windows 11 Pro for business

Work anywhere without compromising on performance with Windows 11 and HP collaboration, security, and connectivity technology. Summarize and rewrite content, get relevant content recommendations, and stay organized with Microsoft Copilot.

Intel® Core™ i9 processor

Get high-end performance for intensive tasks like rendering and video editing with the Intel® Core™ i9 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

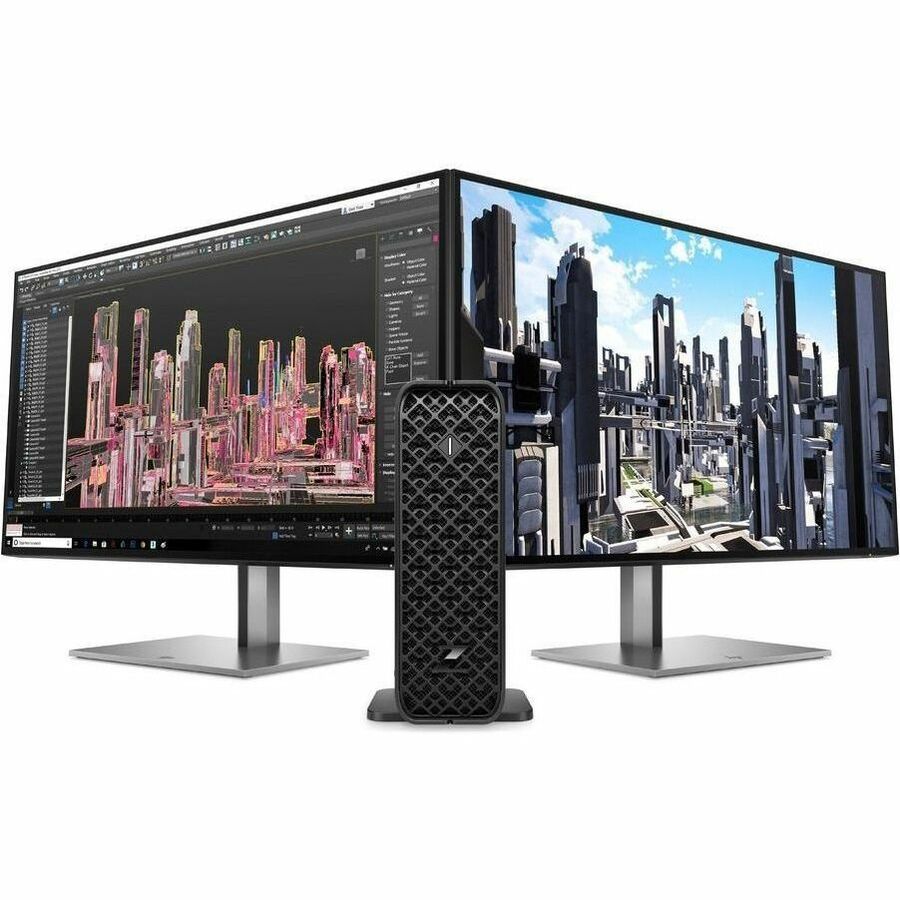

Multi-Display Support

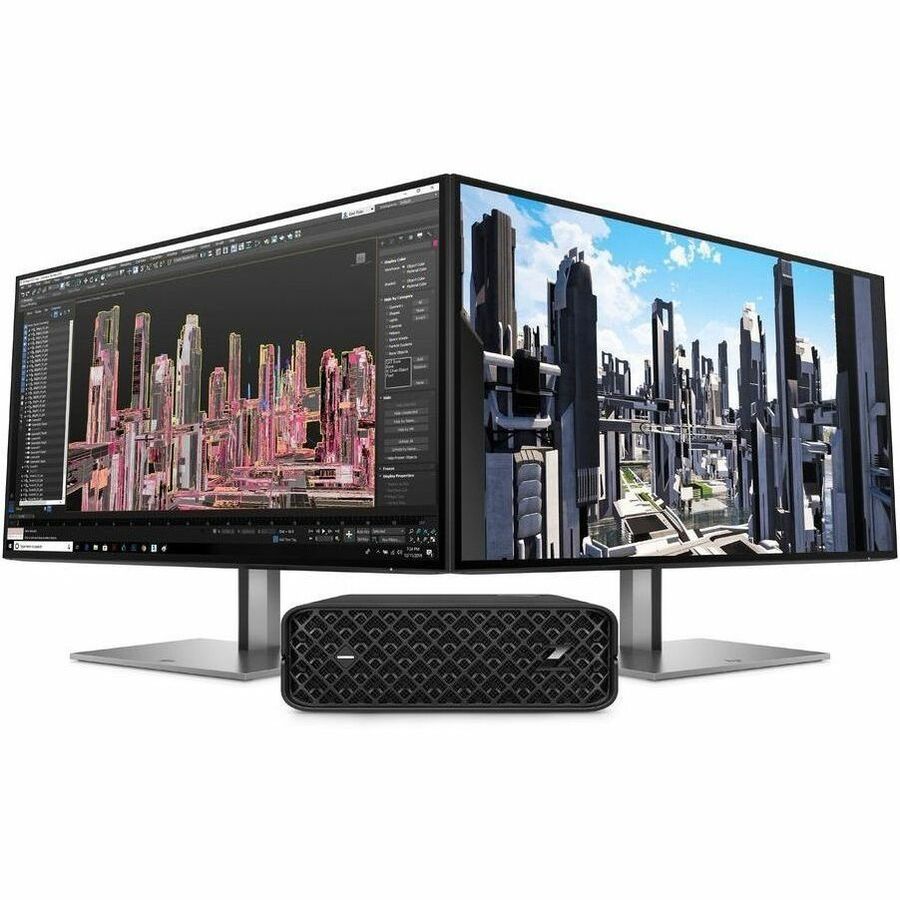

See all your windows in perfect detail with support for up to 8 displays at 4K resolution

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Network Connectivity

Connect and collaborate quickly with 10Gb Ethernet interface.

Product TypeWorkstation
Processor
Number of Processors Supported1
Number of Processors Installed1
Processor TypeCore i9
Processor Generation14th Gen
Processor Modeli9-14900
Processor CoreTetracosa-core (24 Core)
Processor Threads32
Processor Speed2 GHz
L3 Cache36 MB
Processor SocketSocket LGA-1700
Chipset
Chipset ManufacturerIntel
Chipset ModelW680
Memory
Standard Memory64 GB
Maximum Memory Supported64 GB
Memory TechnologyDDR5 SDRAM
Total Number of Memory Slots2
Error CheckingNon-ECC
Memory Configuration2 x 32GB
Storage
Drive TypeSSD
Total Solid State Drive Capacity1 TB
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Controllers
Controller TypeNVMe
RAID SupportedYes
RAID Levels0, 1
Display & Graphics
Graphics Memory AccessibilityShared
Network & Communication
Ethernet TechnologyGigabit Ethernet
Wireless LANYes
BluetoothYes

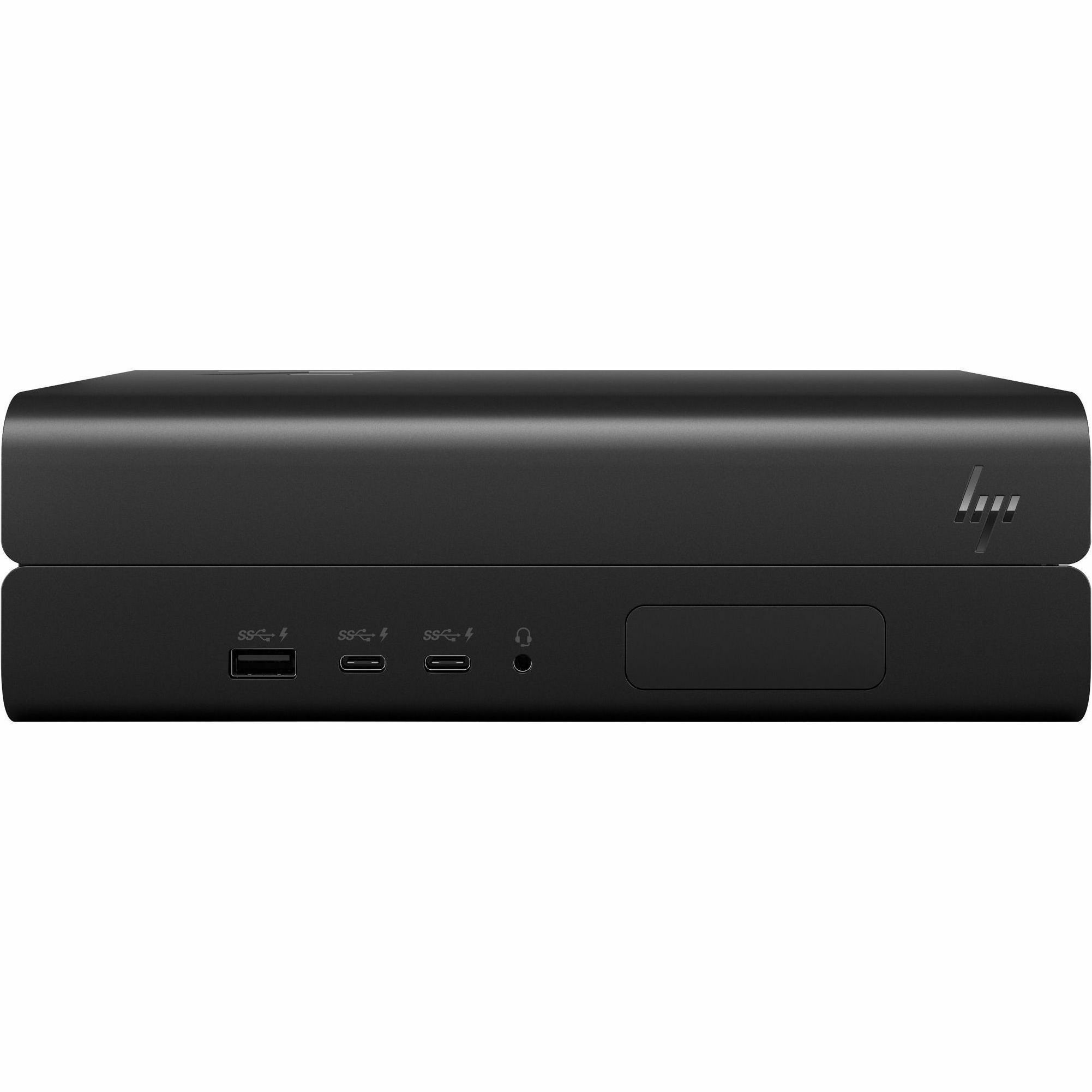

Interfaces/Ports
Total Number of USB Ports6
USB Type-CYes
USB Type-C Detail2 x SuperSpeed USB Type-C® 20Gbps signaling rate
DisplayPortYes
Number Of Ethernet Ports1
Number of DisplayPort Outputs2
Optional Ports

Details regarding optional ports aggregated from the information available for this product's family/series.

Flex IO, choice of:

  • (1) Dual Type-A SuperSpeed USB 5Gbps port,
  • (1) Type-C® SuperSpeed USB 10Gbps port (Alt Mode)
  • (1) Dual SuperSpeed USB Type-A 10Gbps ,
  • (1) DisplayPort™ 1.4
  • (1) USB-C® 10Gbps port (Alt Mode),
  • (1) Thunderbolt™ 3 with USB4 40Gbps,
  • (1) 1Gbps Fiber LC NIC,
  • (1) 2.5GbE LAN,
  • (1) USB-based Serial port,
  • (1) 10GbE LAN
  • (1) 1GbE LAN
  • (1) serial
  • (1) VGA
  • (1) HDMI 2.0b
Input Devices
Keyboard LocalizationEnglish
Operating System
Operating System PlatformWindows
Operating SystemWindows 11 Pro
Operating System LanguageEnglish
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage280 W
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Cooler TypeAir Cooler
Form FactorMini PC
Height2.72" (69 mm)
Width8.31" (211 mm)
Depth8.58" (218 mm)
Weight (Approximate)5.29 lb (2400 g)
Miscellaneous
Package Contents
  • Z2 Mini G9 Workstation
  • Keyboard
  • Mouse
  • Power Adapter
Energy StarYes
TCO CertifiedYes
Environmentally FriendlyYes
Environmental Certification
  • Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
  • Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC198990243818
Warranty
Limited Warranty1 Year
Additional Warranty Information
  • Support Service Included: HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150ENW & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123ENUS.pdf
  • Manufacturer Warranty: 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
  • ;
