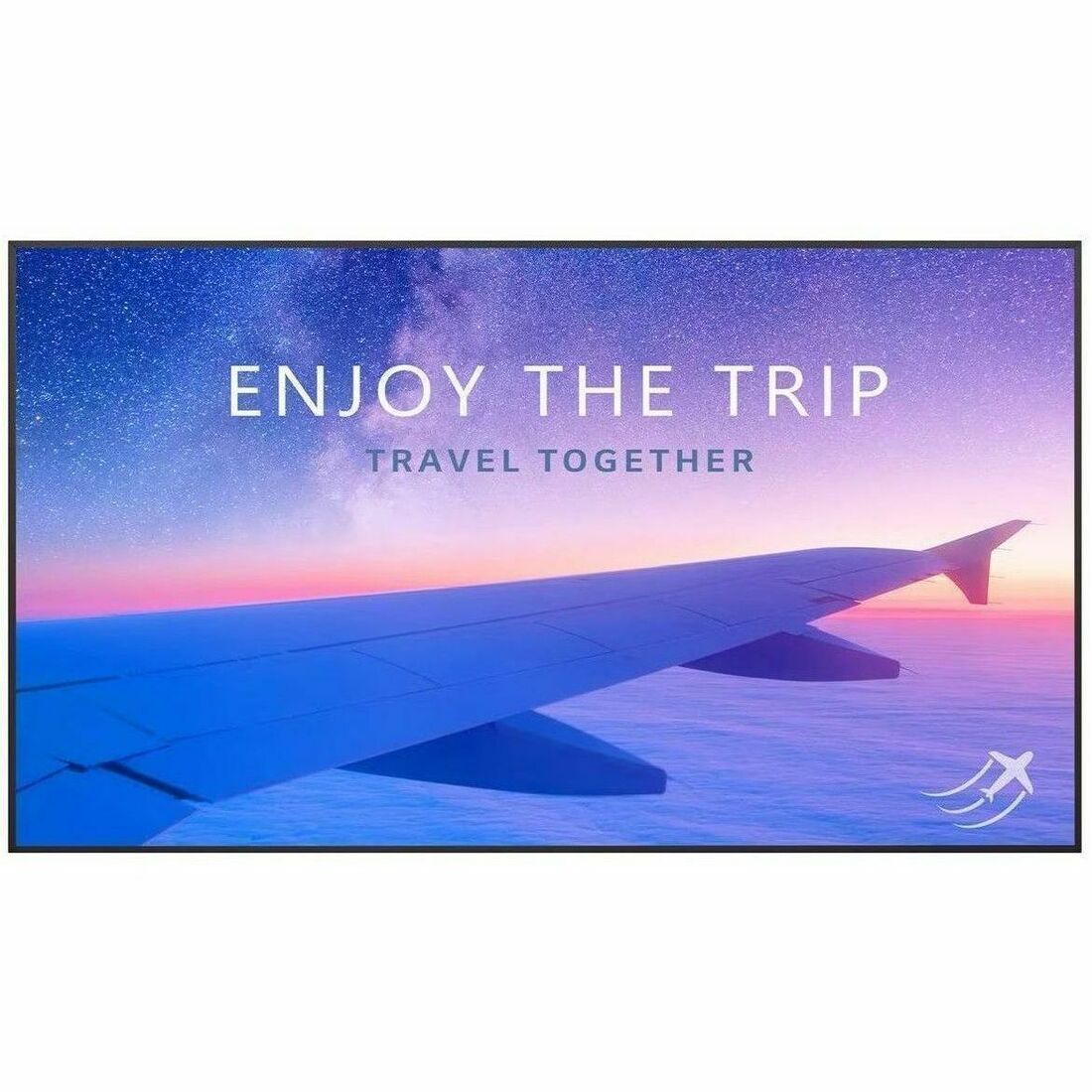

LG 86UH7N-M Digital Signage Display
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 86UH7N-M |
| Brand Name | LG |
| Product Model | 86UH7N-M |
| Product Name | 86UH7N-M Digital Signage Display |
| Marketing Information | High Brightness The UH7N-M display, with a great brightness of 700 nits, clearly delivers content even in bright stores. Sturdy Design with Fire Flame Resistance The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces. Eye-catching Large Screen A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation. Versatile Operation with Multi-USB With support for two USB ports, UH7N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting. High Resolution Display It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen. Convenient webOS Platform The UH7N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment. Durability that Provides Reliability Optimized for business environments, the UH7N-M is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction. Design for Space Utilization Designed with thin bezels and simple cable management, the UH7N-M saves space. Enhanced Security Features The UH7N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified. SuperSign Solutions SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you. |
| Product Type | Digital Signage Display |
| Features |
|
| On Screen Display (OSD) Languages |
|
| Bezel Width | 0.53" (13.40 mm) |
| HDCP Version | 1.4/2.2 |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 1068.8 kJ |
| Content Synchronization | RS-232C |
| Embedded CMS | Local Contents Scheduling |
| Image Sticking Minimization (ISM) Method | Yes |
| Viewable Screen Size | 86" (2184.40 mm) |
| Display Resolution | 3840 x 2160 |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | Edge LED |
| Orientation | Landscape/Portrait |
| Maximum LED Life | 5.7 Year |
| Standard Refresh Rate | 120 Hz |
| Dynamic Contrast Ratio | 100,000,0:1 |
| Native Contrast Ratio | 1,200:1 |
| Color Depth | 8-bit+FRC |
| Color Gamut | 95% BT.709 |
| Wireless LAN | Yes |
| Audio Line Out | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Inputs | 2 |
| USB Type-C | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Infrared Inputs | 1 |
| DisplayPort In | Yes |
| Power Consumption | 205 W |
| Off-Mode Power Consumption | 500 mW |
| Power Consumption (DPM) | 0.5W |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Bezel Color | Black |
| VESA Mount Standard | 600 x 400 |
| Height | 43.29" (1099.57 mm) |
| Width | 75.93" (1928.62 mm) |
| Depth | 1.16" (29.46 mm) |
| Weight (Approximate) | 116.84 lb (52997.73 g) |
| Package Contents | |
| Additional Information | |
| Certifications & Standards | |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool (EPEAT) |
| Country of Assembly | Mexico |
| Compatible Software |
|
| Condition | No |
| UPC | 0195174097441 |
| Limited Warranty | 3 Year |
