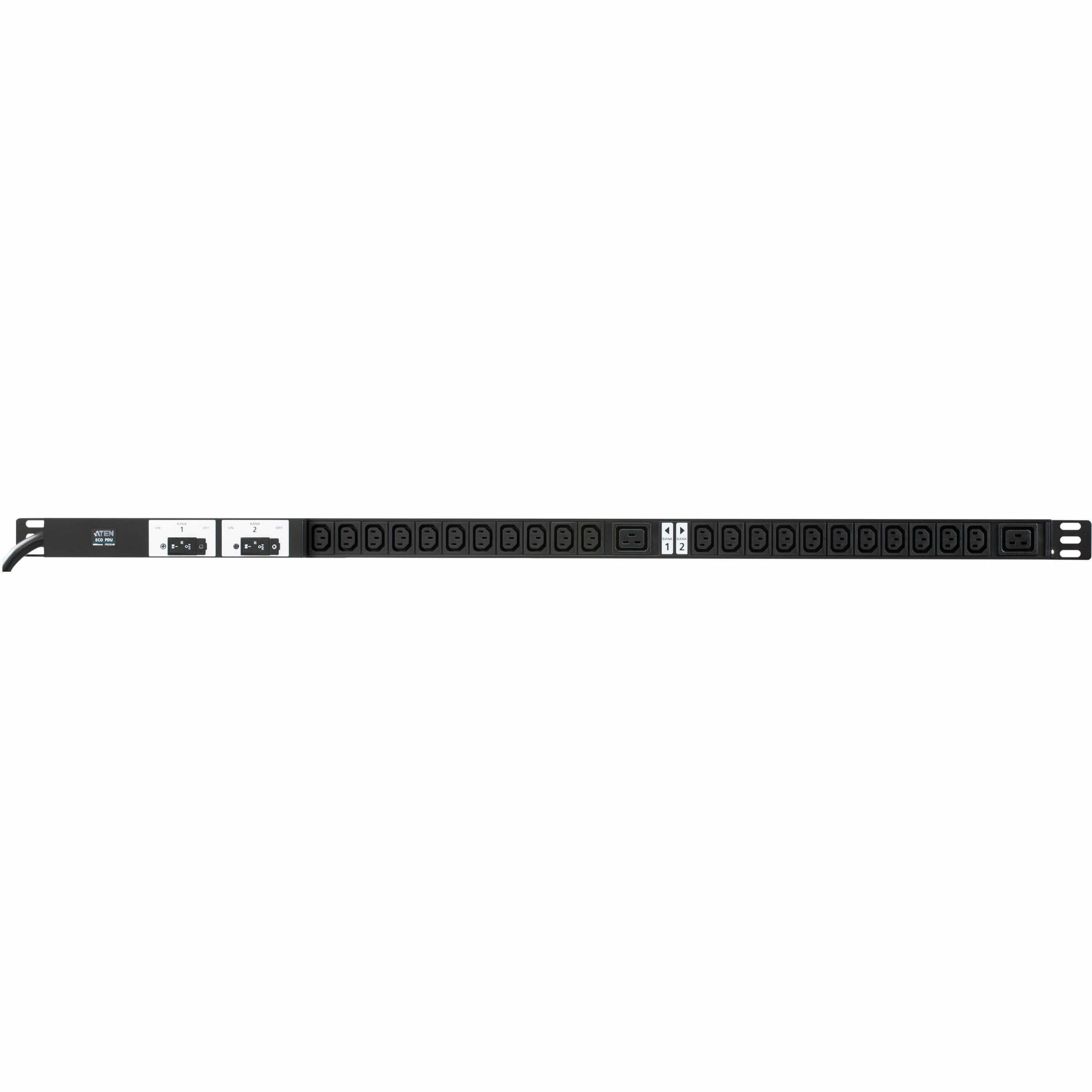

ATEN Basic 24-Outlets PDU

NEMA L6-30P - 22 x IEC 60320 C13, 2 x IEC 60320 C19 - 120 V AC, 230 V AC - Overcurrent Protection - 10 ft (3.05 m) Cord Length - 0U - Rack-mountable - Rack

Part No. PE0324B

by ATEN Technology, Inc

$557.99

User Manual

Specifications

General Information

Manufacturer	ATEN Technology, Inc
Manufacturer Part Number	PE0324B
Brand Name	ATEN
Product Line	Basic
Product Name	Basic 24-Outlets PDU
Marketing Information	ATEN's Basic PDU family is extended with 0U/1U members containing 16/18/24 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module (not for PE0316B/PE0324B), the IT devices connected to the PDU are well-protected from sudden surges in electricity. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets
Product Type	PDU

Technical Information

Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C13 IEC 60320 C19
Receptacle Detail	22 x IEC 60320 C13 2 x IEC 60320 C19
Protection Type	Overcurrent Protection
Load Capacity (VA)	7.20 kW

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 240 V AC
Input Current	30 A
Input Frequency	60 Hz

Physical Characteristics

Product Material	Aluminum
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	0U
Cord Length	10 ft (3.05 m)
Height	3.65" (92.80 mm)
Width	1.75" (44.40 mm)
Length	47.52" (1207.10 mm)
Weight (Approximate)	6.17 lb (2800 g)

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

Application/Usage	Data Center Server Telecom Equipment IT Equipment
Certifications & Standards	FCC Class A
UL Listed	Yes
Condition	No
UPC	672792012105
