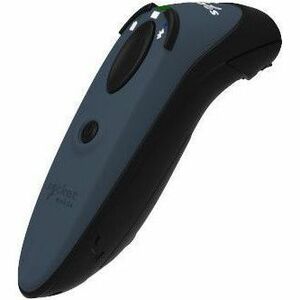

Socket Mobile DuraScan D762 Barcode Scanner

Cable/Wireless Connectivity - 14 ft (4267.20 mm) Scan Distance - 1D, 2D - Omni-directional - Bluetooth - Gray - IP54, IP55 - Warehouse, Delivery, Logistics, Inventory, Industrial, Manufacturing, Asset Tracking, Component Tracking, Healthcare, Retail, Commercial Service

Part No. CX4358-3491

by Socket Mobile, Inc

$930.99

Specifications

General Information

Manufacturer	Socket Mobile, Inc
Manufacturer Part Number	CX43583491
Brand Name	Socket Mobile
Product Line	DuraScan
Product Model	D762
Product Name	DuraScan D762 Barcode Scanner
Marketing Information	A versatile, high-performance data capture solution built for demanding environments. Supporting both 1D and 2D barcodes, the D762 offers exceptional scanning capabilities with a lightweight, ergonomic design for comfortable, all-day use. With an extended working range, it accurately scans barcodes from as little as 2.1 inches and all the way up to 14 feet, accommodating sizes from 5 mil to 160 mil. This flexibility enables users to scan overhead items and inventory from a comfortable distance, boosting productivity in various applications. Designed with durability in mind, the DuraScan D762 Mid-Range Barcode Scanner is IP54-rated for dust and water resistance and withstands multiple drops. Its field-replaceable, long-lasting battery ensures continuous operation, making it a reliable tool for warehouse, manufacturing, and commercial services environments. User-friendly features include intuitive notifications for battery level, Bluetooth connectivity, and scanning status. Suitable for a wide range of applications such as logistics, healthcare, and retail, the D762 delivers fast, accurate data capture to enhance daily operations.
Packaged Quantity	1
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable/Wireless
Scanning Capability	1D 2D
Barcode Symbology Supported	1D: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO 2D: Aztec, Data Matrix, DotCode, GS1 Data Matrix (S740 with Green scan LED only), GS1 QR Code (S740 with Green scan LED only), Maxicode, Micro PDF417, MicroQR, PDF417, QR Code Postal Codes: Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail OCR Typeface (S740 with Green scan LED only): OCR-A, OCR-B, MICR (E13B), US currency serial number
Scan Pattern	Omni-directional
Scanner Range	Extended Range
Scanning Distance	14 ft (4267.20 mm)
Features	Notification LED Scan Button Ergonomic Design
Field of View (Horizontal)	45°
Field of View (Vertical)	34°
Maximum Ambient Light	100000 lux
Drop Specification	Six drops onto concrete - one on each side at 6.6 ft. (2 m)
Minimum Print Contrast	25%
Minimum Element Resolution (Code 39)	20 mil (0.51 mm)
Maximum Element Resolution (Code 39)	100 mil (2.54 mm)
Minimum Element Resolution (DataMatrix)	7.50 mil (0.19 mm)
Maximum Element Resolution (DataMatrix)	0.16" (4.06 mm)
Minimum Element Resolution (PDF417)	5 mil (0.13 mm)
Image Sensor Resolution	1280 x 960

Network & Communication

Bluetooth	Yes

Battery Information

Battery Chemistry	Lithium Polymer (Li-Polymer)
Battery Capacity	1400 mAh
Battery Weight	1.23 oz (35 g)

Environmental Conditions

Operating Temperature	32°F (0°C) to 113°F (45°C)
Storage Temperature	-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)	95%

Physical Characteristics

Form Factor	Hands-free
Rugged	Yes
Color Family	Gray
Product Color	Gray
Durability	Drop Resistant Dust Resistant Water Resistant

Miscellaneous

Ingress Protection (IP) Rating	IP54 IP55
Application/Usage	Warehouse Delivery Logistics Inventory Industrial Manufacturing Asset Tracking Component Tracking Healthcare Retail Commercial Service
Platform Supported	iOS Android Windows
COO	US
Condition	No
