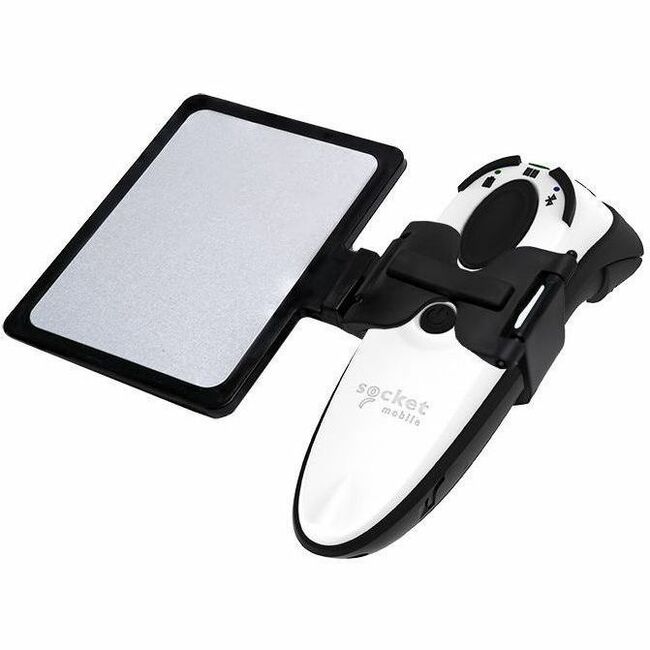

Socket Mobile DuraScan D760 Barcode Scanner

Cable/Wireless Connectivity - 36.10" (916.94 mm) Scan Distance - 1D, 2D - Omni-directional - Bluetooth - White - IP54 - Warehouse, Delivery, Logistics, Inventory, Industrial, Manufacturing, Asset Tracking, Component Tracking, Outdoor

Part No. CX4355-3488

by Socket Mobile, Inc

$792.99

Specifications

General Information

Manufacturer	Socket Mobile, Inc
Manufacturer Part Number	CX4355-3488
Brand Name	Socket Mobile
Product Line	DuraScan
Product Model	D760
Product Name	DuraScan D760 Barcode Scanner
Marketing Information	The DuraScan D760 is the latest and improved version of the ultimate Bluetooth barcode scanner. Built for mobility and redesigned for improved durability, it is IP54 compliant and ideal for travel and POS application customers where durability and indoor/outdoor flexibility are required. Travel merchants only need one device to scan purchased items and passports. Based on customer feedback, we've added a field-replaceable battery. The scanner is MFi certified and fully compatible with Android and Windows, with different CaptureSDK versions available. The D760 reads OCR fonts, passports, travel IDs, DotCode, and 2D/1D barcodes on paper and screen. It features great ergonomics, fits perfectly in your hand, and is small enough to fit in your pocket. The D760 is fully backward compatible with prior versions of Socket Mobile's SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D760, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of CaptureSDK.
Packaged Quantity	1
Product Type	Barcode Scanner

Technical Information

Connectivity Technology	Cable/Wireless
Scanning Capability	1D 2D
Barcode Symbology Supported	1D: Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO 2D: Aztec, Data Matrix, DotCode, GS1 Data Matrix (S740 with Green scan LED only), GS1 QR Code (S740 with Green scan LED only), Maxicode, Micro PDF417, MicroQR, PDF417, QR Code Postal Codes: Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail OCR Typeface (Green scan LED only): OCR-A, OCR-B, MICR (E13B), US currency serial number
Scan Pattern	Omni-directional
Scanning Distance	36.10" (916.94 mm)
Features	Notification LED Scan Button Ergonomic Design
Field of View (Horizontal)	45°
Field of View (Vertical)	34°
Maximum Ambient Light	100000 lux
Drop Specification	Six drops onto concrete - one on each side at 6.6 ft. (2 m)
Minimum Print Contrast	25%
Minimum Element Resolution (Code 39)	3 mil (0.08 mm)
Maximum Element Resolution (Code 39)	20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix)	10 mil (0.25 mm)
Minimum Element Resolution (PDF417)	5 mil (0.13 mm)
Maximum Element Resolution (PDF417)	6.67 mil (0.17 mm)
Image Sensor Resolution	1280 x 960

Network & Communication

Bluetooth	Yes

Battery Information

Battery Chemistry	Lithium Polymer (Li-Polymer)
Battery Capacity	1400 mAh
Battery Weight	1.23 oz (35 g)
Maximum Battery Run Time	20 Hour

Environmental Conditions

Operating Temperature	32°F (0°C) to 113°F (45°C)
Storage Temperature	-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)	95%

Physical Characteristics

Form Factor	Hands-free
Color Family	White
Product Color	White

Miscellaneous

Ingress Protection (IP) Rating	IP54
Application/Usage	Warehouse Delivery Logistics Inventory Industrial Manufacturing Asset Tracking Component Tracking Outdoor
Platform Supported	iOS Android Windows
COO	US
Condition	No
