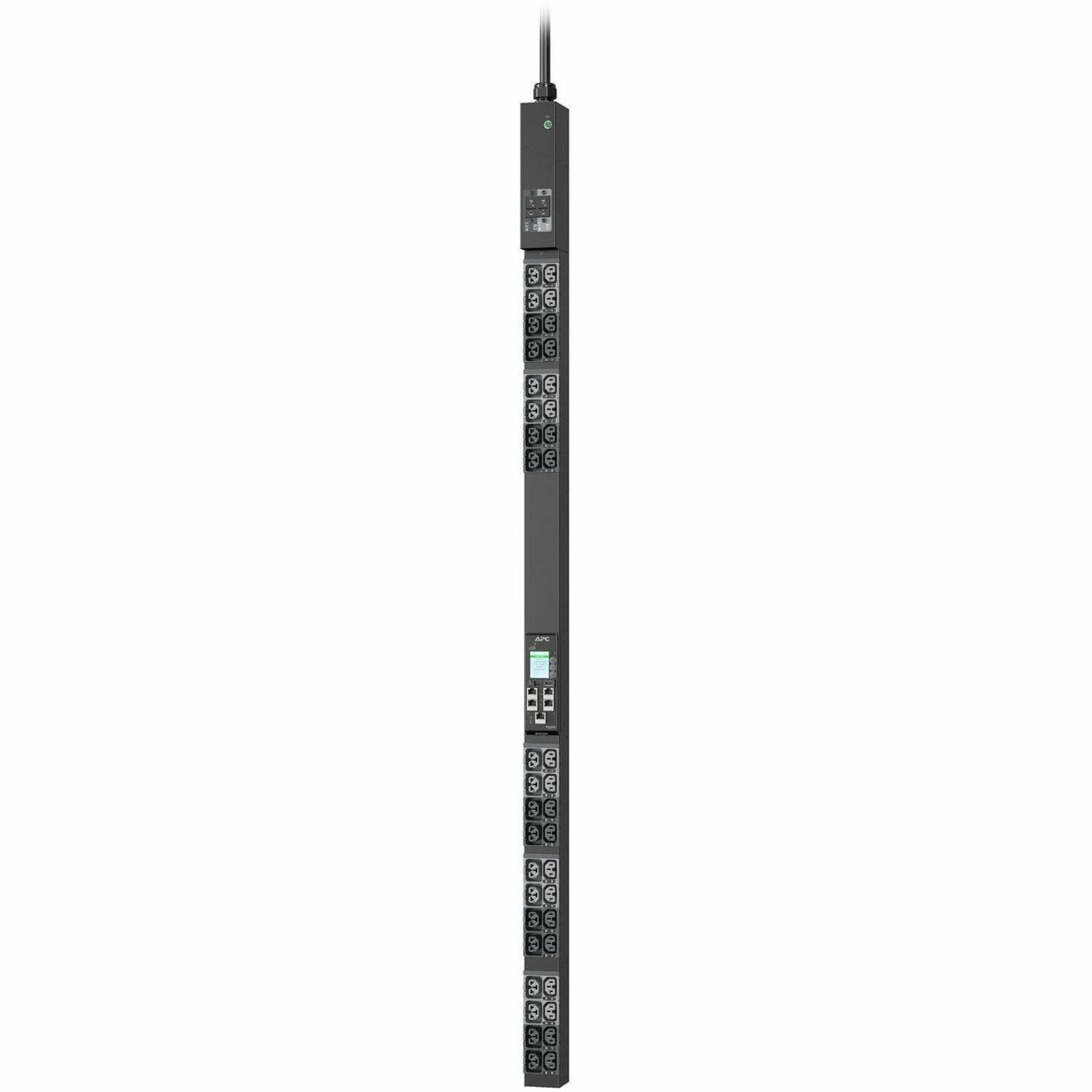

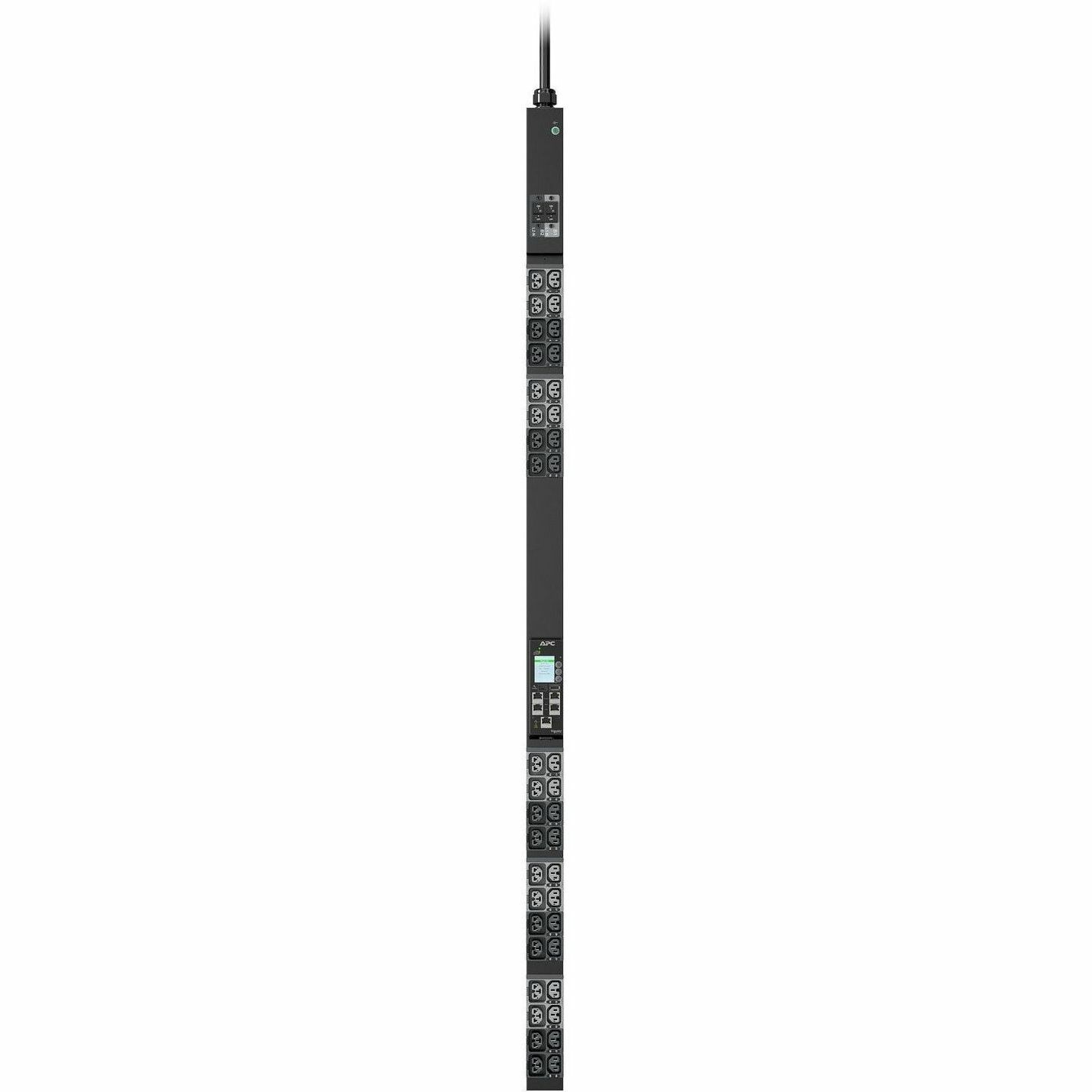

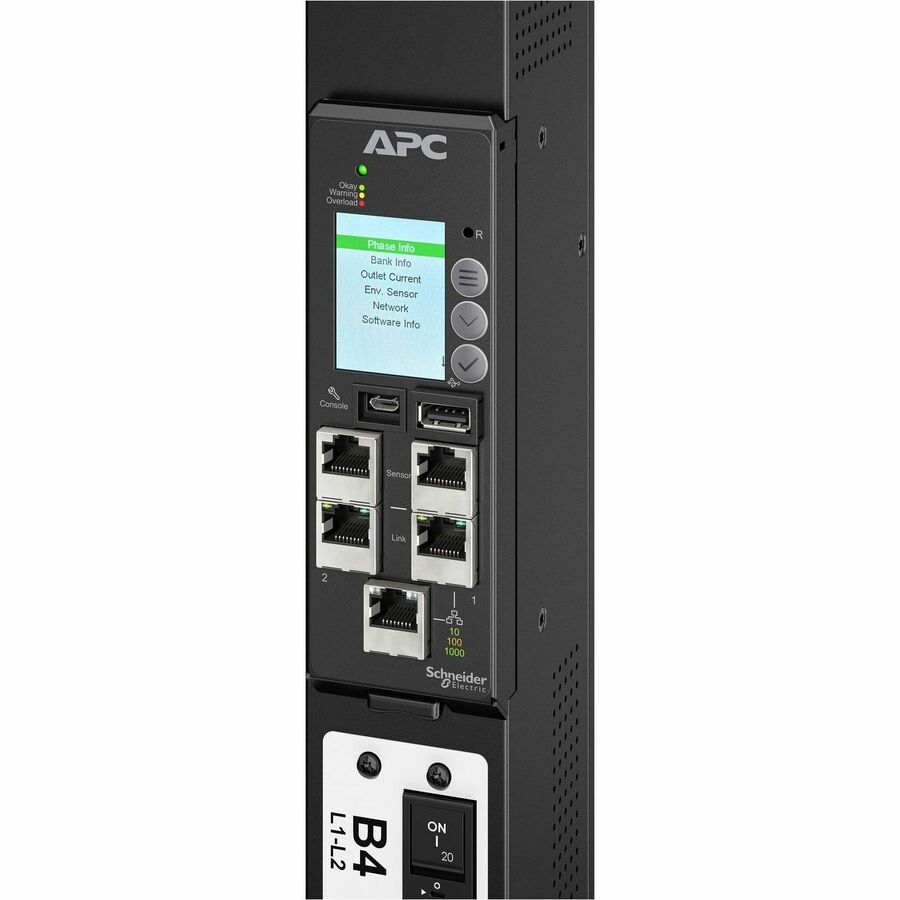

APC NetShelter Rack PDU Advanced Gen 2, Metered, 7.4kW, 1Phase, 230V, 32A, 332P6, 40 Outlets
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU11150ME |
| Brand Name | APC |
| Product Line | NetShelter |
| Product Name | NetShelter 40-Outlets PDU |
| Marketing Information | APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10 foot (3 meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in todays high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC 309 32 A and features 20 count C13,C15,C19,C21 combo outlets and 20 count C13,C15 outlets. |
| Product Type | PDU |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Type | IEC 60309 32A 2P+PE |
| Receptacle Type |
|
| Receptacle Detail |
|
| Load Capacity (Watt) | 7.40 kW |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Source | Power Supply |
| Input Current | 32 A |
| Management |
|
| Network (RJ-45) | Yes |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Placement | Side |
| Form Factor | Rack |
| Rack Height | 0U |
| Cord Length | 9.8 ft (3 m) |
| Height | 58.66" (1489.96 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.95" (74.93 mm) |
| Weight (Approximate) | 13.67 lb (6200.61 g) |
| Maximum Operating Temperature | 140°F (60°C) |
| For Country/Region | United States |
| Application/Usage |
|
| Certifications & Standards |
|
| Product Take Back Program | No |
| REACH free of SVHC | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU11150ME_ROHS_DECLARATION&p_FileName=APDU11150MEKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=APDU11150ME_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=APDU11150ME_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| SCIP Number | 31346aed-552c-4a16-81d9-e683a383b6da |
| TAA Compliant | No |
| Environmental Compliance |
|
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Reach Compliance Date | 2/1/2026 |
| Packaging Contains Recycled Cardboard | No |
| Minimum Percentage of Recycled Metal Content | 0 |
| Product Contributes Saved Avoided Emissions | No |
| Condition | No |
| UPC | 731304752622 |
| Limited Warranty | 3 Year |
