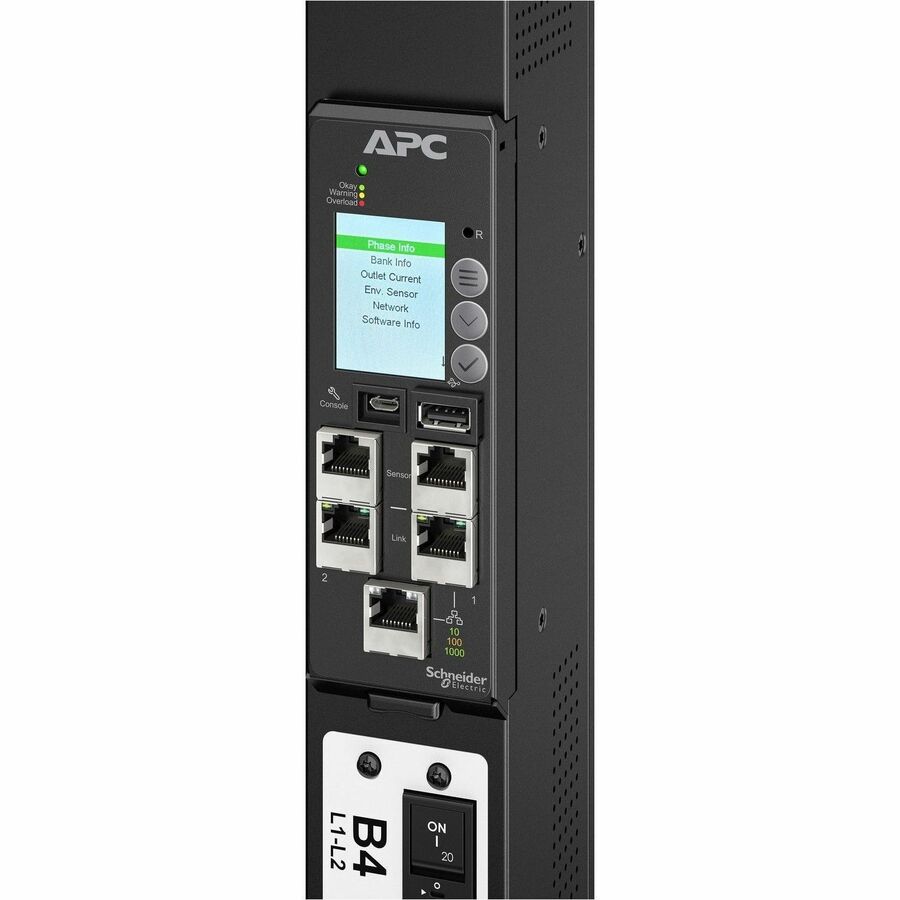

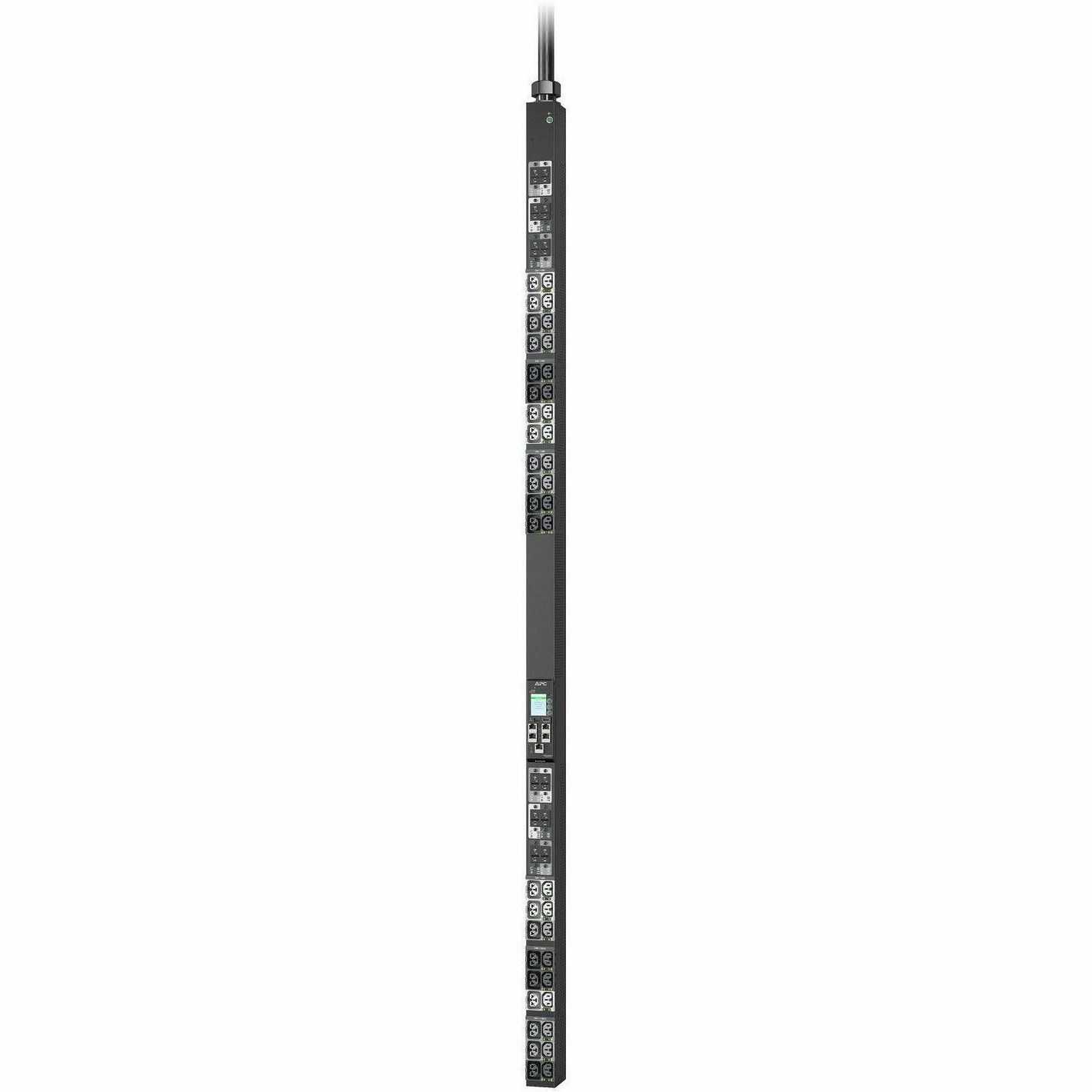

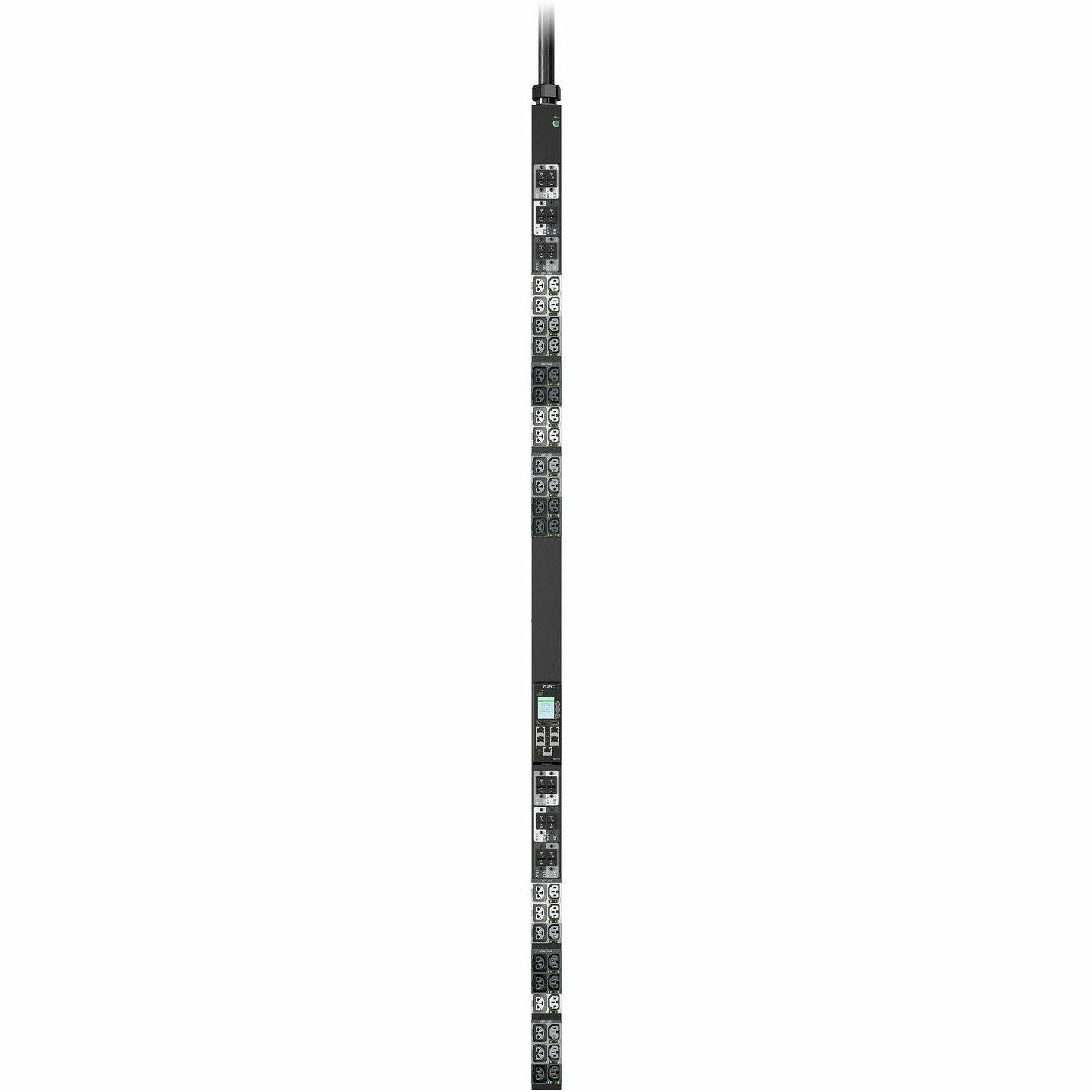

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet,3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APDU11450SM |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter |
| Product Name | NetShelter 42-Outlets PDU |
| Marketing Information | APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10 foot (3 meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in todays high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 60 A 3P+N+PE and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets. |
| Packaged Quantity | 1 |
| Product Type | PDU |
| PDU Type |
|
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 60A 3P+N+PE |
| Receptacle Type |
|
| Receptacle Detail |
|
| Load Capacity (Watt) | 43.50 kW |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Source | Power Supply |
| Input Current | 60 A |
| Management |
|
| Remote Outlet Switching | Yes |
| Network (RJ-45) | Yes |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Form Factor | Rack |
| Rack Height | 0U |
| Cord Length | 9.8 ft (3 m) |
| Height | 71.89" (1826.01 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.95" (74.93 mm) |
| Weight (Approximate) | 28 lb (12700.59 g) |
| Maximum Operating Temperature | 140°F (60°C) |
| For Country/Region | United States |
| Application/Usage |
|
| Certifications & Standards |
|
| Product Take Back Program | No |
| REACH free of SVHC | No |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU11450SM_ROHS_DECLARATION&p_FileName=APDU11450SMKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=595098418&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=595098418&lang=en-us |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| TAA Compliant | No |
| Environmental Compliance |
|
| Condition | No |
| UPC | 0731304752790 |
| Limited Warranty | 3 Year |
