Corsair RMe RPS0189 1200W Power Supply

Part No. CP-9020258-NA

by Corsair

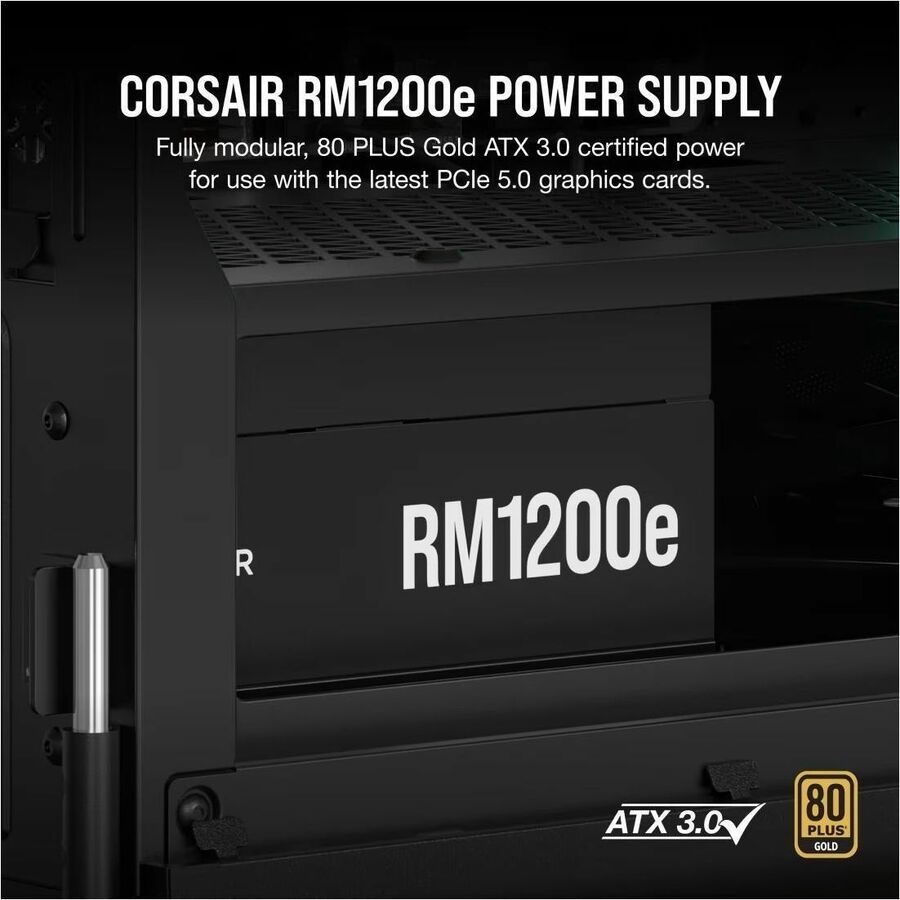

Corsair RMe RPS0189 1200W Power Supply

Black - Internal - 120 V, 230 V Input - 3.3 V, 5 V, 12 V, 5 V SB Output - 1.20 kW - PCI Express Connector 5.1 - 1 Fan(s) - NVIDIA SLI Supported - 90% Efficiency - Low Noise

Part No. CP-9020258-NA

by Corsair

$312.99
General Information
ManufacturerCorsair
Manufacturer Part NumberCP-9020258-NA
Brand NameCorsair
Product SeriesRMe
Product ModelRPS0189
Product NameRMe RPS0189 1200W Power Supply
Marketing Information

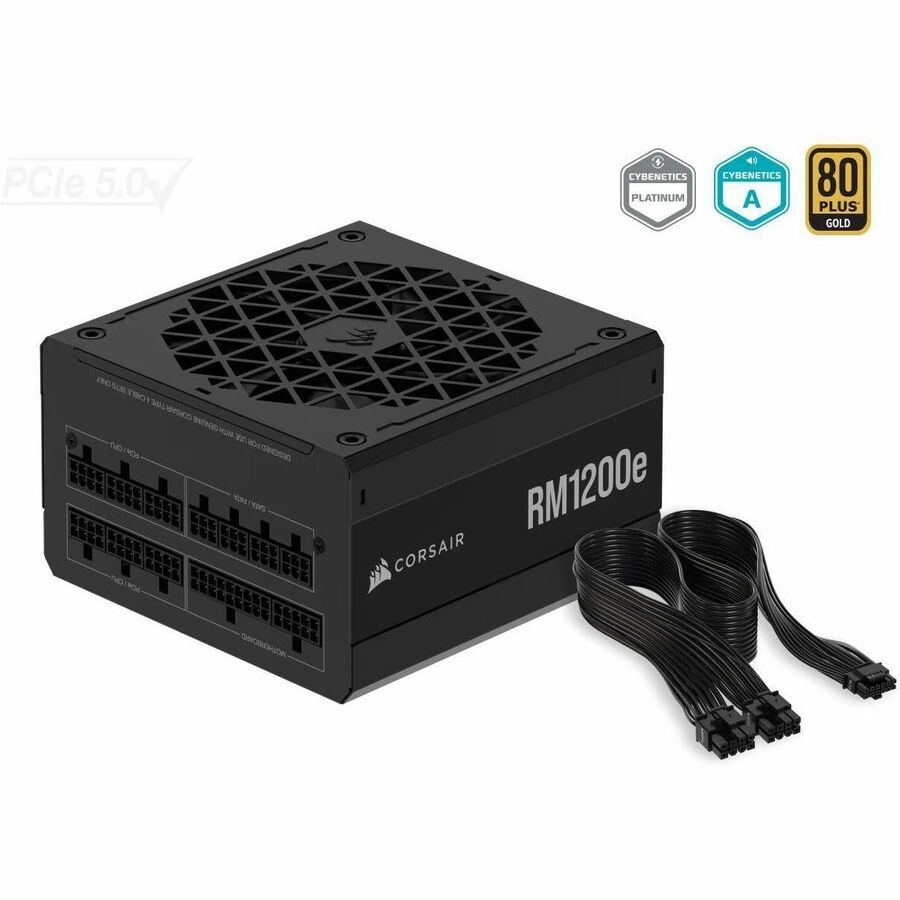

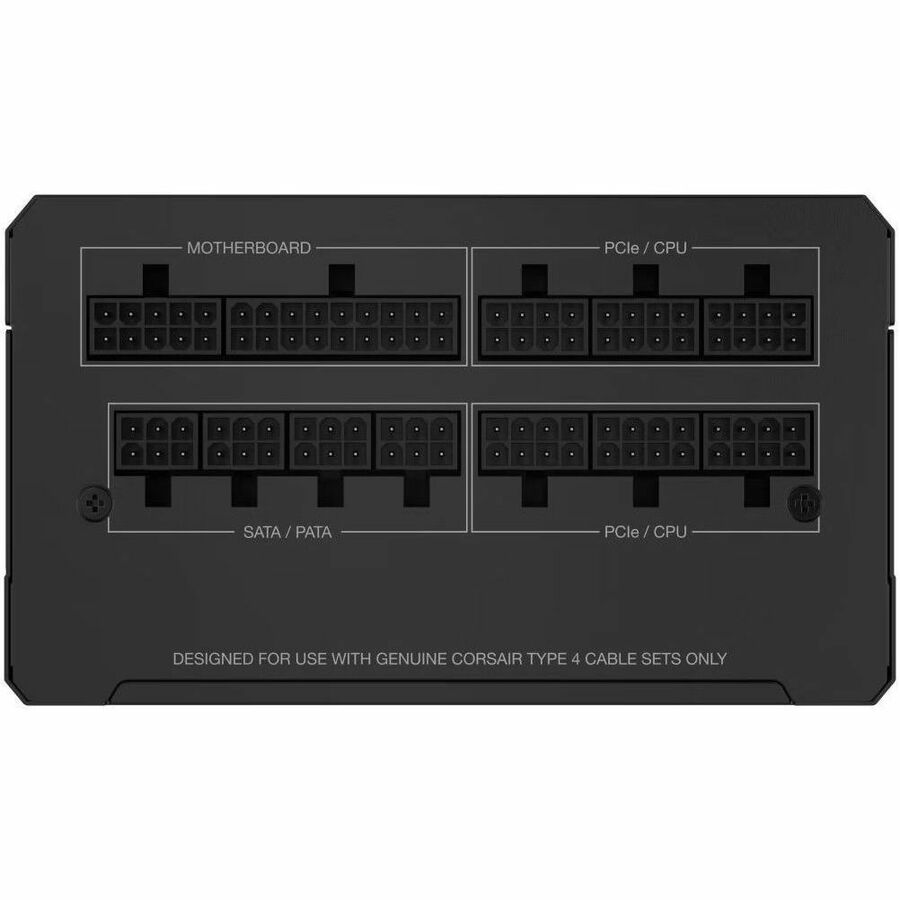

FULLY MODULAR CABLING

Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.

ON THE CUTTING-EDGE | ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12v-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 50 Series.

LOW NOISE OPERATION IN A COMPACT SIZE

Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

Includes Zero RPM Fan Mode for near-silent operation at lower loads.

TECHNOLOGY AND RELIABILITY

For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

80 PLUS Gold certified

Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

WORLD-CLASS SUPPORT

Our award-winning service means you can enjoy your gear worry-free.

Product TypePower Supply
Technical Information
Specification Compliance
  • ATX 3.1
  • ATX12V v3.0
Efficiency90%
Number of Fans1
ModularYes
Modular TypeFully Modular
NVIDIA SLI SupportedYes
FeaturesLow Noise
Reliability
MTBF100000 Hour
Power Description
Input Voltage
  • 120 V
  • 230 V
Output Voltage
  • 3.3 V
  • 5 V
  • 12 V
  • 5 V SB
Output Voltage Detail
  • 3.3 V @ 20 A
  • 5 V @ 20 A
  • 12 V @ 100 A
  • 5 V SB @ 3 A
Output Current
  • 20 A
  • 100 A
  • 3 A
Output Power1.20 kW
Input Frequency47~63Hz
Interfaces/Ports
Number of SATA Power Connectors7
PCI Express ConnectorYes
PCI Express Version5.1
Number of (6+2 pin) PCI Express Power Connectors2
Number of (4+4 pin) CPU Power Connectors2
Physical Characteristics
Color FamilyBlack
Product ColorBlack
Form FactorInternal
Width5.91" (150 mm)
Depth5.91" (150 mm)
Miscellaneous
Energy Efficiency Certification80 Plus Gold
ConditionNo
UPC840006696308
Warranty
Limited Warranty10 Year
