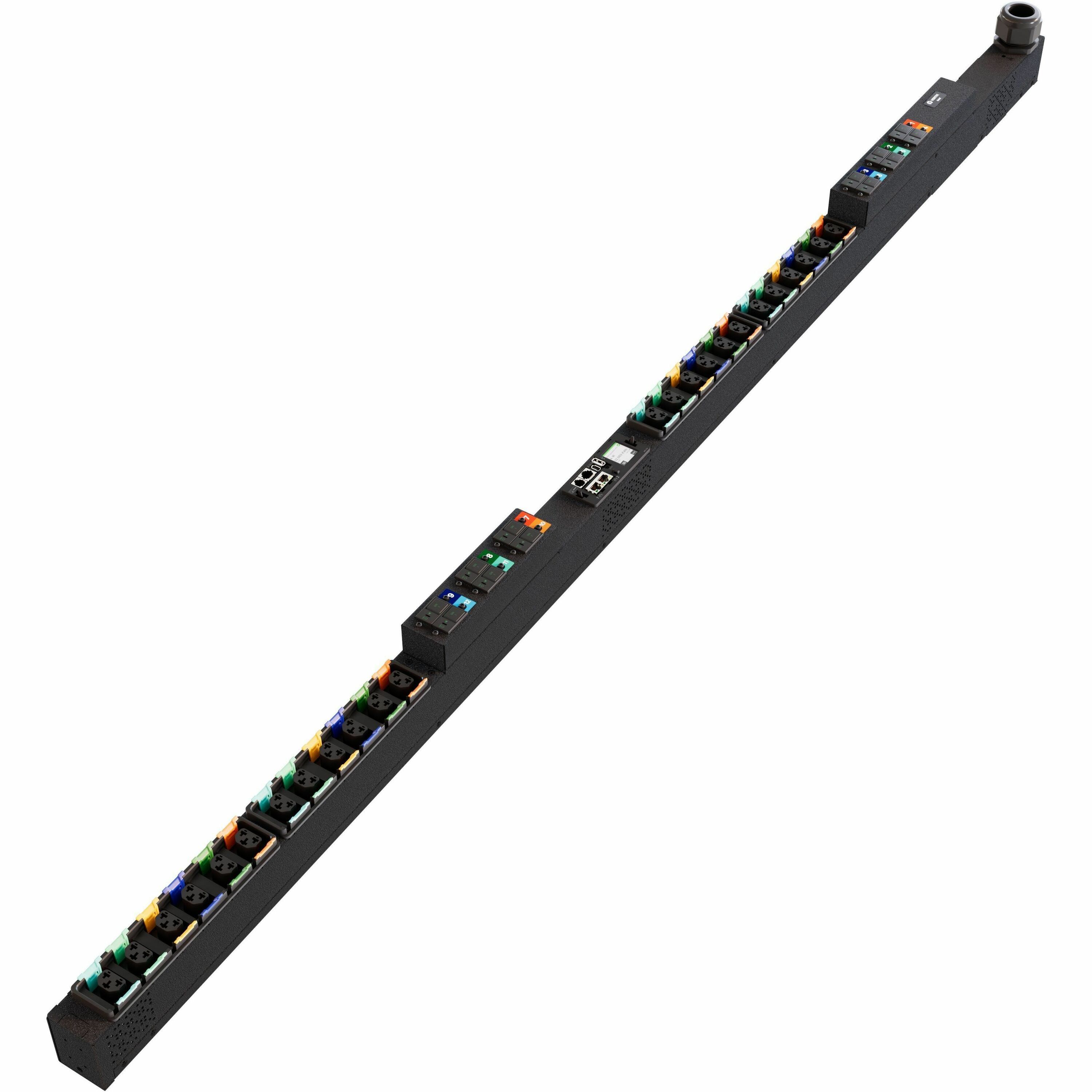

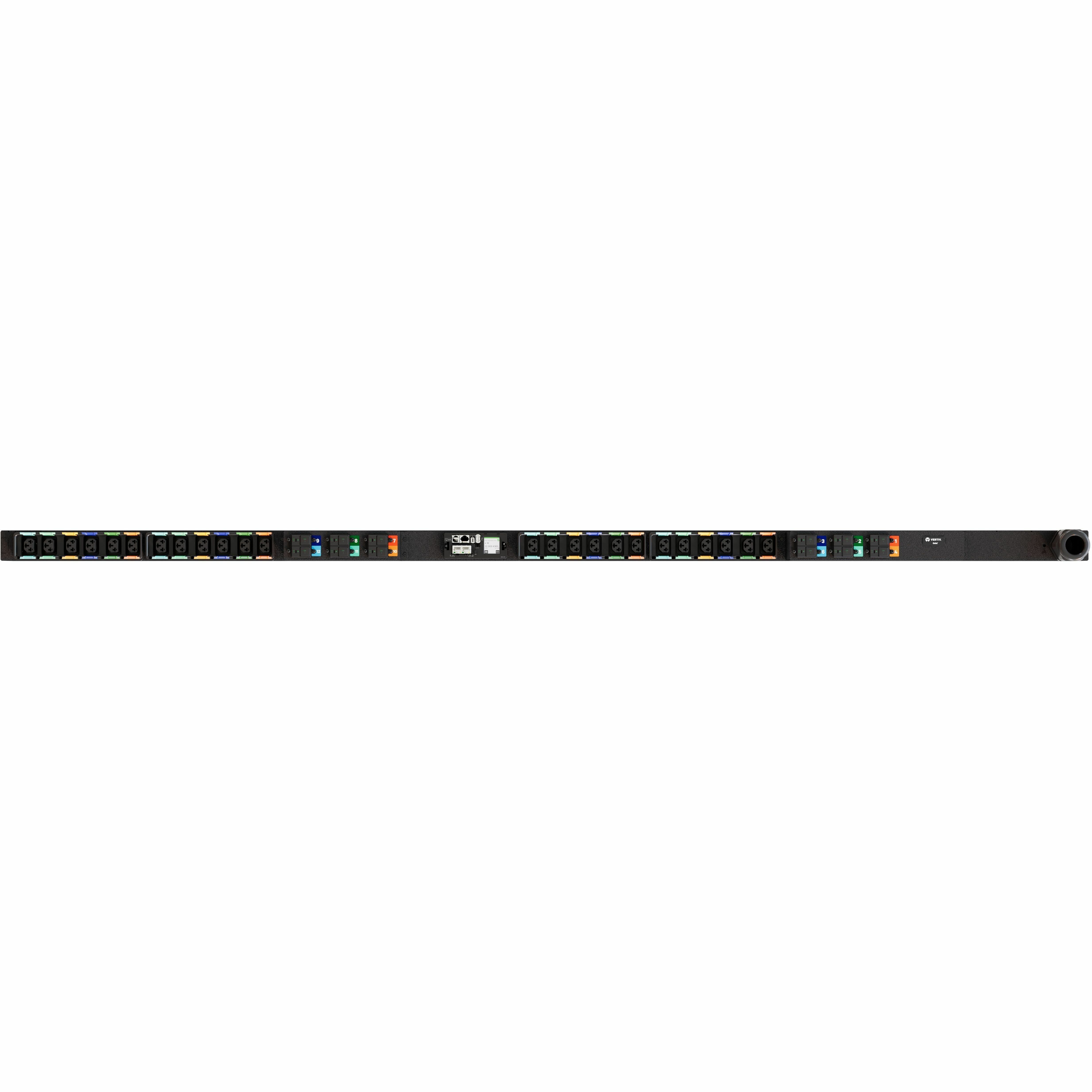

Vertiv PowerIT VP6U60A3 Upgradeable Outlet Level Monitoring HD rPDU, Vertical, Three Phase, 24 Combination C13/C19 Outlets, 60/63A, 240/415V WYE, 0U
Rack power distribution unit, 43.4kW, 3P+N+E (IP44) plug, TAA Compliance, RoHS, China RoHS, UL-listed, CE-marked, 3-year warranty extending to 5-year warranty if registered within 120 days of purchase
$5156.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP6U60A3 |
| Brand Name | Vertiv Geist |
| Product Line | Geist Upgradeable |
| Product Series | G |
| Product Name | Monitored Outlet Level VP6U60A3 PDU |
| Marketing Information | The Vertiv PowerIT Monitored Outlet Level High Density Rack Power Distribution Unit (rPDU) VP6U60A3 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input and outlet level monitoring. It has 24 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. It also has a 3P+N+E (IP44) plug with 43.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL-listed and CE-marked, meeting an important requirement for data centers. It is also RoHS-certified and individually tested to ensure your network is powered by a reliable power distribution unit. Plus, it includes a three-year warranty that is extendable to five years if registered within 120 days of purchase. |
| Product Type | PDU |
Technical Information
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | 3P+N+E (IP44) |
| Plug/Connector Detail | 1 x 3P+N+E (IP44) |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 24 x Combination C13/C19 |
| Protection Type | Overcurrent Protection |
| Features |
|
Power Description
| Input Voltage |
|
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 43.40 kW |
| Input Current | 63 A |
Management
| Management |
|
| Remote Outlet Switching | No |
Interfaces/Ports
| Serial Port | Yes |
| Modem (RJ-11) | No |
| Modem (RJ-12) | Yes |
| Modem (RJ-22) | No |
| Network (RJ-45) | Yes |
| USB | Yes |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Width | 2" (50.80 mm) |
| Depth | 2.60" (66.04 mm) |
| Length | 72" (1828.80 mm) |
Miscellaneous
| Certifications & Standards | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance |
|
| Condition | No |
Warranty
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
