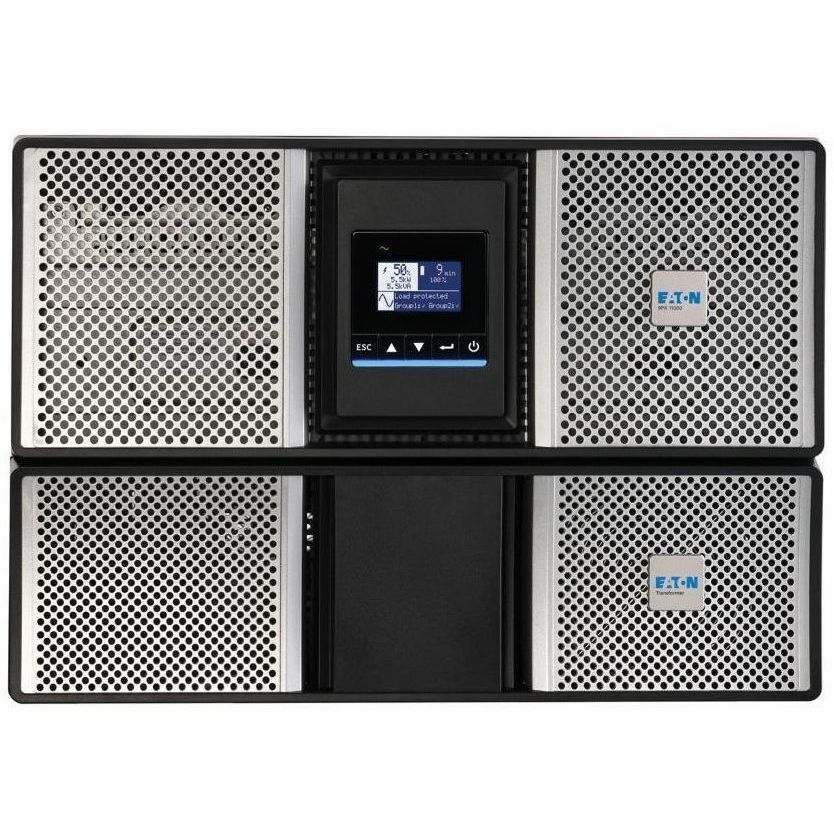

11kVA/11kW/120V/208V Battery Backup for Distributed IT and Edge Networks

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX11KTF11MG2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications.

Delivers Maximum Power Reliability with Best-in-Class Efficiency

With unity power factor (11000VA/11000W output), the 9PX11KTF11MG2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. It is also the most efficient UPS system in its class with up to 97 percent energy efficiency in online mode. It complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use.

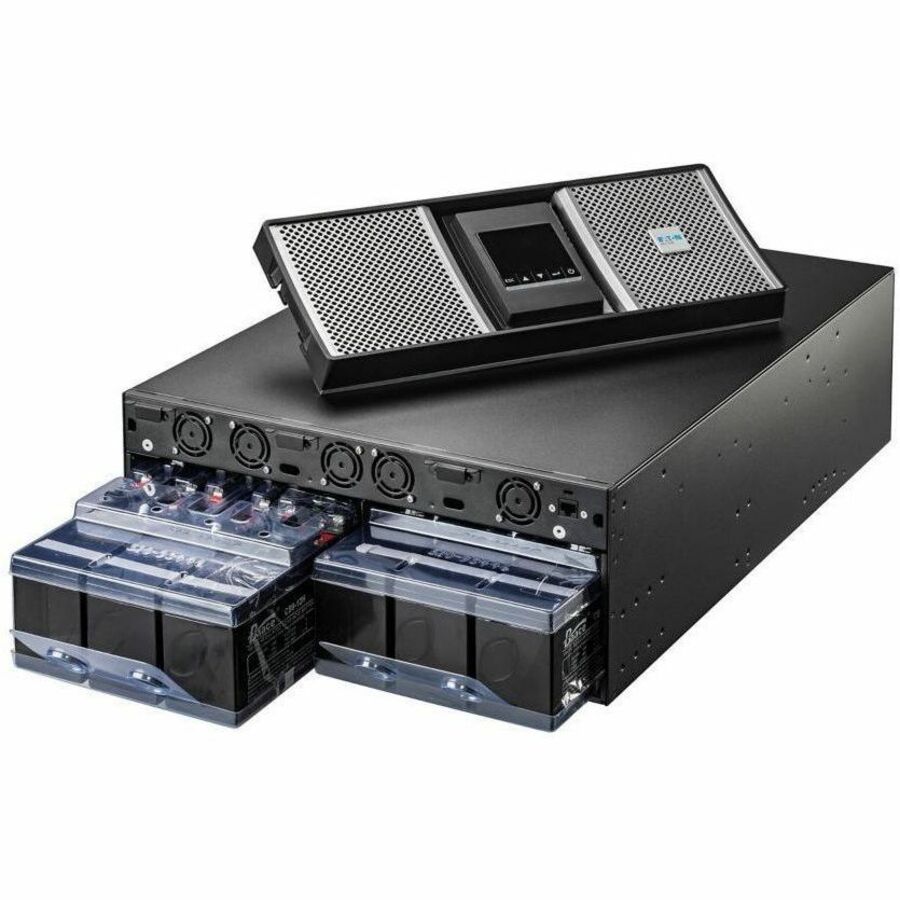

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

Exclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM240RTG2, sold separately) to add necessary runtime during prolonged power outages.

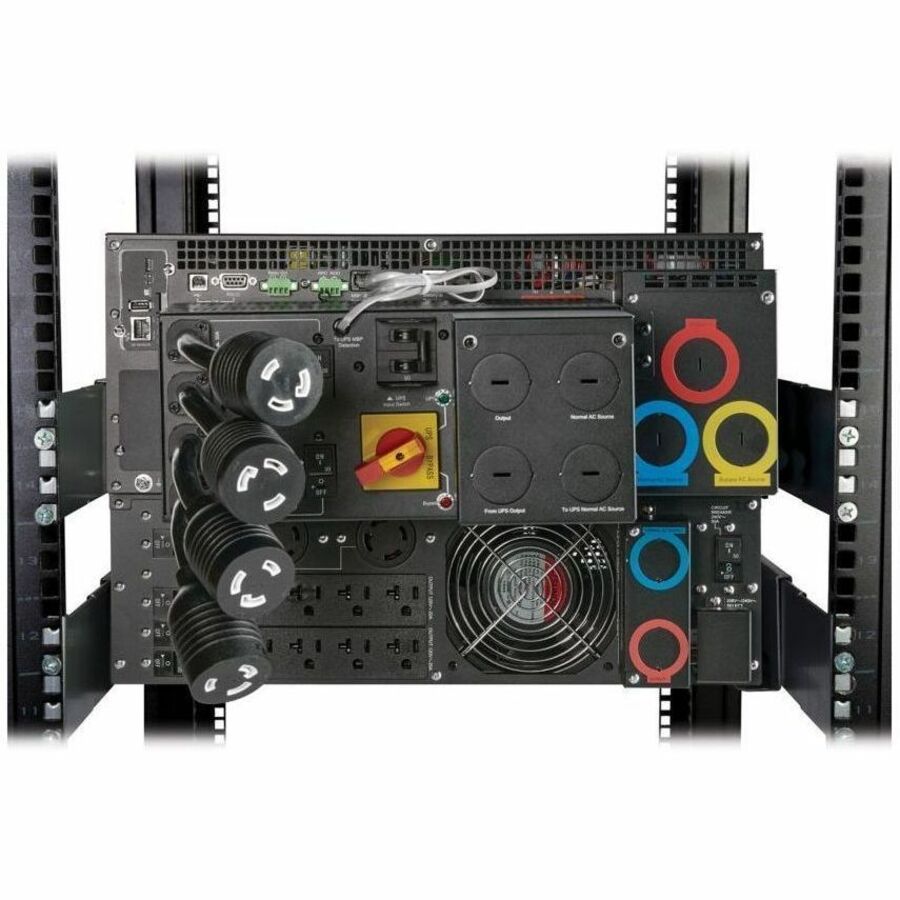

Included Transformer and Bypass Help Accommodate a Range of Connected Equipment

The 3U 9PXTFMR11G2 transformer permits step-down voltage from 208V to 120V to allow connection of a wider range of components. The MBP11K208G2 maintenance bypass lets you service or replace the UPS power module without powering down any connected equipment.

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be upgraded remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks.

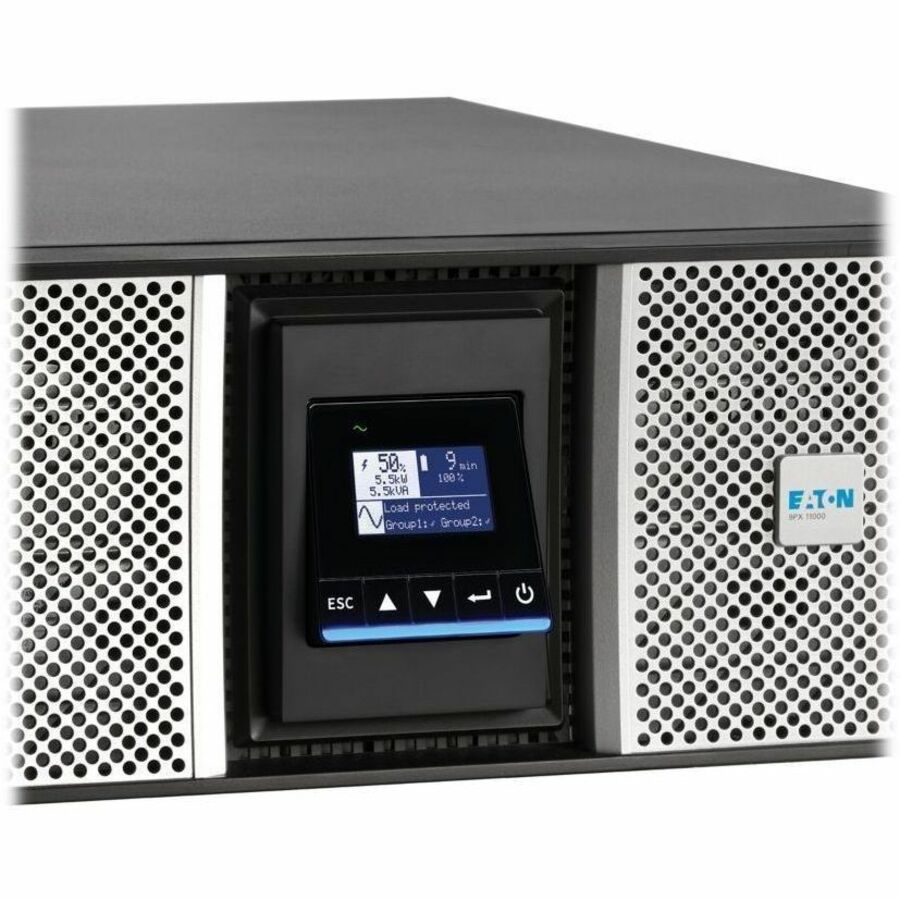

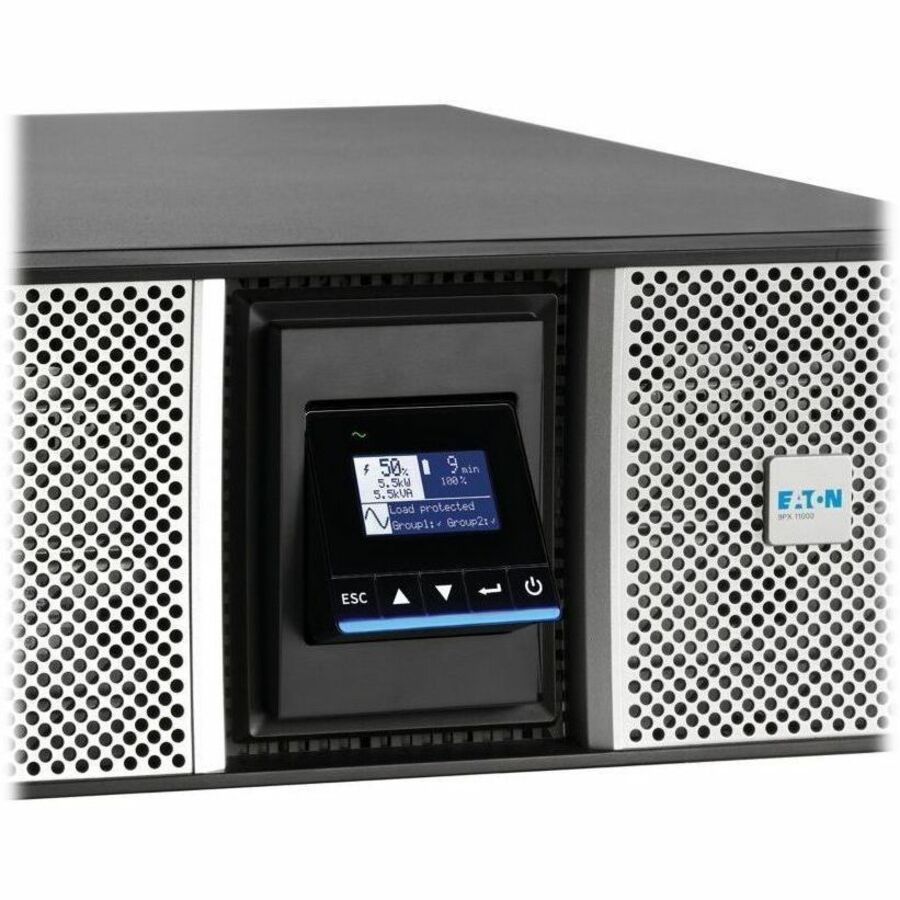

High-Visibility LCD Interface Keeps You Informed at a Glance

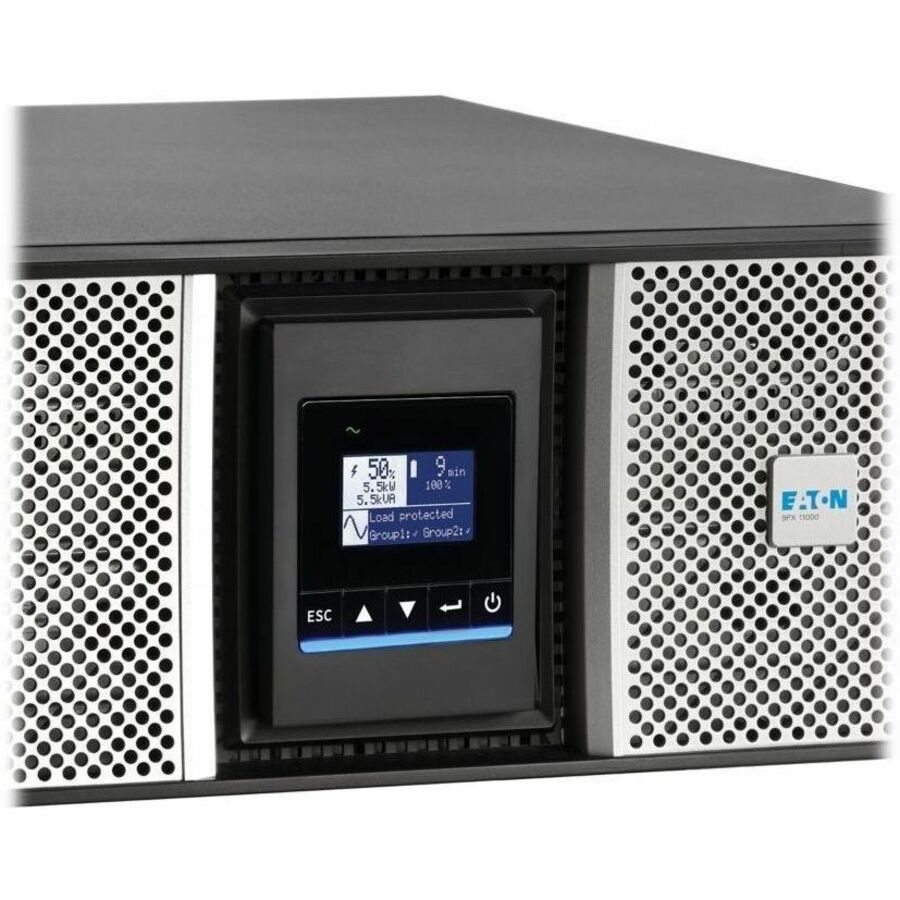

The high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.

Versatile Installation Options

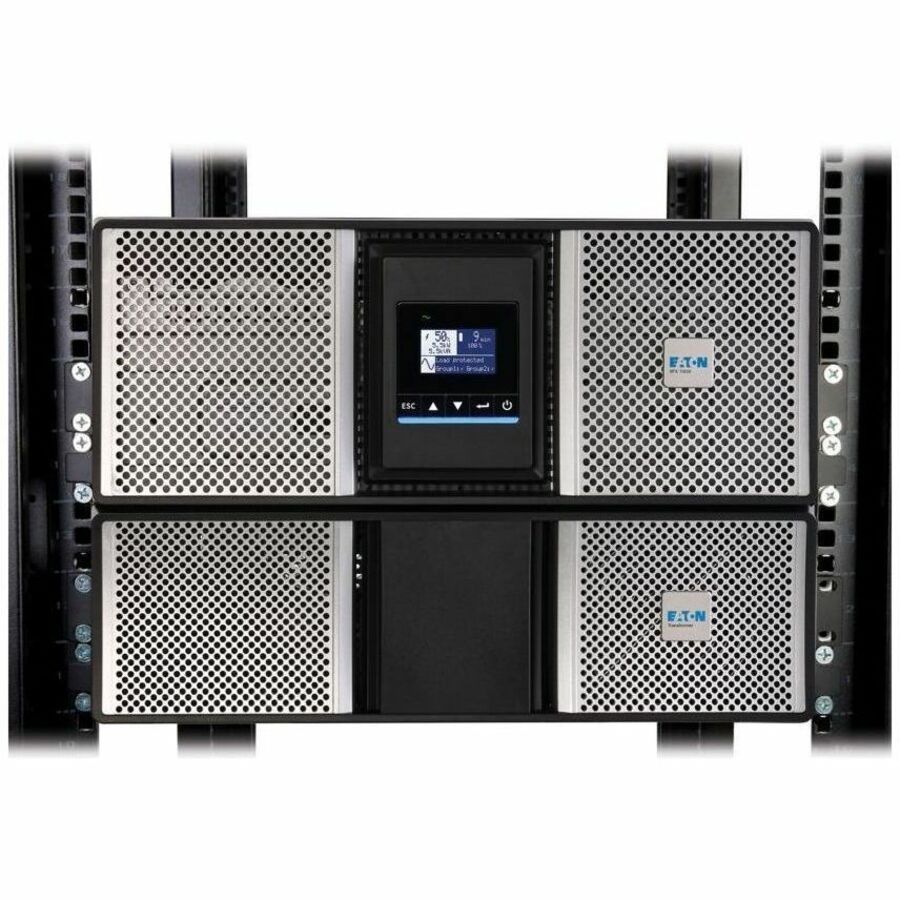

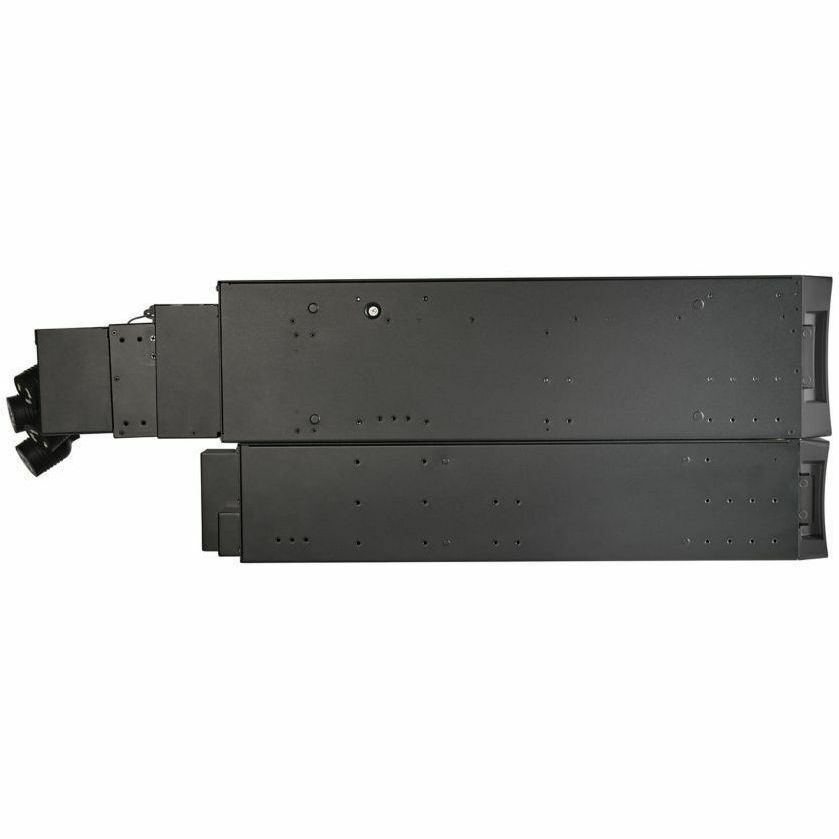

You can mount the 9PX11KTF11MG2 in 7U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. A cable gland is included for hardwire input.

• NEMA 5-20R
• NEMA L6-30R
• NEMA L14-30R
• Hardwired

• 8 x NEMA 5-20R
• 4 x NEMA L6-30R
• 2 x NEMA L14-30R

• Surge
• Black Out
• Brownout
• Line Noise

• Mission Critical Equipment
• Network
• IT Equipment
• Data Center
• Edge Computing
• Education
• Government
• Healthcare
• Retail
• Server
• Switch
• Network Equipment

• 100 V AC
• 110 V AC
• 120 V AC
• 200 V AC
• 208 V AC
• 220 V AC
• 230 V AC
• 240 V AC

• 50 Hz
• 60 Hz

• Low Battery
• Overload
• UPS Fault
• Battery Fault
• Remote Shutdown
• Power Failure

LED Indicators

• 9PX G2 9PX11KTF11MG2 11000VA Rack/tower UPS
• 9PXTFMR11G2 120V Step-down Transformer
• MBP11K208G2 Maintenance Bypass
• NETWORK-M3 Gigabit Network Card
• USB Cable
• RS-232 Cable
• Cable Gland for Hardwire Connection
• Rack-mounting Hardware
• Tower Support Stands
• Quick Start Guide

• UL 2900-1
• IEC 62443-4-2
• cUL Listed
• EN 62040-2
• FCC Part 15 Class A
• FCC
