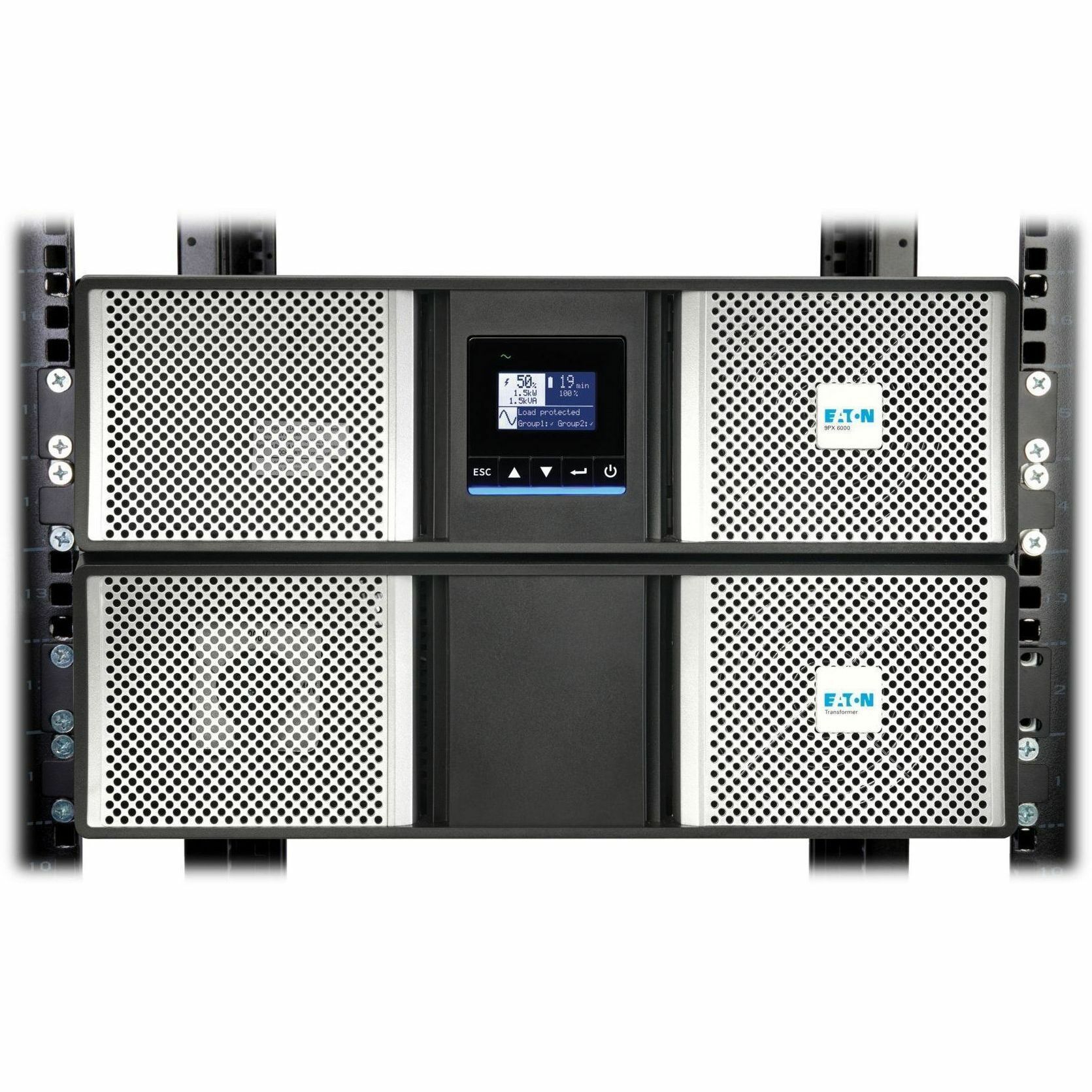

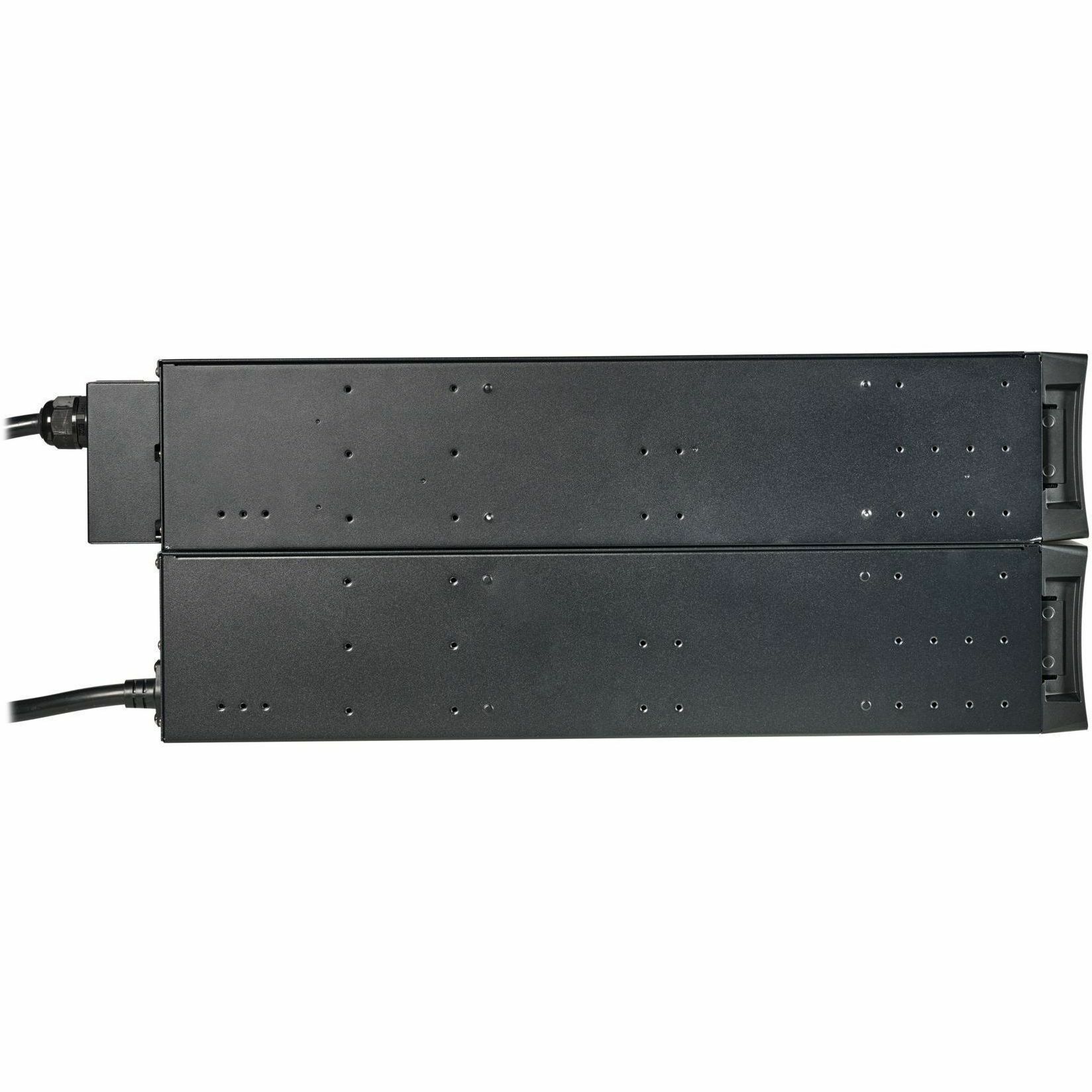

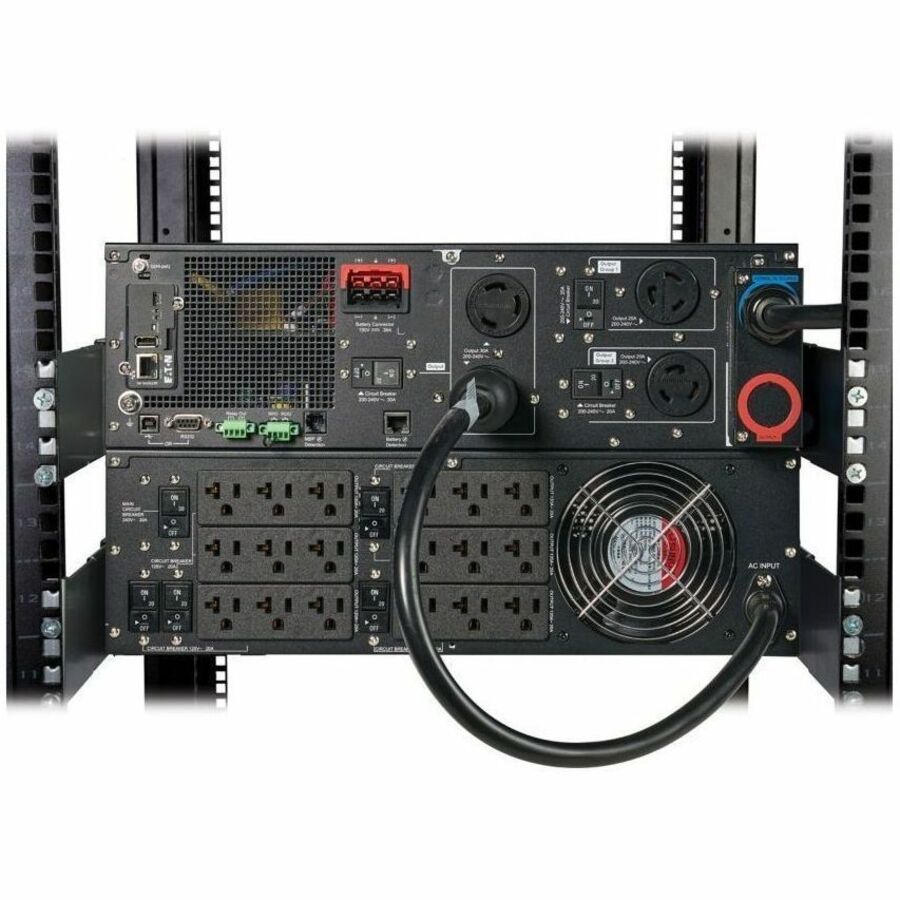

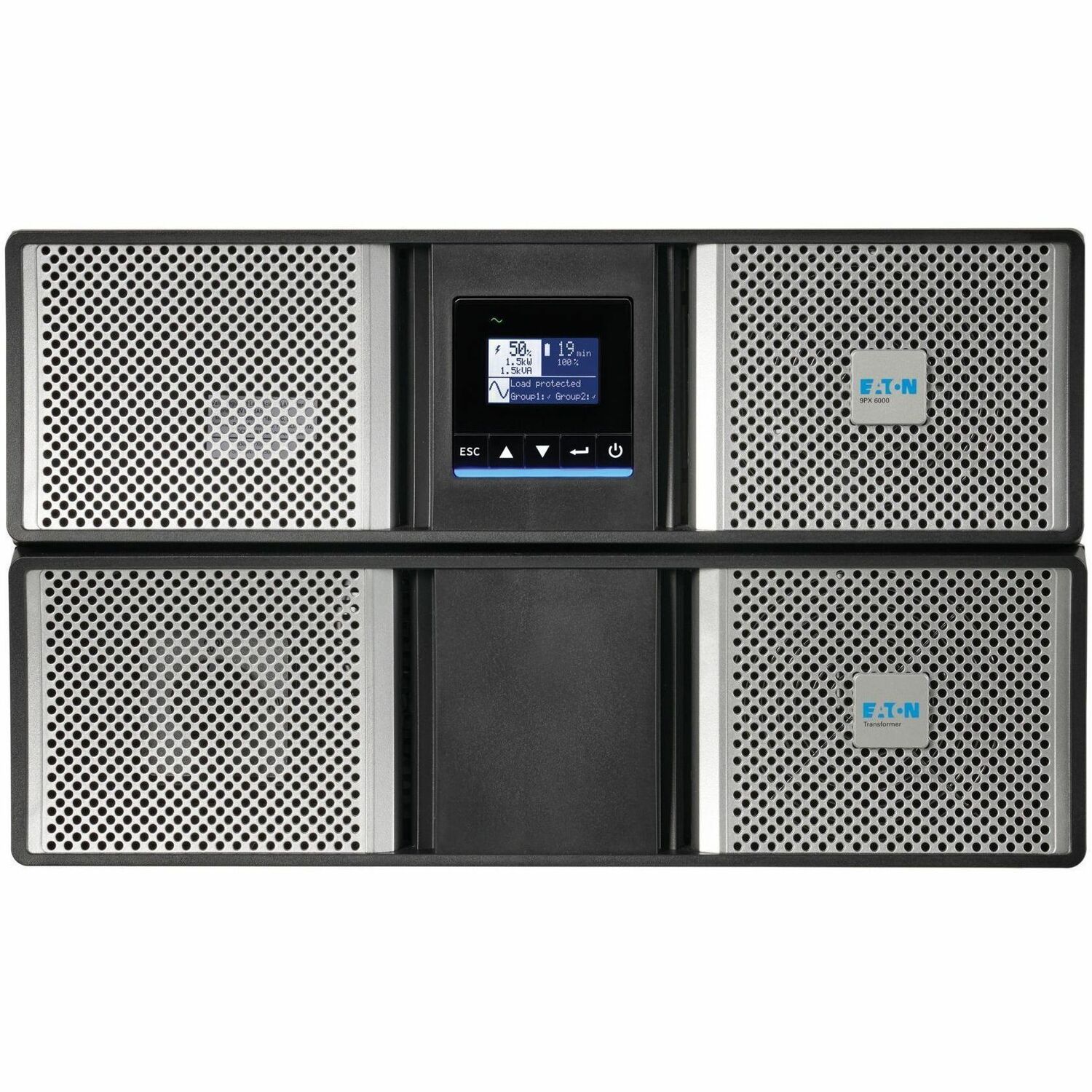

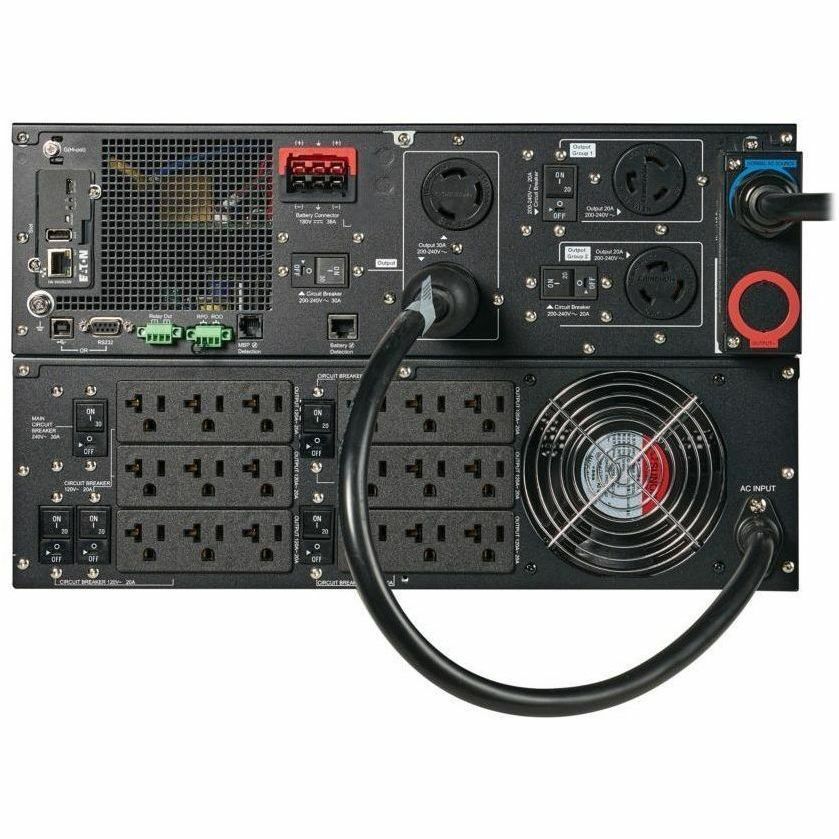

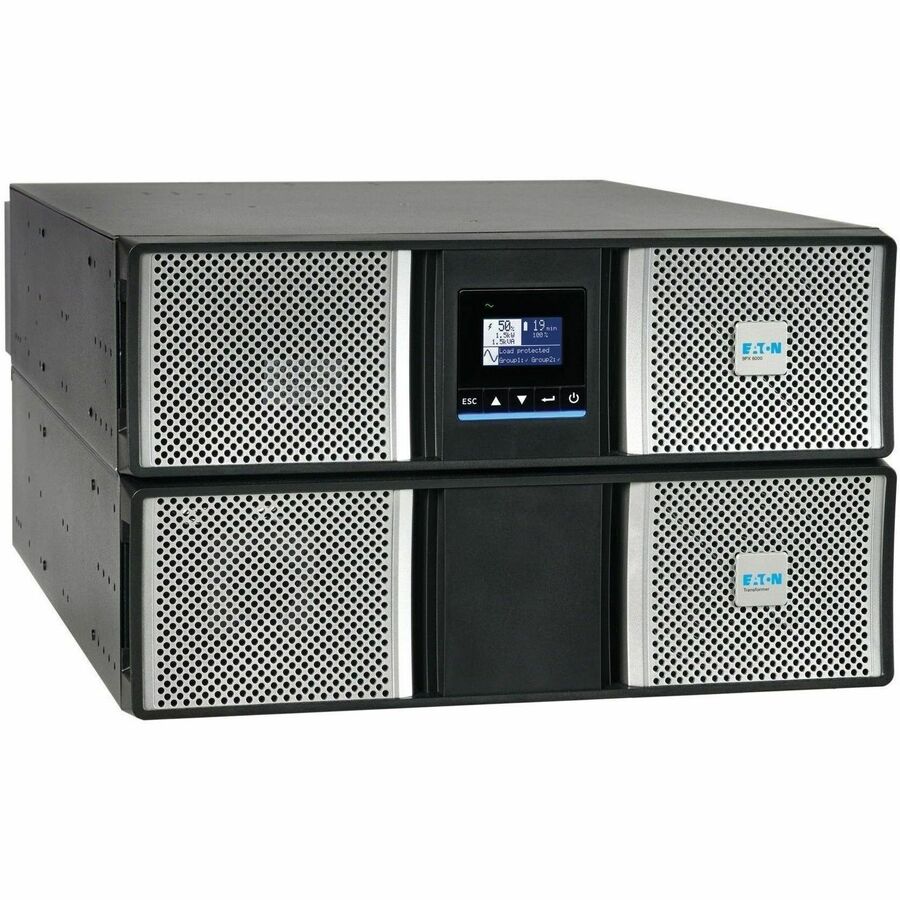

Eaton 9PX G2 9PX3K3UNTF5G2 3000VA Rack/tower UPS
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX3K3UNTF5G2 |
| Brand Name | Eaton |
| Product Series | 9PX G2 |
| Product Model | 9PX3K3UNTF5G2 |
| Product Name | 9PX G2 9PX3K3UNTF5G2 3000VA Rack/tower UPS |
| Marketing Information | 3kVA/3kW/120V/208V Battery Backup for Distributed IT and Edge Networks This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX3K3UNTF5G2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications. Delivers Maximum Power Reliability with Best-in-Class Efficiency With unity power factor (3000VA/3000W output), the 9PX3K3UNTF5G2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX3K3UNTF5G2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Expandable Internal Battery Backup Keeps You Operational Through Power Outages Exclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM180RTG2, sold separately) to add necessary runtime during prolonged power outages. Included Transformer Helps Accommodate a Range of Connected Equipment The 9PXTFMR5G2 transformer permits a step-down voltage from 208V to 120V to allow connection of a wider range of components. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be upgraded remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. High-Visibility LCD Interface Keeps You Informed at a Glance The high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing. Versatile Installation Options You can mount the 9PX3K3UNTF5G2 in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input. |
| Product Type | Double Conversion Online UPS |
| Plug/Connector Type |
|
| Receptacle Type |
|
| Receptacle Detail |
|

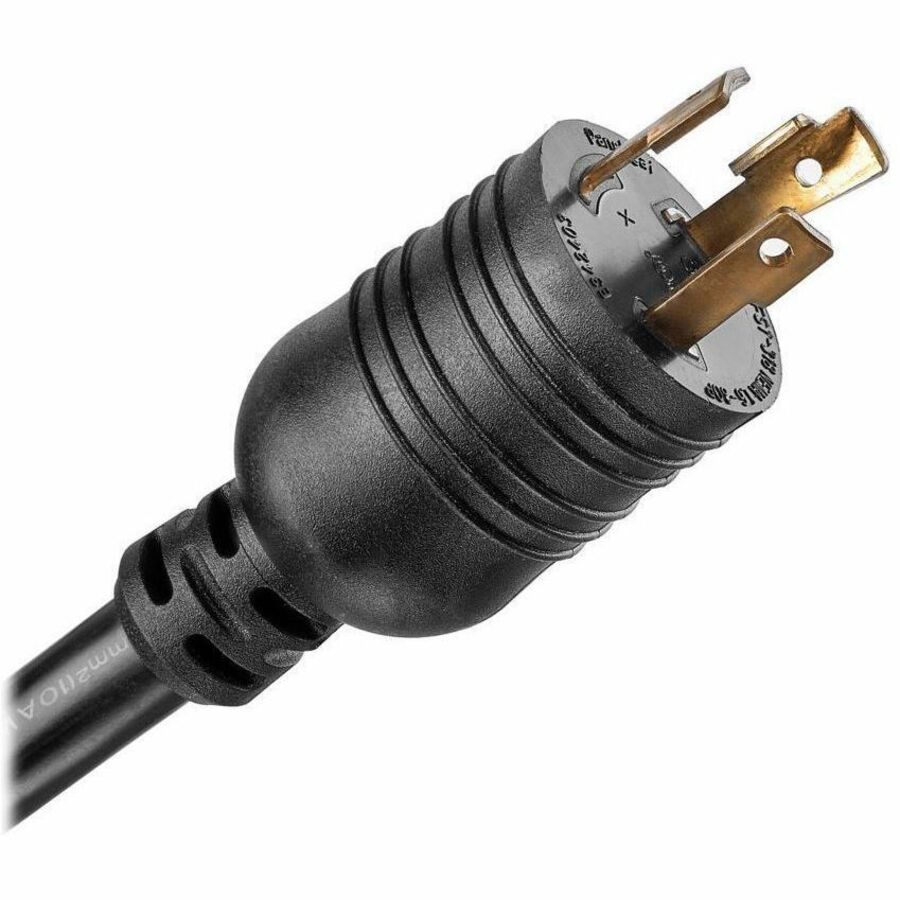

| Cord Length | 10 ft (3.05 m) |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail |
|
| Application/Usage |
|
| Surge Suppression | Yes |
| Features |
|
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
| Input Voltage | 230 V AC |
| Input Current | 15.30 A |
| Output Voltage |
|
| Output Frequency |
|
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |

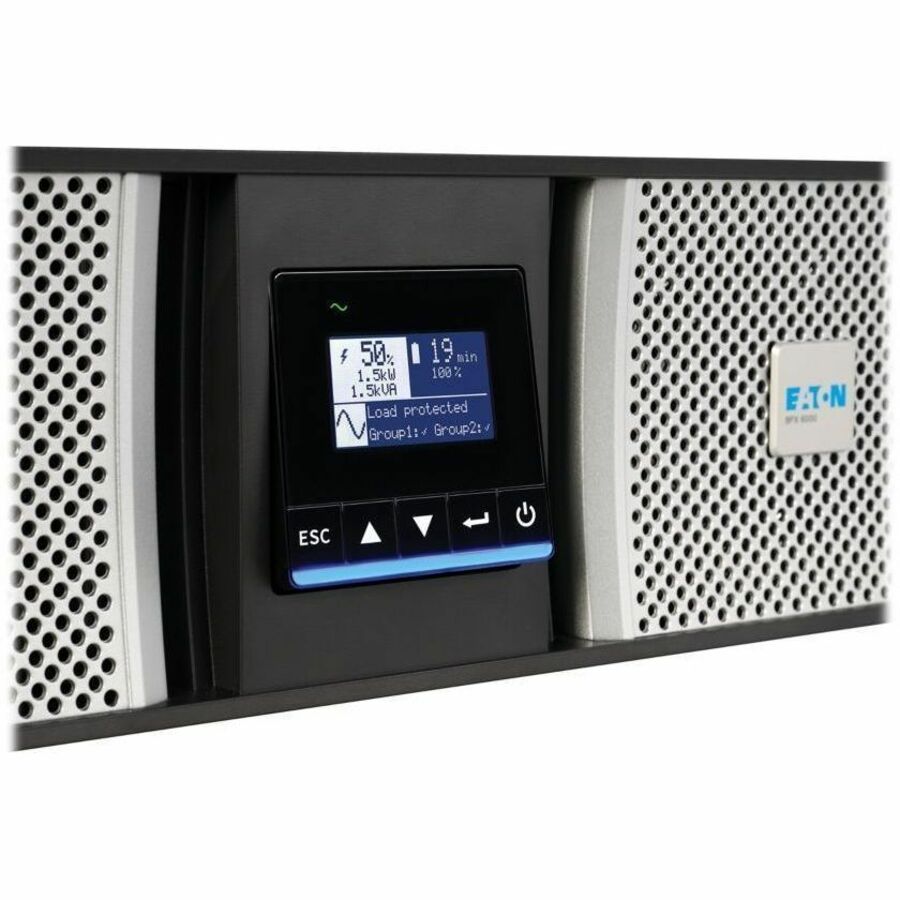

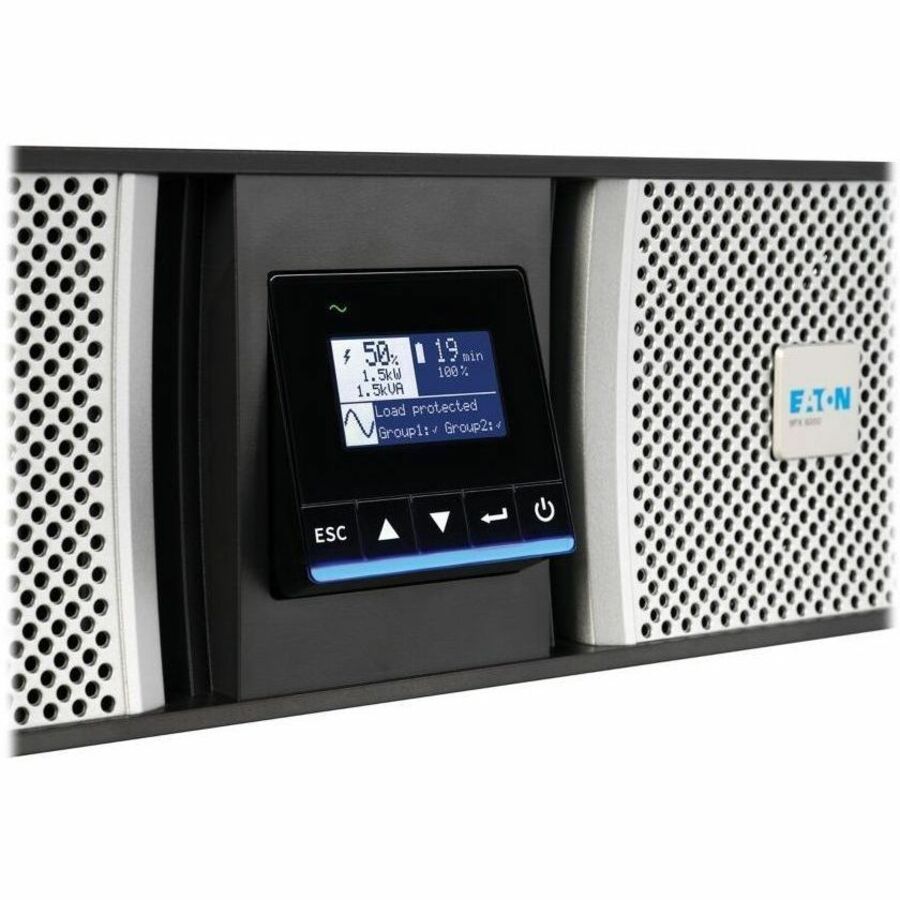

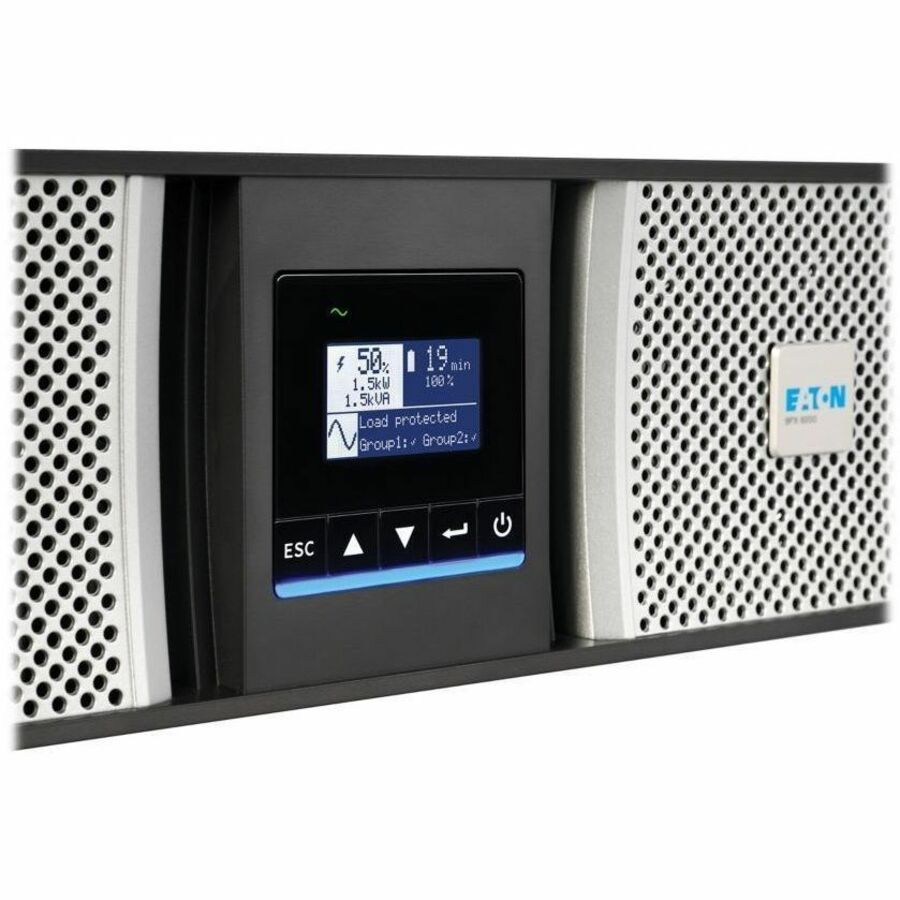

| Display | LCD |
| Network Management |
|
| Alarm |
|
| Status Indicators | LED Indicators |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7.50 Minute |
| Backup/Run Time (Half Load) | 18.50 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 471 BTU/h |
| Height | 10.20" (259.08 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 27" (685.80 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 203 lb (92079.25 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| Limited Warranty | 3 Year |
