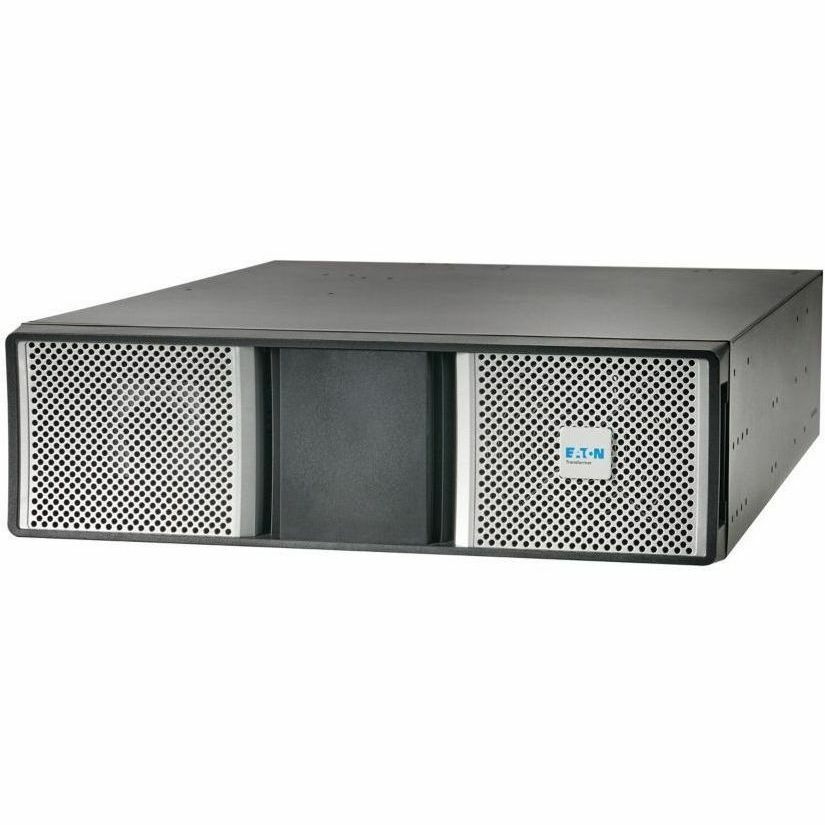

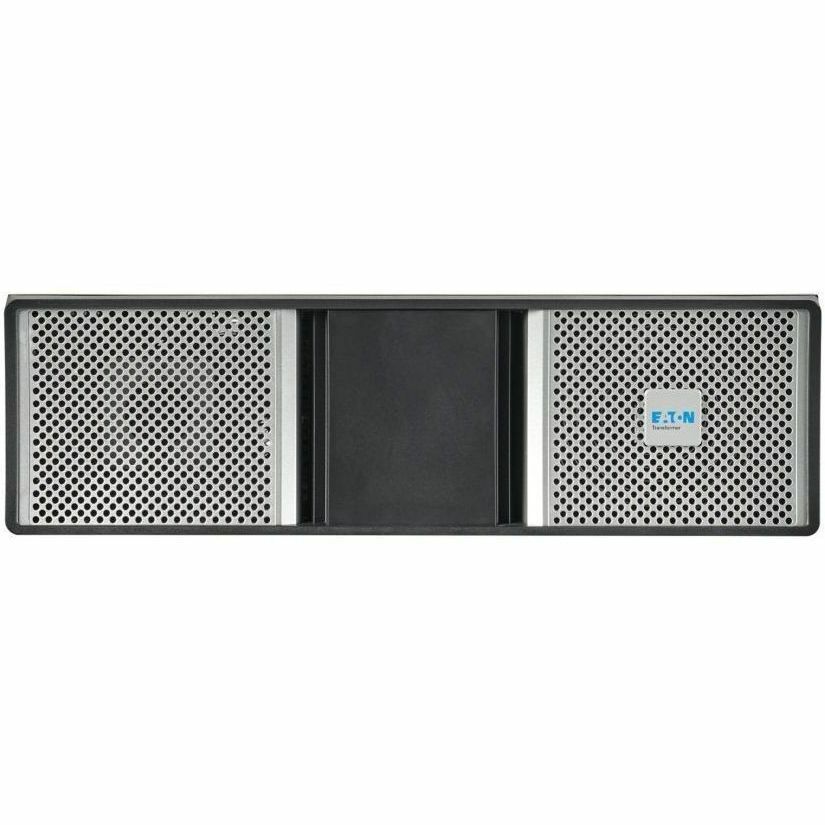

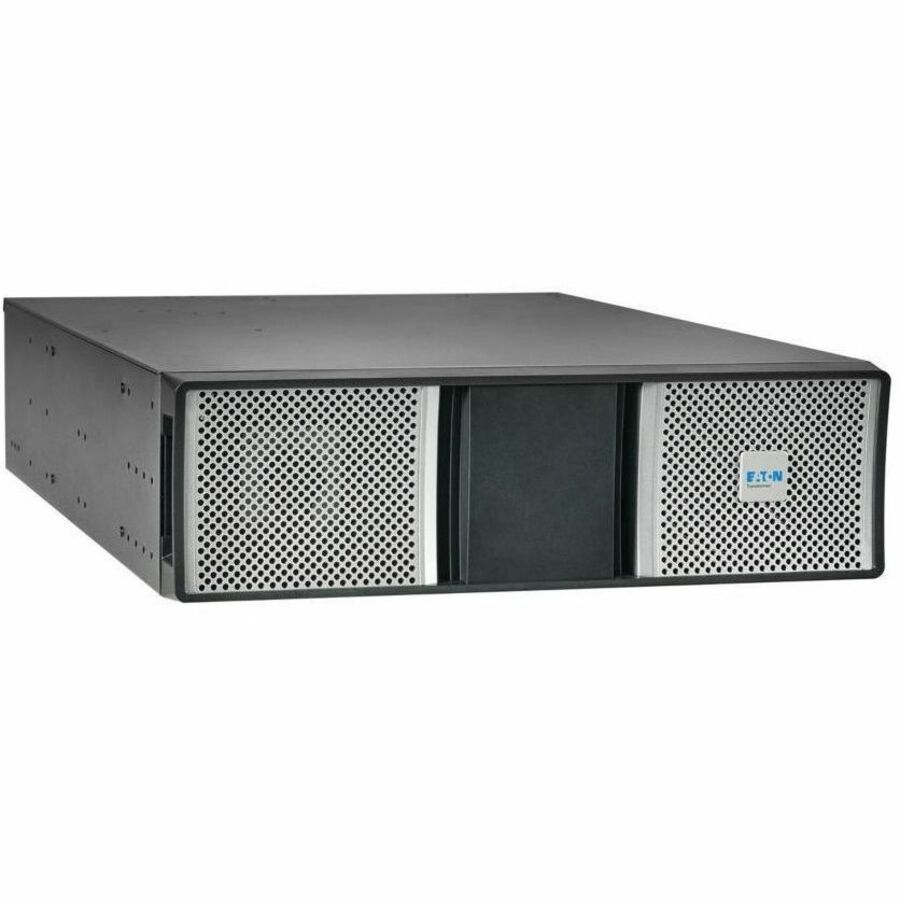

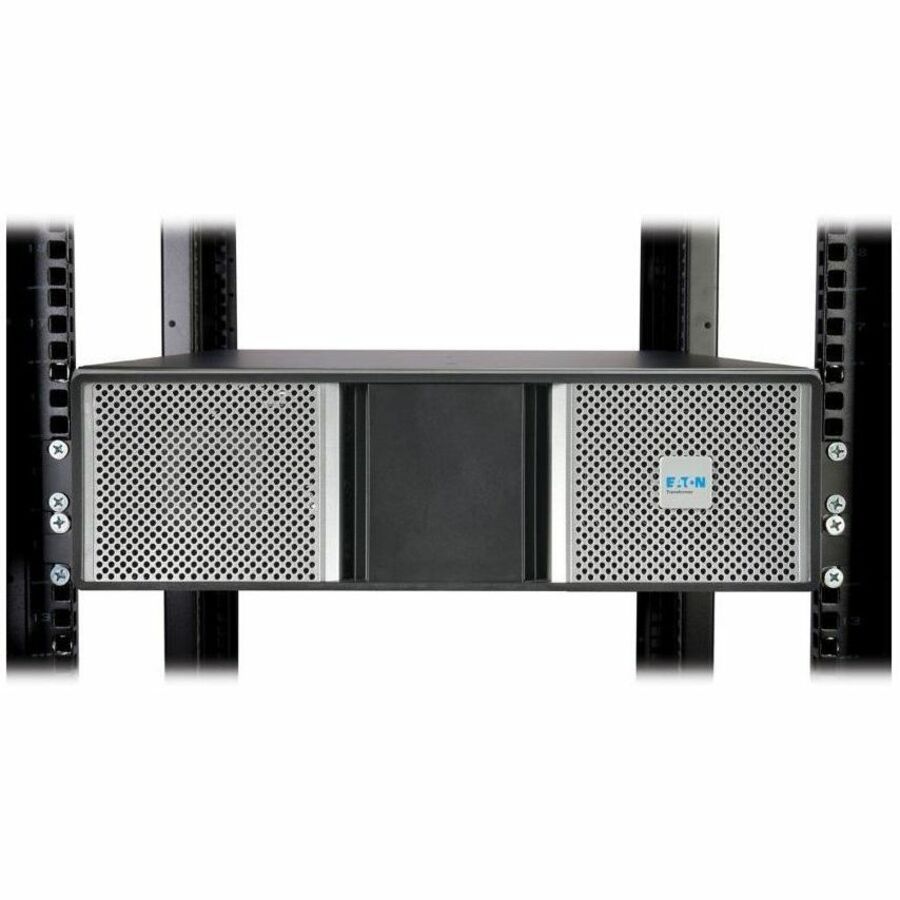

Eaton PowerPass 9PXPPDM2G2 1-Outlet PDU
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PXPPDM2G2 |
| Brand Name | Eaton |
| Product Line | PowerPass |
| Product Model | 9PXPPDM2G2 |
| Product Name | PowerPass 9PXPPDM2G2 1-Outlet PDU |

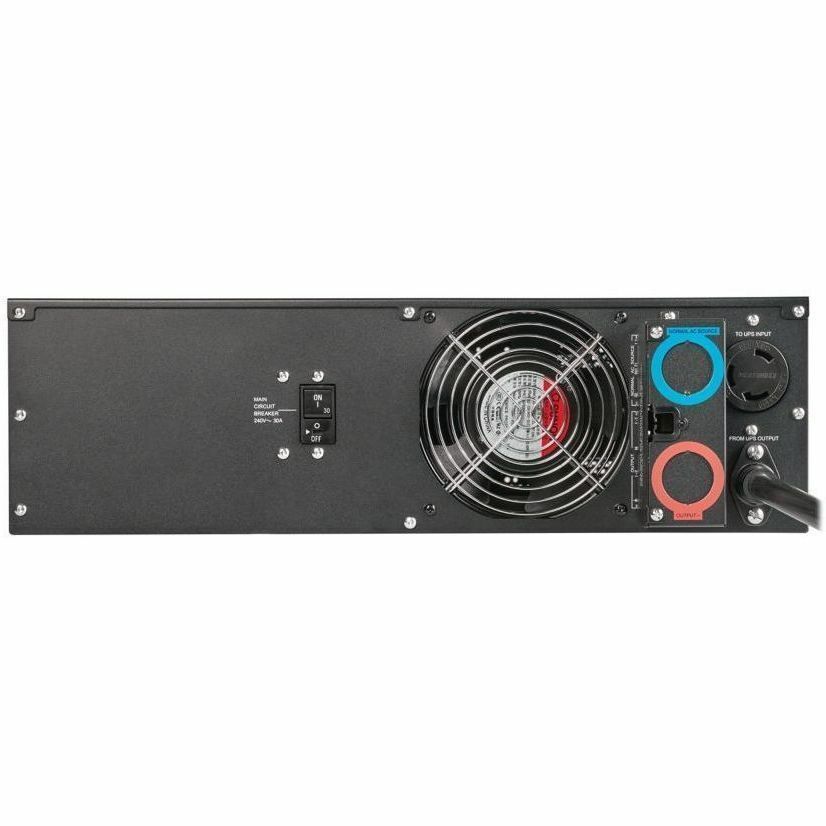

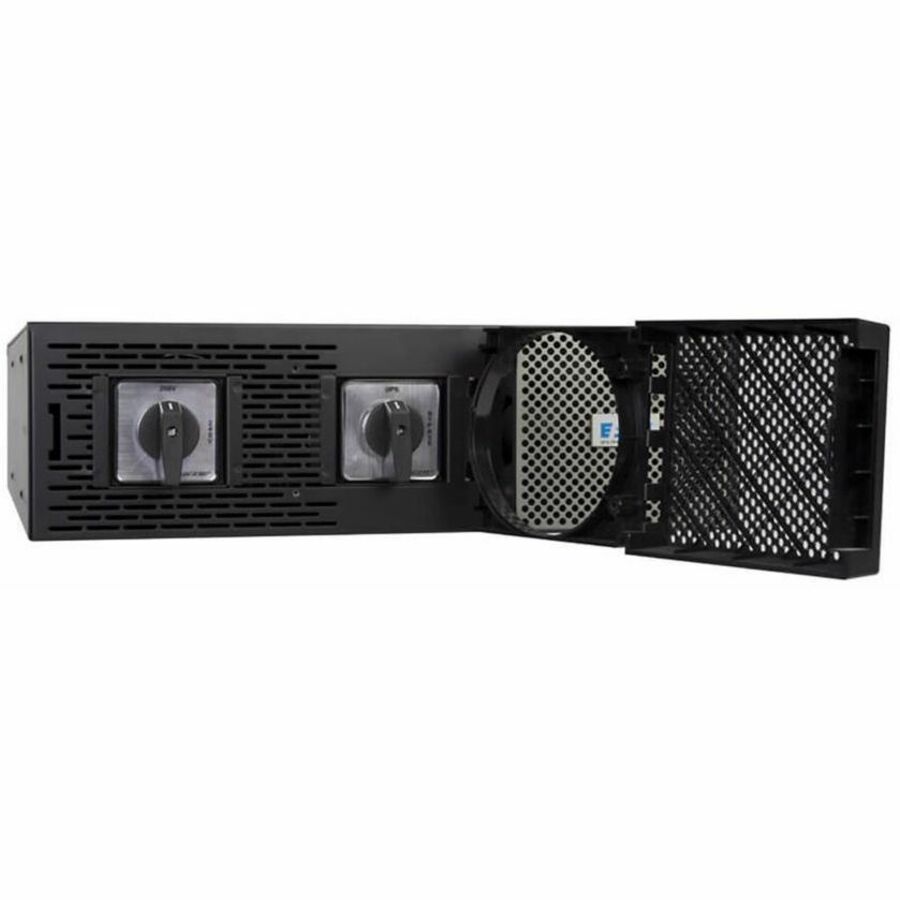

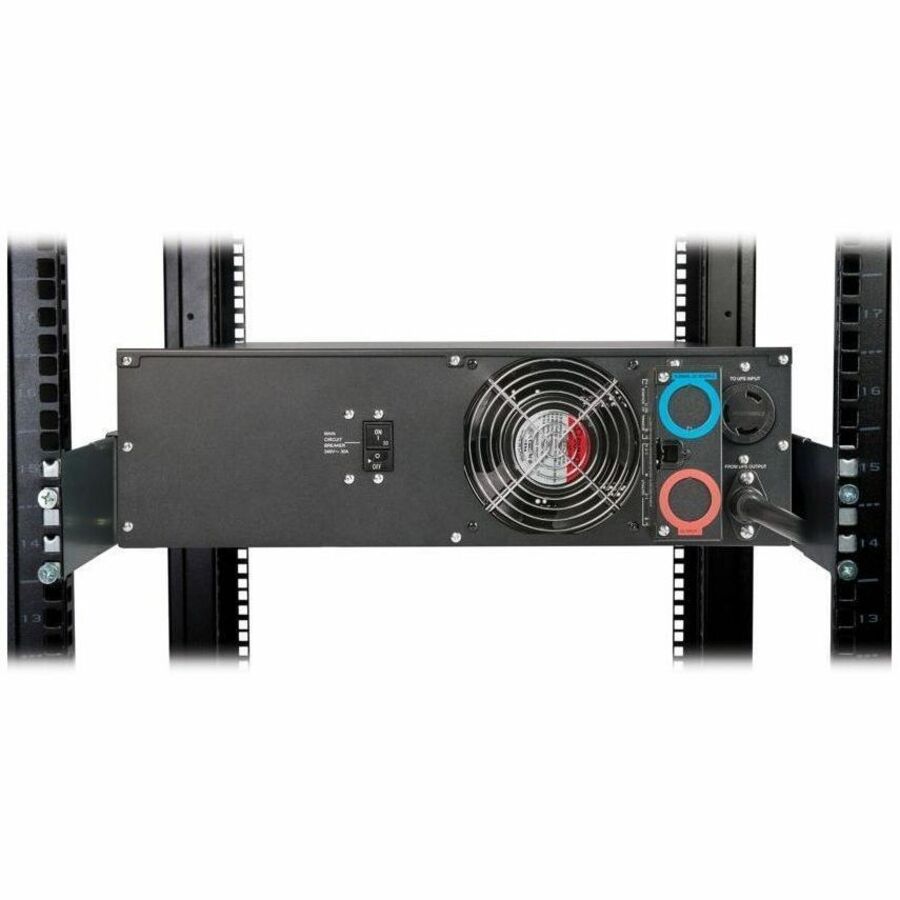

| Marketing Information | 208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output The 9PXPPDM2G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions. Compatible with Select Eaton UPS Systems The 9PXPPDM2G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 9PX G2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present. Versatile Installation Options You can mount the 9PXPPDM2G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. |
| Product Type | PDU |
| Phase | Single Phase |

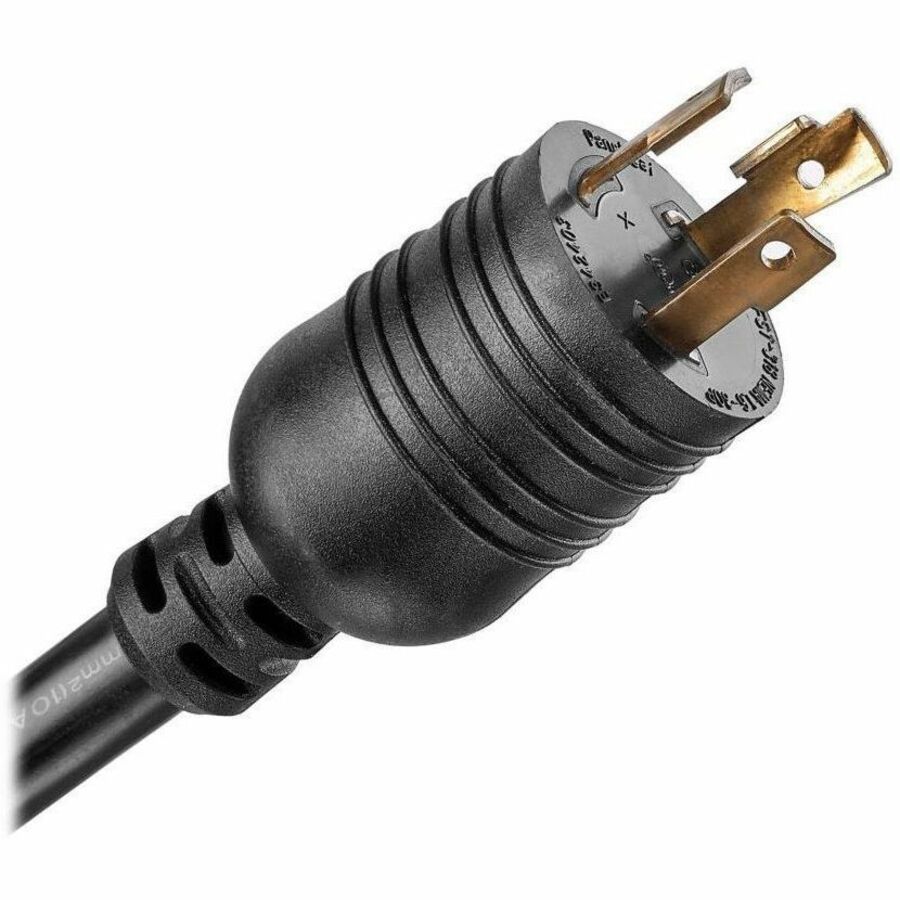

| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
| Protection Type | Surge Protection |
| Load Capacity (VA) | 6 kW |
| Load Capacity (Watt) | 6 kW |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Power Source | UPS |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Mount Type | Rack-mountable |
| Form Factor | Rack/Tower |
| Rack Height | 3U |
| Height | 5.10" (129.54 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 26.93" (684.02 mm) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Package Contents |
|
| Application/Usage | UPS |
| Compatibility | Eaton's 9PX G2 UPS Systems:
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| Limited Warranty | 3 Year |
