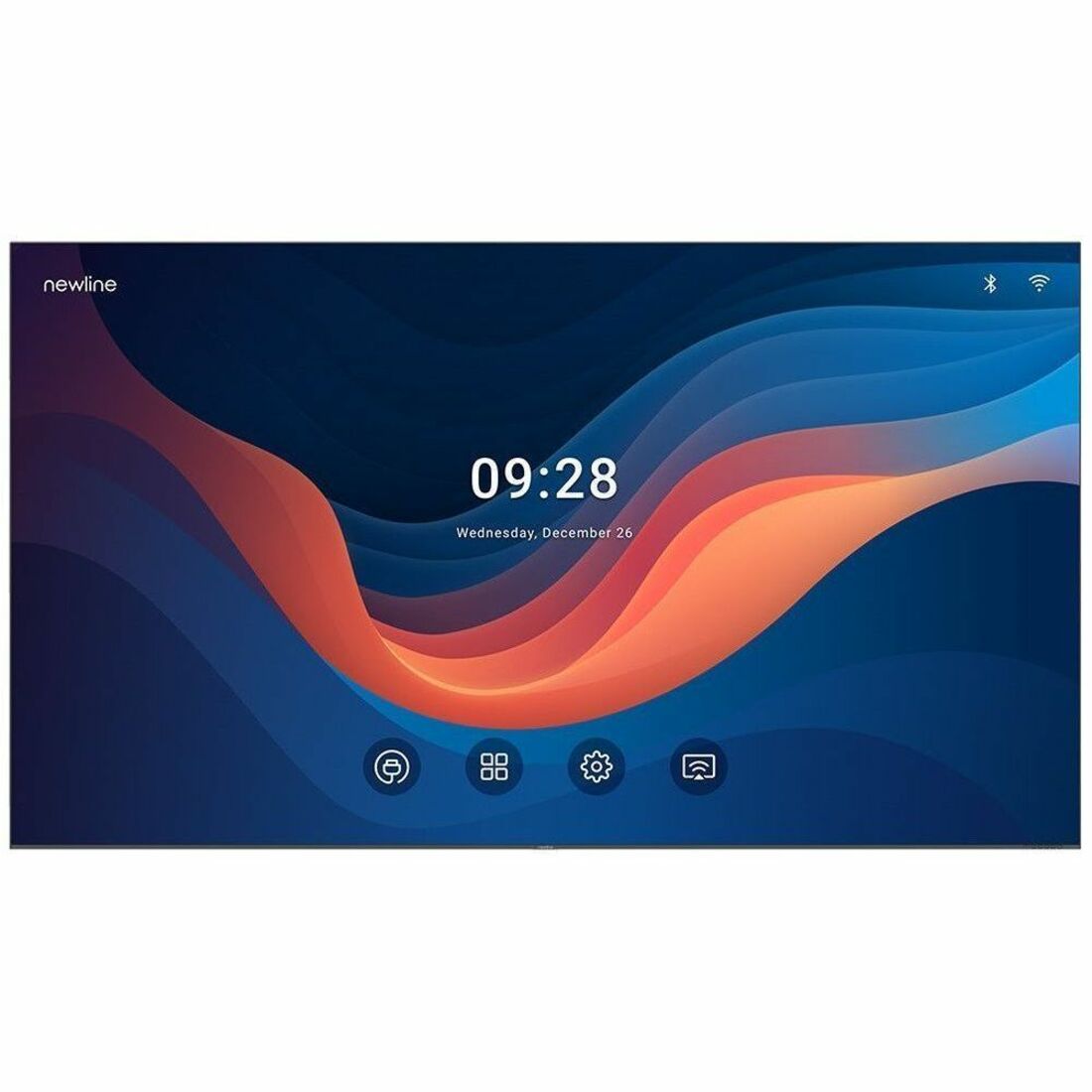

Newline DV One+ DV-16324-PLUS Digital Signage Display
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Newline Interactive |
| Manufacturer Part Number | DV-16324-PLUS |
| Brand Name | Newline |
| Product Line | DV One+ |
| Product Model | DV-16324-PLUS |
| Product Name | DV One+ DV-16324-PLUS Digital Signage Display |
| Marketing Information | High-Performance Display Solution The newly upgraded DV One+ offers enhanced performance and additional features to meet diverse needs. The DV One+ comes in four sizes, 135", 163", 189" and 216", providing more flexibility for different spaces, from compact areas to larger venues. The DV One+ introduces several new features that elevate performance and functionality. RS-232 and IP control, along with Wake-on-LAN and Wake-on-WiFi, enables seamless remote management and control through Newline Display Management (NDM). Maintenance is simplified with easy access to components, while the upgraded Android 13 operating system and new chipset enhance performance and responsiveness. Additionally, the DV One+ features a new intuitive calibration tool, making adjustments quicker and easier than ever before. The design has been streamlined with a sleek design and hidden-away ports for a cleaner, more polished presentation, and allows for cleaner integration with existing audio systems or separate speaker setups. This refined design, combined with its reliable performance, makes the DV One+ an ideal choice for spaces like lecture halls, cafeterias, media centers, and gymnasiums, where tailored display solutions are key. |
| Product Type | Digital Signage Display |
| Video Wall Compatible | Yes |
| Speaker Power | 5 W |
| Chipset Manufacturer | Amlogic |
| Chipset Model | A311D2 |
| Standard Memory | 4 GB |
| Number of Screens | 1 |
| Viewable Screen Size | 13.58 ft (4140.20 mm) |
| Screen Size Class | 13.58 ft (4140.20 mm) |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Pixel Pitch | 73.82 mil (1.88 mm) |
| Aspect Ratio | 16:9 |
| Backlight Technology | Direct View LED |
| Maximum LED Life | 11.4 Year |
| Number of Speakers | 1 |
| Speakers | Yes |
| Scan Format | 1080p |
| Dynamic Contrast Ratio | 6,000:1 |
| Color Depth | 8-bit |
| Brightness | 550 cd/m² |
| Color Gamut | 110% NTSC |
| Ethernet | Yes |
| Wireless LAN | Yes |
| USB | Yes |
| HDMI | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| USB Type-C | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of Audio Line Out | 1 |
| Operating System | Android 13 |
| Input Voltage |
|
| Average Power Consumption | 690 W |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 90% |
| Height | 80.39" (2041.91 mm) |
| Width | 11.84 ft (3609.09 mm) |
| Depth | 2.60" (66.04 mm) |
| Weight (Approximate) | 461.87 lb (209500.71 g) |
| Application/Usage |
|
| Condition | No |
