AXIS D4100-VE Mk II Network Strobe Siren

Part No. 03105-001

by Axis Communications

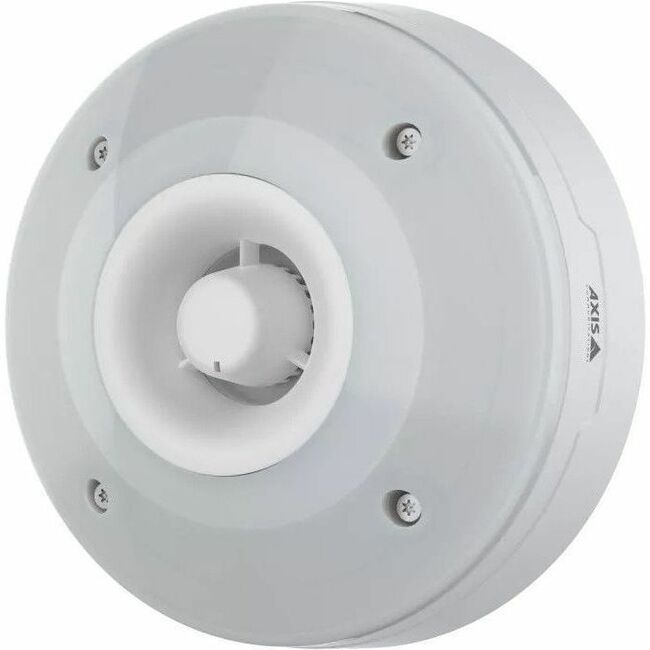

AXIS D4100-VE Mk II Network Strobe Siren

Wired - 110 dB - Audible, Visual - Gang Box Mount, Wall Mountable, Ceiling Mountable, Pendant Mount, Pole Mountable - White

Part No. 03105-001

by Axis Communications

$822.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number03105-001
Brand NameAXIS
Product ModelD4100-VE Mk II
Product NameD4100-VE Mk II Network Strobe Siren

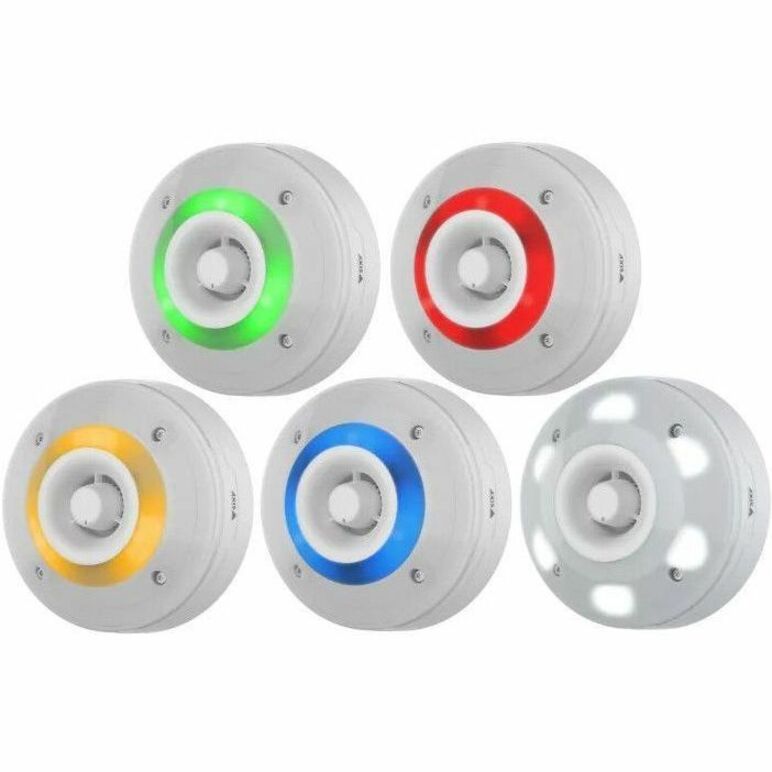

Marketing InformationAXIS D4100-VE Mk II is a fully networked PoE powered strobe siren that easily connects to any Axis device, Axis VMS, or third-party VMS through VAPIX®, MQTT and SIP. It can signal and alarm using multicolored light patterns and predefined siren sounds. It is ideal for numerous applications such as perimeter protection (together with AXIS Perimeter Defender) and improved parking entrance management using a license plate recognition (LPR) camera. Furthermore, this robust, outdoor-ready strobe siren with IP66-, IK10- and NEMA 4X- ratings is protected from dust, rain, snow, and impacts.
Product TypeSiren/Strobe
Technical Information
Connectivity TechnologyWired
Alarm Type
  • Audible
  • Visual
Bulb/Tube TypeLED
Sound Emission110 dB
Ingress Protection (IP) RatingIP66
Impact Protection (IK) RatingIK10
Durability
  • Dust Resistant
  • Snow Resistant
  • Rain Resistant
  • Impact Resistant
Form Factor
  • Gang Box Mount
  • Wall Mountable
  • Ceiling Mountable
  • Pendant Mount
  • Pole Mountable
Product FunctionsAlarm
Power Description
Power SourcePoE
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Application/Usage
  • Personal Safety
  • Signaling
  • Parking Lot
  • Entrance
  • Outdoor
  • Security
Height6.70" (170.18 mm)
Width6.70" (170.18 mm)
Depth2.60" (66.04 mm)
Weight (Approximate)2.20 lb (1000 g)
Miscellaneous
Package Contents
  • D4100-VE Mk II Network Strobe Siren
  • Installation Guide
  • Terminal Block
  • Connector
  • Cable Gaskets
  • Connector Guard
Compatibility

Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis' partners

Certifications & Standards
  • CAN/CSA C22.2 No. 62368-1 ed. 3
  • IEC/EN/UL 62368-1 ed. 3
  • IEC/EN 62471 risk group 1
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-6,
  • IEC 60068-2-14
  • IEC 60068-2-27
  • IEC 60068-2-78
  • IEC/EN 60529 IP66
  • IEC/EN 62262 IK10
  • NEMA 250 Type 4X
  • MIL-STD-810H (Method 501.7
  • 502.7
  • 506.6, 507.6)
  • IPv6 USGv6
  • NIST SP500-267
  • ETSI EN 303 645
  • BSI IT Security Label
  • FIPS 140
  • UL/cUL
  • CE
  • KC
  • VCCI
  • RCM
  • ICES
  • CISPR 32 Class A
  • EN 55035
  • EN 55032 Class A
  • EN 50130-4
  • EN 50121-4
  • EN 61000-6-1
  • EN 61000-6-2
  • FCC Part 15 Subpart B Class A
  • IEC 62236-4
TAA CompliantYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
ConditionNo
UPC7331021089273
Warranty
Limited Warranty5 Year
