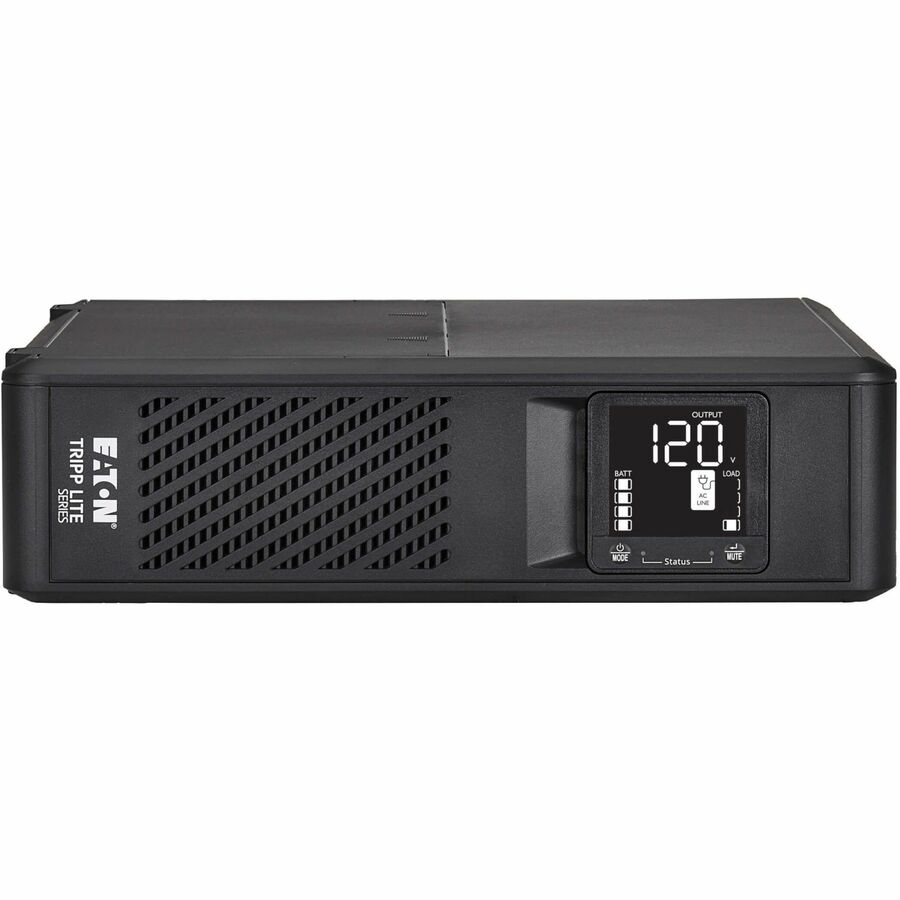

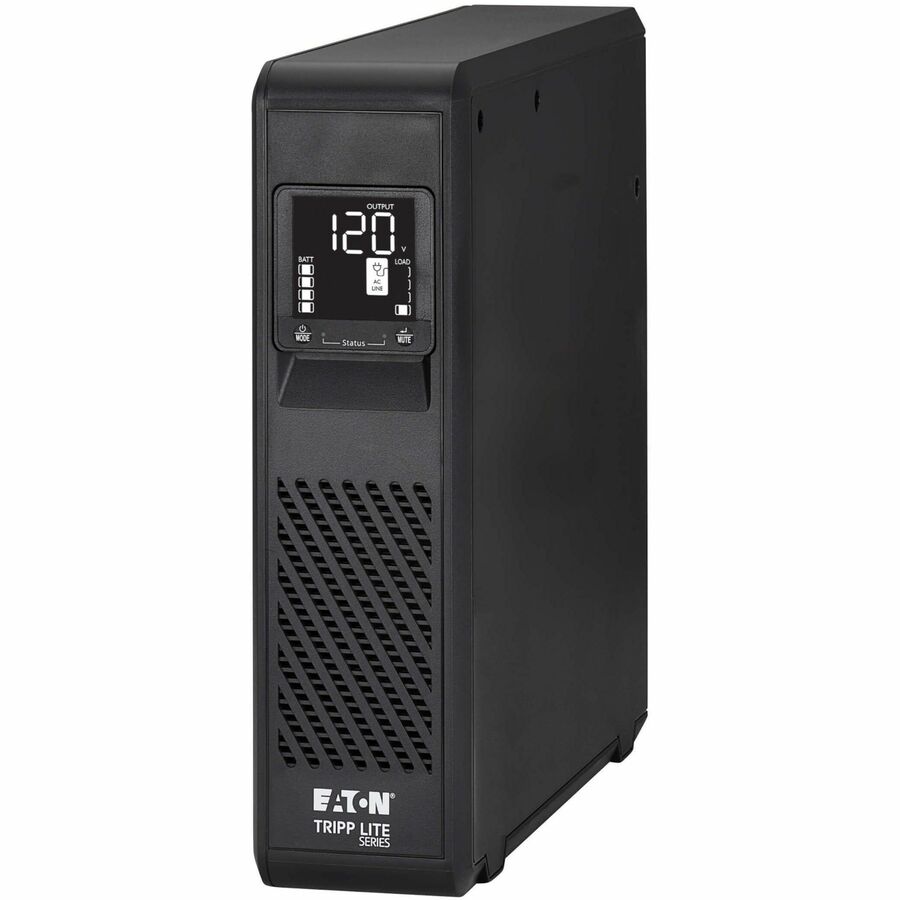

Tripp Lite series SMART750PSRTNC 750VA Tower UPS
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750PSRTNC |
| Brand Name | Tripp Lite series |
| Product Model | SMART1000PSRTNC |
| Product Name | SMART750PSRTNC 750VA Tower UPS |

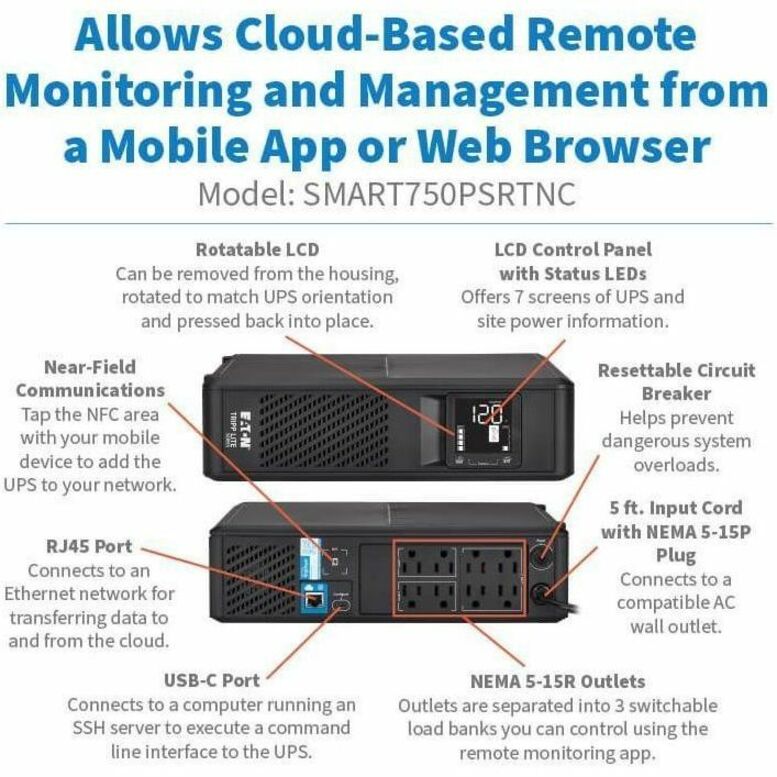

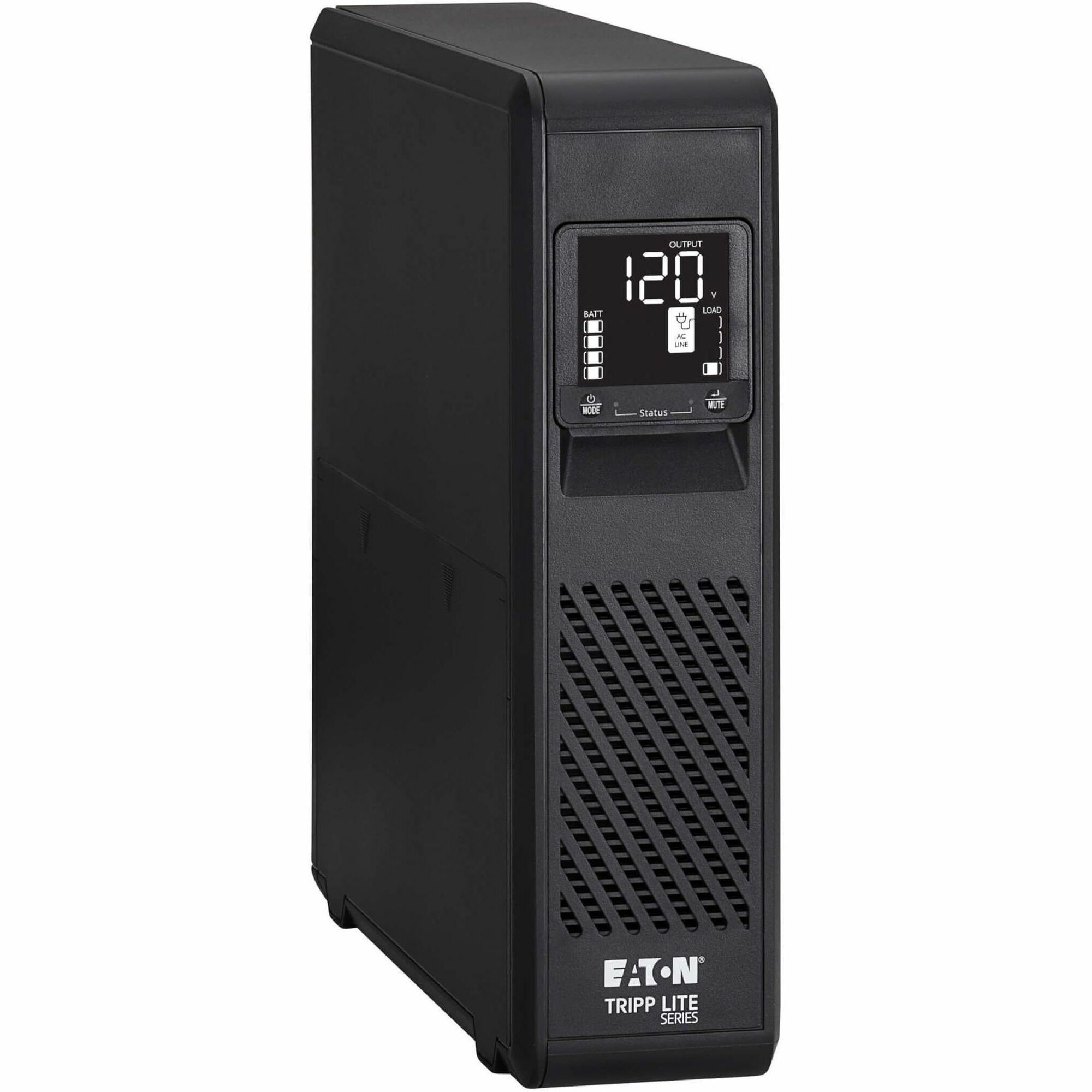

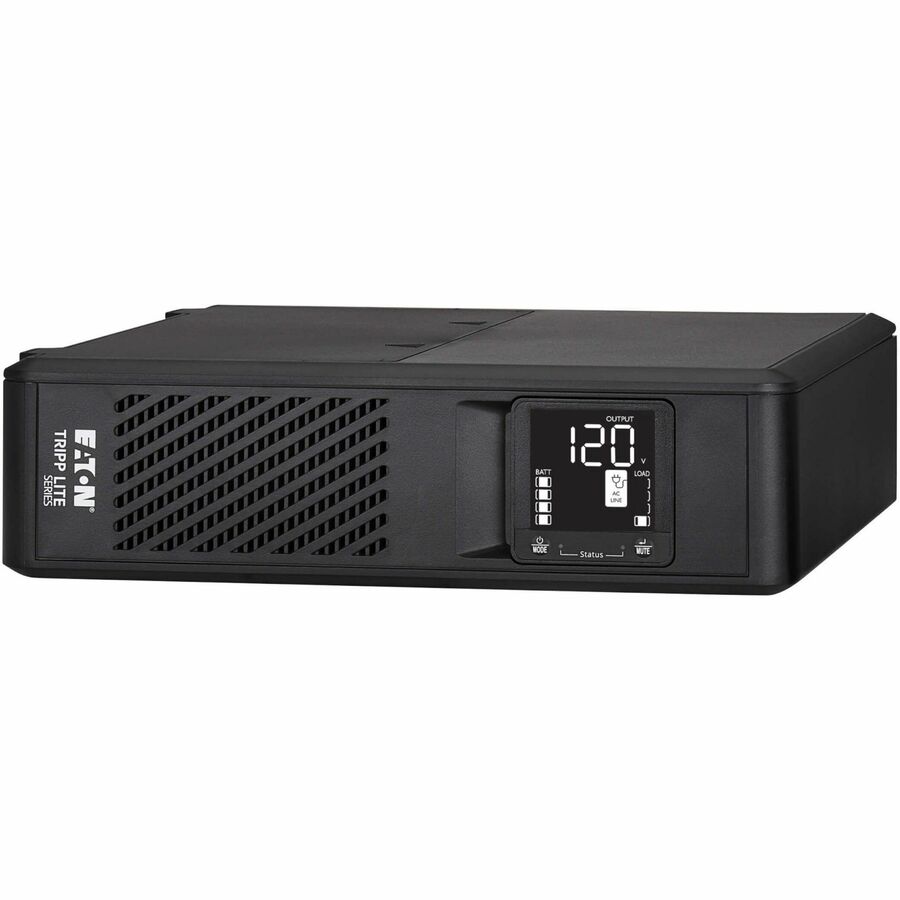

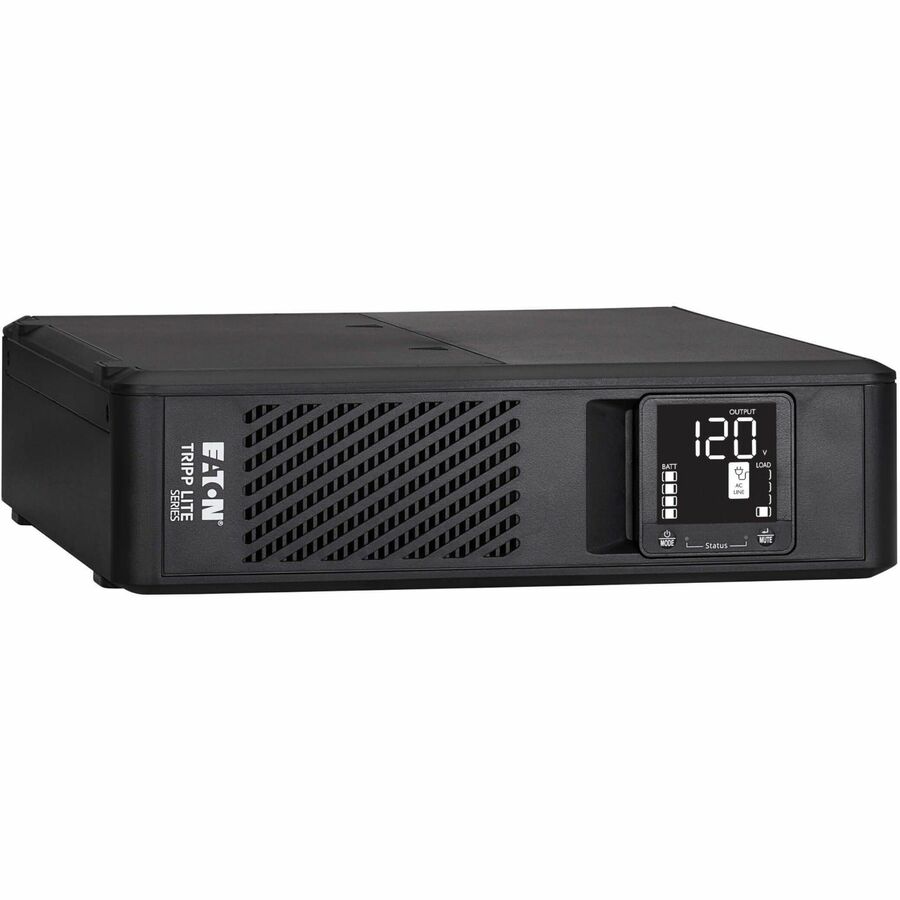

| Marketing Information | Features | 750VA/475W/120V Pure Sine Wave Battery Backup for Sensitive Devices The SMART750PSRTNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its slim tower design is suitable for desktop or floor placement or installed in a rack (with optional mounting kit, sold separately). It's recommended for home, office and retail use, as well as network closets in both local and remote locations. Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device. Allows Time to Back Up Critical Files During a Blackout During short blackouts, the SMART750PSRTNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART750PSRTNC restarts automatically, regardless of battery charge level, saving you a costly site visit. NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components Eight 5-15R outlets provide battery backup and surge protection for your security camera, router, network switch, server and other sensitive electronic devices. Remote monitoring allows individual control of three switchable load banks that can be powered on/off or cycled remotely, saving you an expensive and time-consuming on-site visit. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART750PSRTNC can correct brownouts as low as 97V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure. Seamless Connectivity for Advanced Remote Monitoring and Configuration An RJ45 port for Ethernet connectivity enables use of the cloud-based remote monitoring application. A USB-C port provides direct connection to the command line interface (CLI) for configuration and identification of local network parameters. Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7 The easy-to-read LCD and two status LEDs allow at-a-glance local monitoring of UPS status, voltage, load level, battery level and other vital information. A solid green LED means the battery is charged, a flashing green indicates it is charging and a solid red indicates fault. The audible alarm indicates power outage, low-battery and fault conditions. It can be silenced via the LCD or the remote monitoring app, which will still respond to silenced alarms. Optional Mounting Kit Allows Rack Installation With the optional RKTRYPSC rack-mounting kit (sold separately), you can install the SMART750PSRTNC in 2U of space in a 2-post or 4-post rack. |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |

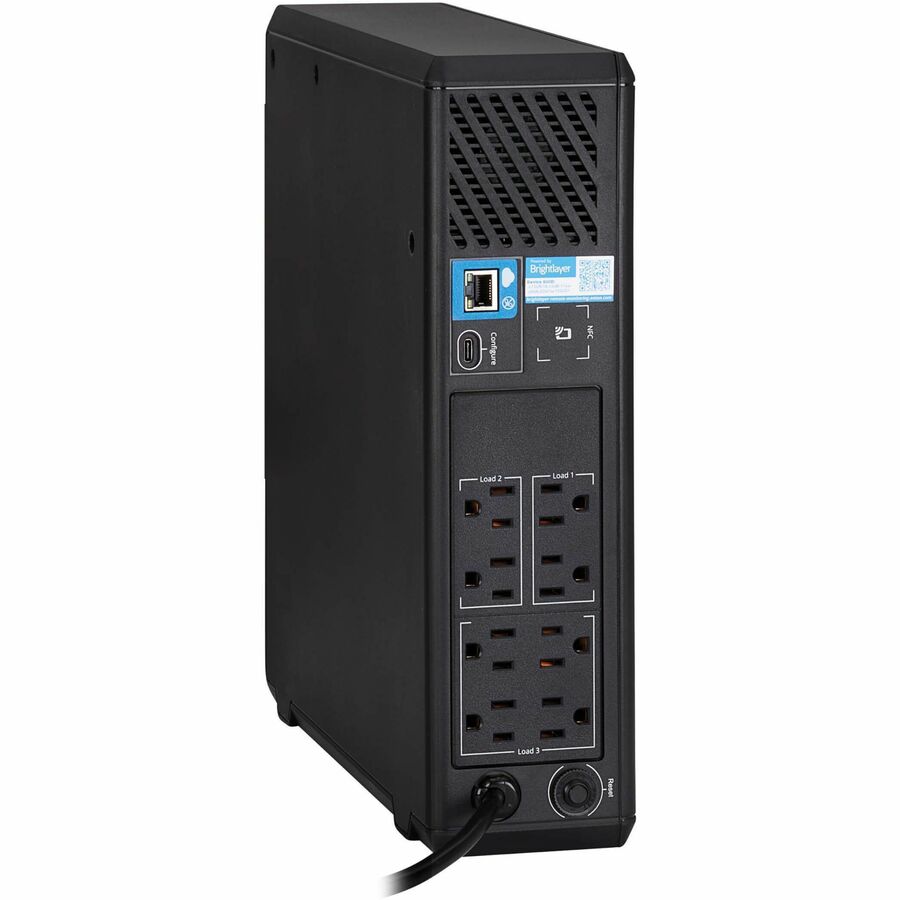

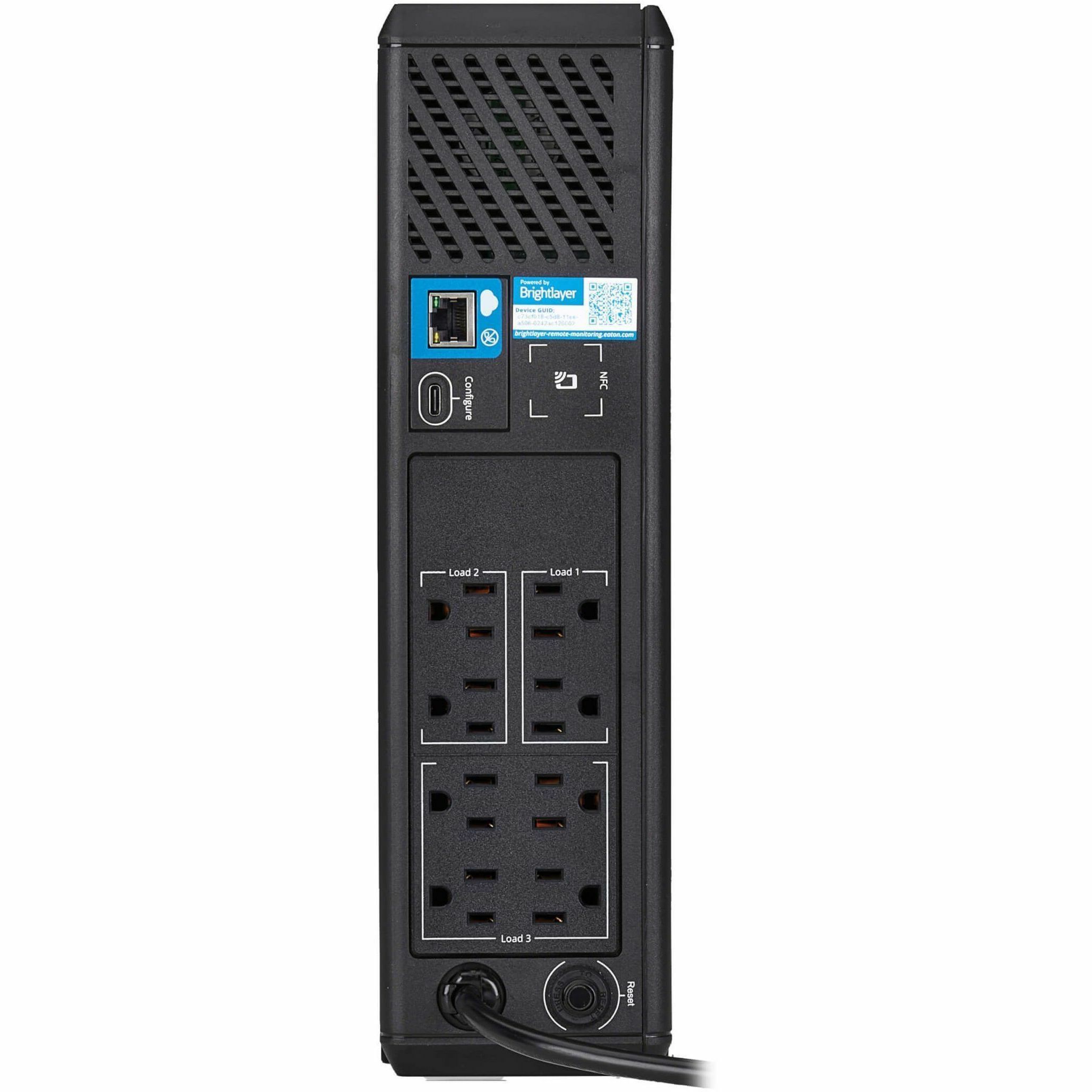

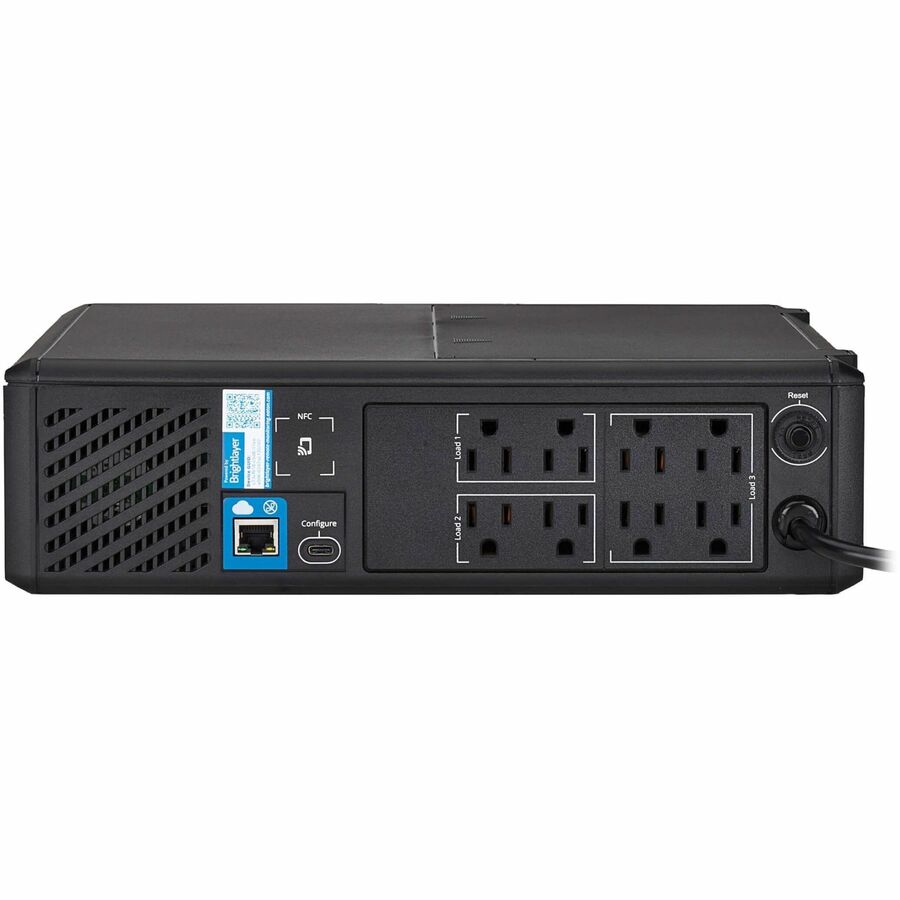

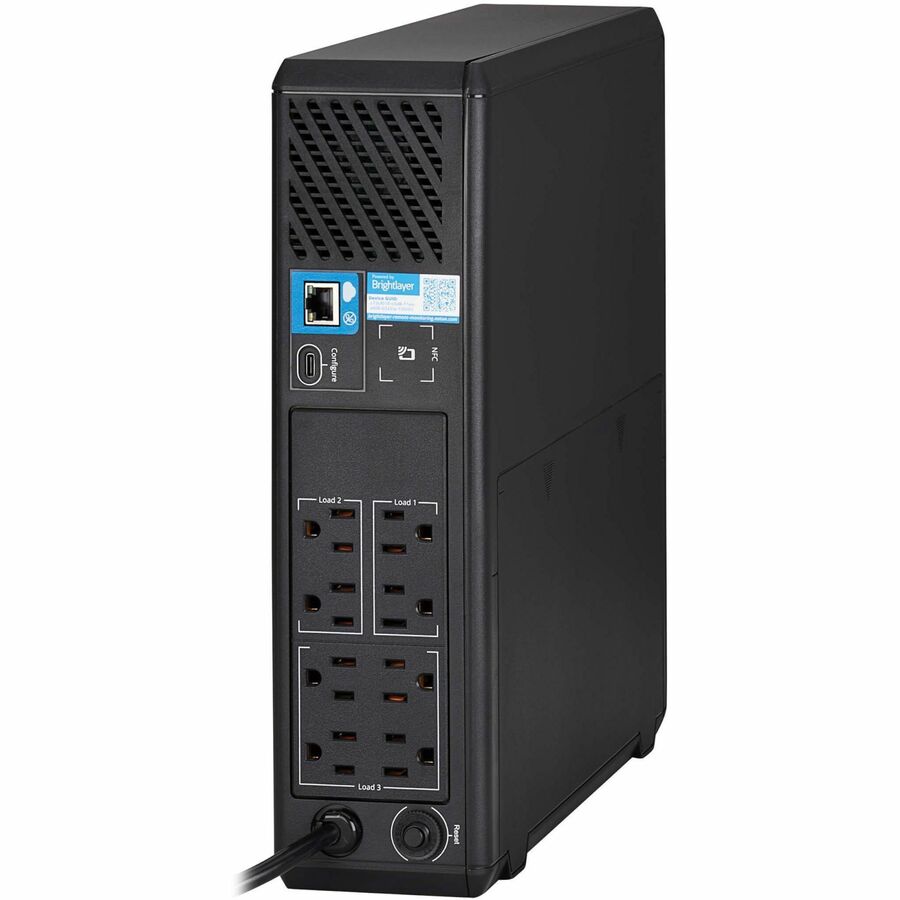

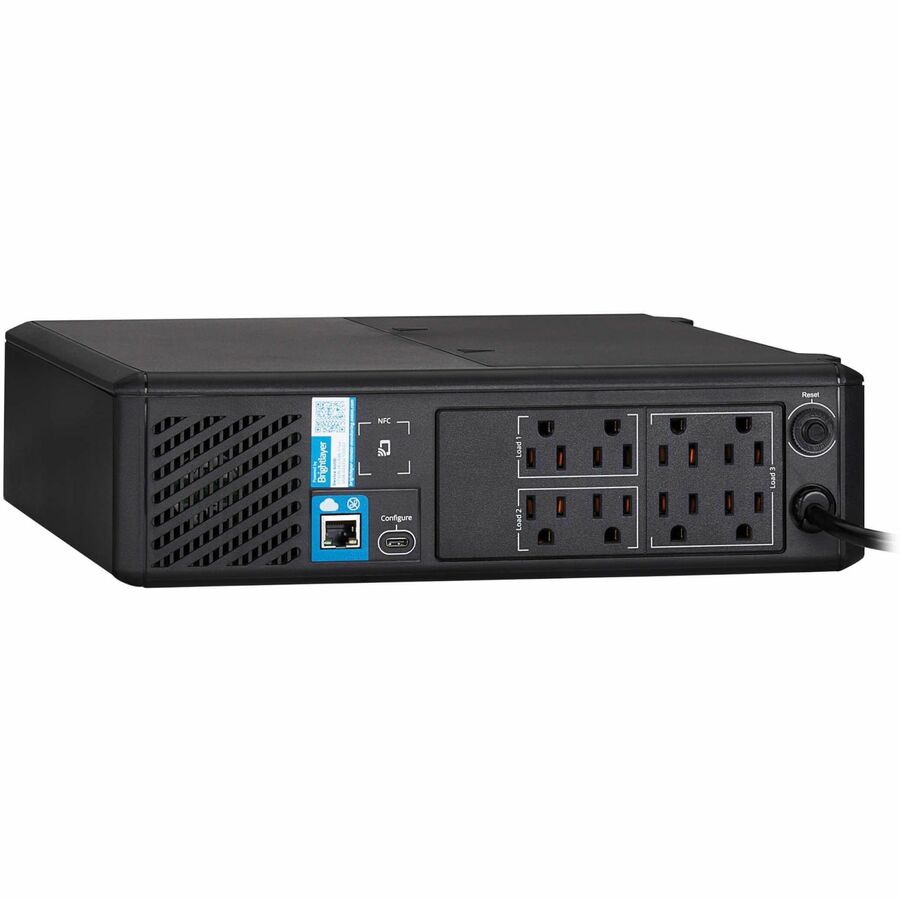

| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Number of Load Management Outlets | 3 |
| Overload Protection | Yes |
| Cord Length | 5 ft (1.52 m) |
| Transfer Time | 10 ms |
| Phase | Single Phase |
| Energy Saving | Green Energy-Saving |
| Efficiency Detail | 95% (AC Mode) |
| Application/Usage |
|
| Surge Suppression | Yes |
| Features |
|
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 475 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 97 V AC - 145 V AC |
| Input Current | 7 A |
| Output Voltage | 120 V AC |
| Input Frequency |
|
| Output Frequency |
|
| Waveform Type |
|
| Surge Energy Rating | 158 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.633 |

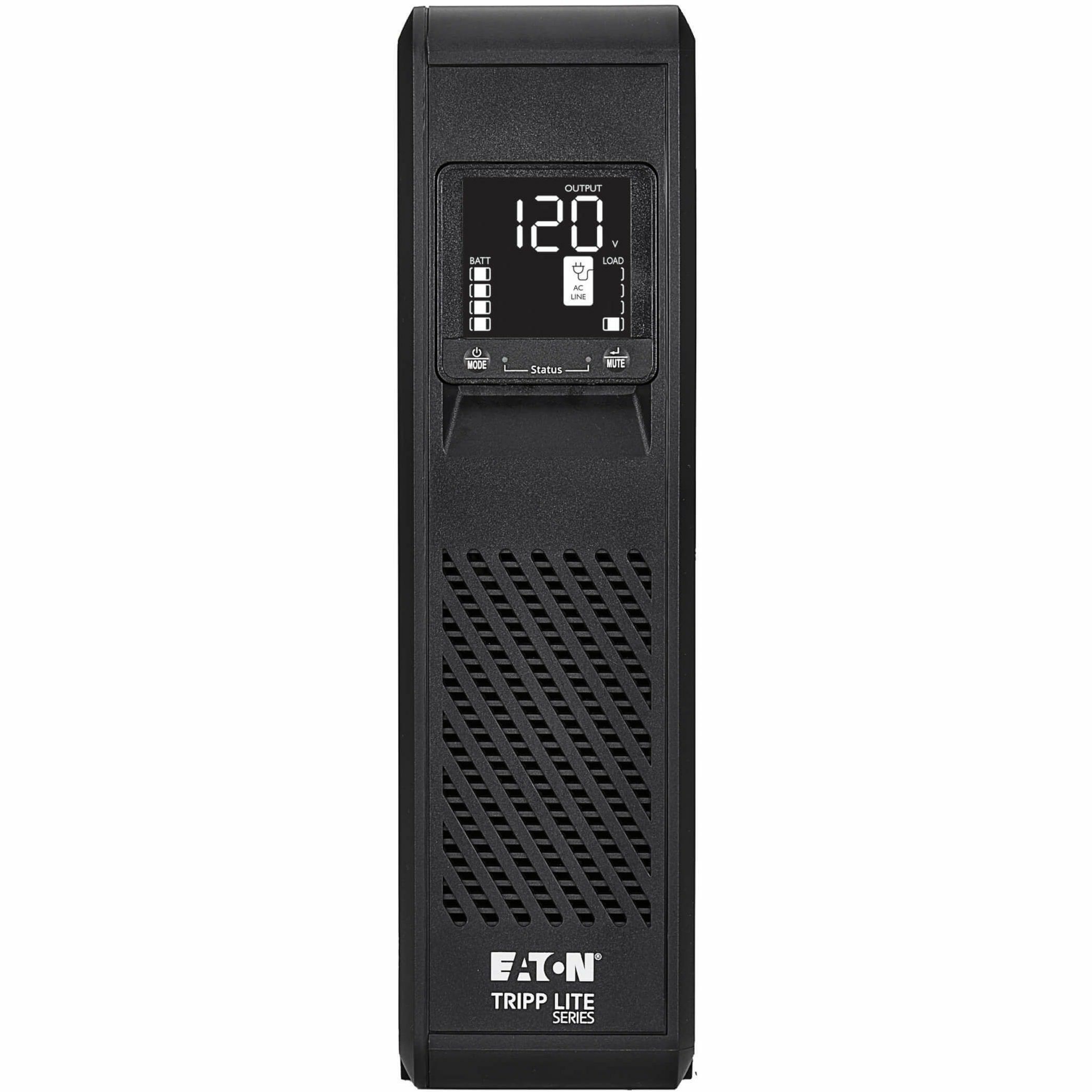

| Display | LCD |
| Network Management | Network Management Card |
| Alarm |
|
| Status Indicators | Front Panel LCD Display:
|
| Network (RJ-45) | Yes |
| USB | Yes |
| DC System Voltage | 24 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Sound Emission | 40 dB |
| Thermal Dissipation | 41.30 BTU/h |
| Height | 13" (330.20 mm) |
| Width | 3.40" (86.36 mm) |
| Depth | 12.40" (314.96 mm) |
| Rack Height | 2U |
| Form Factor | Tower |
| Weight (Approximate) | 15.40 lb (6985.32 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0037332283740 |
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $250000 Lifetime |
