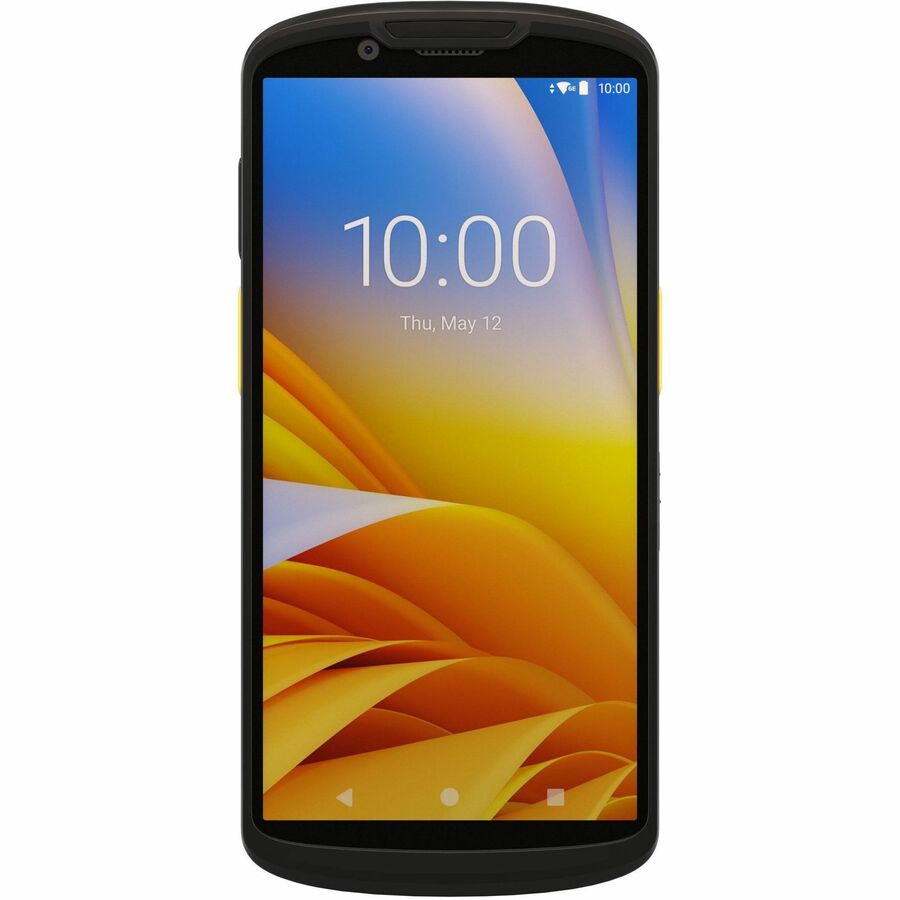

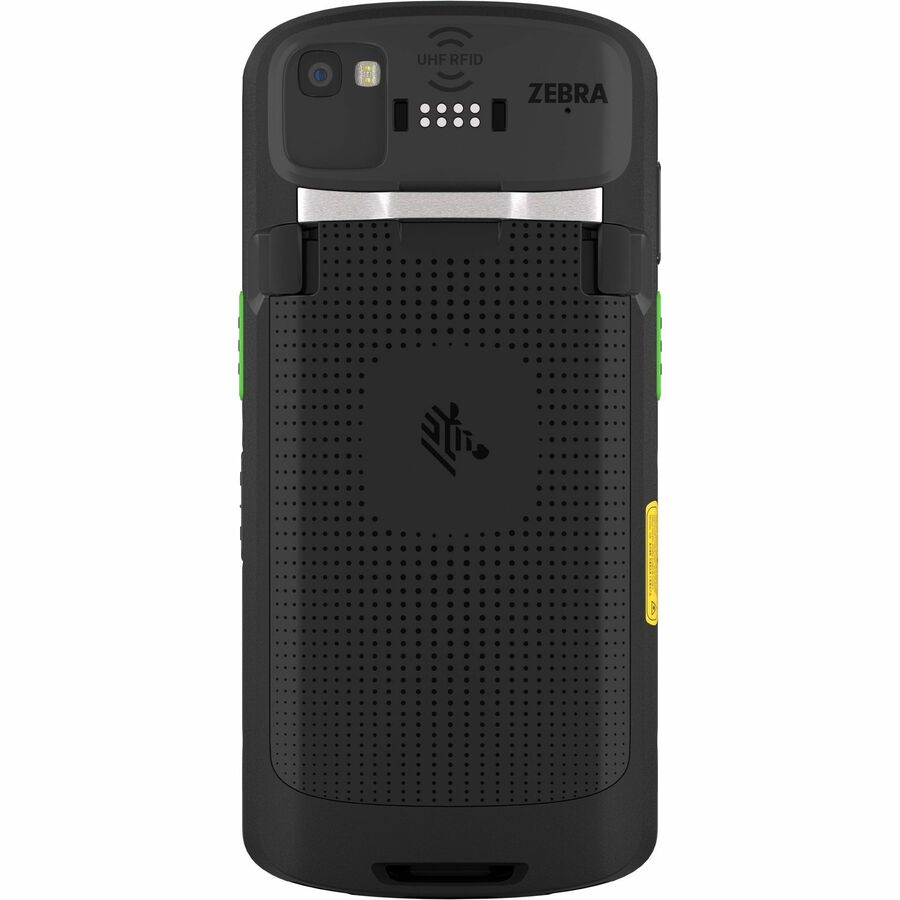

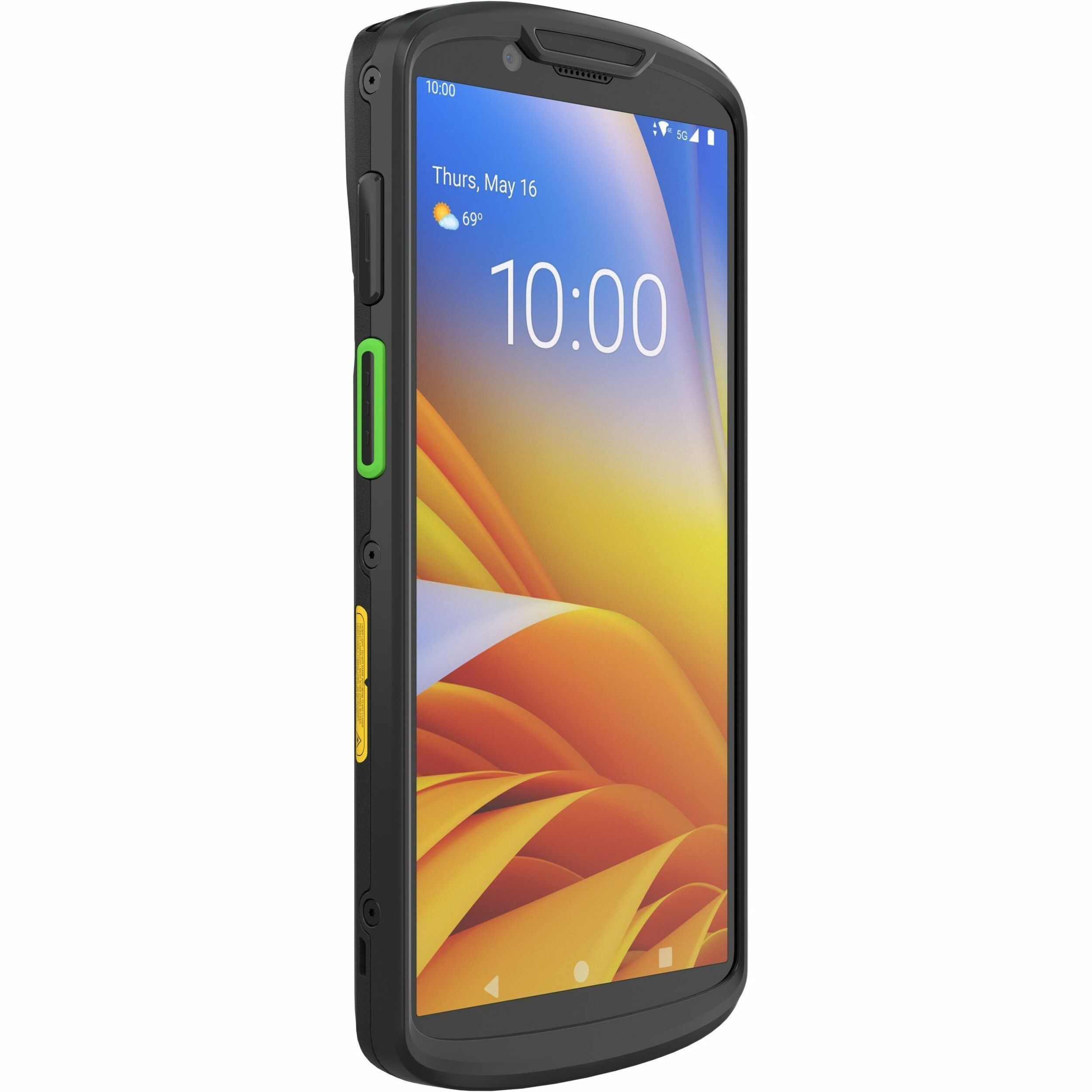

Zebra TC58E Handheld Terminal

Part No. TC58AE-3T1J1B1A11-NA

by Zebra Technologies Corporation

Zebra TC58E Handheld Terminal

1D, 2D - 5G, 4G, 3G, 2G, LTE - 40 ft (12192 mm) - SE4770Scan Engine - Qualcomm 2.40 GHz - 6 GB RAM - 64 GB Flash - 6" Full HD+ Touchscreen - LED - Front Camera - Rear Camera - Android Upgradable to Android 17 - Wireless LAN - Bluetooth - Rugged - Battery Included - IP65, IP68

Part No. TC58AE-3T1J1B1A11-NA

by Zebra Technologies Corporation

$2676.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberTC58AE-3T1J1B1A11-NA
Brand NameZebra
Product ModelTC58E
Product NameTC58E Handheld Terminal
Marketing Information

Faster. Smarter. More rugged. More sustainable. More secure. And a feature set that keeps pace with evolving business needs.

Introducing the latest addition to the top-selling TC5 Series, the TC53e, TC53e-RFID and TC58e. These devices take their place alongside the TC53 and TC58, building on their feature set to meet the ever-evolving mobility needs of today's front line workers. Qualcomm's latest processor and Secure Element support improve power and security. Support for Wi-Fi 6E and second generation 5G provide the fastest wireless speeds, improving connection reliability and application performance. Short-range UHF RFID opens up a world of new use cases. Constructed with 25 percent post-consumer recycled plastics, this device is the most sustainable TC5 Series device yet. The TC53e/TC53e-RFID/TC58e - everything your workers need to do business better.

The Most Secure TC5 Series Device Yet

A Secure Element provides the best physical security on a mobile device through a dedicated chip that prevents physical hardware attacks and unauthorized access to sensitive data.

More Processing Power

The new Qualcomm® processor delivers nearly twice the power of the prior generation processor, while consuming less power.

Better Multi-tasking

Up to 8 GB RAM and 128 GB Flash, plus support for up to 2TB of onboard storage provides the memory to support virtually any application.

All the Latest Wireless Communications

With 2nd generation 5G, Wi-Fi 6E and Bluetooth 5.3, you're investing in a device that offers the latest, fastest and most reliable wireless communications.

A Larger, Higher Resolution Display

The 6-inch FHD+ bright edge-to-edge display provides a richer viewing experience and is easy to see indoors and outside. And the touchscreen works when wet and with gloves.

A future-proof platform

Enhanced Durability

These dustproof, waterproof, drop-proof and tumble-proof devices deliver the reliable performance your workers need to ensure maximum workforce productivity and return on investment.

Crystal Clear Audio

Workers can easily hear every word on every call with comprehensive voice features, including three integrated microphones, two speakers, support for wireless and wired headsets and AI neural network-based noise suppression for superior intelligibility.

Extended Future Android Support

With support for future versions of Android , you get the peace of mind that the device you purchase today will support the new features of Android, well into the future.

Product TypeHandheld Terminal
Technical Information
Connectivity TechnologyWired/Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine ModelSE4770
Image Sensor TypeImager
Scanner RangeStandard Range
Scanning Distance40 ft (12192 mm)
Google Mobile Services (GMS)Yes
Wireless ChargingYes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Pressure Sensor
  • Proximity
  • Gyroscope
Multi-SIM SupportedYes
Number of SIM Card Supported2
SIM Size SupportedNano/eSIM
Brightness600 cd/m²
Features
  • Push-to-talk
  • Gorilla Glass
  • Drop Resistant
  • Corning Gorilla Glass
  • Water Resistant
  • Multi-color LED Notification
  • Vibration Alert
  • Dual Stereo Speaker
  • Audible Tone
  • Fast Charging
  • Vibrator
Drop Specification
  • Exceeds per MIL-STD-810H: 8 ft./2.4 m to concrete with the boot; 6 ft./1.8 m to tile over concrete stand alone terminal;
  • Enterprise drop standard: 6 ft./1.8 m to concrete with the boot across temperature exceeding MIL-STD-810H; 5 ft./1.5 m to tile over concrete across temperature exceeding MIL-STD-810H
AI-poweredYes
Processor & Chipset
Processor ManufacturerQualcomm
Processor CoreOcta-core (8 Core)
Processor Speed2.40 GHz
Memory
Standard Memory6 GB
Flash Memory64 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size6"
Screen ModeFull HD+
Screen Resolution1080 x 2160
Display Screen TypeLED
Touchscreen Information
TouchscreenYes
Multi-touch ScreenYes
Network & Communication
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
BluetoothYes
Bluetooth StandardBluetooth 5.3 BLE
Near Field Communication (NFC)Yes
Cellular Data Connectivity Technology
  • 5G
  • 4G
  • 3G
  • 2G
  • LTE
GPSYes
Global Navigation Satellite System (GNSS) SupportedBeiDou/Galileo/GLONASS/QZSS
Interfaces/Ports
USBYes
USB Type-CYes
Camera
Front CameraYes
Front Camera Resolution8 Megapixel
Rear CameraYes
Rear Camera Resolution16 Megapixel
Software
Operating SystemAndroid
Upgradable Operating SystemAndroid 17
Power Description
Power SourceBattery
Battery Information
Battery Capacity4680 mAh
Battery ChemistryLithium Ion (Li-Ion)
Battery IncludedYes
Removable BatteryYes
Environmental Conditions
Operating Temperature-4°F (-20°C) to 122°F (50°C)
Storage Temperature-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing)5% to 95%
Physical Characteristics
Form FactorPhone-size
RuggedYes
Height0.66" (16.76 mm)
Width3.04" (77.22 mm)
Length6.48" (164.59 mm)
Weight (With Battery)9.95 oz (282 g)
Miscellaneous
Package Contents
  • TC58E Handheld Terminal
  • Standard Battery
Application/Usage
  • Retail
  • Field Sales/Service
  • Inventory Management
  • Courier Service
  • Store Receiving
  • Backroom Inventory Management
  • Proof of Delivery/Pickup (Signature & Photo)
Ingress Protection (IP) Rating
  • IP65
  • IP68
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
COOMY
ConditionNo
Warranty
Limited Warranty1 Year
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the TC53e, TC53e-RFID and TC58e are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement.
