This sleek IP phone allows receptionists and concierges to efficiently respond to calls from IP intercoms. It combines visual verification with clear, two-way communication so you can both see and hear who's at the door.

Extra security at the door

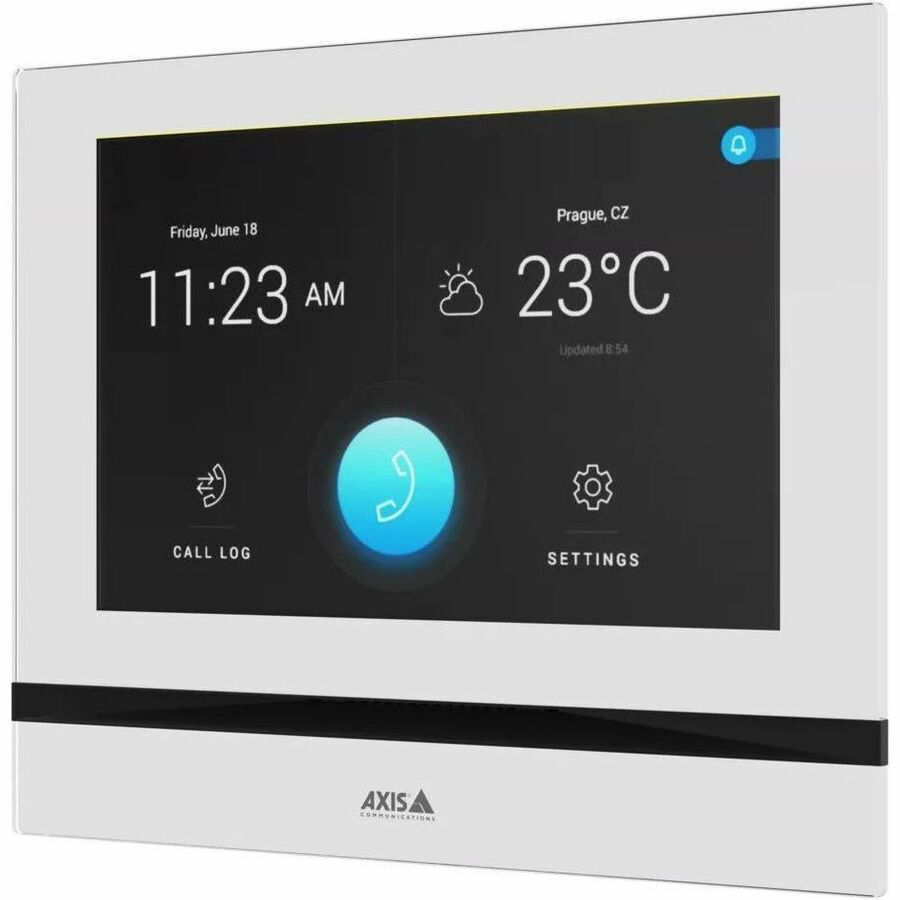

Designed to work with Axis, 2N, and third-party intercoms, AXIS I5304 Answering Unit lets you hear and see your visitors, adding extra security at the door. It features a 7" touch screen to display high-quality video for reliable visual verification. Plus, two-way communication allows you to hear the conversation clearly.

Easy to use

Ideal for office and commercial use, AXIS I5304 Answering Unit makes life easier for receptionists and concierges. They can quickly and efficiently respond to calls from IP intercoms at the door. And with fast touch response, they can quickly open the door by simply touching a button on the display. This IP phone also displays a preview of the intercom's camera. Furthermore, with a modern, sleek design, it's available in both black and white.

Quick and flexible installation

AXIS I5304 ensures secure installation. With support for PoE, it requires just one cable for both power and connectivity so you can connect it directly to your network. And you can place it wherever you want-on a reception desk or mounted on walls or recessed mounted using accessories.

• Plastic
• Tempered Glass

• I5304 Network Answering Unit
• Installation Guide
• Certificate of Ownership
• 2.5 mm Hexagon Key Wrench
• Terminal Block Connectors for Power and Doorbell

• Office
• Commercial Building
• Intercom System
• Door Entry

Control technology:

Capacitive touch panel

Features:

• Receive incoming calls
• Start outgoing calls
• View video from connected network intercoms and cameras
• Send HTTP commands
• Unlock Doors

Audio streaming:

Echo cancellation

Audio input:

Built-in microphone

Audio output:

• Built-in speaker
• Anechoic chamber: 84 dBC @ 1m 1 kHz
• Line out for hearing loop, 600 mV RMS

Audio encoding

G.711, G722, G.729, L16/16 kHz

Video | Video compression

• H.264 (MPEG-4 Part 10/AVC)
• Motion JPEG

Resolution

Up to 1280x720

Frame rate

Up to 30 fps

Network protocols:

IPv4, HTTP, HTTPS1,SIP 2.0, SIPS, SSL/TLS1,RTP, SRTP,RTSP, DHCP, NTP, TCP, IGMP, UDP, DNS, Syslog, FTP,SMTP, SNMP v1/v2c/v3 (MIB-II), RTCP, ICMP, DHCPv4

VoIP

• Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX.
• Supported SIP features: DTMF (audio, RFC2833, RFC2976)

Network security:

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)1 , HTTPS1 , TLS v1.21 , X.509 Certificate PKI

Connectors Network:

RJ45 10BASE-T/100BASE-T PoE Doorbell input: Switching contact (button/relay), normally open

Operating conditions:

• Temperature: 0 °C to 50 °C (32 °F to 122 °F)
• Humidity: 10-90% RH (non-condensing)
• Altitude: 0 to 2000 m (0 to 6500 ft)

Storage conditions:

• Temperature: -20 °C to 70 °C (-4 °F to 158 °F)
• Humidity: 10-90% RH (non-condensing)

• CSA
• UL/cUL
• CE
• VCCI
• RCM
• EN 55035
• EN 55032 Class B
• FCC Part 15 Subpart B Class B
• CAN/CSA C22.2 No. 62368-1 ed. 3
• IEC/EN/UL 62368-1 ed. 3

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
