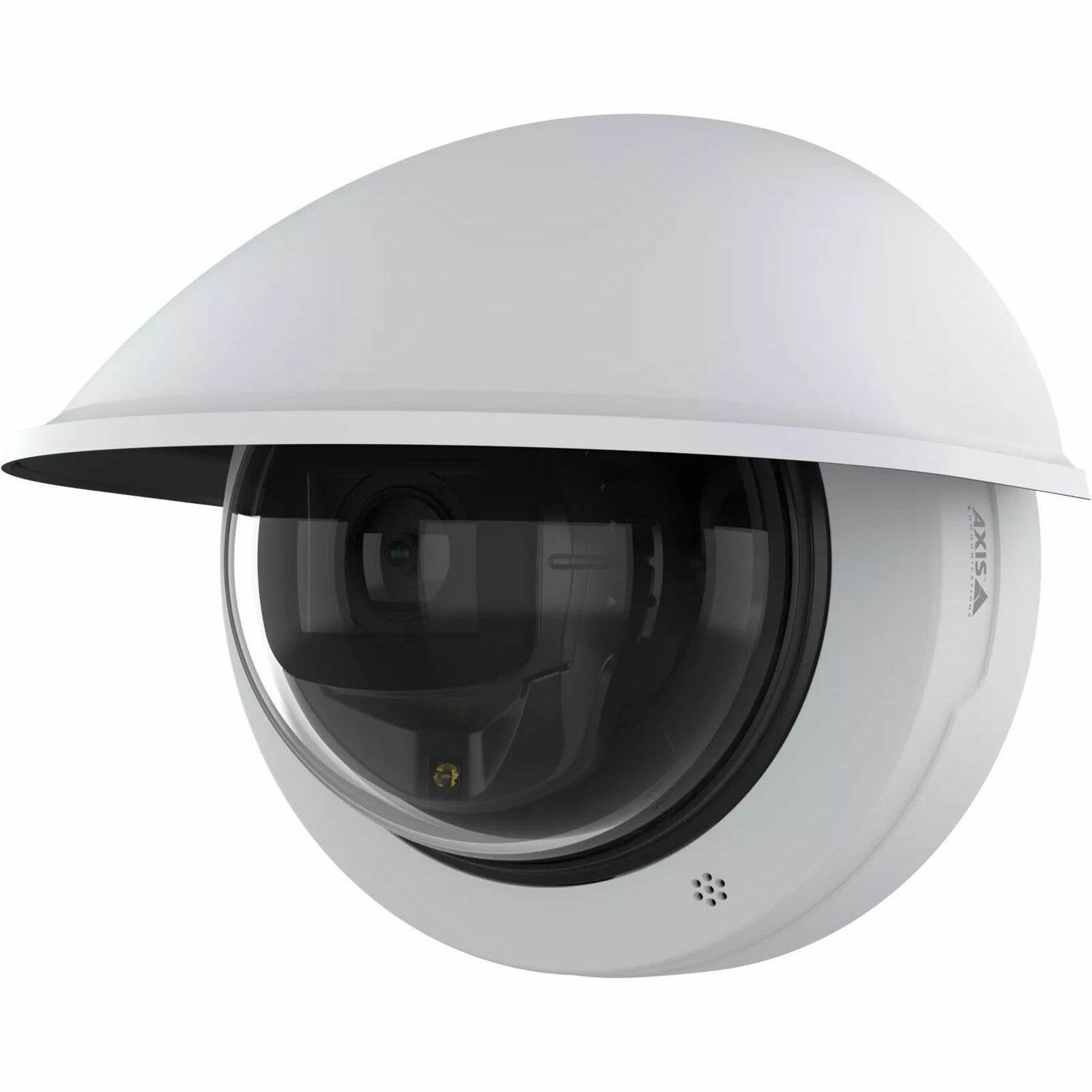

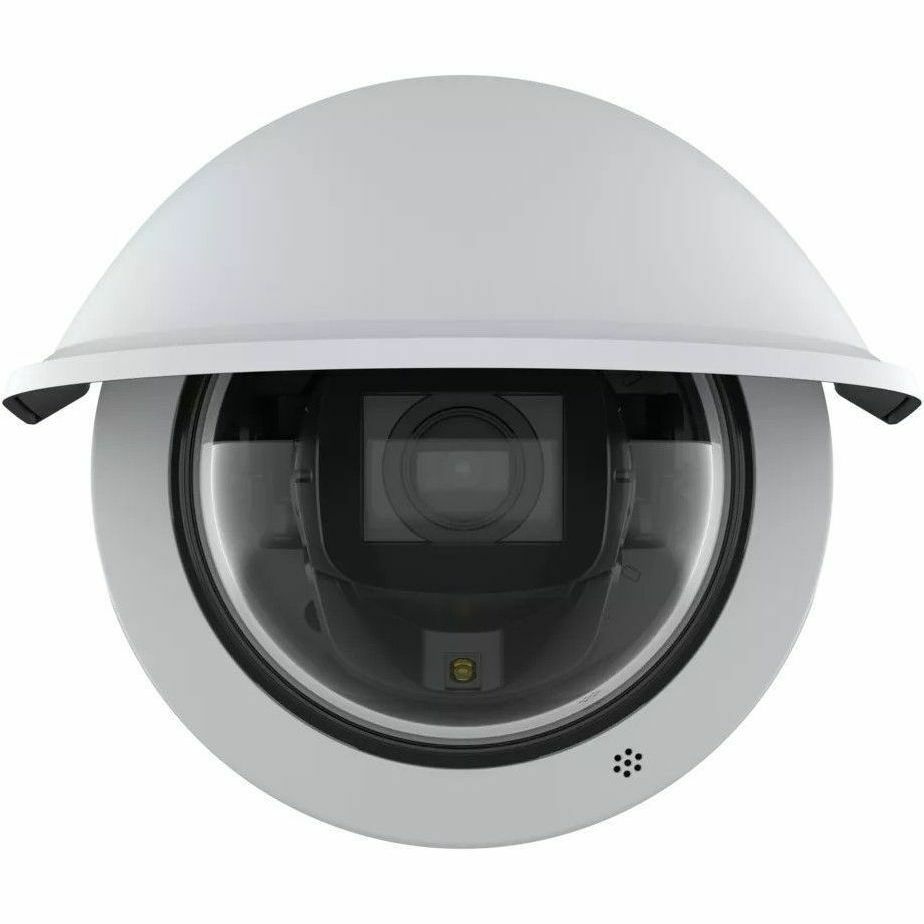

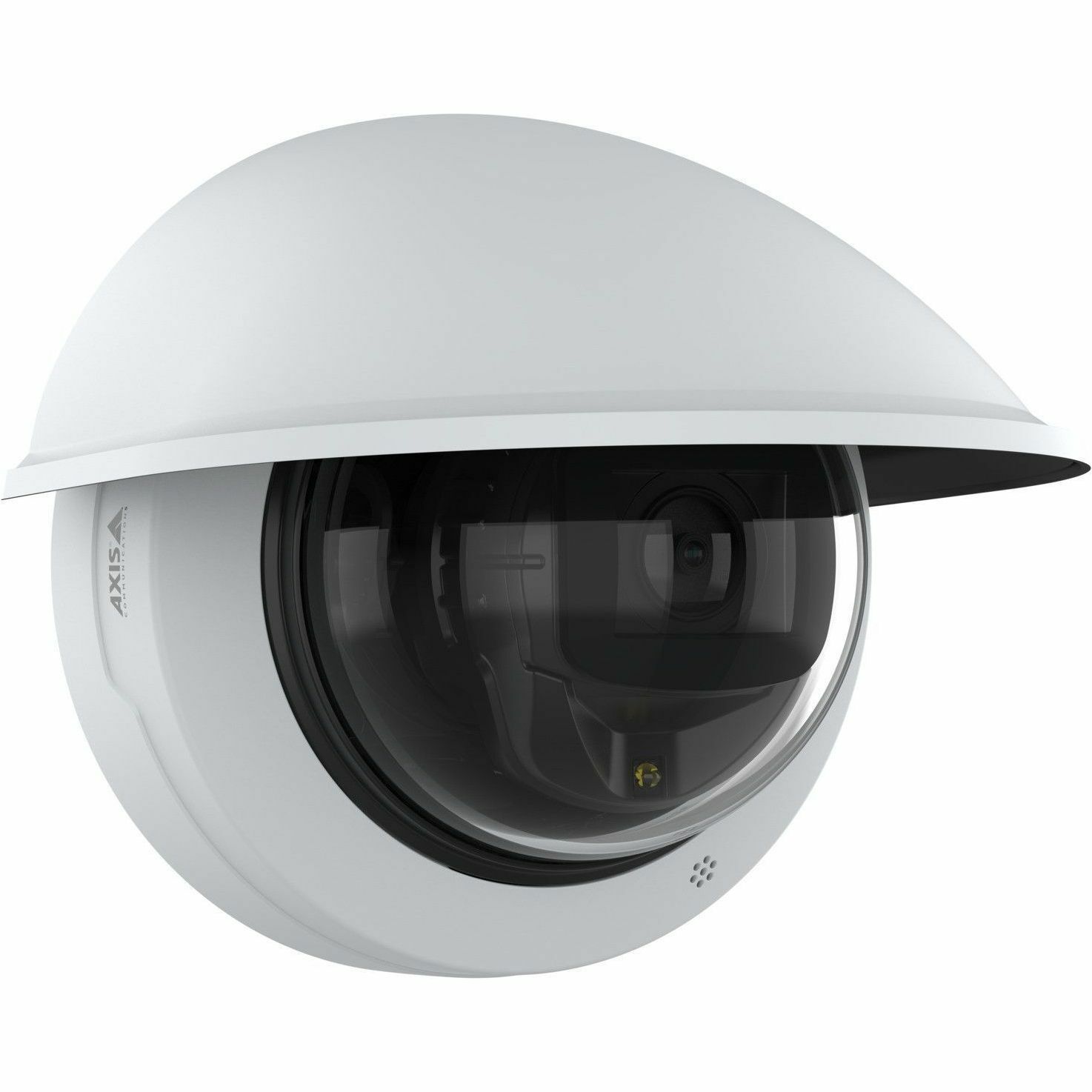

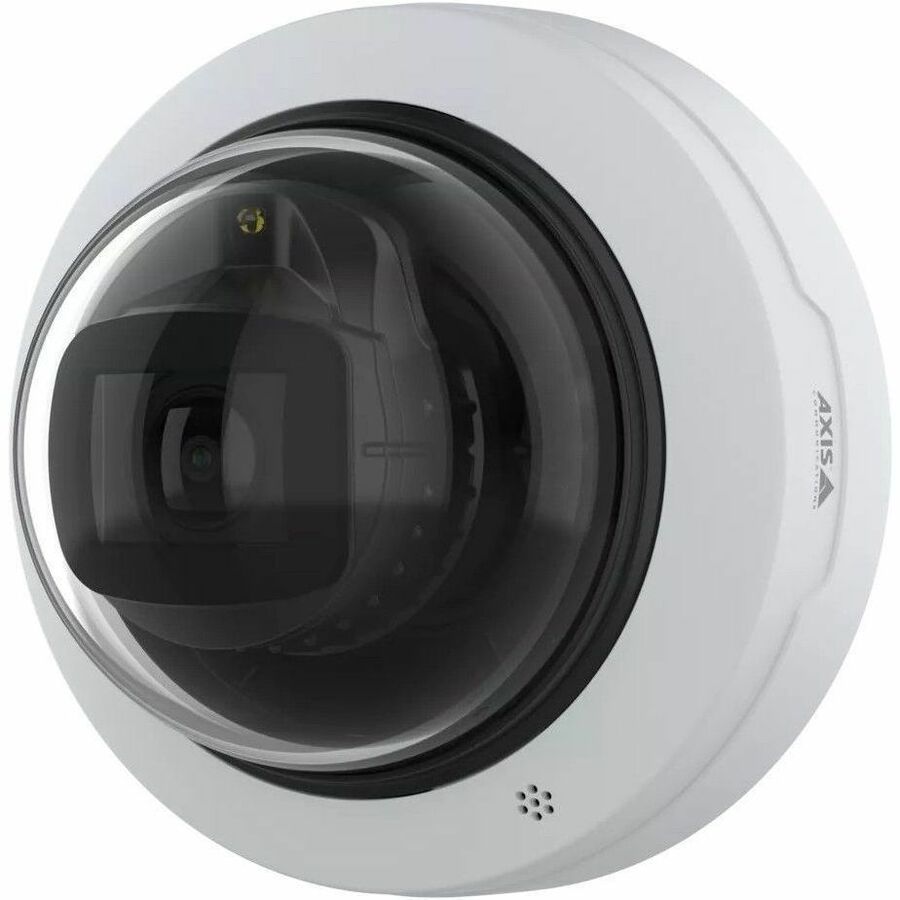

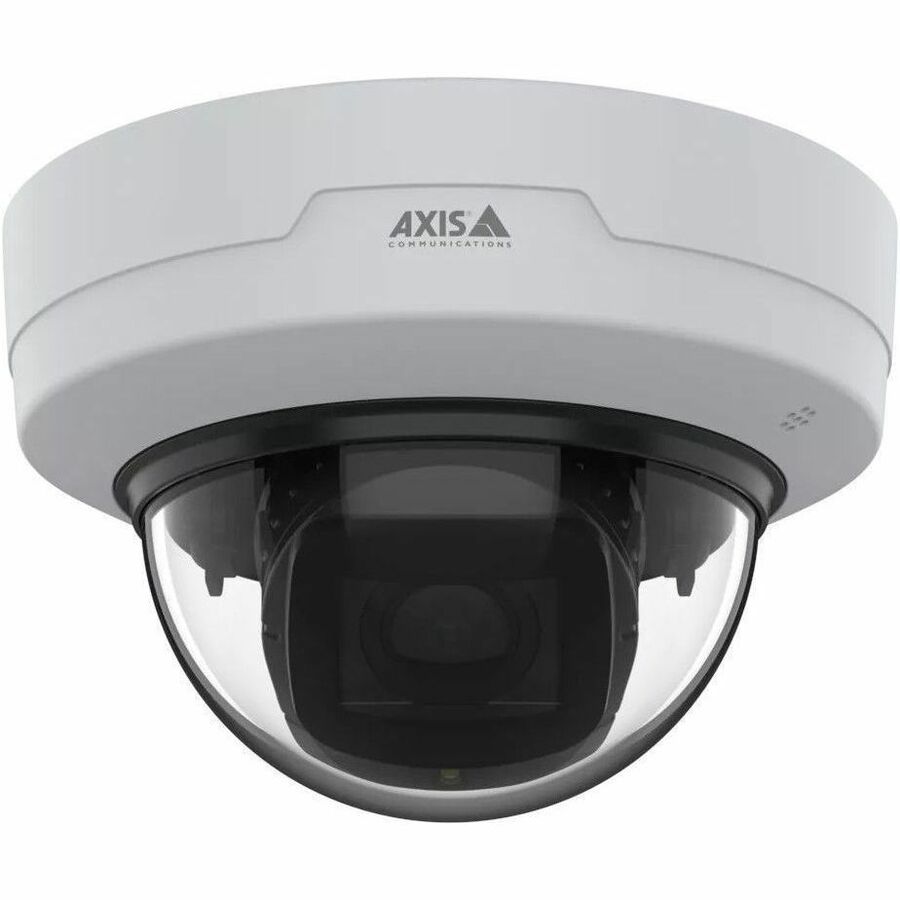

AXIS M4227-LVE 5 Megapixel Outdoor Network Camera - Color - Dome - White

Part No. 02815-001

by Axis Communications

AXIS M4227-LVE 5 Megapixel Outdoor Network Camera - Color - Dome - White

66 ft (20.12 m) Infrared Night Vision - H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, Zipstream, H.265, H.264 - 2688 x 1512 - 3.2 mm (0.13")- 7.2 mm (0.28") Varifocal Lens - 2.3x Optical - 30 fps - RGB CMOS - Fast Ethernet - IK10 - IP66 - Audio Support

Part No. 02815-001

by Axis Communications

$1300.99
General Information
ManufacturerAxis Communications
Manufacturer Part Number02815-001
Brand NameAXIS
Product SeriesM42
Product ModelM4227-LVE
Product NameM4227-LVE Dome Camera
Marketing Information

This compact, varifocal dome camera offers great images in 5 MP. It comes preinstalled with AXIS Object Analytics, as well as AXIS Audio Analytics to detect and classify specific sounds as well as sudden changes in sound volume.

Small and discreet

This compact and discreet dome camera blends in with any environment. There's also a smoked dome available as an accessory, so you can disguise which way the camera is pointing. This IP66- and IK10-rated camera has an operating temperature range from -30°C to 50°C (-22°F to 122°F). Plus, the included weathershield offers extra protection.

Product TypeNetwork Camera
Technical Information
HD RecordingYes
Night VisionYes
Night Vision Distance66 ft (20.12 m)
Night Vision TypeInfrared
Camera IrisFixed
AI-poweredYes
Infrared (IR) Cut-off FilterYes
Languages Support
  • English
  • German
  • French
  • Spanish
  • Italian
  • Russian
  • Simplified Chinese
  • Japanese
  • Korean
  • Portuguese
  • Polish
  • Traditional Chinese
  • Dutch
  • Czech
  • Swedish
  • Finnish
  • Turkish
  • Thai
  • Vietnamese
Wide Dynamic Range (WDR)Yes
Wide Dynamic Range Detail120 dB
Display & Graphics
Image Sensor TypeRGB CMOS
Image Sensor Size1/2.7"
Color SupportedColor
Field of ViewHorizontal field of view: 98-38° Vertical field of view: 66°-26°
Effective Camera Resolution5 Megapixel
Video
Video Formats
  • H.264B (MPEG-4 Part 10/AVC)
  • H.264M (MPEG-4 Part 10/AVC)
  • H.264H (MPEG-4 Part 10/AVC)
  • H.265 (MPEG-H Part 2/HEVC)
  • Motion JPEG
  • Zipstream
  • H.265
  • H.264
Maximum Video Resolution2688 x 1512
Maximum Frame Rate30 fps
Audio
Audio SupportYes
Lens
Lens TypeVarifocal
Minimum Focal Length3.2 mm (0.13")
Maximum Focal Length7.2 mm (0.28")
Lens IncludedYes
Minimum Aperturef/2.7
Maximum Aperturef/1.6
Optical Zoom2.3x
Exposure
Shortest Shutter Speed1/33500 Second
Longest Shutter Speed1/5 Second
PTZ Modes
  • Digital PTZ
  • Preset Point
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyFast Ethernet
Protocols
  • IPv4
  • IPv6 USGv6
  • ICMPv4/ICMPv6
  • HTTP
  • HTTPS
  • HTTP/2
  • TLS
  • FTP
  • SFTP
  • CIFS/SMB
  • SMTP
  • mDNS (Bonjour)
  • UPnP
  • SNMP (v1/v2/v3)
  • SNMP (MIB-2)
  • DNS/DNSv6
  • DDNS
  • NTP
  • NTS
  • RTSP
  • RTP
  • SRTP/RTSPS
  • TCP
  • UDP
  • IGMPv1/v2/v3
  • RTCP
  • ICMP
  • DHCPv4/v6
  • ARP
  • SSH
  • LLDP
  • CDP
  • MQTT v3.1.1
  • UDP/TCP/TLS
  • ZeroConf
Remote ManagementYes
Storage
Storage TypeMemory Card
Internal Memory2 GB
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Maximum Power Consumption12.30 W
Power Source TypePoE
Physical Characteristics
Form FactorDome
Color FamilyWhite
Product ColorWhite
Product Material
  • Plastic
  • Polycarbonate
Weight (Approximate)1.19 lb (540 g)
Environmental Conditions
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature122°F (50°C)
Minimum Storage Temperature-40°F (-40°C)
Maximum Storage Temperature149°F (65°C)
Minimum Operating Humidity (Condensing)10%
Maximum Operating Humidity (Condensing)100%
Minimum Storage Humidity (Non-condensing)5%
Maximum Storage Humidity (Non-condensing)95%
Miscellaneous
Features
  • Back Light Compensation (BLC)
  • Highlight Compensation (HLC)
  • 3D Digital Noise Reduction
  • 2D Digital Noise Reduction (2DNR)
  • Wide Dynamic Range
  • Audio Compression
  • Human Detection
  • Face Detection
  • Vehicle Detection
  • Active Tampering Alarm
Indoor/OutdoorOutdoor
Package Contents
  • M4227-LVE Dome Camera
  • Weathershield
  • Installation Guide
  • Connector Guard
  • Cable Gaskets
  • Owner Authentication Key
Impact Protection RatingIK10
Ingress Protection RatingIP66
TAA CompliantYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
ConditionNo
UPC7331021084421
Warranty
Limited Warranty5 Year
