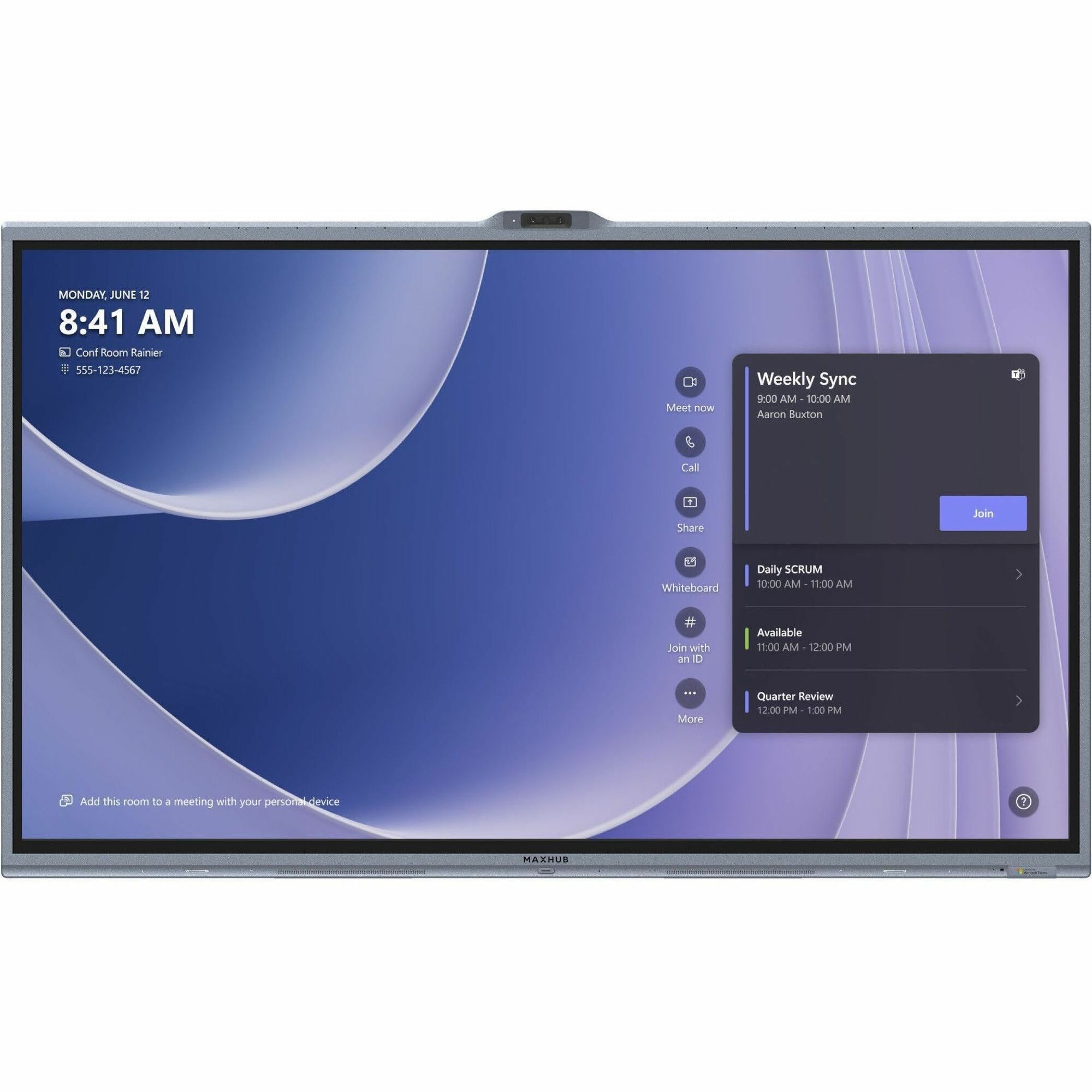

MaxHub XBoard V7 Series For Microsoft Teams Rooms
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | MAXHUB |
| Manufacturer Part Number | V755T |
| Brand Name | MaxHub |
| Product Line | XBoard |
| Product Series | V7 |
| Product Model | V755T |
| Product Name | XBoard V7 Series For Microsoft Teams Rooms |

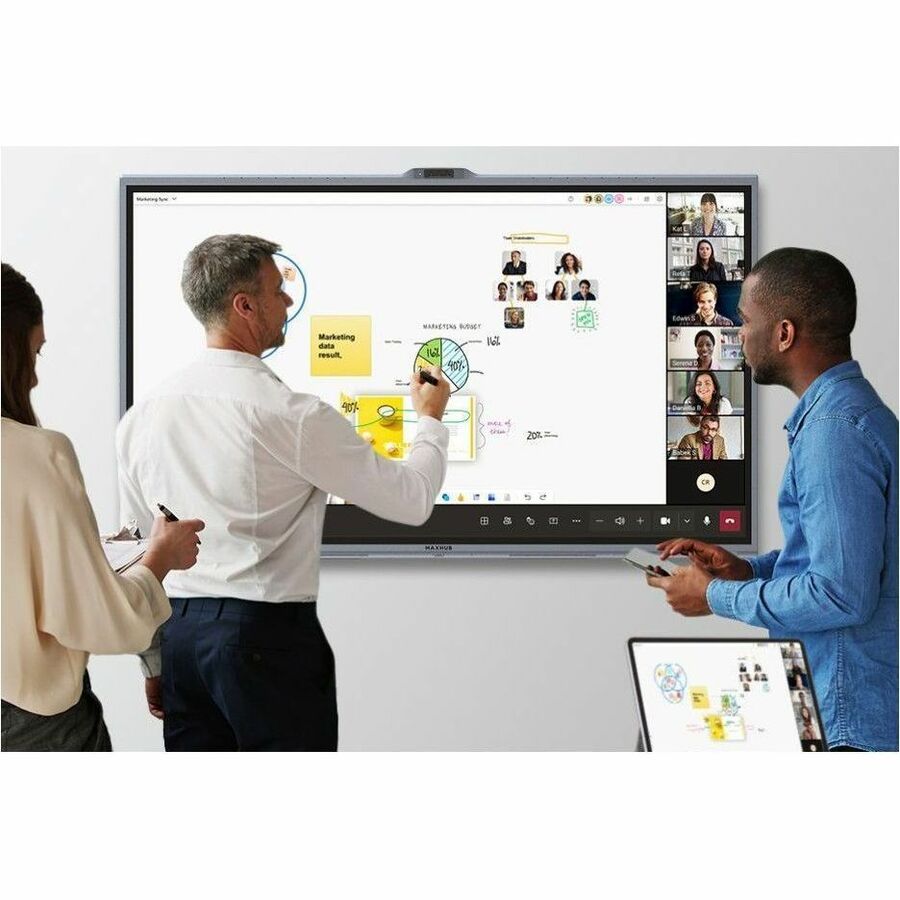

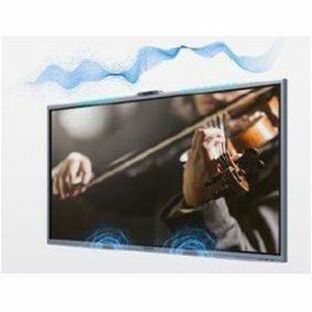

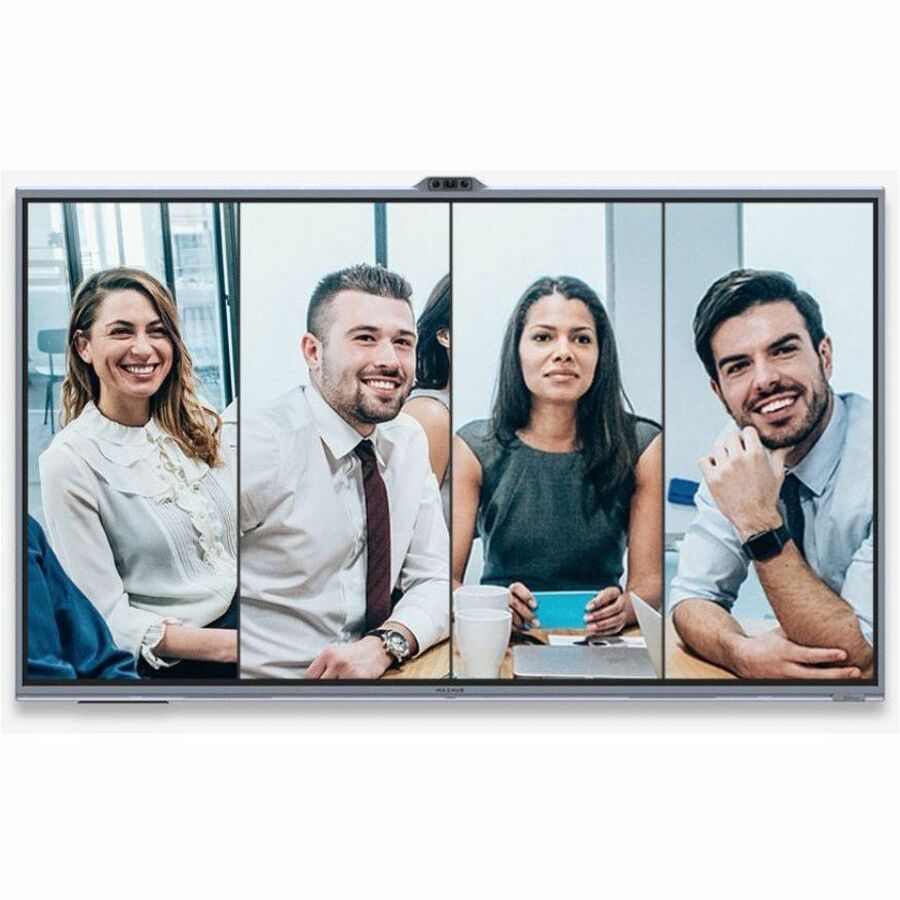

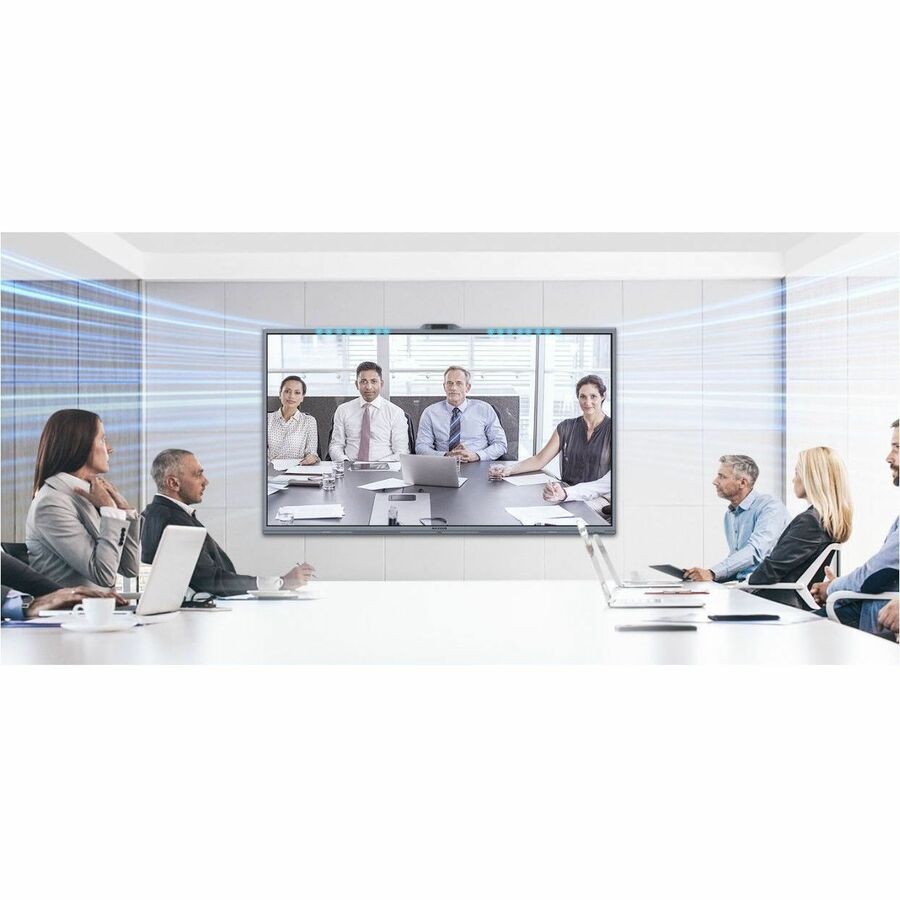

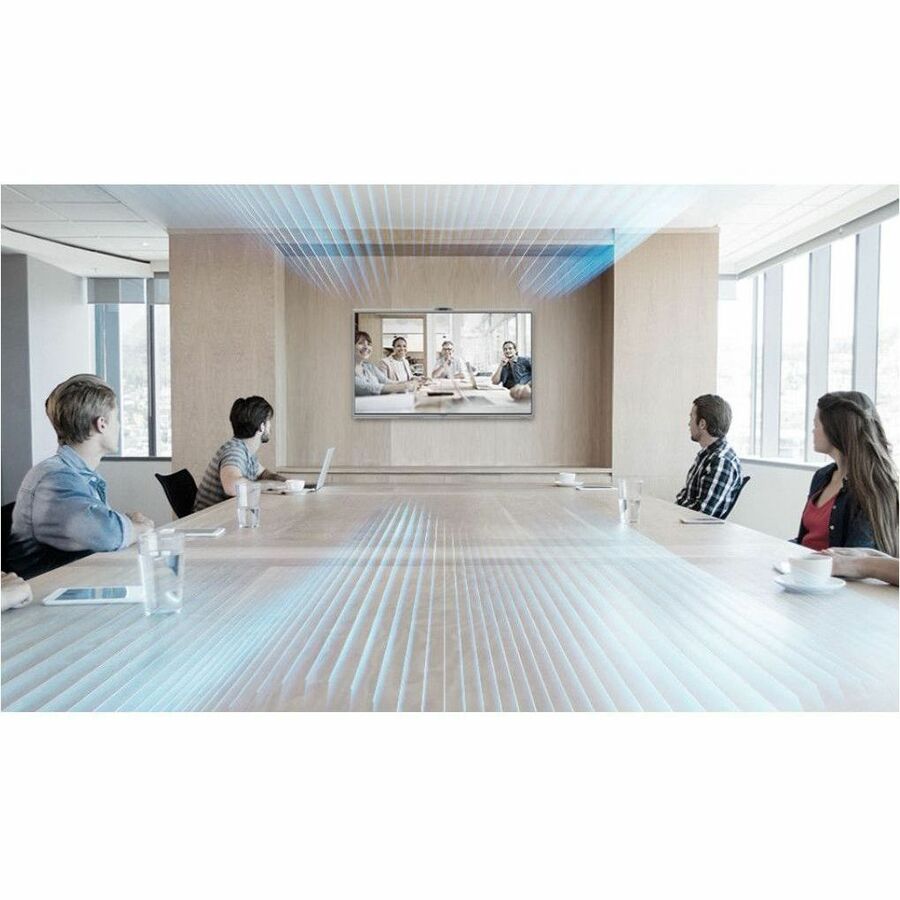

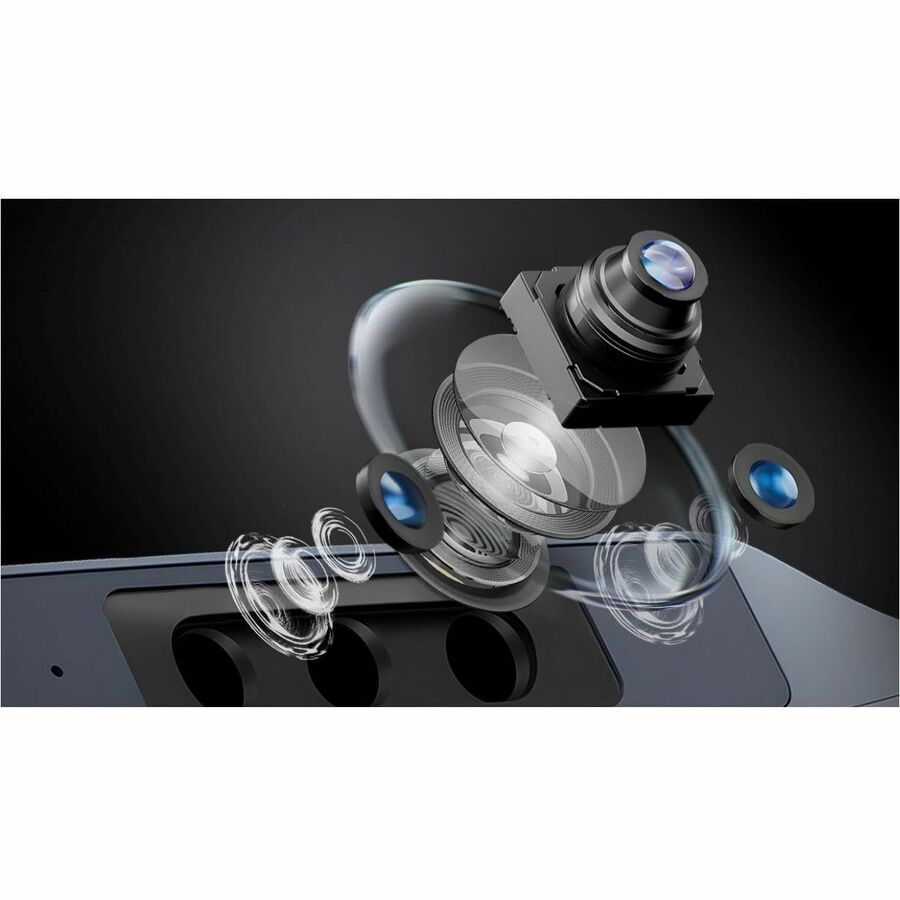

| Marketing Information | The MAXHUB XBoard is a windows-based all-in-one collaboration solution designed for meeting rooms and huddle spaces. It consists a high-resolution 4K LCD screen a triple-camera system, crystal-clear speakers, microphones, and an interactive touch screen. A Certified microsoft teams room device, to provide seamless colloboration and immersive video conferencing experiences. Professional 4K Display High color accuracy, ∆E≤1.5 Wide color gamut, NTSC 90% Non-glare technology, 25% haze Seamless Collaboration Built-in touch display and Microsoft whiteboard for real-time collaboration AI-Powered Video Technology Auto framing Speaker tracking Multi-speaker tracking Intelligent focus Premium Audio Built-in 16-beamforming microphone array, Built-in stereo speakers AI-powered noise reduction Full-duplex communication Flexible Content Share Wired 4K content share via HDMI Wireless content share via wireless dongle, MAXHUB Share app, Airplay |
| Product Type | Collaboration Display |
| Surface Hardness | 9H |
| Features | Anti-glare |
| Viewable Screen Size | 75" (1905 mm) |
| Screen Size Class | 75" (1905 mm) |
| Display Screen Type | LCD |
| Display Screen Technology | Vertical Alignment (VA) |
| Backlight Technology | Direct LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Color Supported | 1.07 Billion Colors |
| Color Depth | 10-bit |
| Contrast Ratio | 1,200:1 |
| Display Orientation | Landscape |
| Brightness | 350 cd/m² |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Iris® Xe Graphics eligible |
| Tempered Glass | Yes |
| Anti-glare Coating | 25% |
| Glass Thickness | 0.12" (3 mm) |
| Ambient Light Sensor | Yes |
| Standard Refresh Rate | 60 Hz |
| Panel Life | 50000 Hours |
| Operation Hours | 16 Hours/7 Days |

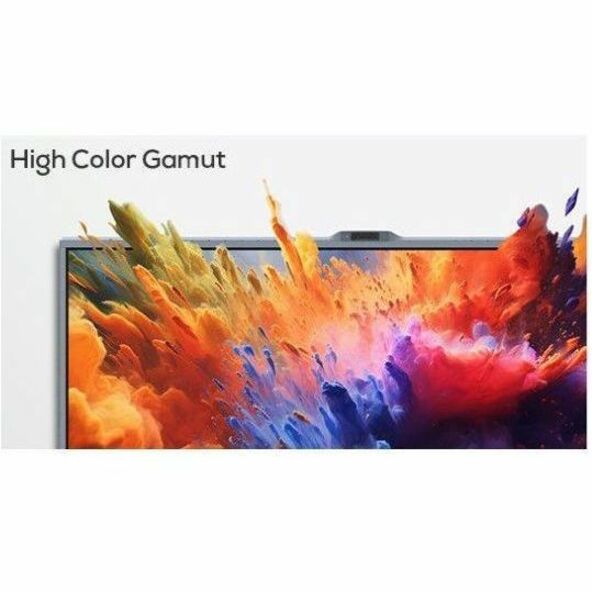

| Color Gamut | 90% NTSC |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 50 |
| Touchscreen Technology | Infrared (IrDA) |
| Touch Accuracy | 19.69 mil (0.50 mm) |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-1240P |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Total Solid State Drive Capacity | 256 GB |
| Speakers | Yes |
| Number of Speakers | 2 |
| Microphone | Yes |
| Number of Microphone Array Elements | 16 |
| RMS Output Power | 40 W |
| Webcam | Yes |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.1 |
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 5 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Serial | Yes |
| Operating System Platform | Windows |
| Operating System | Windows 11 IoT |
| Input Voltage |
|
| Power Consumption | 390 W |
| Standby Power Consumption | 500 mW |
| Typical Power Consumption | 155 W |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 800 x 400 |
| Mount Surface | Wall |
| Height | 40.96" (1040.30 mm) |
| Width | 67.30" (1709.40 mm) |
| Depth | 3.54" (90 mm) |
| Weight (Approximate) | 105.82 lb (48000 g) |
| Package Contents |
|
| Condition | No |
| UPC | 6927433606255 |
| Limited Warranty | 3 Year |
