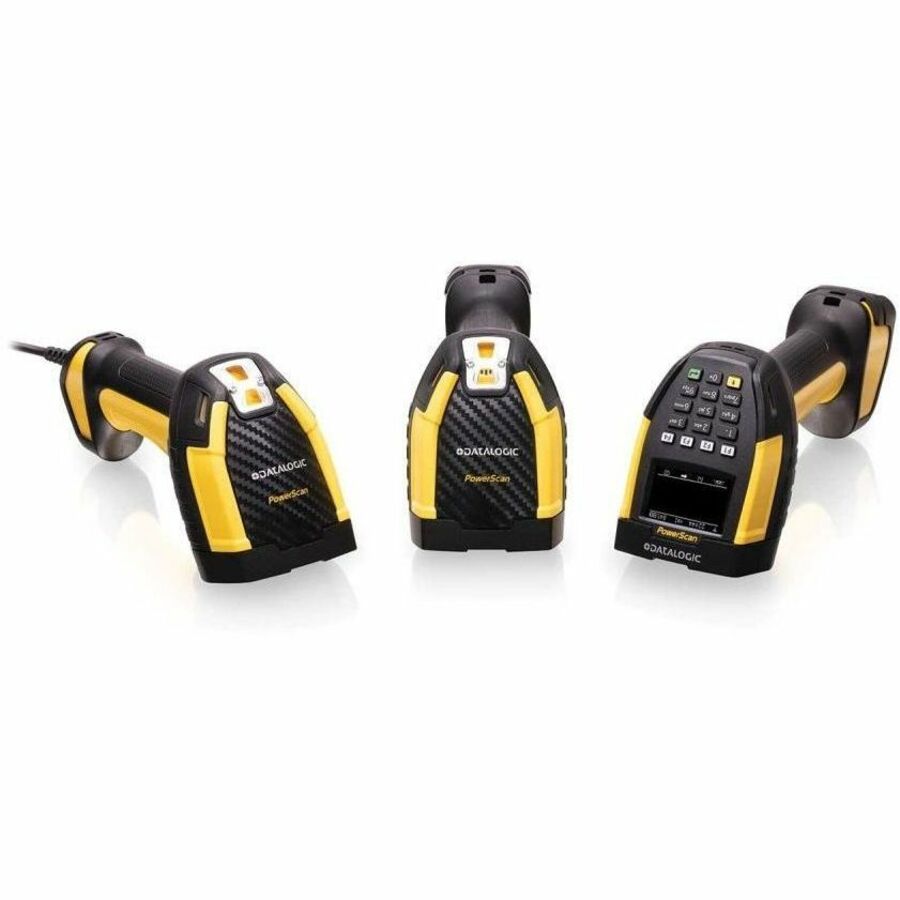

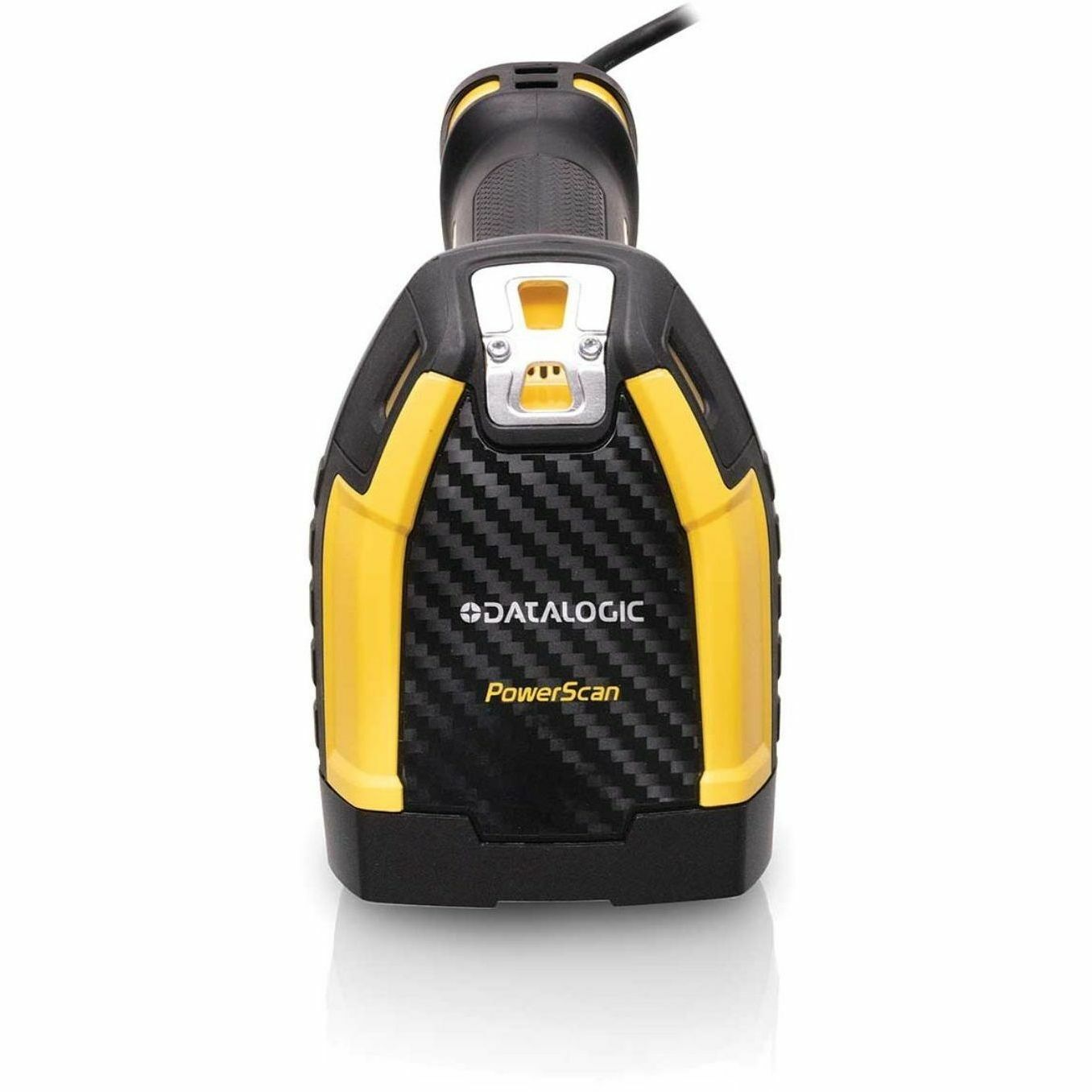

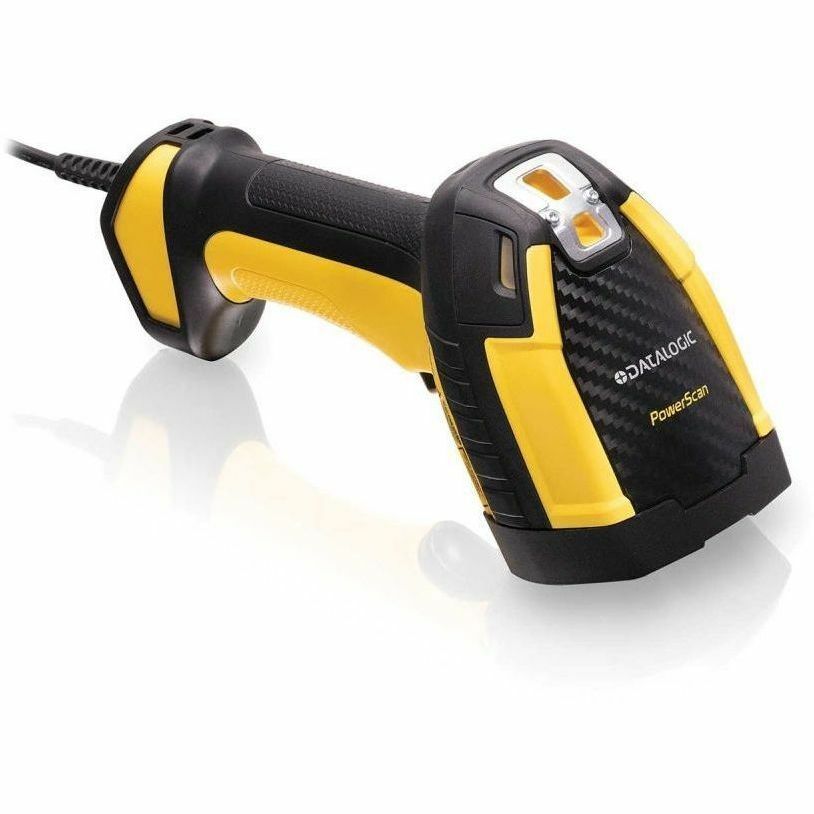

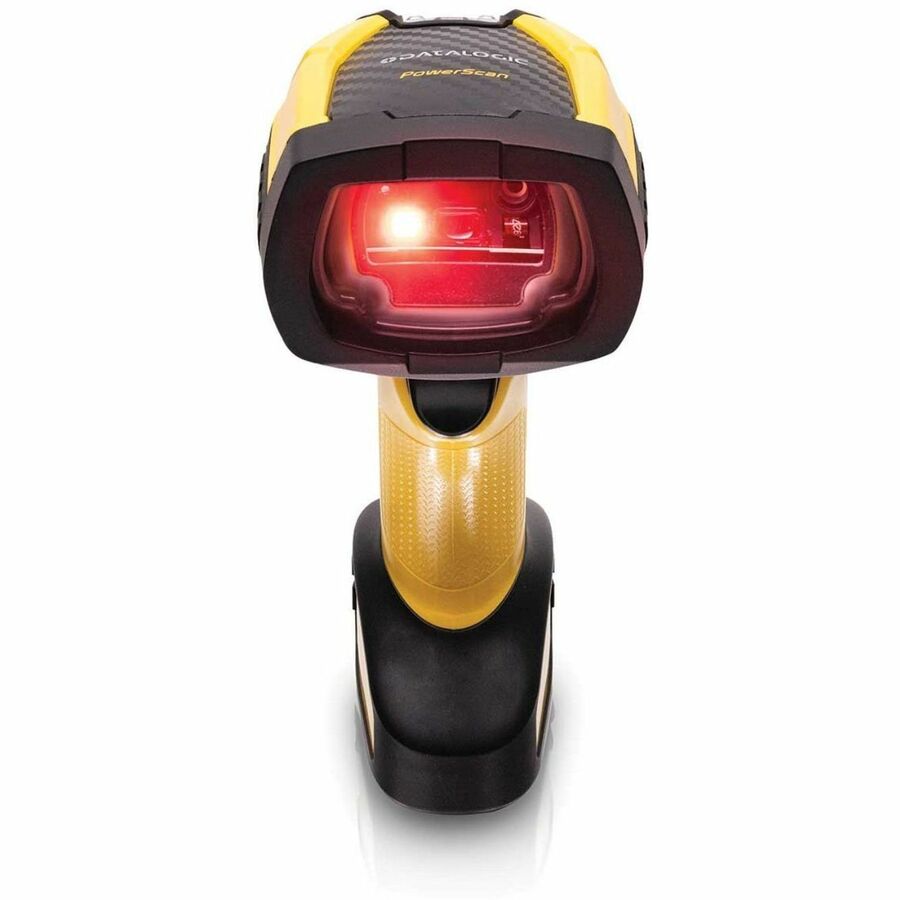

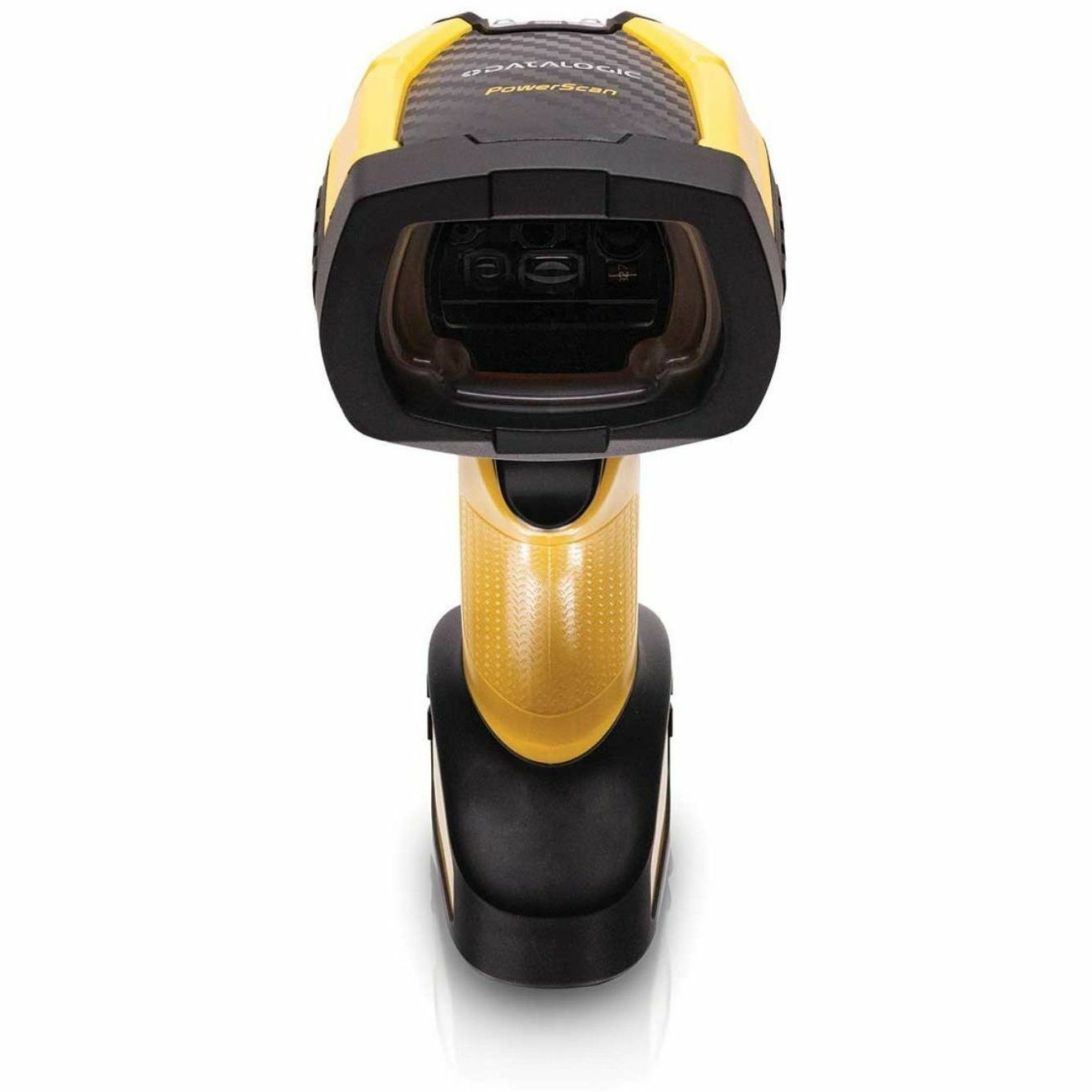

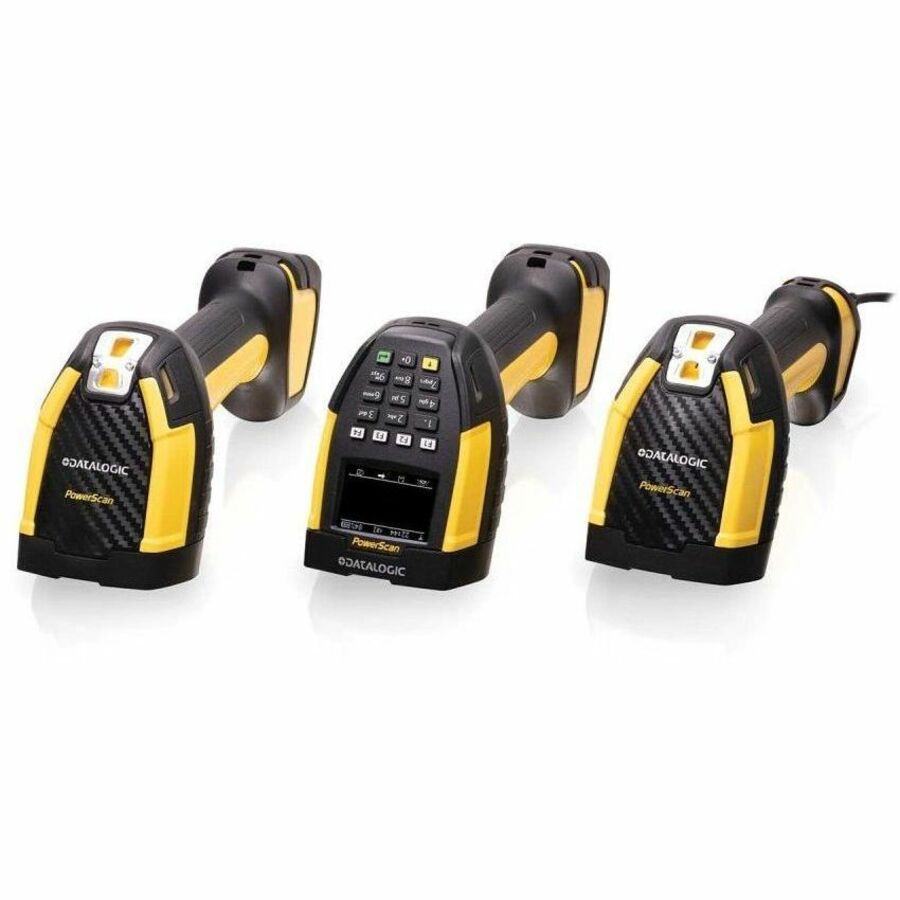

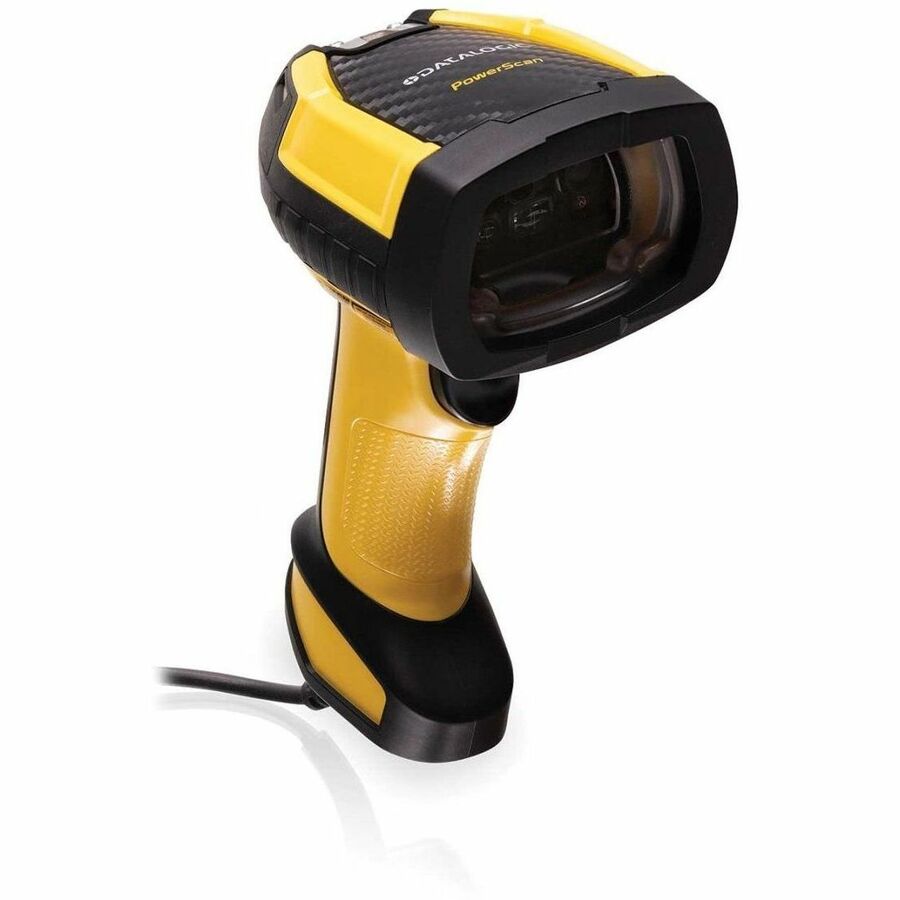

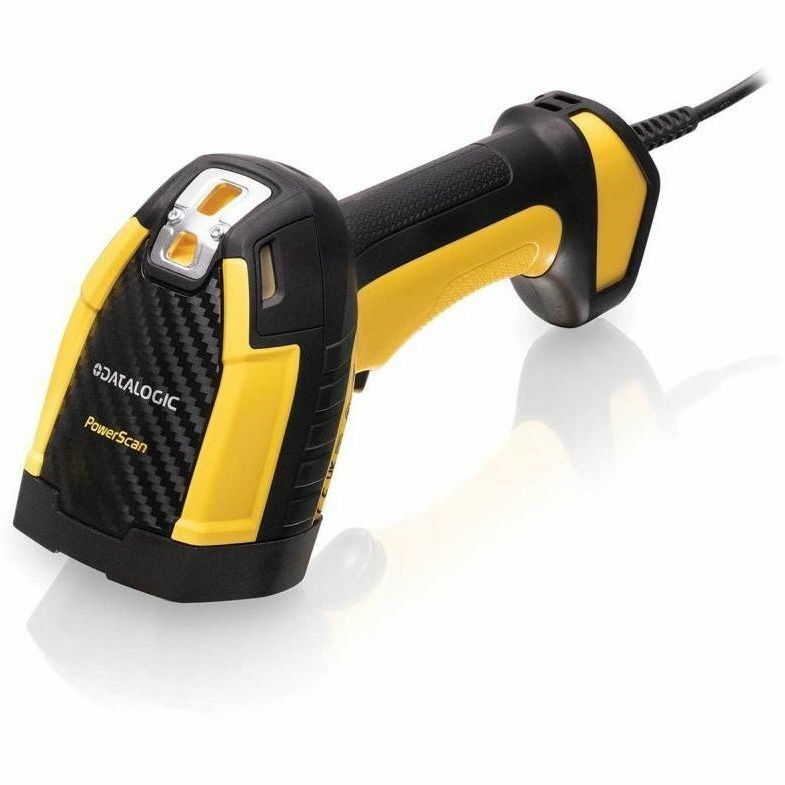

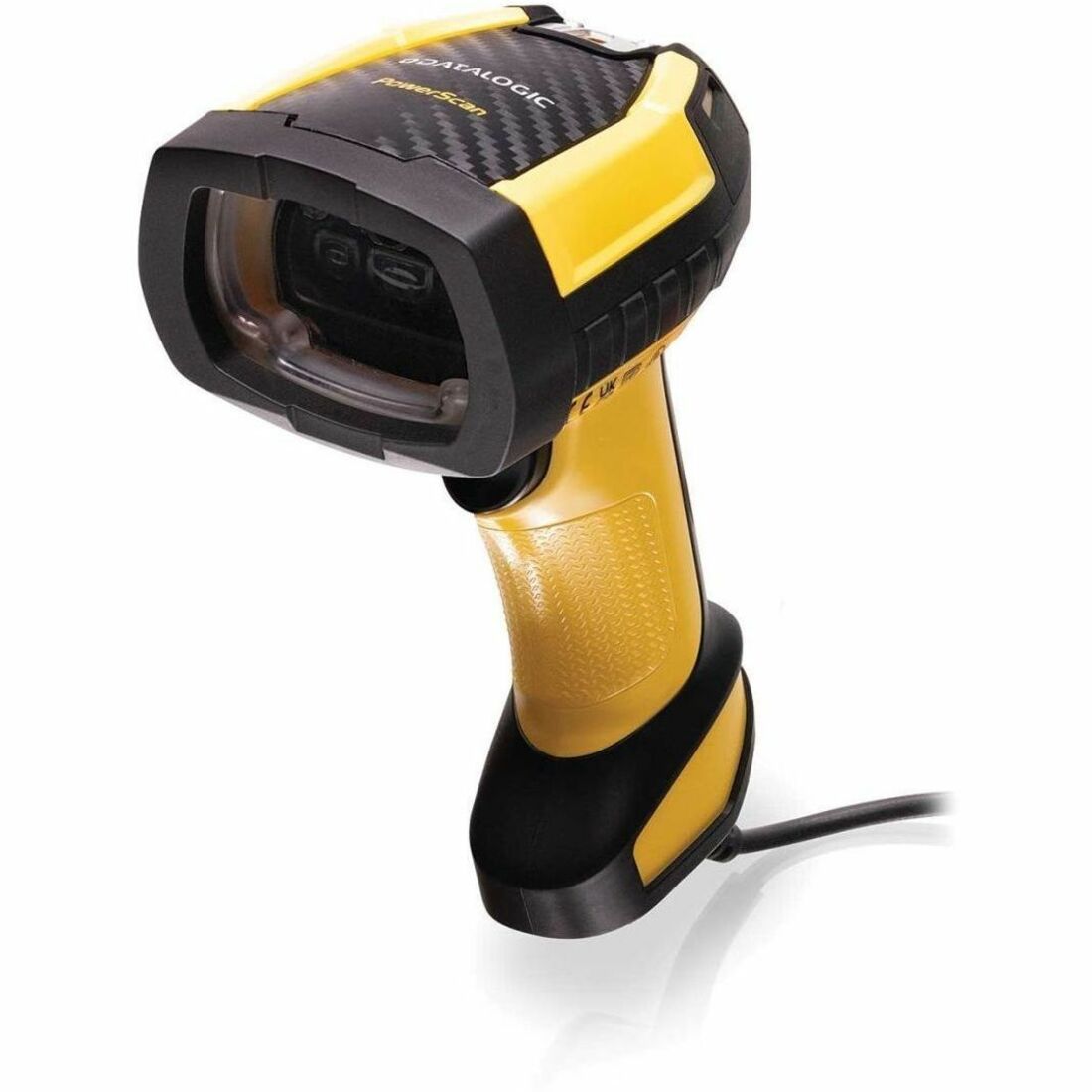

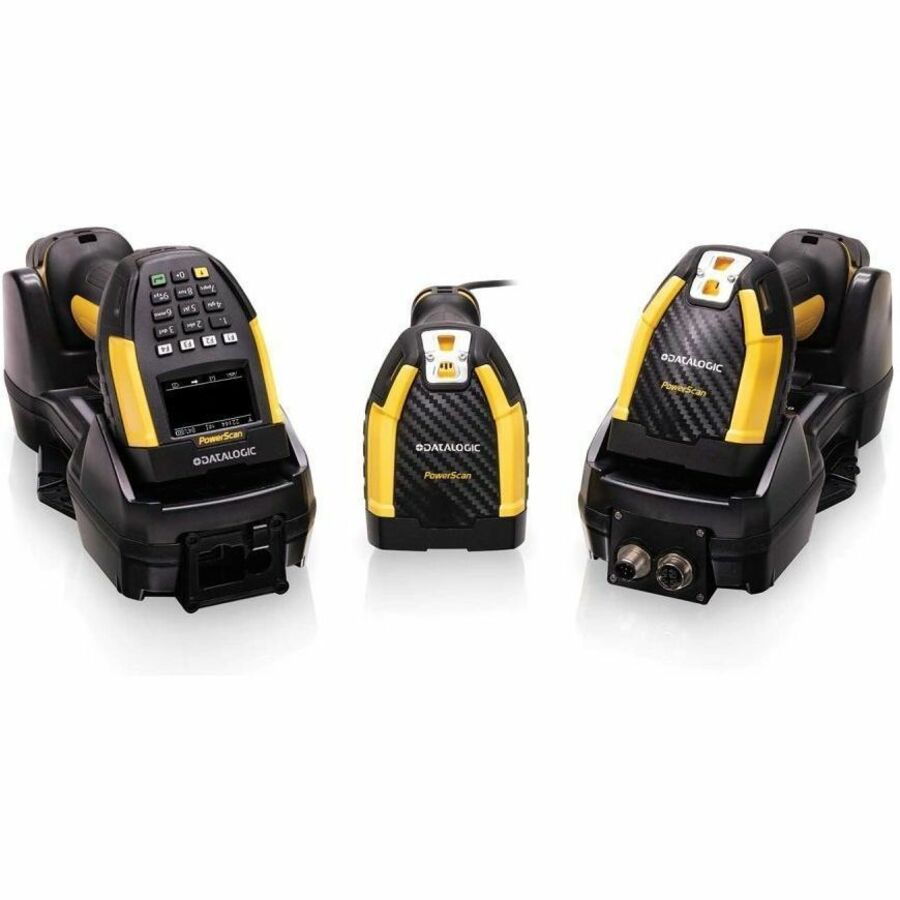

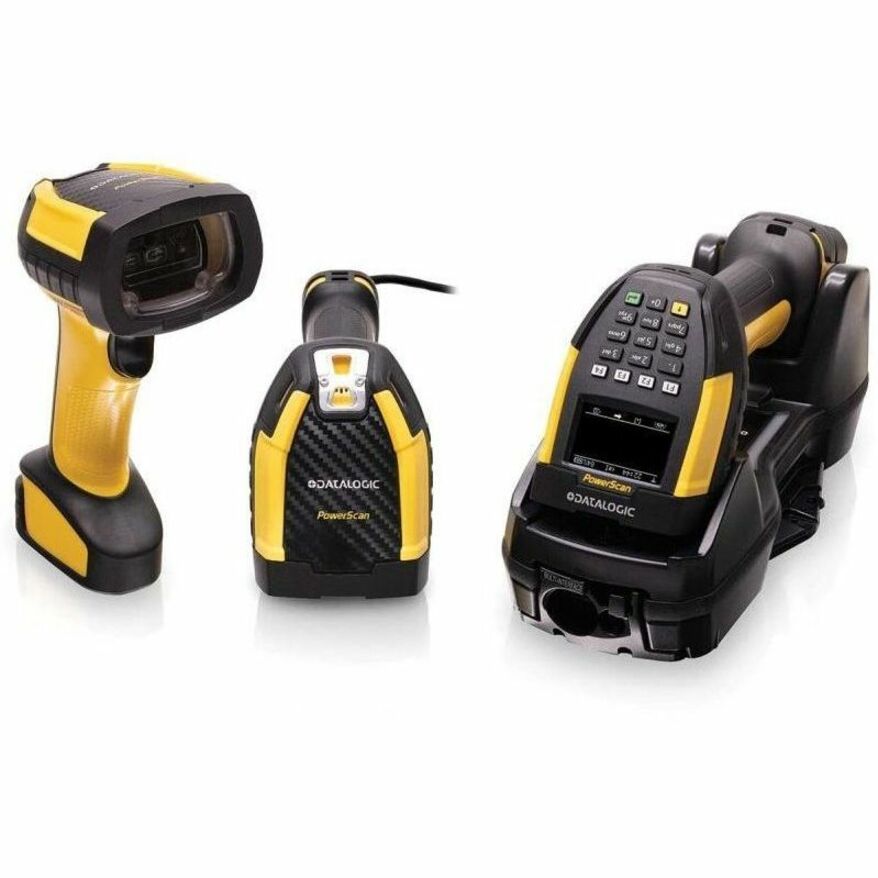

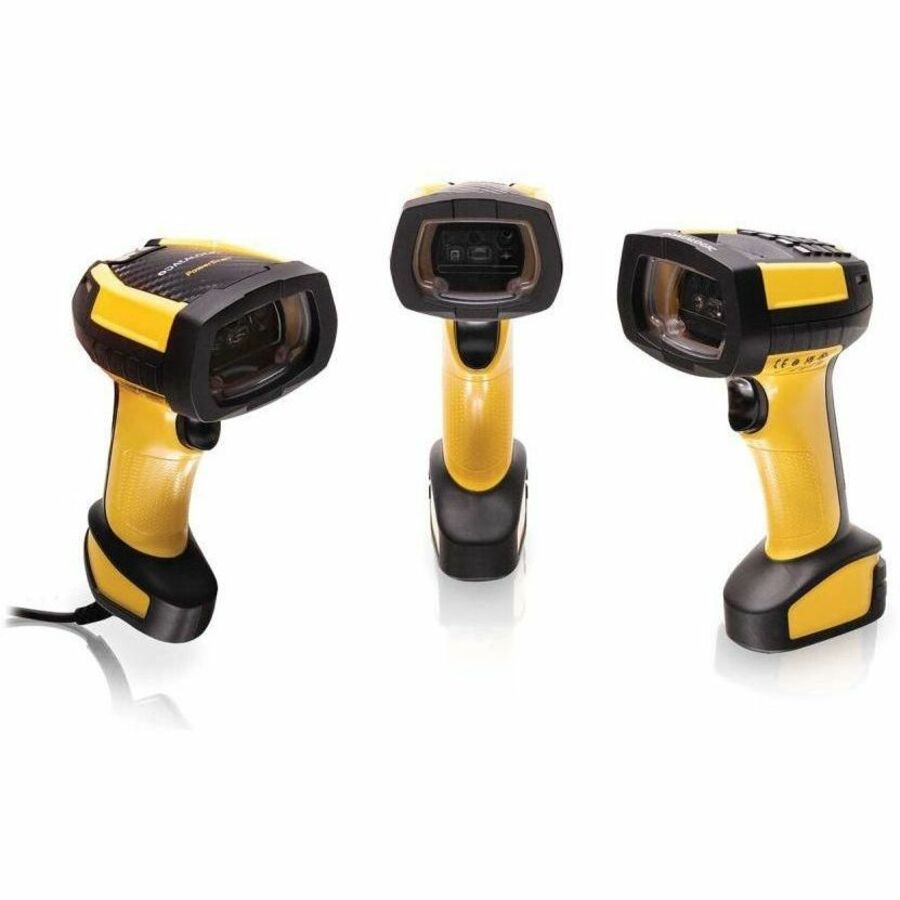

Datalogic POWERSCAN 9600 DPX Handheld Barcode Scanner
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PBT9600-DPXRB |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PBT9600-DPX |
| Product Name | POWERSCAN 9600 DPX Handheld Barcode Scanner |

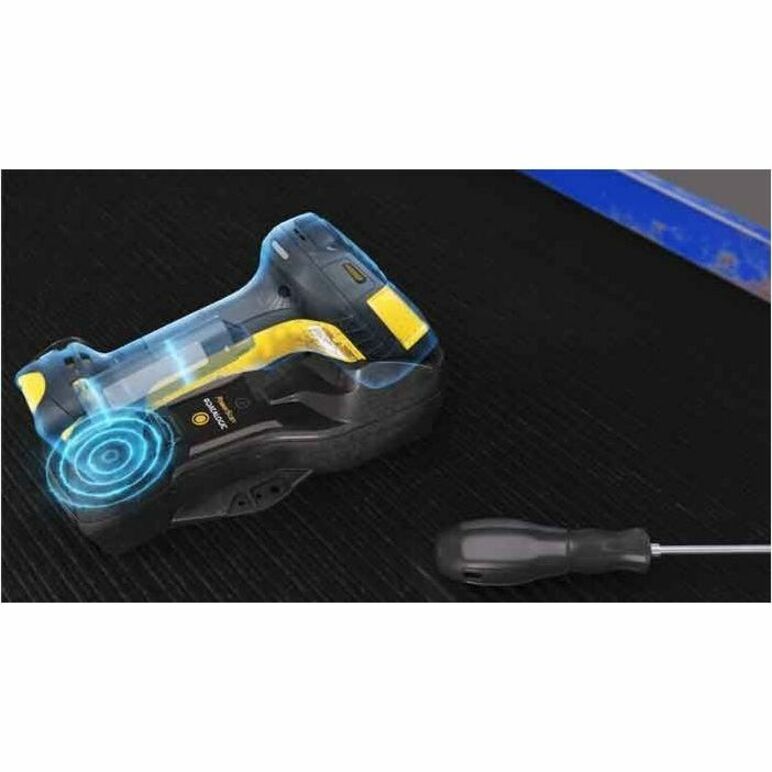

| Marketing Information | ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS The PowerScan family of bar code readers is the ultimate industrial handheld scanner designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities. DPM TECHNOLOGY The PowerScan 9600 DPX series addresses Direct Part Marking (DPM) applications where codes are directly marked on the items for traceability with different marking technologies such as laser etching, dot peening, inkjet printing and electrochemical etching. The Datalogic patented 4D learning system automatically sets up the best acquisition parameters and decoding algorithms, without the need to configure the scanner for every different application. WIRELESS CHARGING The PowerScan 9600 DPX scanner features Datalogic's Wireless Charging system. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions. MOBILITY ENHANCES PRODUCTIVITY The PowerScan 9600 DPX cordless model further enhances the operator efficiency and safety with Bluetooth 5.0 or Datalogic's STAR Cordless System. The base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet, and Industrial protocols. |
| Product Type | Barcode Scanner |
| Connectivity Technology | Wireless |
| Scanning Capability |
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Features |
|
| Number of Keys | 4 |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Direct Part Marking (DPM) Decoding | Yes |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | Red |
| Air Electrostatic Discharge (+/-) | 20kV |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Host Interface |
|
| Power Supply Included | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Black |
| Product Color | Black |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 15.33 oz (434.60 g) |
| Ingress Protection (IP) Rating |
|
| Application/Usage |
|
| COO | VN |
| Condition | No |
