Reolink Professional RP-PCB8M 8 Megapixel Outdoor 4K Network Camera - Color - 1

Part No. RP-PCB8M

by Reolink Digital Technology Co., Ltd.

Reolink Professional RP-PCB8M 8 Megapixel Outdoor 4K Network Camera - Color - 1

98.43 ft (30 m) Infrared/Color Night Vision - H.265, H.264 - 3840 x 2160 - 2.8 mm (0.11") Fixed Lens - 25 fps - CMOS - Fast Ethernet - Wall Mount, Ceiling Mount - Google Assistant Supported - IP67 - Water Proof, Weather Proof, Water Resistant, Dust Resistant - Audio Support - Factory Reset Button, Built-in Microphone, Built-in Speaker, Motion Detection, Human Detection, Vehicle Detection, Cross Line Detection, Motion Triggered

Part No. RP-PCB8M

by Reolink Digital Technology Co., Ltd.

$117.99
General Information
ManufacturerReolink Digital Technology Co., Ltd.
Manufacturer Part NumberRP-PCB8M
Brand NameReolink
Product LineProfessional
Product ModelRP-PCB8M
Product NameSmart 4K 125° View PoE Bullet Security Camera
Marketing Information

Precision Imaging with 4K Clarity

Capture ultra-high definition video at 25 FPS for smooth, reliable monitoring. With multiple lighting modes and F1.6 large aperture, enjoy optimised visibility in color night vision even in low light environments.

Perimeter Protection

Equipped with AI-driven Line Crossing Alert, Zone Intrusion Alert, and Zone Lingering Alert, this pro-grade camera delivers precise 24/7 protection for critical areas, enabling rapid response to security threats

Smart Event Detection(Beta)

Send instant alerts on object forgotten or removed from key areas, ensuring timely action and loss prevention

Secure Storage For Every Need

Trusted storage options including microSD cards, high-capacity NVRs, encrypted FTP backup solutions.

microSD Card

Conveniently store your recordings locally on a microSD card up to 512GB

Remote Live Viewing

Stay connected to your home or business with real-time remote viewing via the VMS system, whether you're in office or on the go.

Alarm Management

Supports diverse detection, including Person & Object Detection, Smart Event Detection, Perimeter Protection, Device Anomaly Alarm, and Video Occlusion Alarm-with instant pop-up notifications via VMS for prompt response.

Account Management

Assign roles and permissions based on operational needs. With device-account linking, users only see authorized areas and devices. Once logged in, they can access linked devices across multiple platforms without repeated setup.

Packaged Quantity1
Product TypeNetwork Camera
Technical Information
Recording Formats4K
HD RecordingYes
Night VisionYes
Night Vision Distance98.43 ft (30 m)
Night Vision TypeInfrared/Color
Number of IR LEDs2
Virtual Assistant SupportedGoogle Assistant
AI-poweredYes
Infrared (IR) Cut-off FilterYes
Display & Graphics
Image Sensor TypeCMOS
Image Sensor Size1/2.7"
Color SupportedColor
Field of ViewHorizontal: 105° Vertical: 56° Diagonal: 125°
Effective Camera Resolution8 Megapixel
Video
Video Formats
  • H.265
  • H.264
Maximum Video Resolution3840 x 2160
Maximum Frame Rate25 fps
Audio
Audio SupportYes
Lens
Lens TypeFixed
Maximum Focal Length2.8 mm (0.11")
Lens IncludedYes
Maximum Aperturef/1.6
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyFast Ethernet
Protocols
  • HTTPS
  • SSL
  • TCP/IP
  • UDP
  • HTTP
  • IPv4
  • UPnP
  • RTSP
  • SMTP
  • NTP
  • DHCP
  • DNS
  • DDNS
  • FTP
  • ONVIF
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage
  • 12 V DC
  • 48 V DC
Power Source Type
  • PoE
  • DC
Physical Characteristics

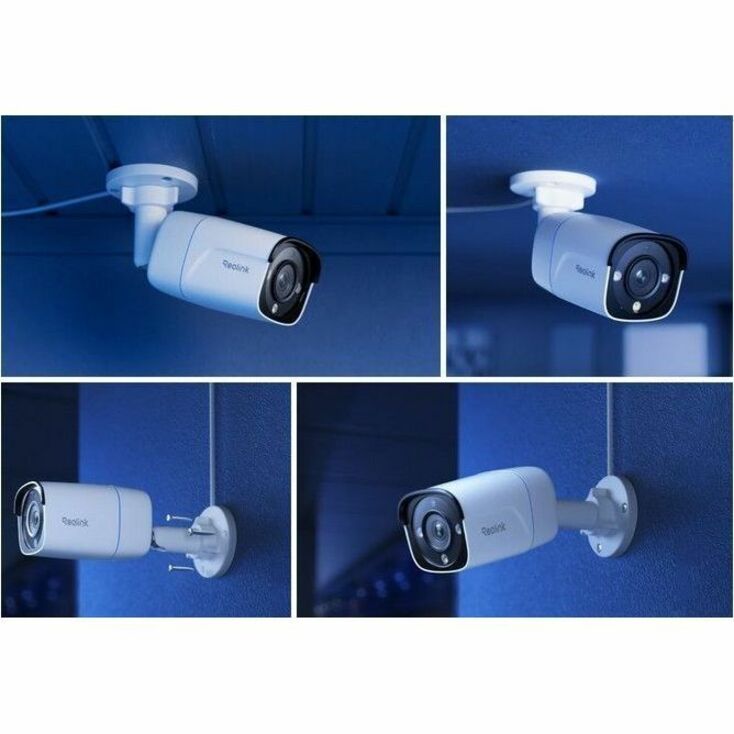

Mount Type
  • Wall Mount
  • Ceiling Mount
Durability
  • Water Proof
  • Weather Proof
  • Water Resistant
  • Dust Resistant
Product MaterialMetal
Weight (Approximate)15.96 oz (452.40 g)
Environmental Conditions
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature131°F (55°C)
Minimum Operating Humidity10%
Maximum Operating Humidity90%
Miscellaneous
Features
  • Factory Reset Button
  • Built-in Microphone
  • Built-in Speaker
  • Motion Detection
  • Human Detection
  • Vehicle Detection
  • Cross Line Detection
  • Motion Triggered
Indoor/OutdoorOutdoor
Package Contents
  • Smart 4K 125° View PoE Bullet Security Camera
  • 1 x Ethernet Cable
  • 1 x Operational Instruction
Ingress Protection RatingIP67
ConditionNo
UPC850062800670
Warranty
Limited Warranty2 Year
