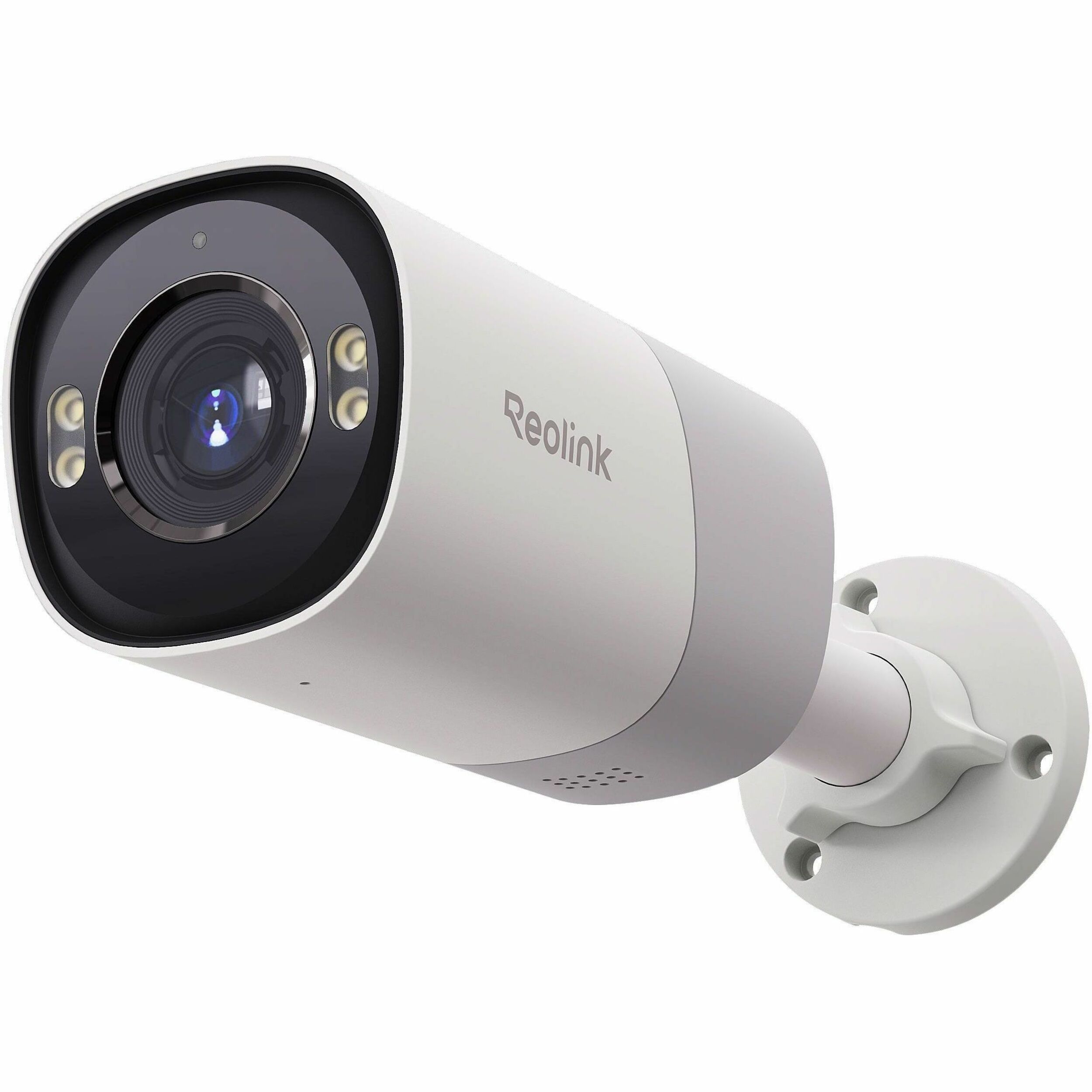

Reolink Professional RP-PCB8MZ 8 Megapixel Outdoor 4K Network Camera - Color - 1 - Bullet

Part No. RP-PCB8MZ

by Reolink Digital Technology Co., Ltd.

Reolink Professional RP-PCB8MZ 8 Megapixel Outdoor 4K Network Camera - Color - 1 - Bullet

98.43 ft (30 m) Infrared/Color Night Vision - H.265, H.264 - 3840 x 2160 - 2.7 mm (0.11")- 13.5 mm (0.53") Varifocal Lens - 5x Optical - 30 fps - CMOS - Fast Ethernet - Wall Mount, Ceiling Mount - Google Assistant Supported - IP67 - Water Proof, Weather Proof, Water Resistant, Dust Resistant - Audio Support - Factory Reset Button, Built-in Microphone, Built-in Speaker, Motion Detection, Human Detection, Vehicle Detection, Cross Line Detection, Motion Triggered

Part No. RP-PCB8MZ

by Reolink Digital Technology Co., Ltd.

$224.99
General Information
ManufacturerReolink Digital Technology Co., Ltd.
Manufacturer Part NumberRP-PCB8MZ
Brand NameReolink
Product LineProfessional
Product ModelRP-PCB8MZ
Product NameSmart 4K 133° View PoE Bullet Camera with 5× Optical Zoom
Marketing Information

AI Video Search

Find the footage you need faster with AI- powered video search. Simply enter a natural language description-such as "a woman wearing a yellow t-shirt" or "vehicles"-to quickly locate relevant recordings. In addition to text-based search, when used with Reolink's Professional Series NVR, the system offers advanced search tools, quick-access shortcuts, and the ability to revisit previous search history, making video retrieval smarter and more efficient.

Smart Detection

The Smart Detection system accurately identifies a wide range of targets, including people, motor vehicles, animals, non- motorized vehicles, and packages. It can also recognize abnormal events such as Object Removal and Forgotten Object, enhancing situational awareness and security response

Perimeter Protection

Reolink's Perimeter Protection provides a powerful layer of security by monitoring defined areas with precision. It features Line Crossing Alerts to detect movement across virtual boundaries, Zone Intrusion Alerts for unauthorized entry into preset zones, and Zone Loitering Alerts to flag prolonged presence in sensitive areas. These smart functions enable proactive threat detection and faster response

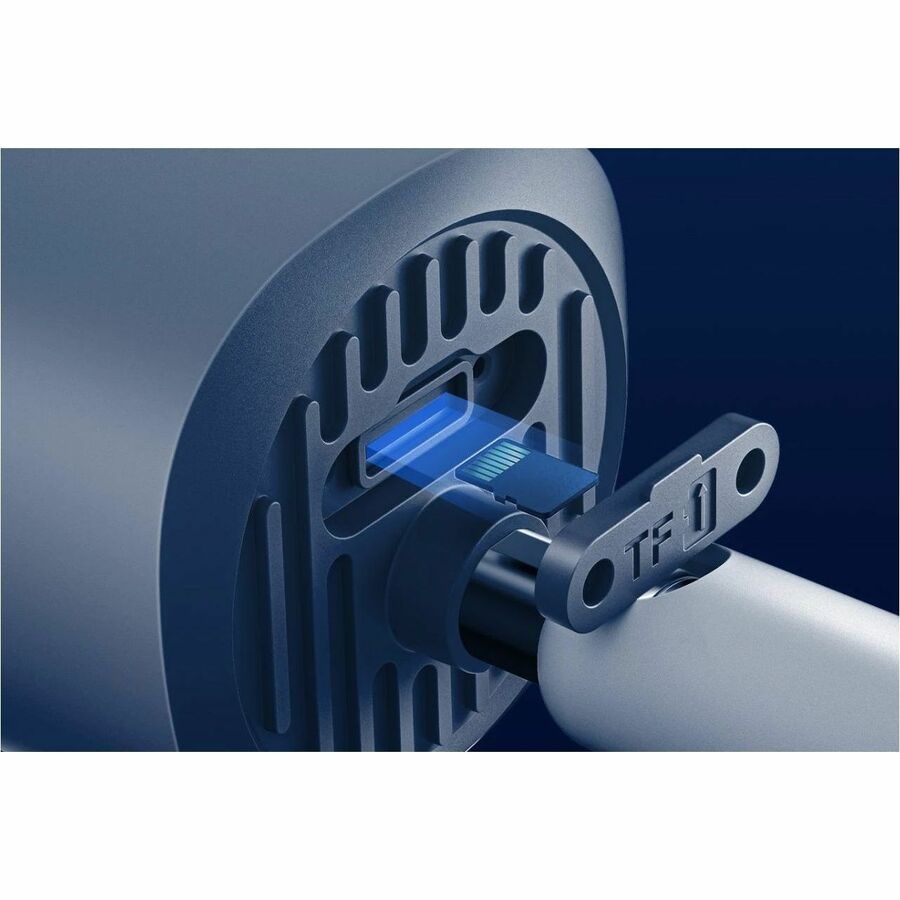

512GB microSD Card Storage

Supports up to 512GB microSD card, allowing for extended local storage of high-resolution footage without relying on external devices. This ample capacity allows for longer recording durations and easy playback access, providing reliable video retention for enhanced security.

Packaged Quantity1
Product TypeNetwork Camera
Technical Information
Recording Formats4K
HD RecordingYes
Night VisionYes
Night Vision Distance98.43 ft (30 m)
Night Vision TypeInfrared/Color
Number of IR LEDs4
Virtual Assistant SupportedGoogle Assistant
AI-poweredYes
Infrared (IR) Cut-off FilterYes
Display & Graphics
Image Sensor TypeCMOS
Image Sensor Size1/2.8"
Color SupportedColor
Field of ViewHorizontal: 108.6°- 32° Vertical: 56.2°- 18° Diagonal: 133°- 36.7°
Effective Camera Resolution8 Megapixel
Video
Video Formats
  • H.265
  • H.264
Maximum Video Resolution3840 x 2160
Maximum Frame Rate30 fps
Audio
Audio SupportYes
Lens
Lens TypeVarifocal
Minimum Focal Length2.7 mm (0.11")
Maximum Focal Length13.5 mm (0.53")
Lens IncludedYes
Maximum Aperturef/1.6
Optical Zoom5x
Network & Communication
Connectivity TechnologyWired
Ethernet TechnologyFast Ethernet
Protocols
  • HTTPS
  • SSL
  • TCP/IP
  • UDP
  • HTTP
  • IPv4
  • UPnP
  • RTSP
  • SMTP
  • NTP
  • DHCP
  • DNS
  • DDNS
  • FTP
  • ONVIF
Remote ManagementYes
Storage
Storage TypeMemory Card
Interfaces/Ports
Network (RJ-45)Yes
Power Description
Input Voltage
  • 12 V DC
  • 48 V DC
Power Source Type
  • PoE
  • DC
Physical Characteristics

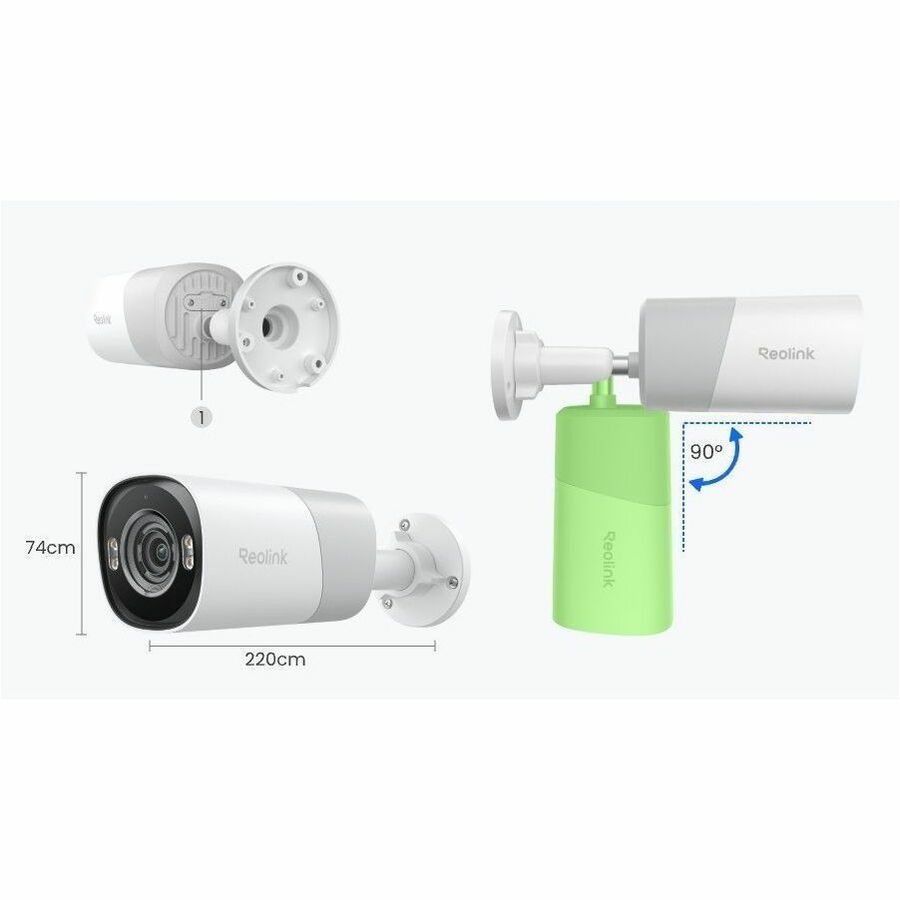

Mount Type
  • Wall Mount
  • Ceiling Mount
Form FactorBullet
Durability
  • Water Proof
  • Weather Proof
  • Water Resistant
  • Dust Resistant
Product MaterialMetal
Weight (Approximate)1.71 lb (776 g)
Environmental Conditions
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature131°F (55°C)
Minimum Operating Humidity10%
Maximum Operating Humidity90%
Miscellaneous

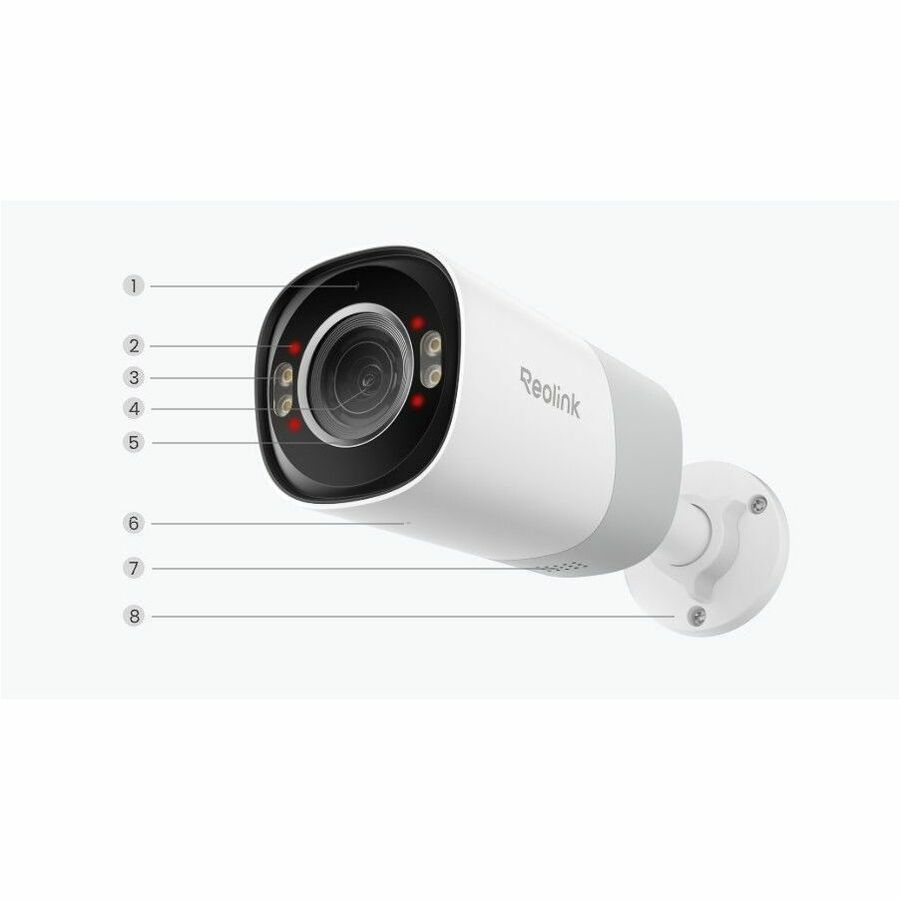

Features
  • Factory Reset Button
  • Built-in Microphone
  • Built-in Speaker
  • Motion Detection
  • Human Detection
  • Vehicle Detection
  • Cross Line Detection
  • Motion Triggered
Indoor/OutdoorOutdoor
Package Contents
  • Smart 4K 133° View PoE Bullet Camera with 5× Optical Zoom
  • 1 x Ethernet Cable
  • 1 x Waterproof Lid
Ingress Protection RatingIP67
ConditionNo
UPC850062800717
Warranty
Limited Warranty2 Year
