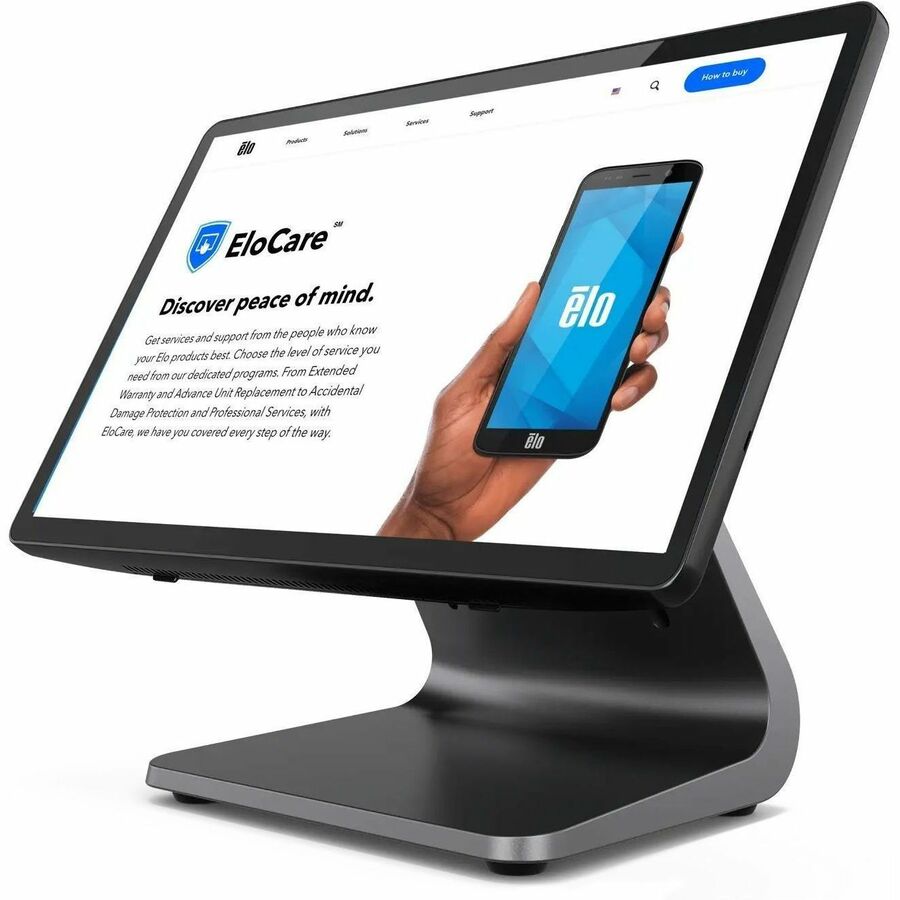

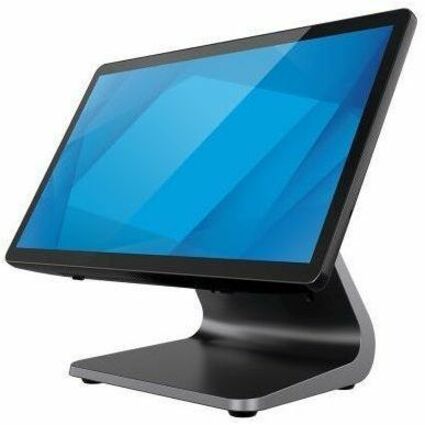

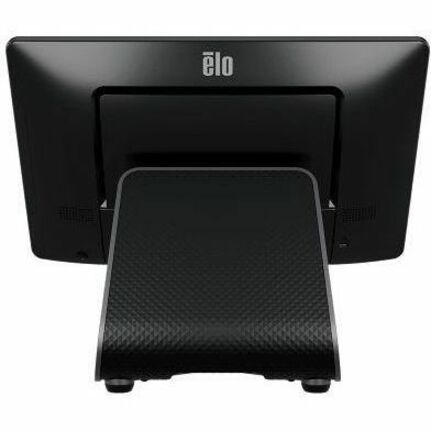

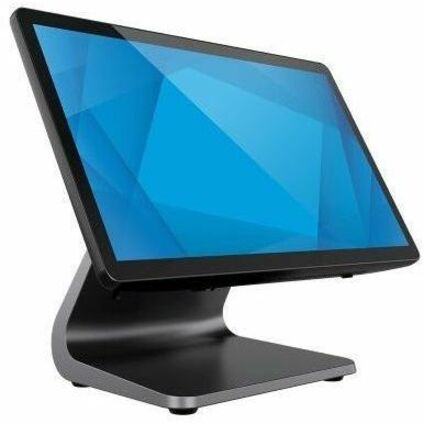

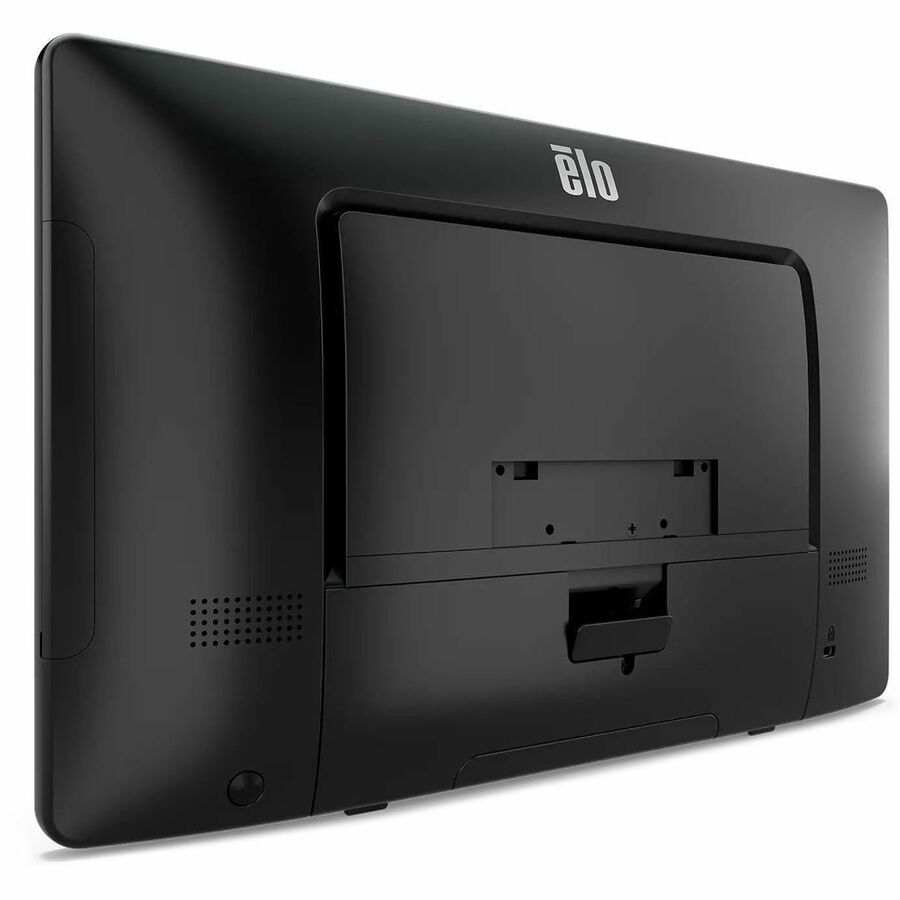

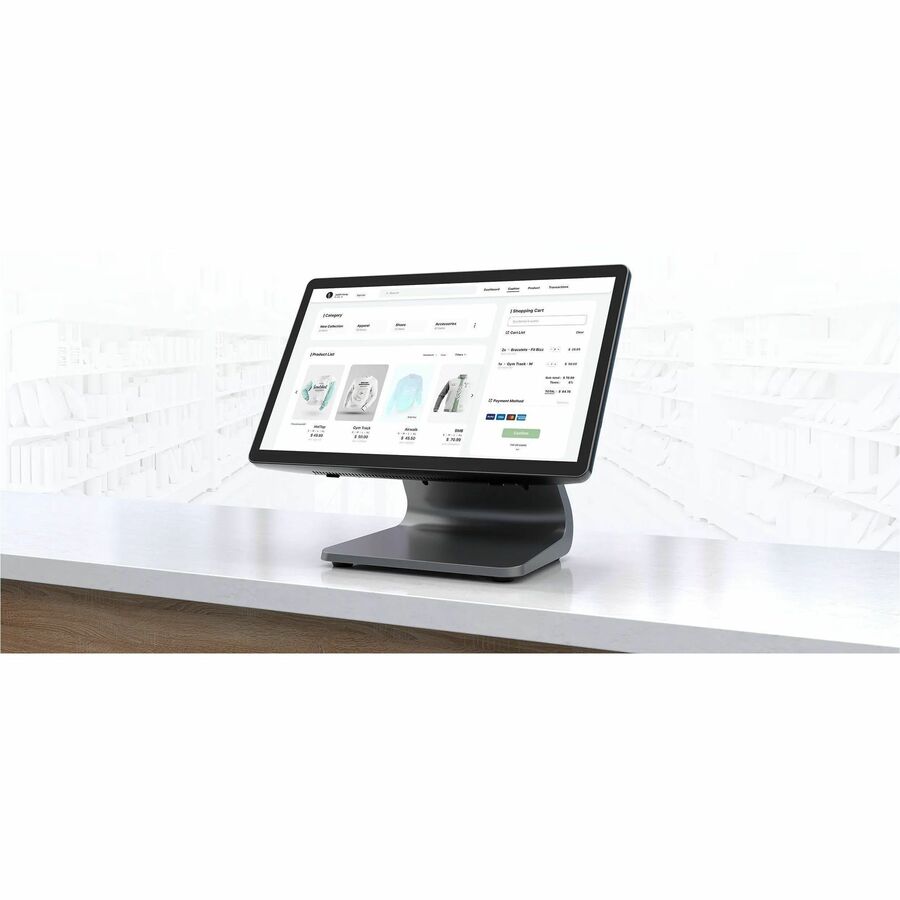

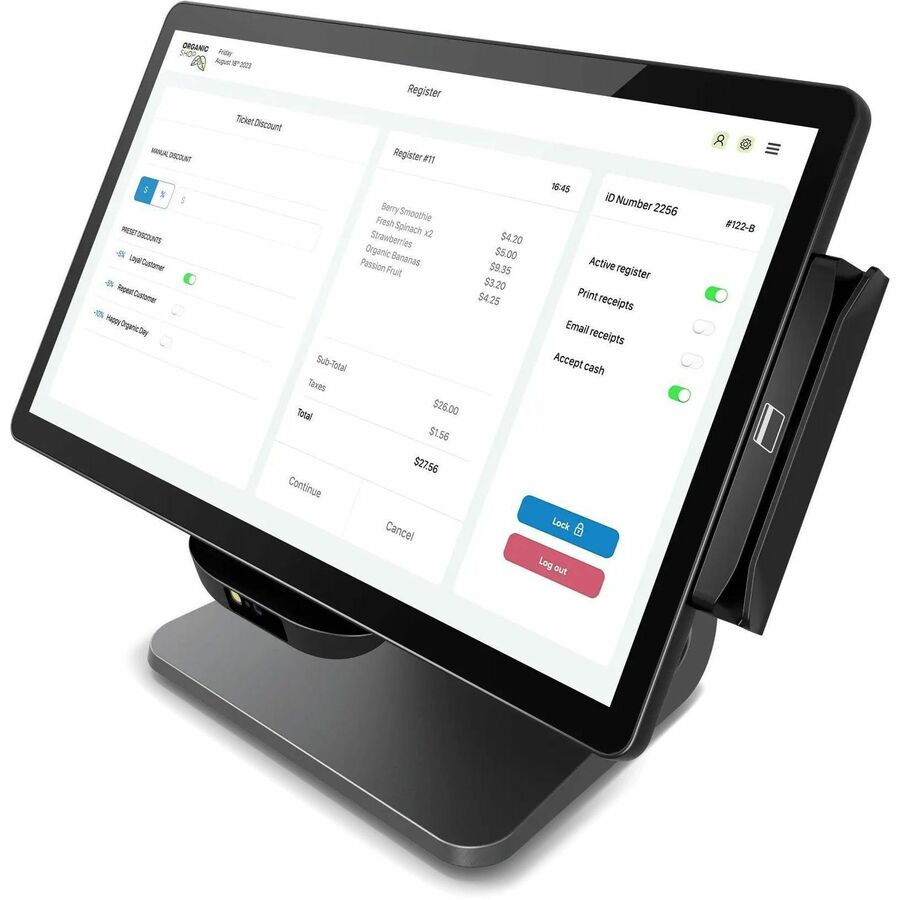

Elo E-Series 3 POS Terminal
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E567592 |
| Brand Name | Elo |
| Product Line | E-Series 3 |
| Product Name | E-Series 3 POS Terminal |

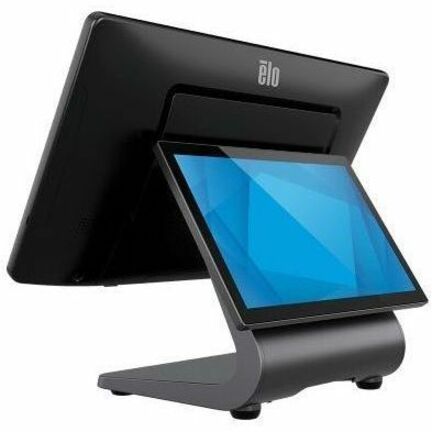

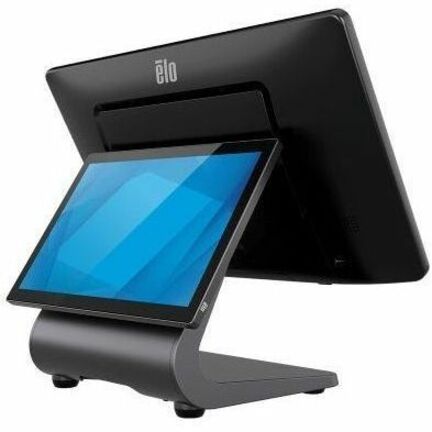

| Marketing Information | The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro® PCAP display, powerful Intel® processor, Windows 11 OS and integrated connectivity to support peripherals like cash drawers, printers, barcode scanners, and payment devices. Available with or without a stand, the E-Series offers the flexibility to fit a range of use cases-from point-of-sale and interactive signage to self-service and automation controls. The E-Series 3 is also offered without an operating system and has been pretested for compatibility with leading Linux distributions, including SuSE, Ubuntu, and Red Hat, to support a wide range of enterprise environments. Elo Edge Connect™ compatibility - EMV, MSR, barcode scanner, fingerprint reader and customer-facing display Sleek edge-to-edge glass 10-touch PCAP touchscreen USB-C connectivity makes it easy to connect a CFD - providing touch, data and power with just one cable |
| Product Type | POS Terminal |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Processor Manufacturer | Intel |
| Processor Type | Celeron |
| Maximum Turbo Speed | 3.60 GHz |
| Processor Model | N97 |
| Processor Cache | 6 MB |
| Standard Memory | 8 GB |
| Memory Technology | DDR5 SDRAM |
| Maximum Memory Supported | 16 GB |
| Solid State Drive Capacity | 128 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Screen Size | 15.6" |
| Active Display Size (Horizontal) | 13.55" (344.17 mm) |
| Active Display Size (Vertical) | 7.62" (193.55 mm) |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 500:1 |
| Response Time | 25 ms |
| Color Supported | 262,000 Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Wireless LAN | Yes |

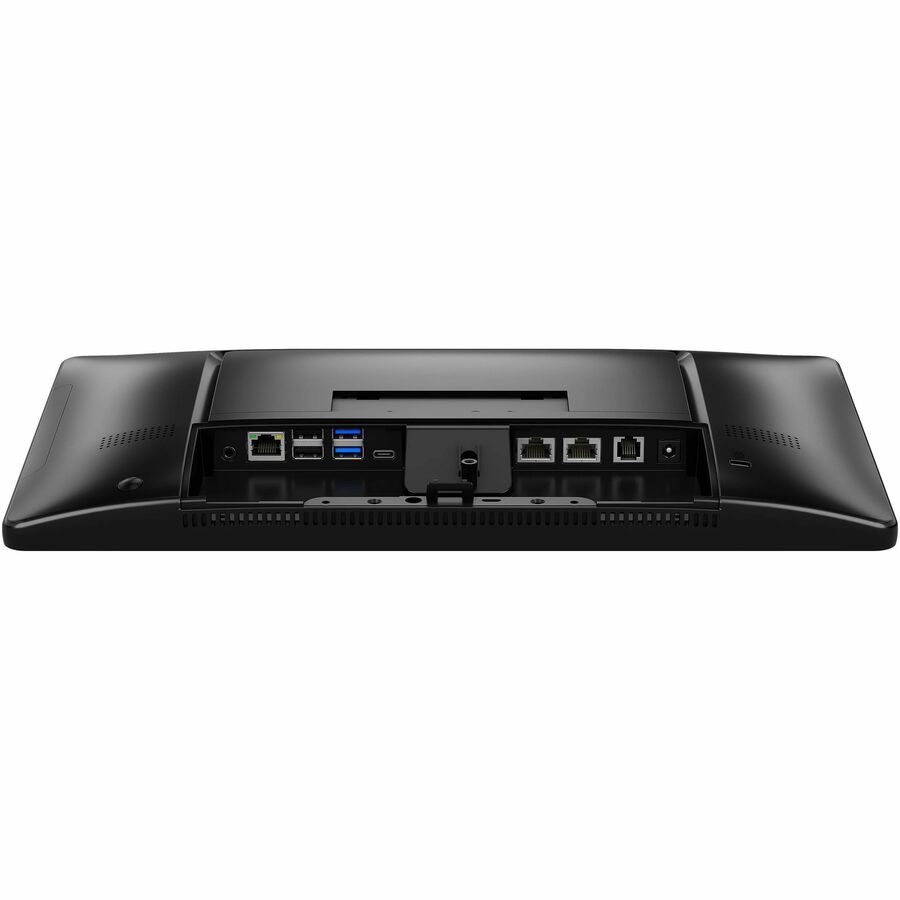

| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| Number of Micro USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of USB Type C Ports | 1 |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Operating System | Windows 11 IoT |
| Power Source |
|
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 5.29 lb (2399.50 g) |
