StarTech.com 10-Port USB-C Charging Hub, 60W Per Port, 350W Total Power, Multiport Charger Block / Station, TAA Compliant

Charge laptops/tablets/mobile devices with up to 60W per port shared across 350W total output; Detects and balances power draw across all ports; Multiport USB-C Charging station includes a rack mount kit and stackable desktop feet; Active cooling fan

Part No. 10N-CHARGING-STATION

by StarTech.com

$466.99

User Manual

Specifications

General Information

Manufacturer	StarTech.com
Manufacturer Part Number	10N-CHARGING-STATION
Brand Name	StarTech.com
Product Name	10N-CHARGING-STATION

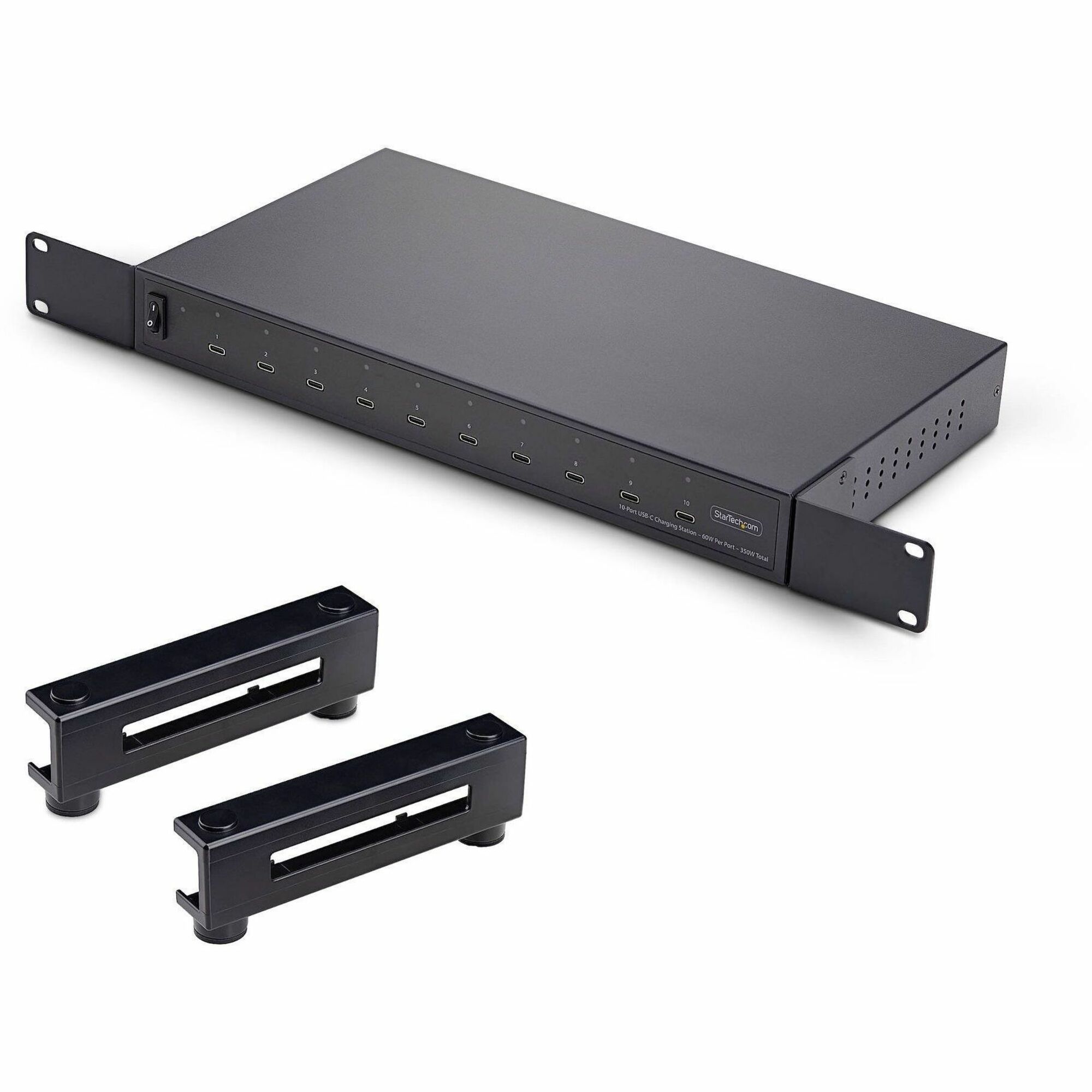

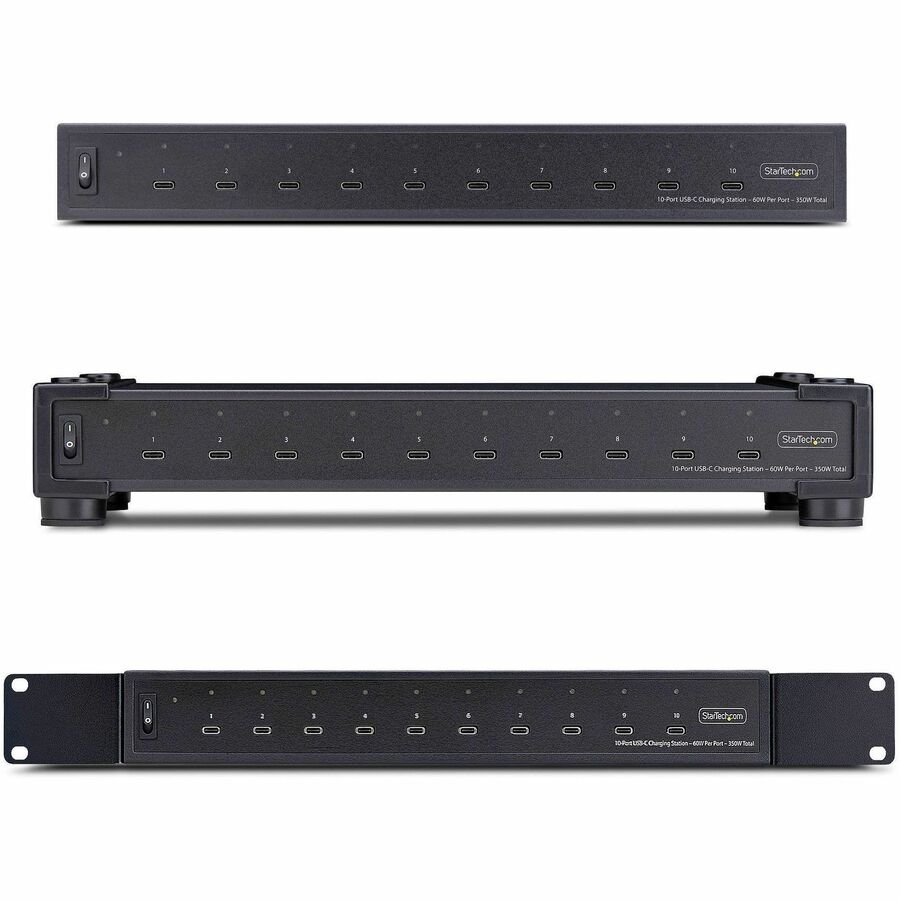

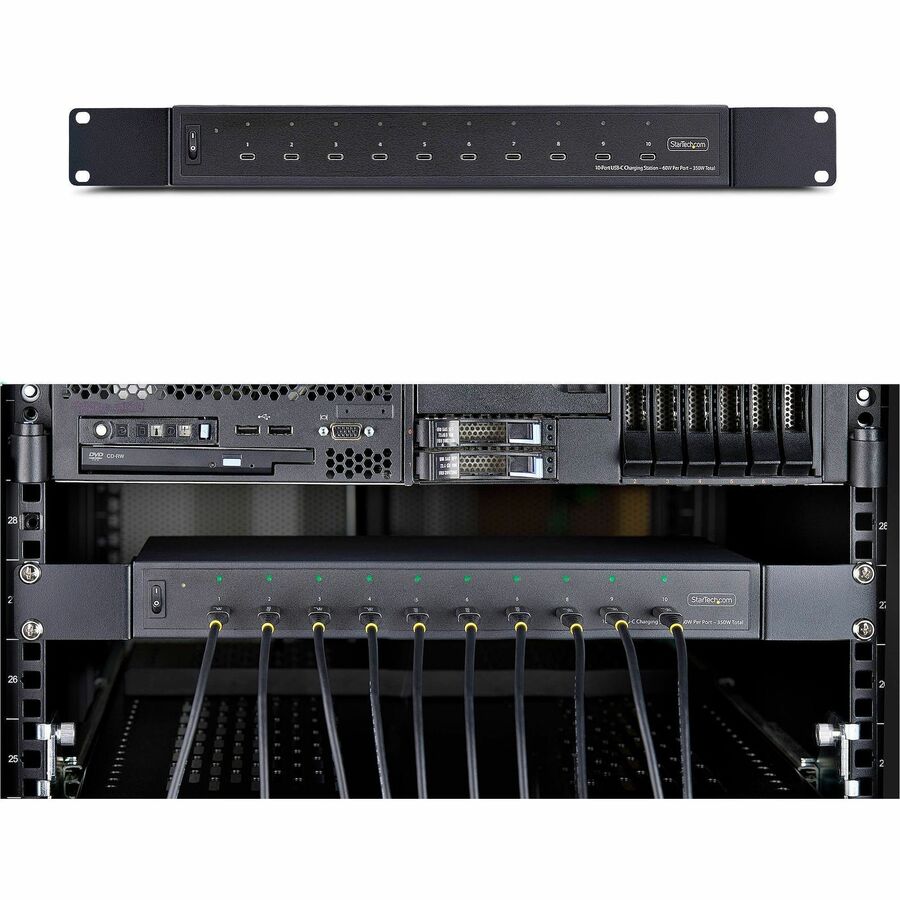

Marketing Information	The 10-Port USB-C Charging Hub delivers fast, efficient charging for laptops, tablets, and mobile devices, making it ideal for offices, classrooms, and IT labs. Smart Power Distribution Each of the 10 USB-C ports provides up to 60W, with a total output of 350W that dynamically adjusts in real time to meet varying device needs. Its smart power allocation technology prioritizes active ports requiring higher output while reducing power to idle ports, and supports PPS (3.3-21V?3.0A) for safe, rapid USB-C charging. Flexible Mounting & Scalable Design Designed for flexibility, the hub includes rack-mounting ears for 19-inch server racks as well as rubber-gripped feet for secure desktop use. Its stackable design allows multiple units to be layered neatly, expanding charging capacity without adding clutter. Active Cooling & Safety Compliance A built-in fan ensures active cooling during continuous, high-load operation, while charging status LEDs on each port provide at a glance visual charging status. The charging hub is TUV SUD certified and compliant with USB-IF, FCC, and CE standards, and includes overcurrent and short-circuit protection.
Packaged Quantity	1
Product Type	Charging Station

Technical Information

Device Supported	Notebook Tablet PC Mobile Device USB Type C Device
Universal Adapter	Yes
Cable Length	6 ft (1.83 m)
Features	LED Indicator Overcurrent Protection Short Circuit Protection Overheat Protection
Cables Included Detail	1 - 6ft (1.8m) NEMA 5-15P to IEC-C13 Power Cord (US)
Interfaces Detail	1 - IEC 60320 C13 Power
Output Connectors Detail	10 - USB Type-C (24 pin) USB Power Delivery Only

Interfaces/Ports

USB Type-C	Yes
Number of USB Type-C Ports	10
USB Power Delivery	10 x Type-C 60W

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage	5 V DC 9 V DC 12 V DC 15 V DC 20 V DC
Output Voltage Detail	5 V @ 3 A 9 V @ 3 A 12 V @ 3 A 15 V @ 3 A 20 V @ 3 A
Maximum Output Power	350 W
Maximum Input Current	10 A
Maximum Output Current	3 A

Physical Characteristics

Color Family	Black
Product Color	Black
Height	1.70" (43.18 mm)
Width	7.90" (200.66 mm)
Weight (Approximate)	5.40 lb (2449.40 g)

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Storage Temperature	-4°F (-20°C)
Maximum Storage Temperature	140°F (60°C)

Miscellaneous

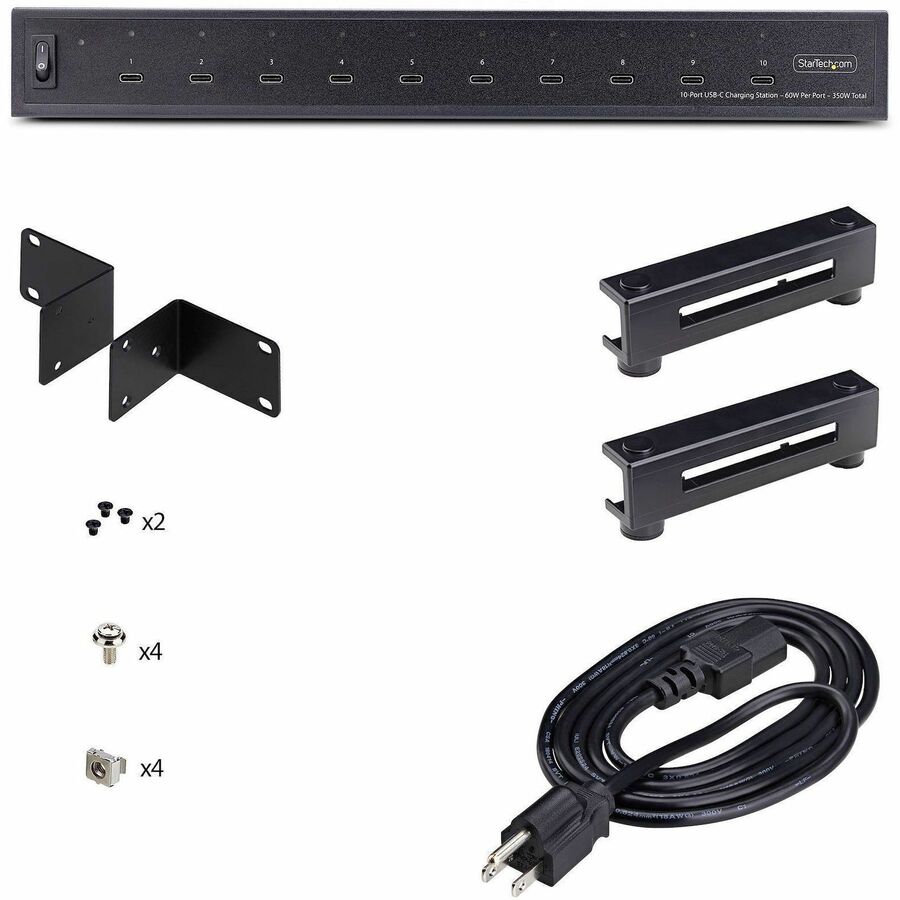

Package Contents	10N-CHARGING-STATION 2 x 19" Rack Mounting Ears 6 x Mounting Ear Screws 4 x M5x12mm Rack Screw 4 x M5 Cage Nuts 2 x Plastic Snap-On Feet with Rubber Grips 1 x 6ft (1.8m) NEMA 5-15P to IEC-C13 Power Cord (US) 1 x Product Documentation
Certifications & Standards	TUV SUD USB-IF FCC CE
TAA Compliant	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
Condition	No
UPC	0065030923071

Warranty

Limited Warranty	2 Year
