StarTech 20-Outlet Rackmount PDU, 1U Server Power Strip, 16x C13 + 4x C19, NEMA L6-30P Wall Plug, 30A/240V, UL-Listed, TAA
In Stock Availability
- All Locations: (433+)
- Calgary, AB (11+)
- Mississauga, ON (4+)
- Other_SY (409+)
- Toronto, ON (9+)
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 2030B8H-RACK-PDU-IC |
| Brand Name | StarTech.com |
| Product Name | 2030B8H-RACK-PDU-IC |

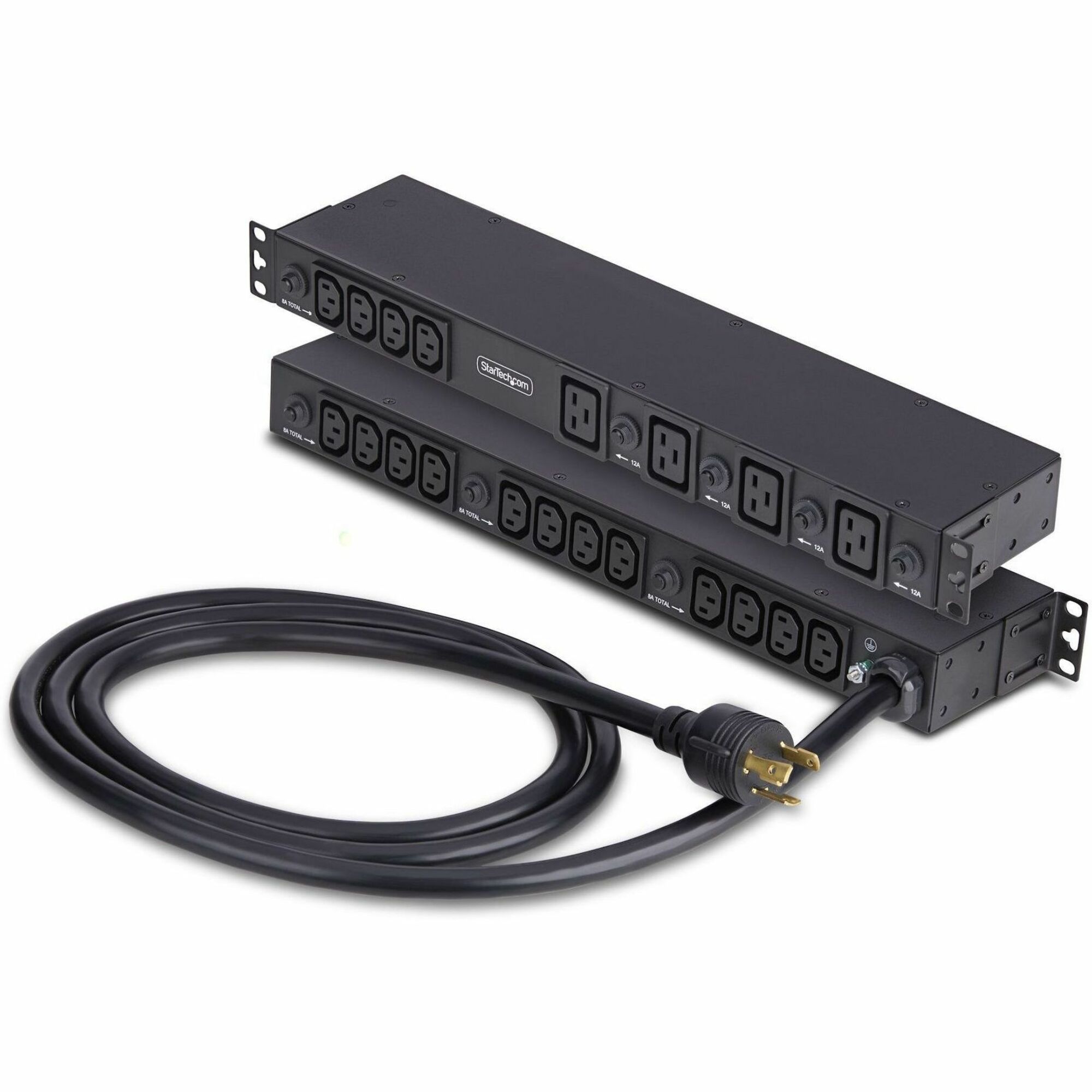

| Marketing Information | Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U 20-port rackmount PDU features IEC C13 and IEC C19 outlets, built-in circuit breakers, and versatile mounting options, making it a dependable power backbone for critical deployments. Maximize Connectivity in High-Density Racks Designed for dense IT and AV environments, this unit powers up to 20 devices through 16 IEC C13 outlets (4x front / 12x rear) and 4x IEC C19 outlets (front). The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations. Built-In Circuit Protection for Critical Hardware User-resettable 15A breakers safeguard each IEC C19 outlet individually and every group of four IEC C13 outlets. If the total current draw exceeds safe operating limits, the integrated circuit breakers automatically cut power to prevent damage to the equipment. Flexible Mounting Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations. |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Plug/Connector Type | AC Power |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Overload Protection |
| Input Voltage | 240 V AC |
| Input Current | 15 A |
| Circuit Breaker | Yes |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Finishing | Powder Coated |
| Mounting Orientation | Horizontal/Vertical |
| Mount Type |
|
| Form Factor |
|
| Rack Height | 1U |
| Cord Length | 7.9 ft (2.40 m) |
| Height | 1.70" (43.18 mm) |
| Width | 3.70" (93.98 mm) |
| Length | 18" (457.20 mm) |
| Weight (Approximate) | 7.37 lb (3342.41 g) |
| Package Contents |
|
| Application/Usage |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0065030920919 |
| Limited Warranty | 2 Year |
