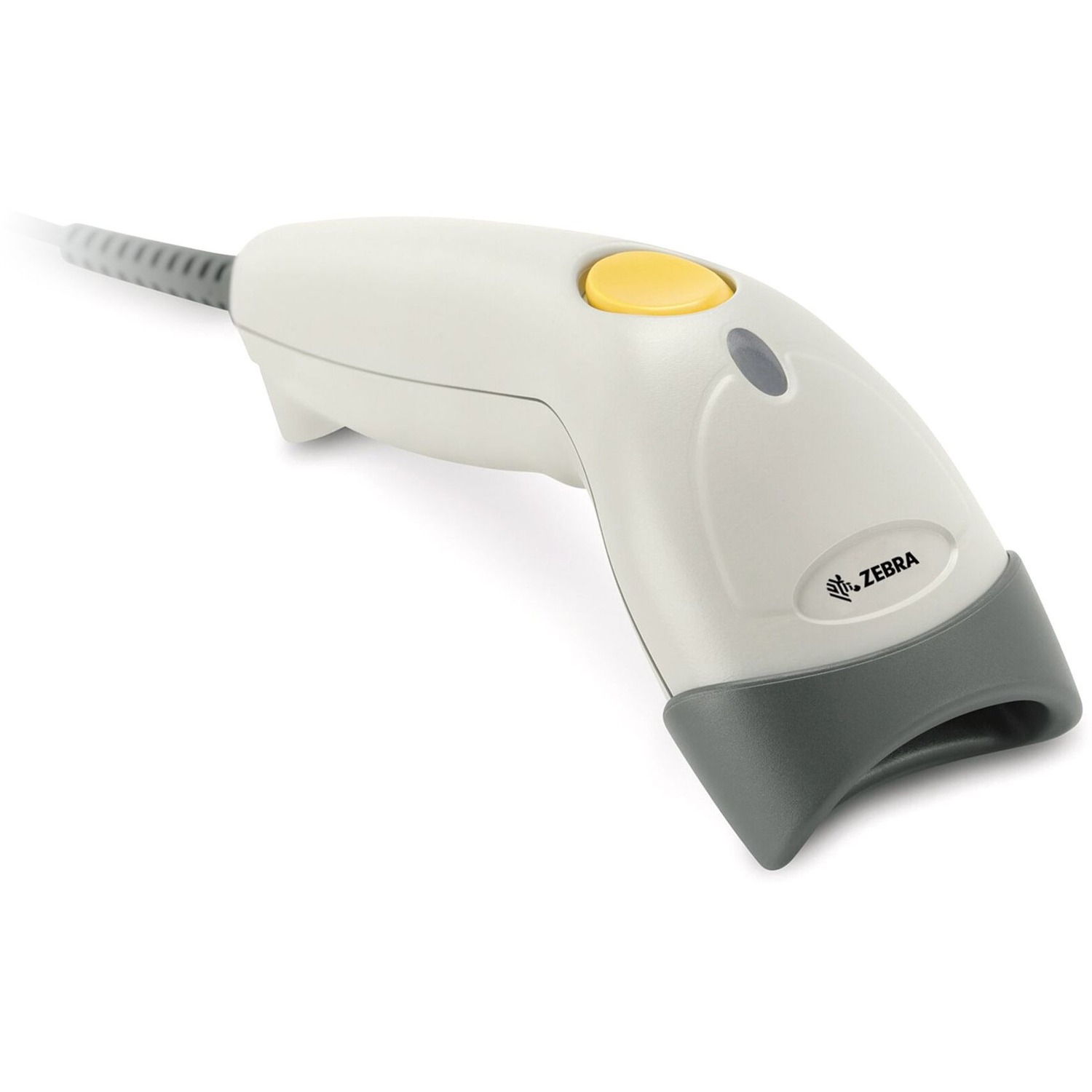

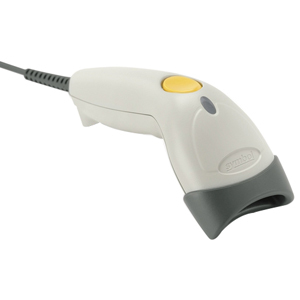

Zebra LS1203 Bar Code Reader

Part No. LS1203-CR10007R

by Zebra Technologies Corporation

Zebra LS1203 Bar Code Reader

Wired - Linear

Part No. LS1203-CR10007R

by Zebra Technologies Corporation

$154.99
General Information
ManufacturerZebra Technologies Corporation
Manufacturer Part NumberLS1203-CR10007R
Brand NameZebra
Product ModelLS1203
Product NameLS1203 Bar Code Reader
Marketing Information

The LS1203 handheld Bar Code Reader from Symbol Technologies delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Symbol the global leader in handheld bar code scanning.

Product TypeBarcode Scanner
Technical Information
Connectivity TechnologyCable
Scanning Capability1D
Barcode Symbology Supported
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • IATA
  • Code 11
  • RSS Variants
  • Chinese 2 of 5
Light SourceLaser
Image Sensor TypeLinear
Scan Rate100 scan/s
Depth of Field
  • 8"@100% UPC/EAN
Scan PatternBi-directional
Interfaces/Ports
Host InterfaceMulti-interface
Power Description
Input Voltage5 V DC
Power SourceAC Adapter
Physical Characteristics
Form FactorHandheld
Product ColorBlack
Height2.40" (60.96 mm)
Width2.40" (60.96 mm)
Depth7.10" (180.34 mm)
Weight (Approximate)4.30 oz (121.90 g)
Miscellaneous
Additional Information

Supported Interfaces:

  • USB
  • Keyboard Wedge
  • Serial
  • Platform SupportedPC
    Certifications & Standards
    • Laser Safety: IEC Class 1

    Electrical Safety:

    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950

    EMI/RFI:

    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    Country of OriginMexico
    ConditionNo
    UPC9999999999999
    Warranty
    Limited Warranty3 Year
