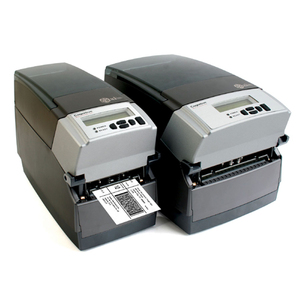

Cognitive CXI Thermal Label Printer

Part No. CXD2-1000

by Cognitive TPG

Cognitive CXI Thermal Label Printer

Monochrome - 8 in/s Mono - 203 dpi - USB, Parallel, Serial - Ethernet

Part No. CXD2-1000

by Cognitive TPG

$560.99
General Information
ManufacturerCognitive TPG
Manufacturer Part NumberCXD2-1000
Brand NameCognitiveTPG
Product ModelCxi
Product NameCXI Thermal Label Printer
Marketing Information

Cognitive's Cxi printer is the next generation of high-performance thermal label printers, bridging the gap between mid-range and desktop models. Cxi printer deliver exceptional value as high-performance printers with small footprints, competitively priced and with full connectivity availability.

Product TypeDirect Thermal/Thermal Transfer Printer
Technical Information
Recommended UseLabel Print
Print Color CapabilityMonochrome
Maximum Mono Print Speed203.20 mm/s
Maximum Print Resolution (dpi)203
Maximum Print Width2.20"
Barcode Symbology Supported
  • UPC-A
  • EAN-8
  • Code 128-C
  • UPC-E
  • EAN-13
  • Code 128
  • UPC-E1
  • Code 39
  • Plessey
  • EAN 128
  • POSTNET
  • Code 128-A
  • Codabar
  • Code 93
  • Code 128-B
  • MSI
  • UPC-A+
  • MSI1
  • S2 of 5
  • D2 of 5
  • Maxi Code
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • RSS-14
FeaturesLCD Display
Print TechnologyDirect Thermal /Thermal Transfer
Memory
Standard Memory32 MB
Flash Memory6 MB
Network & Communication
EthernetYes
Ethernet TechnologyEthernet
Media Types & Handling
Media Type
  • Tag
  • Fanfold
  • Receipt
  • Continuous Form
  • Black Bar
  • Black Mark
  • Notched
Media SensorReflective Media Sensor
Media Thickness10 mil
Maximum Roll Diameter7.6"
Maximum Label Width2.84" (72.14 mm)
Maximum Label Length0.38" (9.53 mm)
Label Core Size1.50" (38.10 mm)
Fonts & Emulation
Language Emulation
  • CPL
  • CePL
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height7.10" (180.34 mm)
Width5" (127 mm)
Depth10.50" (266.70 mm)
Miscellaneous
Additional Information
  • LCD Display
  • Best performance-to-size ratio
  • Real time clock standard on every printer
  • Large roll capacity for high-volume applications
Platform SupportedPC
Certifications & Standards
  • UL
  • FCC Class A
  • CSA GS/TUV/VDE
  • CCC
  • CE
  • WEEE
  • RoHS
Environmentally FriendlyYes
COOTW
ConditionNo
Warranty
Limited Warranty2 Year
