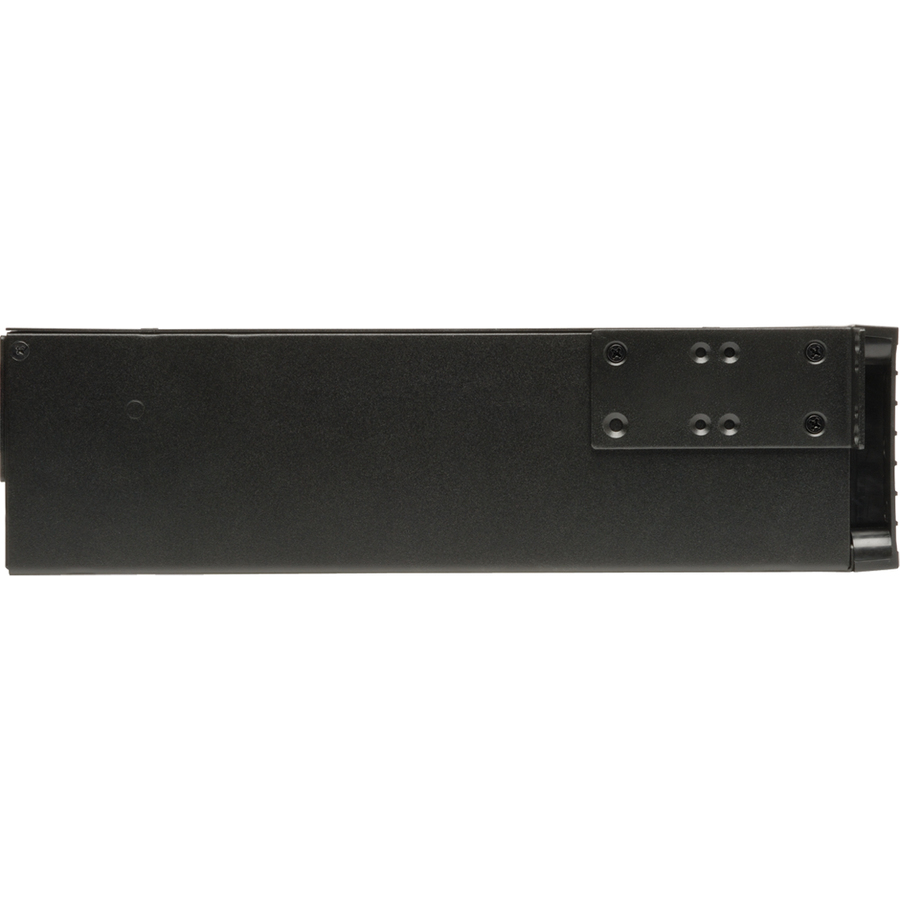

Tripp Lite SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS

Part No. SMX2200XLRT2U

by Tripp Lite by Eaton

Tripp Lite SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS

2200VA/1600W - 6 Minute Full Load - 8 x IEC 320-C13

Part No. SMX2200XLRT2U

by Tripp Lite by Eaton

$1726.99
General Information
ManufacturerTripp Lite by Eaton
Manufacturer Part NumberSMX2200XLRT2U
Brand NameTripp Lite
Product LineSmartPro
Product ModelSMX2200XLRT2U
Product NameSmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS
Marketing InformationTripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product TypeLine-interactive UPS
Technical Information
AVRYes
Plug/Connector TypeIEC 60320 C20
Receptacle TypeIEC 60320 C13
Receptacle Detail8 x IEC 60320 C13
Protection Type
  • EMI
  • RFI
Emergency Power OFFYes
Transfer Time6 ms
EMI/RFI Noise FilterYes
PhaseSingle Phase
Energy SavingGreater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage
  • Server
  • Network
  • Telecommunication
Power Description
Load Capacity2.20 kVA/1.92 kW
Input Voltage230 V AC
Output Voltage
  • 220 V AC
  • 230 V AC
  • 240 V AC
Input Current10.70 A
Output Frequency60 Hz
Waveform TypePure Sine Wave
Surge Energy Rating350 J
Circuit BreakerYes
Management
Network ManagementSNMP Manageable
Alarm
  • UPS StartUp
  • Power Failure
  • Low Battery
  • Overload
  • UPS Fault
  • Remote Shutdown
Controls/Indicators

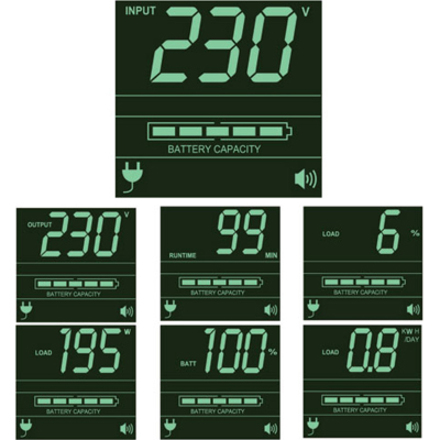

Status IndicatorsFront panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
Interfaces/Ports
USBYes
EPO PortYes
USB (HID Compliant) PortYes
Battery Information
DC System Voltage48 V DC
Battery CharacteristicsValve-regulated
Battery ChemistryLead Acid
Backup/Run Time (Full Load)5 Minute
Backup/Run Time (Half Load)11.90 Minute
Typical Battery Recharge Time4.50 Hour
Hot SwappableYes
Replaceable BatteryYes
Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Storage Temperature5°F (-15°C) - 122°F (50°C)
Sound Emission (A-Weighted)45 dB(A)
Thermal Dissipation161 BTU/h
Physical Characteristics
Height3.50" (88.90 mm)
Width17.50" (444.50 mm)
Depth19.50" (495.30 mm)
Rack Height2U
Form FactorRack/Tower
Weight (Approximate)31.18 kg
Miscellaneous
Package Contents
  • SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS
  • USB, Serial & EPO cabling
  • 4 post rackmount installation kit
  • Set of 3 C13/C14 power cables
  • Instruction manual
Additional Information
  • Customized load management receptacles: 3 load banks (1 outlet per bank) that support load shedding and remote reboot on demand of locked network devices. Controllable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices
  • Switches: 2 front panel-mounted push-button switches for system enable, self-test and alarm cancel functions. Rear: set of input voltage dip switches to set unit to actual input voltage. Battery charge level dip switch to adjust UPS system's battery charge rate
Certifications & Standards
  • CE/IEC 62040
  • FCC Class A (Emissions)
  • GOST
  • SASO
  • TUV w/GS mark
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginChina
ConditionNo
UPC0037332124562
Warranty
Limited Warranty2 Year
