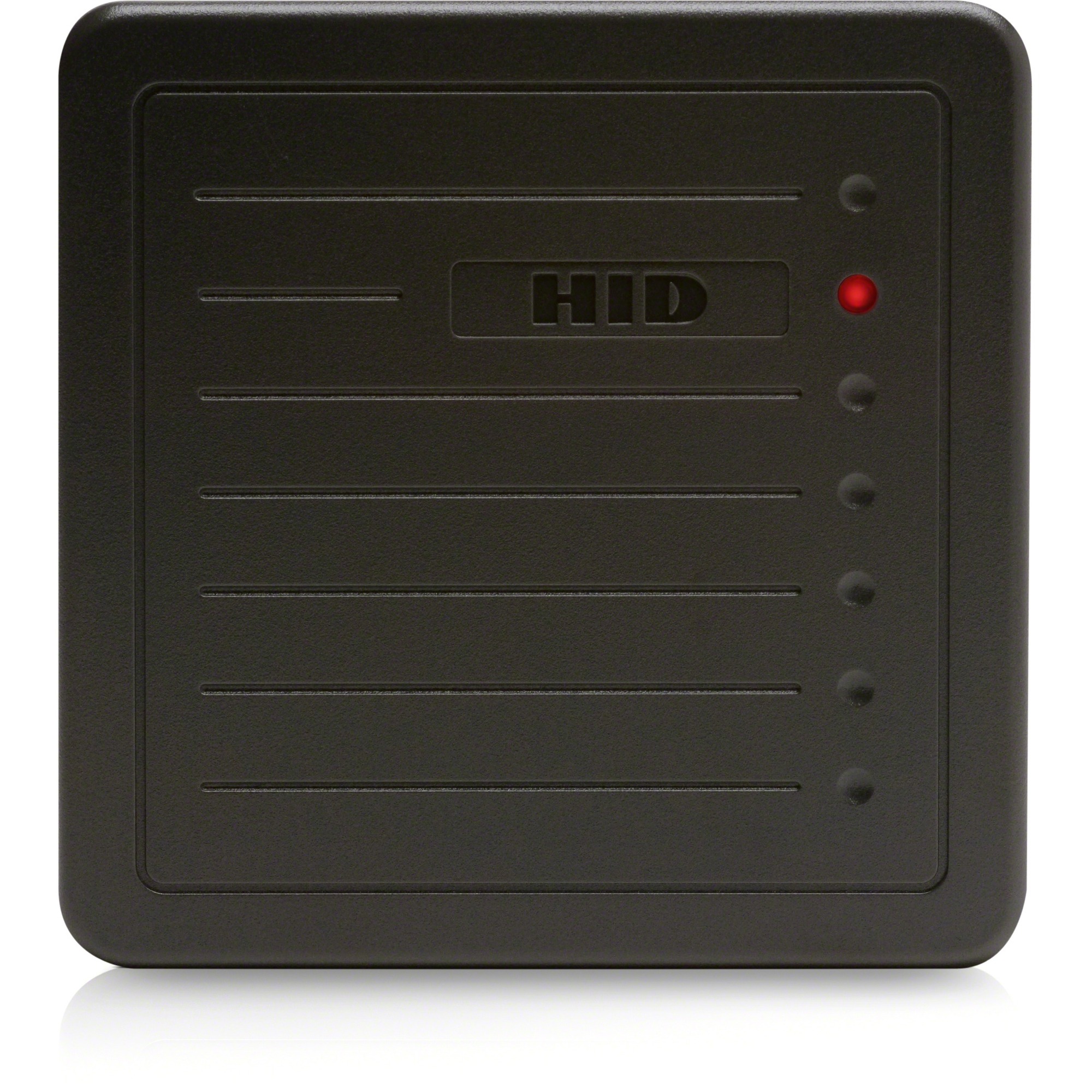

HID 125 kHz Wall Switch Proximity Reader

Part No. 5455BGN00

by ASSA ABLOY

HID 125 kHz Wall Switch Proximity Reader

Contactless - Cable - 8" (203.20 mm) Operating Range - Wiegand - Wall Mountable - Gray

Part No. 5455BGN00

by ASSA ABLOY

$449.99
General Information
ManufacturerASSA ABLOY
Manufacturer Part Number5455BGN00
Brand NameHID
Product LineProxPro II
Product Model5455B
Product Name125 kHz Wall Switch Proximity Reader
Marketing Information

HID's ProxPro® II proximity reader for access control combines performance, reliability, and ease of installation into a two-piece, weatherproof potted enclosure. International users will appreciate the multilingual installation manual, lower voltage requirement and flexible mounting options.

  • Ideal for medium-range applications.
  • Available with Wiegand or Clock-and-Data interface.
  • Optional glass mount kit available for mounting the reader behind glass.
  • Potted reader suitable for indoor or outdoor use.
  • Available in black, white, gray or beige.
  • 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
Key Features
  • Two-piece reader design allows for easy installation.
  • Available with a Wiegand or Clock-and-Data interface.
  • Provides high reliability, consistent read range and low power consumption.
  • Features include multicolor LED and internal control or host control of the LED and beeper.
  • Mounts directly on metal with minimal impact on the read range performance. Optional kit enables mounting behind glass.
  • Compare features of the ProxPro II to the original ProxPro reader
Product TypeSmart Card Reader
Technical Information
Connectivity TechnologyCable
Media SupportedContactless
Maximum Operating Range8" (203.20 mm)
Interfaces/Ports
Host InterfaceWiegand
Physical Characteristics
Color FamilyGray
Product ColorGray
Form FactorWall Mountable
Height5" (127 mm)
Width5" (127 mm)
Depth1" (25.40 mm)
Weight (Approximate)13.60 oz (385.55 g)
Miscellaneous
Additional Information
  • Ideal for medium-range applications
  • Optional glass mount kit available for mounting the reader behind glass
Certifications & Standards
  • Canada/UL 294 Listed
  • FCC Certification, United States
  • Canada Certification
  • CE Mark
  • EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety)
  • Fifteen EU Countries under the R&TTE Directive (EN300 330 - SRD, and ETS 300 683 - EMC)
  • Australia C-Tick (pending)
  • New Zealand (pending)
  • Taiwan (pending)
Country of OriginChina
Environmentally FriendlyYes
ConditionNo
Warranty
Limited WarrantyLifetime
