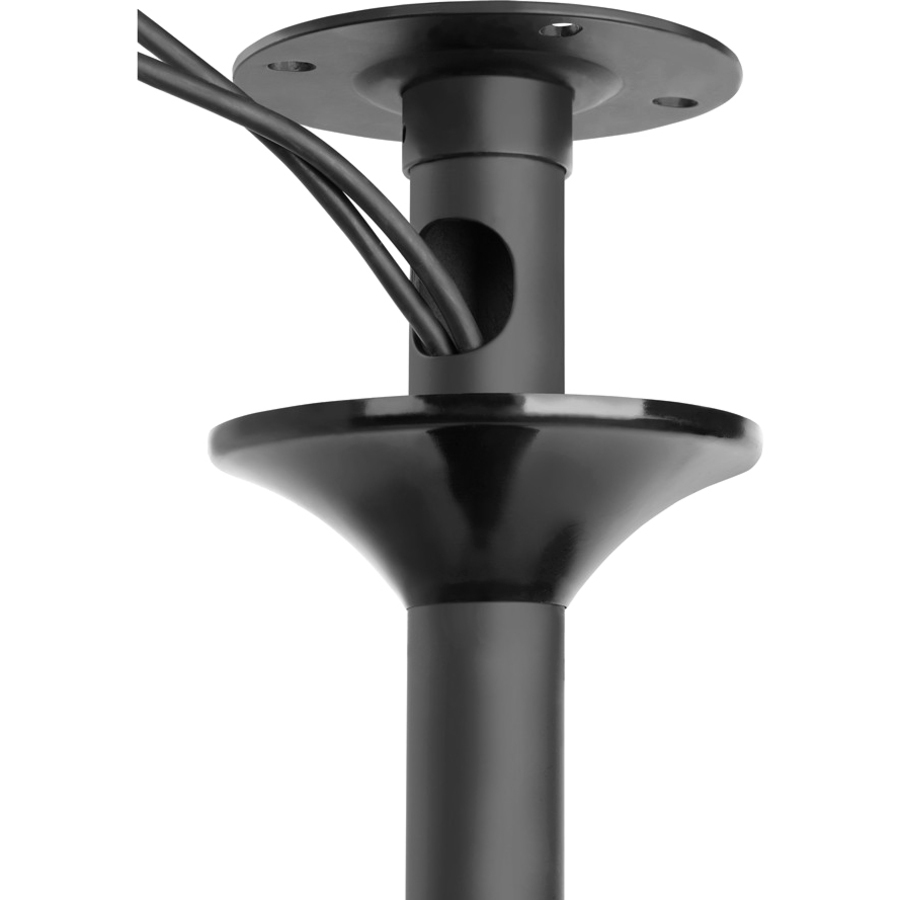

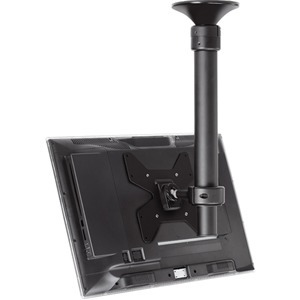

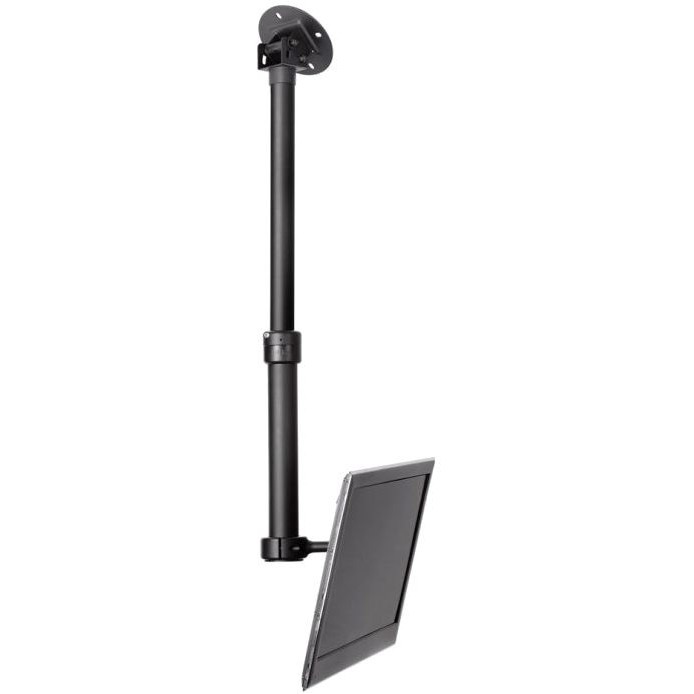

The TH-1040-CT is a versatile ceiling mount ideal for medium size (32in-46in) displays. It offers multiple adjustment points, including 360° rotation around the pole, tilt, pan and landscape/portrait display orientation. The telescopic pole enables easy display positioning at the desired height. Installation is simple, with built-in safety features to prevent the telescopic poles separating. Cables are run through the pole for a clean and professional finish. Two options are available:

• TH-1040-CTS - pole adjustment length from 15.75in to 35.43in
• TH-1040-CTL - pole adjustment length from 35.43in to 70.87in

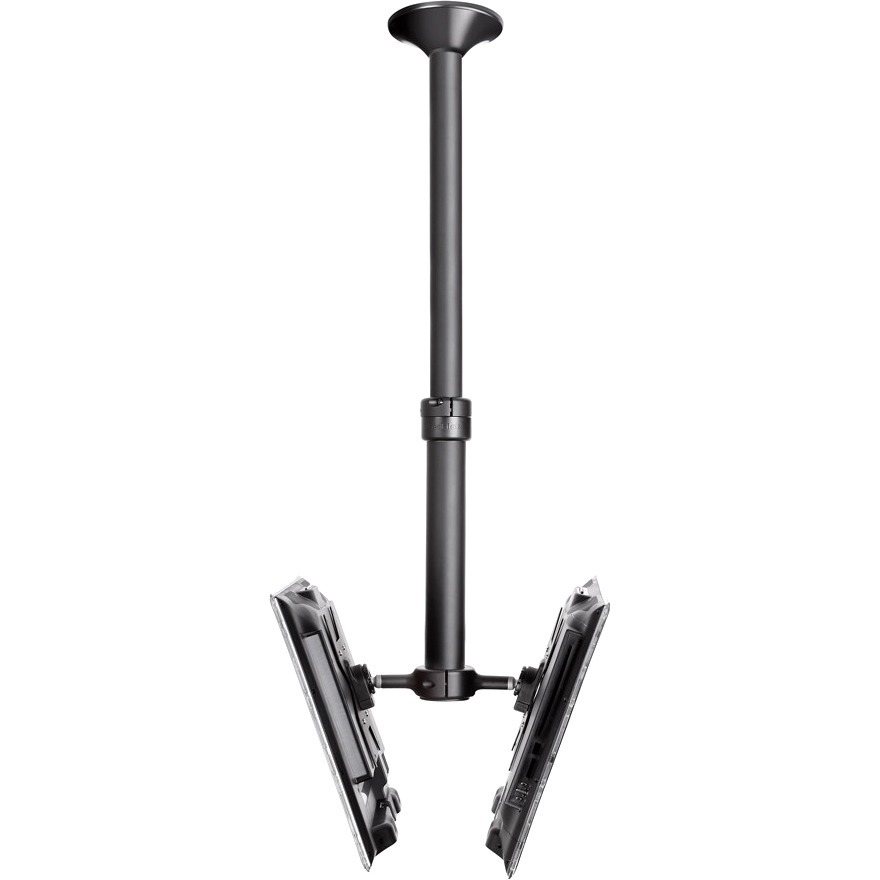

This mount can be upgraded to dual back-to-back or dual vertical configurations (TH-1040-CT-B2B accessory sold separately).

• Swivel
• Tilt
• Pan
• 360° Rotation

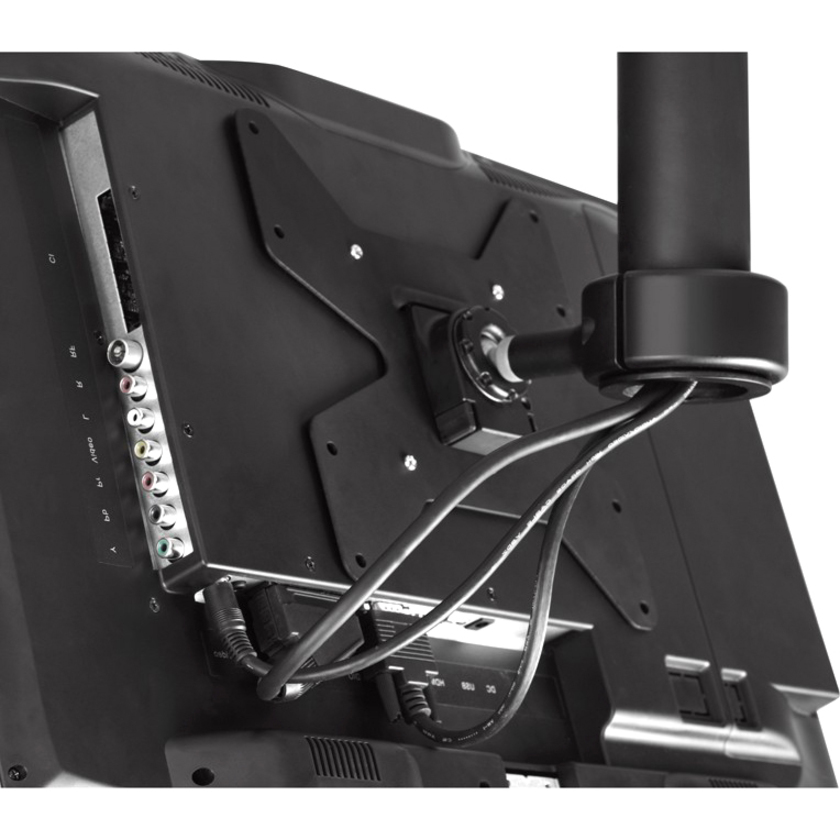

• Cable Management
• Anti-theft
• Quick Release Mechanism

• 75 x 75
• 100 x 100
• 200 x 100
• 200 x 200

• Steel
• Plastic
• Aluminum

• 1 x Ceiling Plate
• 2 x Small/Large VESA Plate
• 1 x Ceiling Plate Cover
• 1 x Plate Assembly

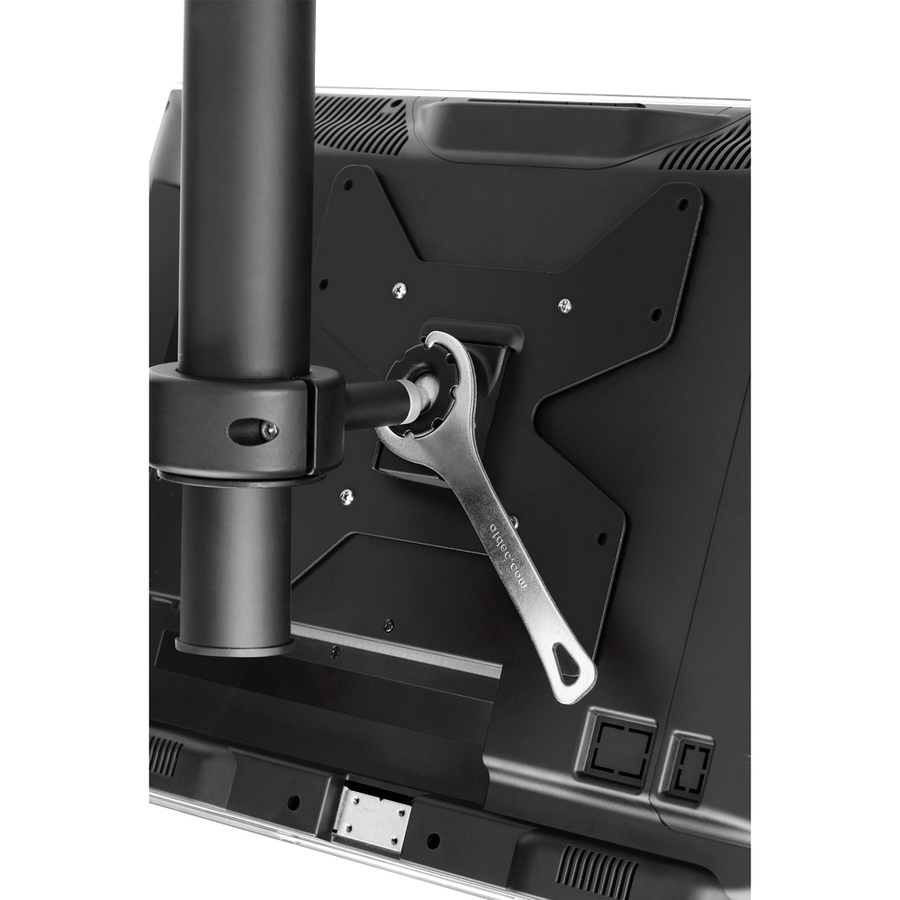

• 1 x Tension Tool
• 4 x Coach Screw
• 4 x Nylon Anchor
• 4 x M4 Washer
• 4 x M5 Washer
• 4 x M10 Washer
• 4 x M4 Spacer
• 4 x M5 Spacer
• 4 x M6 Spacer
• Security Screw
• Set Screw
• 1 x 2.5mm Allen Key
• 1 x 3mm Allen Key
• 1 x 5mm Allen Key
• 4 x M4 x 16mm Display Mounting Screws
• 4 x M4 x 25mm Display Mounting Screws
• 4 x M5 x 16mm Display Mounting Screws
• 4 x M5 x 25mm Display Mounting Screws
• 4 x M6 x 16mm Display Mounting Screws
• 4 x M6 x 30mm Display Mounting Screws

• Telescopic pole adjustment from: 15.75" - 35.43" (400mm to 900mm)
• Secondary display height adjustment of 12.40" (315mm)
• Portrait to landscape rotation
• Secondary display height adjustment of 12.40" (315mm)
• Ball joint mechanism allows for display angular adjustment of 20 degrees in any direction; portrait to landscape rotation
• Quick release mechanism for easy display attachment/removal with security screw for theft resistance
• 360 Degrees around the pole

• LCD
• LED
