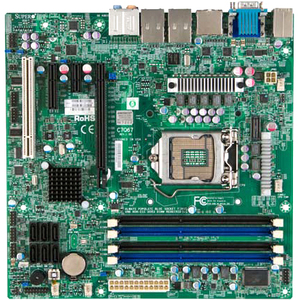

Supermicro C7Q67 Desktop Motherboard - Intel Q67 Express Chipset - Socket H2 LGA-1155 - Micro ATX
32 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 4 x Memory Slots - Gigabit Ethernet - HDMI - 6 x SATA Interfaces
$460.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-C7Q67-O |
| Brand Name | Supermicro |
| Product Model | C7Q67 |
| Product Name | C7Q67 Desktop Motherboard |
| Marketing Information | Major Benefits from Supermicro's in-house Design Superiority Supermicro motherboard advantages:
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction. |
| Package Type | Retail |
| Product Type | Desktop Motherboard |
Processor & Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | Q67 Express |
| Total Processor Supported | 1 |
| Processor Technology | Enhanced SpeedStep Technology |
| Processor Socket | Socket H2 LGA-1155 |
| Processor Supported |
|
| 64-bit Processing | Yes |
Memory
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 32 GB |
| Memory Standard |
|
| Memory Technology | DDR3 SDRAM |
| Memory Speed Supported |
|
I/O Controller
| Controller Type |
|
| RAID Supported | Yes |
| RAID Levels |
|
Video
| Onboard Video | CPU Dependent Video |
Audio
| Sound Controller Model | ALC889 |
| Audio Channels | 7.1 |
Network & Communication
| Gigabit Ethernet | Yes |
I/O Expansions
| Total Number of Expansion Slots | 4 |
| Number of PCI Slots | 1 |
| PCI Express Standard | PCI Express 2.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
Interfaces/Ports
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Serial Port | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Microphone Port | Yes |
| VGA | Yes |
| HDMI | Yes |
| Number of HDMI Outputs | 2 |
| Network (RJ-45) | Yes |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 1 |
Onboard Interfaces
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 8 |
| Onboard LEDs Header | Yes |
| Onboard Audio Header | Yes |
| Onboard S/PDIF Header | Yes |
Power Description
| Power Supply Supported | ATX |
Physical Characteristics
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) |
Miscellaneous
| Environmentally Friendly | Yes |
| Condition | No |
| UPC | 0672042084357 |
Warranty
| Limited Warranty | 3 Year |
