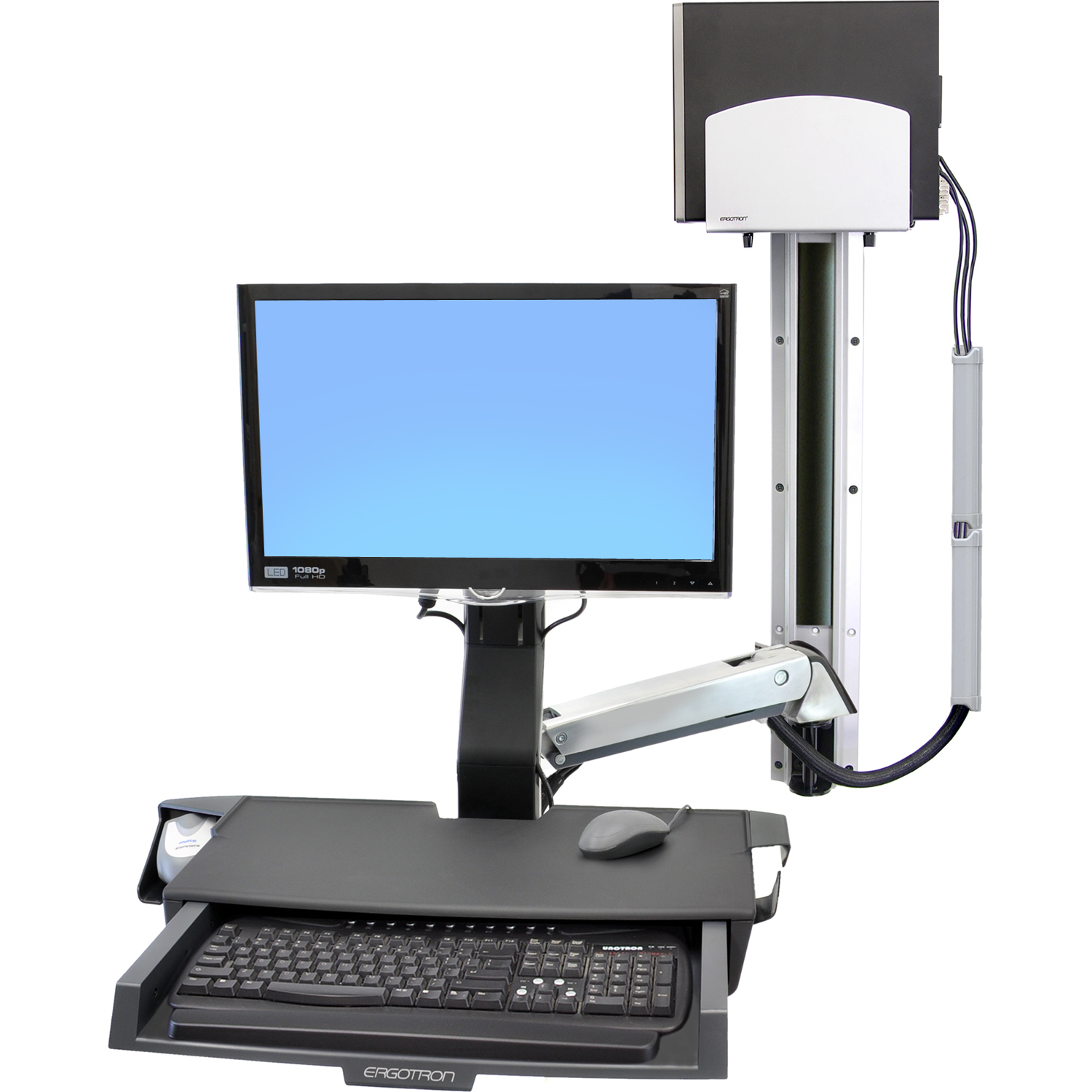

Ergotron StyleView Multi Component Mount for CPU, Flat Panel Display, Mouse, Keyboard

Part No. 45-270-026

by Ergotron, Inc

Ergotron StyleView Multi Component Mount for CPU, Flat Panel Display, Mouse, Keyboard

24" Screen Support - 32 lb (14514.96 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminum, Plastic

Part No. 45-270-026

by Ergotron, Inc

$1787.99
General Information
ManufacturerErgotron, Inc
Manufacturer Part Number45-270-026
Brand NameErgotron
Product LineStyleView
Product NameStyleView Sit-Stand Combo System with Worksurface
Marketing Information

This complete system provides easy re-positioning of your entire workstation-move your display, keyboard, mouse and barcode scanner in a single motion!

Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver work flow. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

Product TypeMulti Component Mount
Product Information
Device Supported
  • CPU
  • Flat Panel Display
  • Mouse
  • Keyboard
Maximum Load Capacity32 lb (14514.96 g)
Maximum Screen Size Supported24"
Features
  • Tilt
  • Swivel
Physical Characteristics
VESA Mount CompatibleYes
Mounting Pattern
  • 75 x 75
  • 100 x 100
Product Material
  • Aluminum
  • Plastic
Miscellaneous
Package Contents
  • HD Combo Arm
  • 34" Wall Track with (2) Black Track Cover
  • Medium Silver CPU Holder
  • CPU Spacer
  • 2 x 10" Cable Channel
  • CPU and Arm Track Mount Bracket Kit
  • Wall Track Fasteners for Concrete and Wood
  • CPU Direct Wall Mount Kit
  • Height Adjustable LCD Mount
  • Wrist Rest
  • Scanner and Mouse Holder
  • Integrated Keyboard Tray
  • Handle
  • VESA Monitor Mounting Kit
  • Cable Tie
  • Mounting Hardware
Additional Information
  • Support work flow needs with sturdy worksurface: 22.75"W x 10.6"D
  • Weight Capacity - Display = 6-18 lbs
  • Weight Capacity - Worksurface = 10 lbs
  • Weight Capacity - Keyboard, mouse and barcode scanner = 4 lbs
  • Easy-to-clean features promote superior infection control
  • Barcode scanner holder provides easy access to hand-held scanner
  • Extend LCD and keyboard up to 43" from wall
  • Clean, concealed and neat routing of cables through the expansive cable management system
  • LCD and keyboard adjusts 20" in tandem with single-motion
  • LCD adjusts 5" independently
  • Maximum LCD height adjustment = 25"
  • Monitor up/down tilt = +25°/-5°
CompatibilityLCD Screen
Certifications & Standards

VESA:

  • FDMI
  • MIS-D
  • C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Country of OriginChina
ConditionNo
UPC698833018165
Warranty
Limited Warranty5 Year
