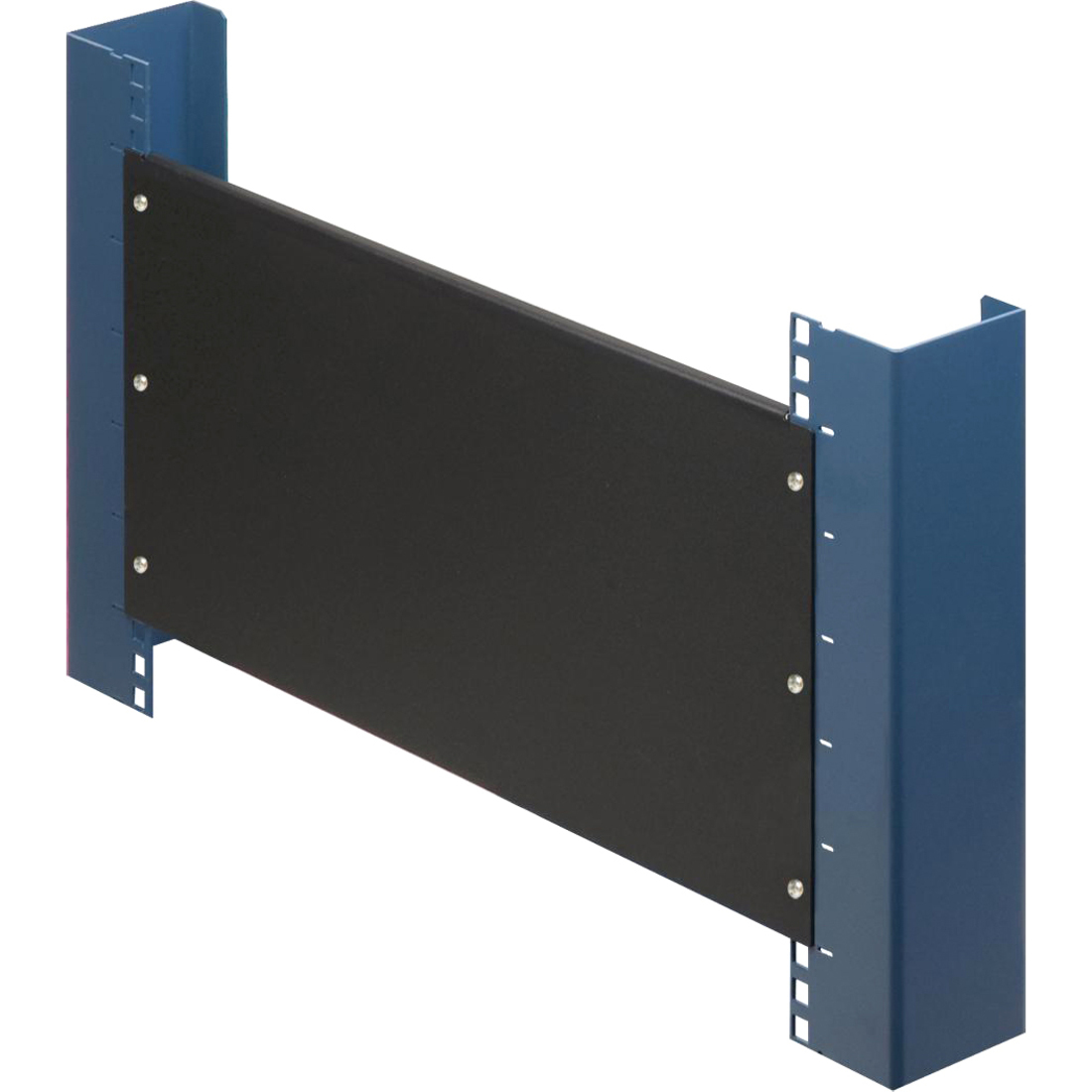

Filler Panels are used to control the air flow inside of server racks. Without the use of filler panels, the hot exhaust air from the servers can be recirculated through the server and significantly reduce the cooling efficiency of the system. Installations that have Open Frame Racks, closed server cabinets or a 2Post rack can benefit from the use of filler panels. In any installations the filler panels also help give your rack a clean and professional look. Compatible with all EIA Standard 19" racks and cabinets with square, round and threaded holes including Dell, HP, Compaq, IBM, APC NetShelter, APW, Liebert, CPI Chatsworth, Rittal, Blackbox and many others.

• 7U Filler Panel with Stability Flanges
• 8 x Screws for 10-32 Threaded Holed Racks, Cabinets and Enclosures
• 8 x Screws for 12-24 Threaded Holed Racks, Cabinets and Enclosures
• 8 x 12-24 Cage Nuts For Square Holed Racks, Cabinets and Enclosures
• 8 x 12-24 Square Nuts For Non Threaded Holed Racks, Cabinets and Enclosures

• Assembly Notes: Phillips head screwdriver required

Hole Type Compatibility :

• The industry standard 3/8" (10 mm) square hole racks
• All standard round (non-threaded) holes
• All standard threads including 10-32, 12-24 and Metric M6

All EIA Standard 19" Racks and Cabinets with Square, Round and Threaded Holes:

• Dell
• HP
• Compaq
• IBM
• APC NetShelter
• APW
• Liebert
• CPI Chatsworth
• Rittal
• Blackbox
