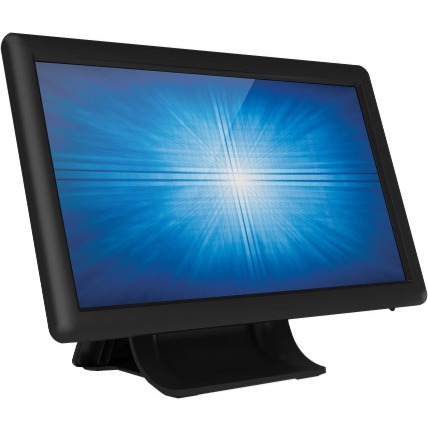

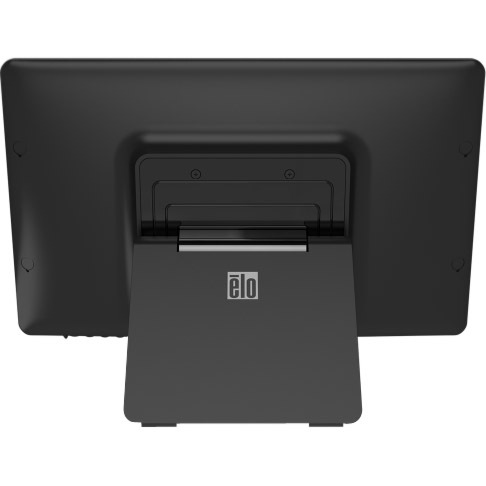

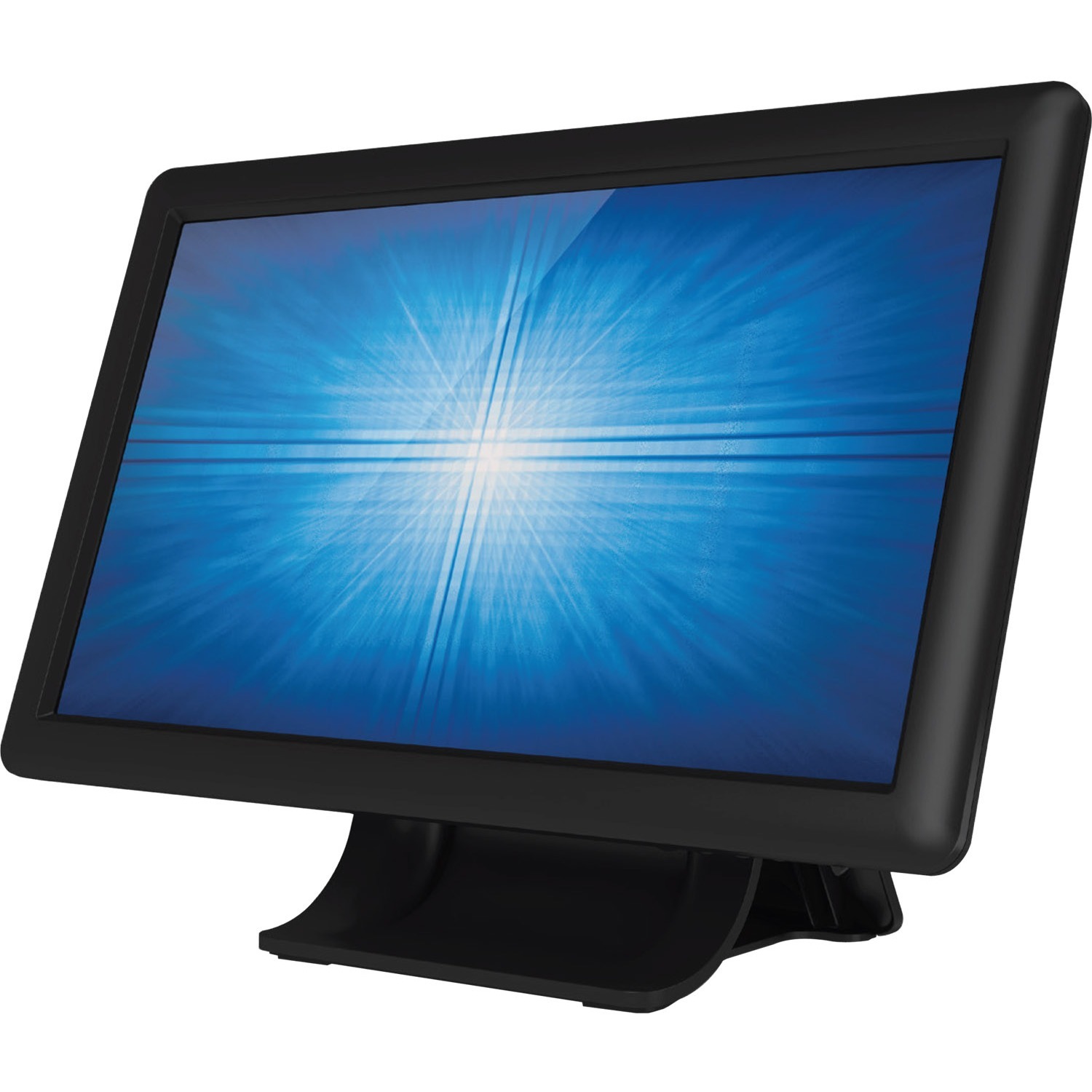

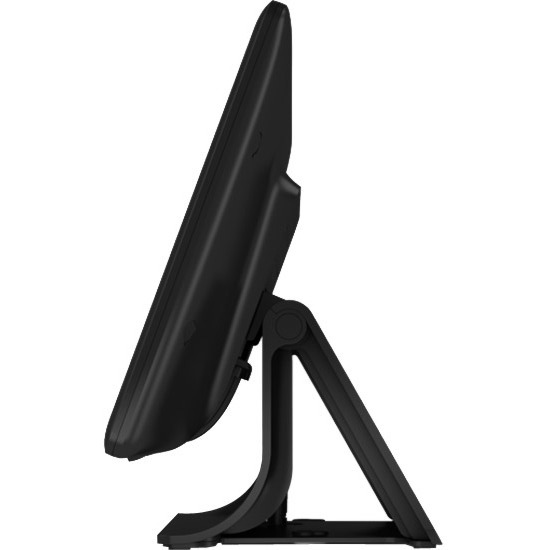

Elo 1509L 16" Class LCD Touchscreen Monitor - 16:9 - 8 ms
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E534869 |
| Brand Name | Elo |
| Product Model | 1509L |
| Product Name | 1509L 15" LCD Desktop Touchmonitor |
| Marketing Information | The Elo TouchSystems 1509L 15" Desktop Touchmonitor is an attractively designed wide screen touchmonitor solution, primarily intended for general applications including hospitality and retail environments. Without compromising the principles of 'built for touch' and high quality upon which the Elo TouchSystems brand prides itself, the 1509L has been designed to fit the tightest of budgets The 1509L's 15-inch widescreen format is intended to save space physically, while offering additional on-screen space. This allows for extra content such as additional sidebar menus, on-screen keypads or additional columns of information. In addition, the widescreen design prevents blocking eye contact to customers and improves customer interaction. |
| Product Type | LCD Touchscreen Monitor |
| Screen Size Class | 16" |
| Viewable Screen Size | 15.6" |
| Screen Mode | WXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 80° |
| Vertical Viewing Angle | 40° |
| Mount Type |
|
| Backlight Technology | LED |
| Features |
|
| Horizontal Frequency | 30 kHz to 80 kHz |
| Vertical Frequency | 60 Hz |
| Curved Screen | No |
| Maximum Resolution | 1366 x 768 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 300:1 |
| Native Contrast Ratio | 400:1 |
| Brightness | 220 cd/m² |
| Touchscreen | Yes |
| Touchscreen Type | IntelliTouch Surface Wave |
| USB | Yes |
| VGA | Yes |
| Operating Power Consumption | 11 W |
| Standby Power Consumption | 1.80 W |
| Off-Mode Power Consumption | 1 W |
| Input Voltage Range | 100V to 240V |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Product Color | Black |
| Height | 11.22" (285 mm) |
| Width | 15.43" (392 mm) |
| Depth | 8.98" (228 mm) |
| Height with Stand | 9.51" (241.50 mm) |
| Width with Stand | 15.44" (392.20 mm) |
| Depth with Stand | 11.35" (288.30 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Country of Origin | China |
| Condition | No |
| UPC | 0741149327695 |
