StarTech.com Dual 2.5" to 3.5" HDD Bracket for SATA Hard Drives - 2 Drive 2.5" to 3.5" Bracket for Mounting Bay

Part No. BRACKET25X2

by StarTech.com

StarTech.com Dual 2.5" to 3.5" HDD Bracket for SATA Hard Drives - 2 Drive 2.5" to 3.5" Bracket for Mounting Bay

Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay - Hard Drive Mounting Bracket - 2.5 to 3.5 Hard Drive Adapter - 2.5 to 3.5 Bracket - SSD Mounting Bracket - Hard Drive Mounting Brackets - Hard Drive Mounting Kit - SSD Mounting Kit

Part No. BRACKET25X2

by StarTech.com

$10.99
General Information
ManufacturerStarTech.com
Manufacturer Part NumberBRACKET25X2
Brand NameStarTech.com
Product NameDual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
Marketing Information

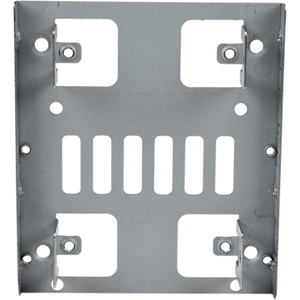

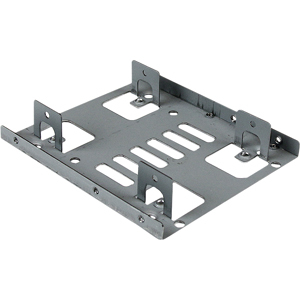

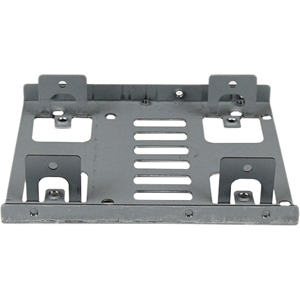

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD.

Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states

For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).

The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity1 Each
Product TypeDrive Bay Adapter
Technical Information
Number of Hard Drives Supported2
Number of Hard Drives InstalledNo
Number of Solid State Drive Supported2
Number of Solid State Drive InstalledNo
I/O Expansions
Number of Total Expansion Bays2
Number of 2.5" Bays2
Network & Communication
Wireless LANNo
Interfaces/Ports
Drive InterfaceSATA/600
Physical Characteristics
Color FamilySilver
Product ColorSilver
Product MaterialSteel
Form FactorInternal
Compatible Drive Bay Width3.5"
Height0.90" (22.86 mm)
Width4" (101.60 mm)
Depth4.60" (116.84 mm)
Weight (Approximate)2.60 oz (73.71 g)
Miscellaneous
Package Contents
  • Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
  • 1 x Drive Mounting Screw Kit
  • 4 x Flat Screws and Washers (Bottom Drive)
  • 4 x M3x5mm Screws (Top Drive)
  • 4 x 6-32 Screws (Case Mount)
  • 2 x SATA Data Cables
  • 1 x SATA Power Y Cable
  • 1 x Quick-Start Guide
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
ConditionNo
UPC0065030852593
Warranty
Limited WarrantyLifetime
