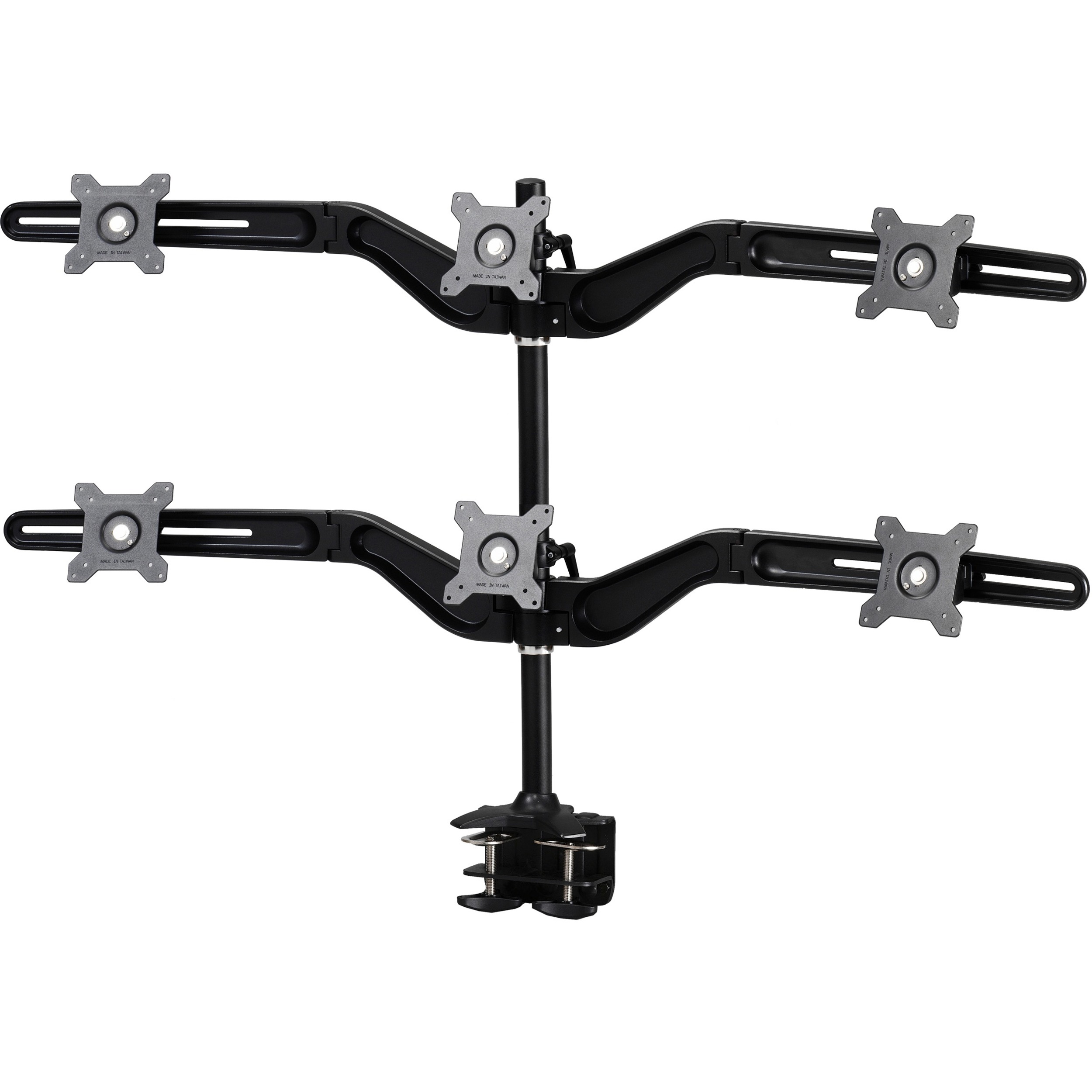

Amer Mounts Clamp Based Hex Monitor Mount for six 15"-24" LCD/LED Flat Panel Screens

Part No. AMR6C

by Amer Networks, Inc

Amer Mounts Clamp Based Hex Monitor Mount for six 15"-24" LCD/LED Flat Panel Screens

Supports up to 13.2lb monitors, +/- 20 degree tilt, and VESA 75/100

Part No. AMR6C

by Amer Networks, Inc

$538.99
General Information
ManufacturerAmer Networks, Inc
Manufacturer Part NumberAMR6C
Brand NameAmer Mounts
Product NameClamp Based Hex Monitor Mount. Up to 24" , 13.2lb monitors
Marketing Information

This incredibly versatile product supports up to Six 24" monitors each with a maximum individual weight of 13.2 lbs. Not only will this strong and sturdy mount have no trouble holding VESA certified 75x75 or 100x100 monitors, (fitting the above criteria), it is also extremely adjustable!

  • Each monitor can be placed at a different height to accommodate different sized monitors
  • All six monitors have 360º rotation (meaning landscape, portrait, or anything in-between)
  • Also included is a +/- 20º tilt in any direction Individually for ALL 6 Monitors, ensuring maximum user comfort
  • Height adjustable, with a maximum height of 27.75" from the desk to the center of the top VESA bracket.

All of these factors compliment each other in providing you with the optimal mounting experience!

Benefits of Clamp Mounting:

Clamp Bases are an excellent mounting option! They are screwed onto the edge of a desk for maximum space. (Clamp bases require a lip on the desk 8-50 mm thick and 85 mm deep)

  • They are the sturdiest mount of the three kinds (stand, clamp and grommet)
  • They take up the least amount of desk space (So much more room for activities!)
Product TypeDesk Mount
Product Information
Device SupportedFlat Panel Display
Maximum Load Capacity79.20 lb (35924.52 g)
Maximum Screen Size Supported24"
Maximum Adjustable Height27.75" (704.85 mm)
Features
  • Rotate
  • Swivel
  • Tilt
  • Cable Management
  • Pivot
  • Smart Torque Adjustment
Height AdjustableYes
Physical Characteristics
Product ColorBlack
VESA Mount CompatibleYes
Mounting Pattern
  • 100 x 100
  • 75 x 75
Product Material
  • Steel
  • Aluminum Alloy
  • Plastic
Height30.04" (763 mm)
Width51.18" (1300 mm)
Depth5.67" (144 mm)
Weight (Approximate)23.81 lb (10800 g)
Miscellaneous
Additional Information
  • Tilt: Max. + / -20° (For each "Hinge")
  • Swivel: Max. +/-20° (For each "Hinge")
  • Rotate(Pivot): 360°
  • Screw Type: M4
  • Easy Install
Compatibility6 x LCD Monitor
Country of OriginTaiwan
ConditionNo
UPC0650177303031
Warranty
Limited Warranty3 Year
